Here you will find all available parts and drawings of the 'Makita PC5010C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

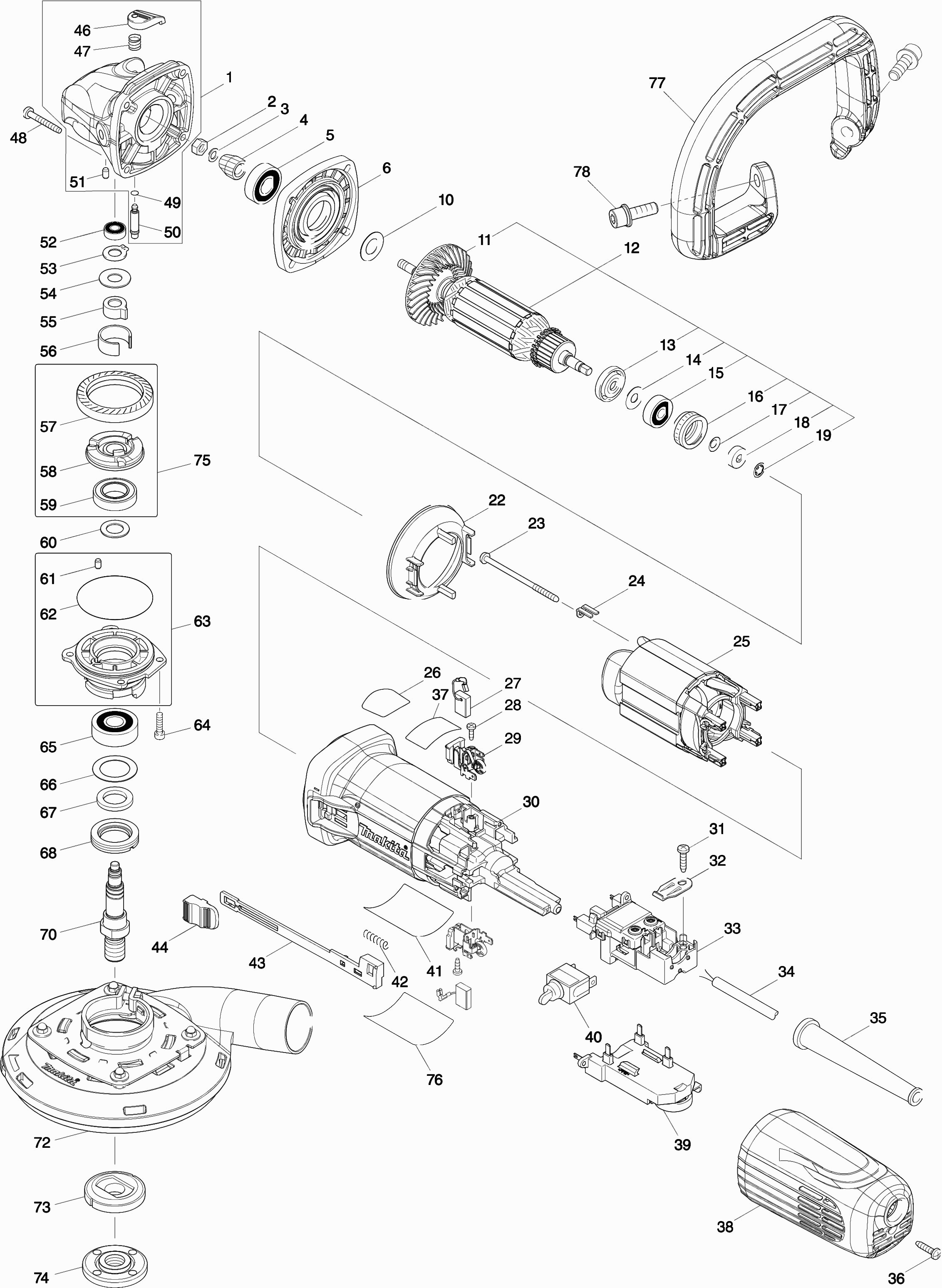

Technical drawing of model Makita PC5010C
Spare parts list of model Makita PC5010C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear housing PC5010C/GA series A | ||||
| 001 | 136013-6 | 16.50 | 19.96 | |
| Nut M6 | ||||
| 002 | 252186-8 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 003 | 253077-6 | 1.00 | 1.21 | |
| Gear 9 PC5010C | ||||
| 004 | 227593-4 | 7.20 | 8.71 | |
| Ball Bearing 6001zz | ||||
| 005 | 211148-5 | 8.40 | 10.16 | |
| Inner Cover | ||||
| 006 | 141981-0 | 9.60 | 11.62 | |
| Washer 12 | ||||
| 010 | 253084-9 | 1.00 | 1.21 | |
| Fan 88 | ||||
| 011 | 240134-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 012 | 510377-0 | |||
| Insulation ring | ||||
| 013 | 681656-4 | 1.00 | 1.21 | |
| Washer 7 LF1000 A | ||||
| 014 | 267326-5 | 1.00 | 1.21 | |
| Ball bearing 627ddw | ||||
| 015 | 210045-2 | 3.60 | 4.36 | |
| Labyrinth ring GA5040C A | ||||
| 016 | 422750-1 | 2.40 | 2.90 | |
| Spring Washer 6 | ||||
| 017 | 267756-0 | 1.00 | 1.21 | |
| Magnetic socket Rt0700 A | ||||
| 018 | 688117-5 | 3.60 | 4.36 | |
| Spring retaining ring | ||||
| 019 | 259039-2 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 022 | 453367-9 | 2.40 | 2.90 | |
| Tapping Screw 4x70 | ||||
| 023 | 266258-3 | 1.20 | 1.45 | |
| Holding Plate | ||||
| 024 | 344871-8 | 1.20 | 1.45 | |
| Field | ||||
| 025 | 626653-3 | 30.80 | 37.27 | |
| Label "sjs2" | ||||
| 026 | 898443-6 | 2.40 | 2.90 | |
| Carbon brush set CB-318 | ||||
| 027 | 191978-9 | 8.40 | 10.16 | |
| Tapping screw Pt3x10 | ||||
| 028 | 266007-8 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 029 | 643770-4 | 2.40 | 2.90 | |
| Motor Housing | ||||
| 030 | 453366-1 | 10.80 | 13.07 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 031 | 265B67-9 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 031-1 | 265B67-9 | 1.00 | 1.21 | |
| Strain reliever | ||||
| 032 | 687169-3 | 1.00 | 1.21 | |
| Switch Holder Ga5040C A | ||||
| 033 | 632K98-1 | 9.60 | 11.62 | |
| Power cord 2x1.50 4.0mtr | ||||
| 034 | 695123-3 | 22.00 | 26.62 | |
| Cable gland 10 | ||||
| 035 | 682566-8 | 1.20 | 1.45 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 036 | 265B67-9 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 036-1 | 265B67-9 | 1.00 | 1.21 | |
| Indicator label PC5010C | ||||
| 037 | 817M63-5 | 2.40 | 2.90 | |
| Side Cover | ||||
| 038 | 453365-3 | 3.60 | 4.36 | |
| Controller PC5010C | ||||
| 039 | 620736-1 | 44.96 | 54.40 | |
| CONTROLLER PC5010C | ||||
| 039-1 | 620G44-2 | 44.00 | 53.24 | |
| Switch Sw-126 A | ||||
| 040 | 651069-3 | 8.40 | 10.16 | |
| Nameplate PC5010C | ||||
| 041 | 854S18-5 | 3.60 | 4.36 | |
| Compression Spring 4 | ||||
| 042 | 233071-4 | 1.00 | 1.21 | |
| Switch handle | ||||
| 043 | 453847-5 | 1.20 | 1.45 | |
| Switch knob Ga5040C | ||||
| 044 | 453368-7 | 1.00 | 1.21 | |
| Pin cap | ||||
| 046 | 453369-5 | 1.20 | 1.45 | |
| Compression Spring 8 | ||||
| 047 | 234057-1 | 1.00 | 1.21 | |
| Tap screw 4x30mm DGA520 | ||||
| 048 | 265B70-0 | 1.00 | 1.21 | |
| Tap screw 4x30mm DGA520 | ||||
| 048-1 | 265B70-0 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 049 | 213032-0 | 1.00 | 1.21 | |
| Collar pin 6mm | ||||
| 050 | 256535-1 | 1.20 | 1.45 | |
| Rubber Pin 4 | ||||
| 051 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 052 | 210026-6 | 2.40 | 2.90 | |
| Lock ring S-9 | ||||
| 053 | 961005-4 | 1.00 | 1.21 | |
| Washer 10 | ||||
| 054 | 253180-3 | 1.20 | 1.45 | |
| Spacer bushing Ga5040C A | ||||
| 055 | 310683-1 | 6.00 | 7.26 | |
| Spring retaining ring | ||||
| 056 | 346556-2 | 2.40 | 2.90 | |
| Gear 41 PC5010C | ||||
| 057 | 227594-2 | 7.20 | 8.71 | |
| Clutch | ||||
| 058 | 313228-4 | 10.80 | 13.07 | |
| Ball bearing 6903zz | ||||
| 059 | 210302-8 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 060 | 253744-3 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 061 | 263002-9 | 1.00 | 1.21 | |
| O-ring 51 | ||||
| 062 | 213641-5 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 063 | 136012-8 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 063-1 | 136877-8 | |||
| Hex bolt 4x16 | ||||
| 064 | 266437-3 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 065 | 211129-9 | 8.40 | 10.16 | |
| Washer 21 | ||||
| 066 | 267279-8 | 1.00 | 1.21 | |
| Felt ring 17mm | ||||
| 067 | 443124-3 | 1.00 | 1.21 | |
| Bearing Lock | ||||
| 068 | 285854-8 | 1.20 | 1.45 | |
| Spindle Ass'y | ||||
| 070 | 326130-2 | 7.20 | 8.71 | |
| No longer available, no replacement | ||||
| 072 | 195239-9 | |||
| STOFAFZUIGKAP KOMSCHIJF 125 MM | ||||
| 072-1 | 191W06-8 | 32.00 | 38.72 | |
| Brush | ||||
| 072A | 743332-9 | 17.60 | 21.30 | |
| Brush | ||||
| 072B | 743333-7 | 14.30 | 17.30 | |
| Screw 5x16 | ||||
| 072C10 | 265180-1 | 1.00 | 1.21 | |
| BINNENFLENS HAAKSE SLIJPER EN SLEUVENZAAG | ||||
| 073 | 224415-9 | 3.00 | 3.63 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 074 | 224554-5 | 3.00 | 3.63 | |
| PC5010C coupling | ||||
| 075 | 135556-5 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 076 | 892272-9 | |||
| Bow handle PC5010C | ||||
| 077 | 458690-7 | 14.30 | 17.30 | |
| Allen bolt M8x25 | ||||
| 078 | 922443-5 | 1.20 | 1.45 | |
