Here you will find all available parts and drawings of the 'Makita PC5001C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

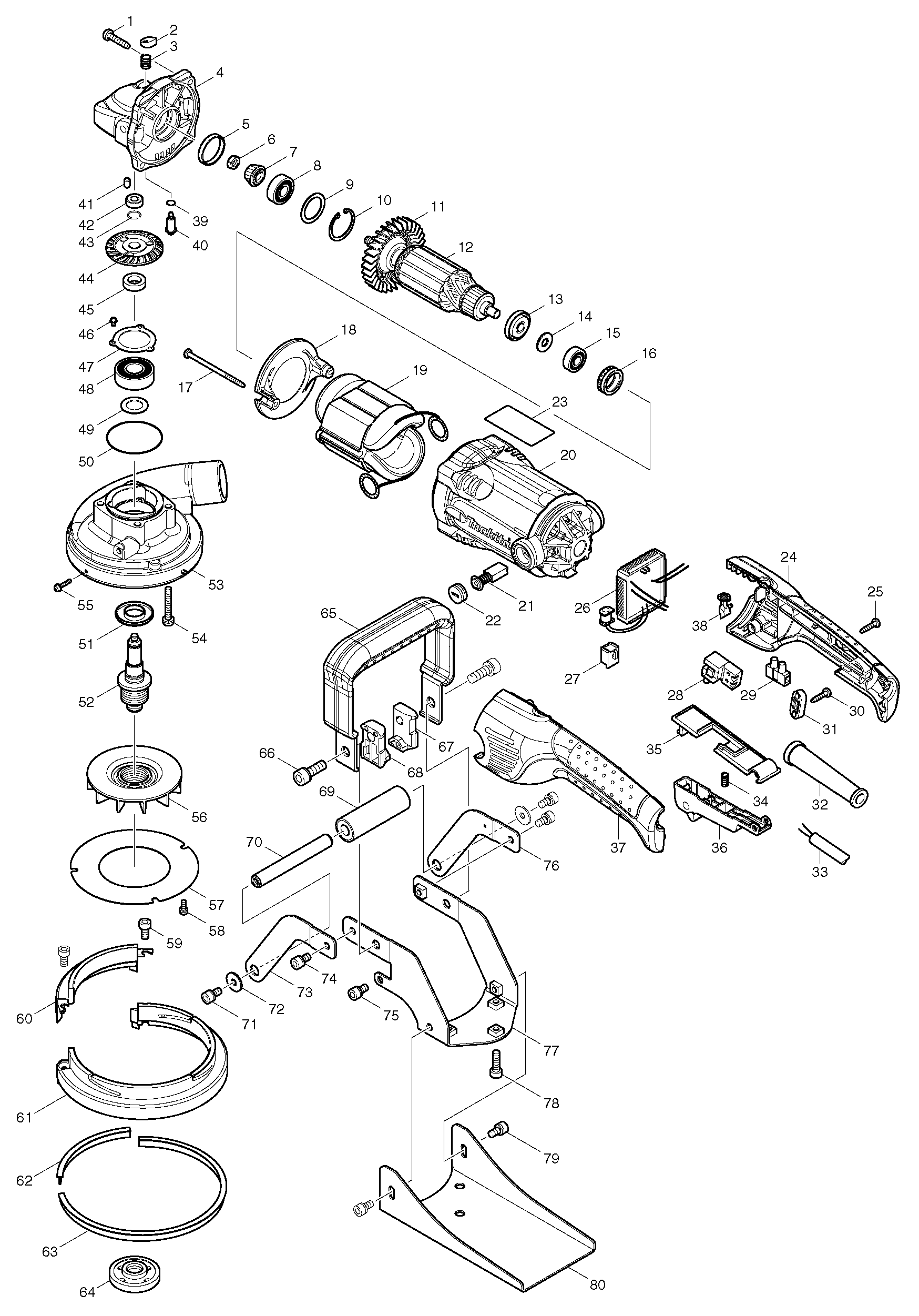

Technical drawing of model Makita PC5001C
Spare parts list of model Makita PC5001C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-tapping screw Pf 5x25 | ||||
| 001 | 266459-3 | 1.00 | 1.21 | |
| Lock pin cap | ||||
| 002 | 417771-6 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 003 | 234057-1 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 004 | 318158-4 | 10.80 | 13.07 | |
| Rubber ring 26mm | ||||
| 005 | 424051-3 | 1.00 | 1.21 | |
| Nut M7 | ||||
| 006 | 264010-3 | 1.00 | 1.21 | |
| Gear 11 | ||||
| 007 | 227520-1 | 3.60 | 4.36 | |
| Ball bearing 6000ddw | ||||
| 008 | 211289-7 | 13.20 | 15.97 | |
| Washer 22 Ga5021 | ||||
| 009 | 267352-4 | 1.00 | 1.21 | |
| Lock ring R-30 | ||||
| 010 | 962107-9 | 1.00 | 1.21 | |
| Fan 70 | ||||
| 011 | 240094-5 | 2.40 | 2.90 | |
| Armature | ||||
| 012 | 518685-3 | 34.10 | 41.26 | |
| Insulation ring | ||||
| 013 | 681660-3 | 7.20 | 8.71 | |
| Washer 8 | ||||
| 014 | 267281-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 015 | 210044-4 | |||
| Rubber Ring | ||||
| 016 | 421720-7 | 7.20 | 8.71 | |
| Tapping Screw 4x70 | ||||
| 017 | 266325-4 | 1.00 | 1.21 | |
| Spacer plate | ||||
| 018 | 419961-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 019 | 525784-4 | |||
| Stator spring Cb5 | ||||
| 019A | 654020-2 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 019B | 654501-6 | 0.83 | 1.00 | |
| Motor Housing | ||||
| 020 | 140019-8 | 11.00 | 13.31 | |
| Brush Holder | ||||
| 020A | 643751-8 | 3.60 | 4.36 | |
| KOOLBORSTEL SET CB-253 A | ||||
| 021 | 194994-0 | 3.96 | 4.79 | |
| Carbon brush cap | ||||
| 022 | 643515-0 | 1.00 | 1.21 | |
| Nameplate "pc5001c" | ||||
| 023 | 866331-5 | 3.60 | 4.36 | |
| Handle set | ||||
| 024 | 188630-8 | 11.00 | 13.31 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 025 | 265B67-9 | 1.00 | 1.21 | |
| Speed control circuit | ||||
| 026 | 631799-2 | 34.10 | 41.26 | |
| No information available, not orderable | ||||
| 026-1 | 620G47-6 | |||
| Socket | ||||
| 027 | 418518-1 | 1.20 | 1.45 | |
| Switch Sw-131 | ||||
| 028 | 651922-3 | 11.00 | 13.31 | |
| Terminal block | ||||
| 029 | 654575-7 | 3.60 | 4.36 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 030 | 265B67-9 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 031 | 687124-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 032 | 682574-9 | |||
| Power cord 2x1.50 4.0mtr | ||||
| 033 | 695123-3 | 22.00 | 26.62 | |
| Compression Spring 6x29mm | ||||
| 034 | 233117-6 | 1.00 | 1.21 | |
| Switch mounting plate | ||||
| 035 | 418519-9 | 1.20 | 1.45 | |
| Switch base | ||||
| 035-1 | 451637-0 | 3.60 | 4.36 | |
| Switch button Cpl Ga5021C A | ||||
| 036 | 158402-5 | 6.00 | 7.26 | |
| Switch handle | ||||
| 036-1 | 140358-6 | 6.00 | 7.26 | |
| Handle set | ||||
| 037 | 188630-8 | 11.00 | 13.31 | |
| Lens | ||||
| 038 | 450184-8 | 1.00 | 1.21 | |
| O-ring 7 | ||||
| 039 | 213977-2 | 1.00 | 1.21 | |
| Collar Pin 5 | ||||
| 040 | 256505-0 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 041 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 042 | 210026-6 | 2.40 | 2.90 | |
| Washer 11 Ga4530 | ||||
| 043 | 233950-6 | 1.00 | 1.21 | |
| Gear 35a | ||||
| 044 | 227521-9 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 045 | 257171-6 | 2.40 | 2.90 | |
| Screw 3x6 | ||||
| 046 | 911003-8 | 1.00 | 1.21 | |
| Bearing Lock 39 | ||||
| 047 | 285728-3 | 1.00 | 1.21 | |
| Ball bearing 6202llb | ||||
| 048 | 211228-7 | 8.40 | 10.16 | |
| Washer 15 | ||||
| 049 | 253853-8 | 1.00 | 1.21 | |
| O-ring 48 | ||||
| 050 | 213624-5 | 1.00 | 1.21 | |
| Intermediate Ring | ||||
| 051 | 345464-4 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 052 | 325625-2 | 8.40 | 10.16 | |
| Grinding house Pc5001C A | ||||
| 053 | 141021-4 | 26.40 | 31.94 | |
| Screw 5x35 | ||||
| 054 | 911256-9 | 1.00 | 1.21 | |
| Screw M3x14 | ||||
| 055 | 911024-0 | 1.00 | 1.21 | |
| Fan 85 | ||||
| 056 | 240114-5 | 7.20 | 8.71 | |
| Fan Cover Ring | ||||
| 057 | 346045-7 | 1.20 | 1.45 | |
| Screw 4X10 | ||||
| 058 | 911115-7 | 1.20 | 1.45 | |
| Hex socket head screw M6x12 | ||||
| 059 | 922312-0 | 1.00 | 1.21 | |
| Dust-Tight Plate | ||||
| 060 | 424526-2 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 060A | 424188-6 | |||
| Dust-Tight Plate | ||||
| 060B | 424526-2 | 9.60 | 11.62 | |
| Dust Cap | ||||
| 061A | 424525-4 | 19.80 | 23.96 | |
| Dust Cap | ||||
| 061B | 424525-4 | 19.80 | 23.96 | |
| Dust-Tight Plate | ||||
| 061B | 424526-2 | 9.60 | 11.62 | |
| Brush | ||||
| 062A | 443145-5 | 3.60 | 4.36 | |
| Brush | ||||
| 062B | 743341-8 | 10.80 | 13.07 | |
| Brush | ||||
| 063A | 443144-7 | 7.20 | 8.71 | |
| Brush | ||||
| 063B | 743340-0 | 16.50 | 19.96 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 064 | 224554-5 | 3.00 | 3.63 | |
| Handle | ||||
| 065 | 273529-1 | 16.50 | 19.96 | |
| Socket Head Cap Screw M8x25 ck/zwt | ||||
| 066 | 922442-7 | 1.20 | 1.45 | |
| Spacer | ||||
| 067 | 450190-3 | 1.00 | 1.21 | |
| Spacer | ||||
| 068 | 450190-3 | 1.00 | 1.21 | |
| Lead Roller Complete | ||||
| 069 | 152179-4 | 14.30 | 17.30 | |
| Front Axle | ||||
| 070 | 321436-3 | 8.40 | 10.16 | |
| Hex bolt M6X12 | ||||
| 071 | 922311-2 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 072 | 253011-6 | 1.00 | 1.21 | |
| Left roller holder | ||||
| 073 | 346042-3 | 3.60 | 4.36 | |
| Hex bolt M6X12 | ||||
| 074 | 922311-2 | 1.00 | 1.21 | |
| Hex bolt M6X12 | ||||
| 075 | 922311-2 | 1.00 | 1.21 | |
| Right roller holder | ||||
| 076 | 346043-1 | 3.60 | 4.36 | |
| Support for Rear Sole | ||||
| 077 | 346044-9 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 078 | 265844-7 | |||
| Hex bolt M6X12 | ||||
| 079 | 922311-2 | 1.00 | 1.21 | |
| Rear Base | ||||
| 080 | 341840-0 | 19.80 | 23.96 | |
| Washer 10 | ||||
| 081 | 253828-7 | 1.00 | 1.21 | |
