Here you will find all available parts and drawings of the 'Makita PC5000C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

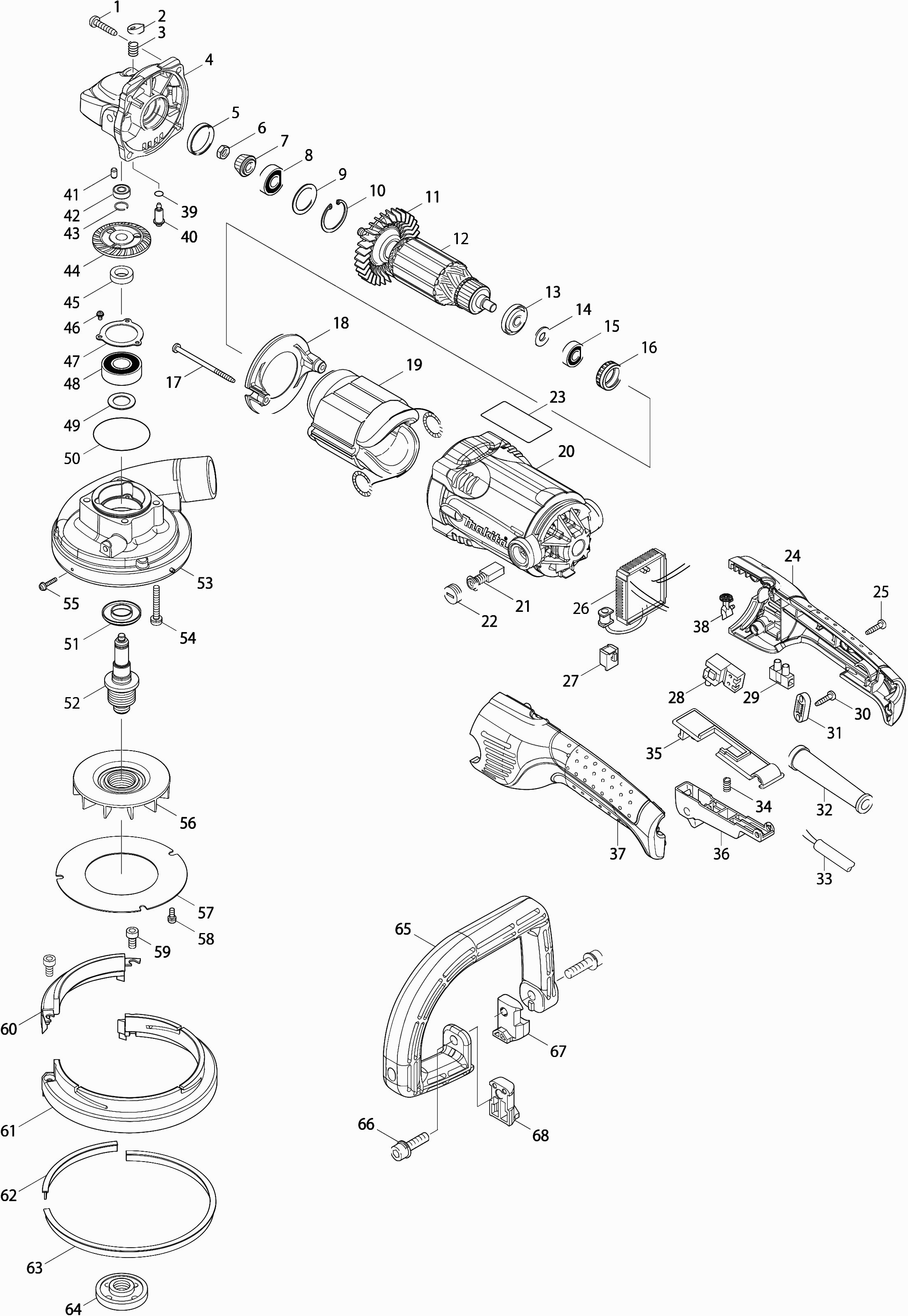

Technical drawing of model Makita PC5000C
Spare parts list of model Makita PC5000C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-tapping screw Pf 5x25 | ||||
| 001 | 266459-3 | 1.00 | 1.21 | |
| Lock pin cap | ||||
| 002 | 417771-6 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 003 | 234057-1 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 004 | 318158-4 | 10.80 | 13.07 | |
| Rubber ring 26mm | ||||
| 005 | 424051-3 | 1.00 | 1.21 | |
| Nut M7 | ||||
| 006 | 264010-3 | 1.00 | 1.21 | |
| Gear 11 | ||||
| 007 | 227520-1 | 3.60 | 4.36 | |
| Ball bearing 6000ddw | ||||
| 008-1 | 211289-7 | 13.20 | 15.97 | |
| Washer 22 Ga5021 | ||||
| 009 | 267352-4 | 1.00 | 1.21 | |
| Lock ring R-30 | ||||
| 010 | 962107-9 | 1.00 | 1.21 | |
| Fan 70 | ||||
| 011 | 240094-5 | 2.40 | 2.90 | |
| Armature | ||||
| 012-2 | 518685-3 | 34.10 | 41.26 | |
| Insulation ring | ||||
| 013 | 681660-3 | 7.20 | 8.71 | |
| Washer 8 | ||||
| 014 | 267281-1 | 1.00 | 1.21 | |
| Ball Bearing 608ddw | ||||
| 015-1 | 210005-4 | 4.80 | 5.81 | |
| Rubber Ring | ||||
| 016 | 421720-7 | 7.20 | 8.71 | |
| Tapping Screw 4x70 | ||||
| 017 | 266325-4 | 1.00 | 1.21 | |
| Spacer plate | ||||
| 018 | 419961-7 | 1.20 | 1.45 | |
| Field | ||||
| 019-1 | 528819-0 | 46.20 | 55.90 | |
| Motor Housing | ||||
| 020 | 140019-8 | 11.00 | 13.31 | |
| Carbon Brush Set CB-253 A | ||||
| 021 | 194994-0 | 3.96 | 4.79 | |
| Carbon brush cap | ||||
| 022 | 643515-0 | 1.00 | 1.21 | |
| Handle set | ||||
| 024 | 188630-8 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 025 | 266326-2 | |||
| Speed control circuit | ||||
| 026 | 631799-2 | 34.10 | 41.26 | |
| Socket | ||||
| 027 | 418518-1 | 1.20 | 1.45 | |
| Switch Sw-131 | ||||
| 028-2 | 651922-3 | 11.00 | 13.31 | |
| Terminal block | ||||
| 029 | 654575-7 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 030 | 266326-2 | |||
| Clamp Bracket | ||||
| 031 | 687124-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 032 | 682574-9 | |||
| No information available, not orderable | ||||
| 033 | 665883-1 | |||
| Compression Spring 6x29mm | ||||
| 034 | 233117-6 | 1.00 | 1.21 | |
| Switch mounting plate | ||||
| 035 | 418519-9 | 1.20 | 1.45 | |
| Switch button Cpl Ga5021C A | ||||
| 036 | 158402-5 | 6.00 | 7.26 | |
| Handle set | ||||
| 037 | 188630-8 | 11.00 | 13.31 | |
| Lens | ||||
| 038 | 450184-8 | 1.00 | 1.21 | |
| O-ring 7 | ||||
| 039 | 213977-2 | 1.00 | 1.21 | |
| Collar Pin 5 | ||||
| 040 | 256505-0 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 041 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 042 | 210026-6 | 2.40 | 2.90 | |
| Washer 11 Ga4530 | ||||
| 043 | 233950-6 | 1.00 | 1.21 | |
| Gear 35a | ||||
| 044 | 227521-9 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 045 | 257171-6 | 2.40 | 2.90 | |
| Screw 3x6 | ||||
| 046 | 911003-8 | 1.00 | 1.21 | |
| Bearing Lock 39 | ||||
| 047 | 285728-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 048 | 211241-5 | |||
| Washer 15 | ||||
| 049 | 253853-8 | 1.00 | 1.21 | |
| O-ring 48 | ||||
| 050 | 213624-5 | 1.00 | 1.21 | |
| Intermediate Ring | ||||
| 051 | 345464-4 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 052 | 325625-2 | 8.40 | 10.16 | |
| Grinding house Pc5001C A | ||||
| 053-1 | 141021-4 | 26.40 | 31.94 | |
| Screw 5x35 | ||||
| 054 | 911256-9 | 1.00 | 1.21 | |
| Screw M3x14 | ||||
| 055 | 911024-0 | 1.00 | 1.21 | |
| Fan 85 | ||||
| 056 | 240114-5 | 7.20 | 8.71 | |
| Fan Cover Ring | ||||
| 057 | 346045-7 | 1.20 | 1.45 | |
| Screw 4X10 | ||||
| 058 | 911115-7 | 1.20 | 1.45 | |
| Hex socket head screw M6x12 | ||||
| 059 | 922312-0 | 1.00 | 1.21 | |
| Dust-Tight Plate | ||||
| 060-1 | 424526-2 | 9.60 | 11.62 | |
| Dust Cap | ||||
| 061-1 | 424525-4 | 19.80 | 23.96 | |
| Brush | ||||
| 062-1 | 743341-8 | 10.80 | 13.07 | |
| Brush | ||||
| 063-1 | 743340-0 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 065 | 416256-9 | |||
| Hex Socket Bolt M8x30 | ||||
| 066 | 922453-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 067 | 450189-8 | |||
| Spacer | ||||
| 068 | 450190-3 | 1.00 | 1.21 | |
