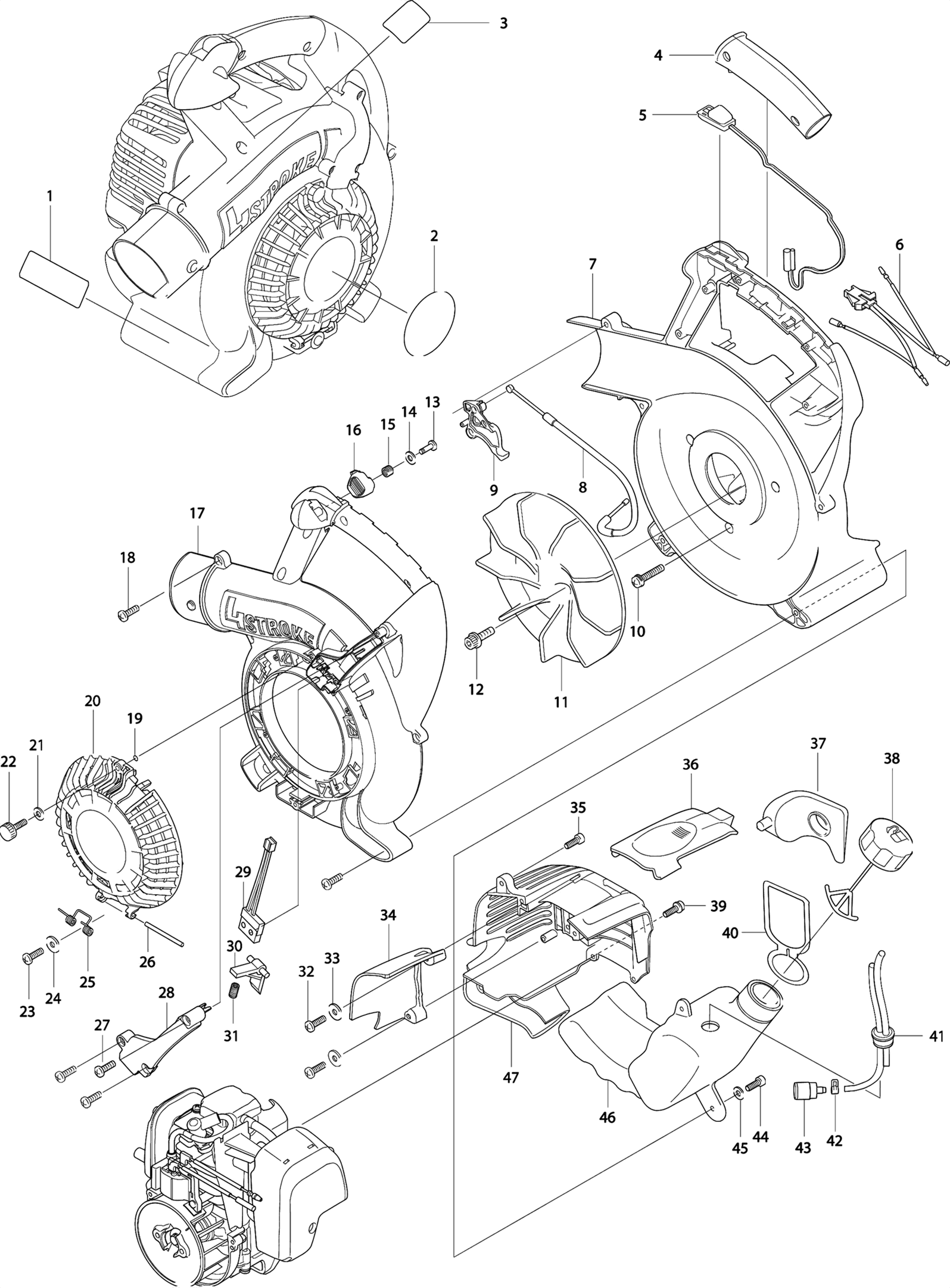

Technical drawing of model Makita PB-252.4
Spare parts list of model Makita PB-252.4
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Danger label Bhx2500 A | ||||
| 001 | 892460-8 | 2.40 | 2.90 | |
| Model label | ||||
| 002 | 892427-6 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 003 | 810450-9 | |||
| Handle cover | ||||
| 004 | 273665-3 | 6.00 | 7.26 | |
| Switch | ||||
| 005 | 638640-0 | 8.40 | 10.16 | |
| Connecting cable | ||||
| 006 | 638758-7 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 007 | 450958-7 | |||
| Control cable | ||||
| 008 | 168518-8 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 009 | 452607-2 | |||
| Screw 5x30 | ||||
| 010 | 911253-5 | 1.00 | 1.21 | |
| Fan | ||||
| 011 | 240113-7 | 13.20 | 15.97 | |
| Screw 6x20 | ||||
| 012 | 911333-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 013 | 265A48-7 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 014 | 253874-0 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 015 | 231025-5 | 1.00 | 1.21 | |
| Locking Button | ||||
| 016 | 452608-0 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 017 | 125921-6 | |||
| Tap screw 4x18 | ||||
| 018 | 265A48-7 | 1.00 | 1.21 | |
| O-ring 3 | ||||
| 019 | 213022-3 | 1.00 | 1.21 | |
| Guard | ||||
| 020 | 452604-8 | 12.10 | 14.64 | |
| Ring | ||||
| 021 | 424180-2 | 1.20 | 1.45 | |
| Screw | ||||
| 022 | 265782-3 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 023 | 265A48-7 | 1.00 | 1.21 | |
| Rivet 5mm | ||||
| 024 | 267394-8 | 1.20 | 1.45 | |
| Spring 5mm | ||||
| 025 | 233536-6 | 2.40 | 2.90 | |
| Axle 4mm | ||||
| 026 | 268230-1 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 027 | 265A48-7 | 1.00 | 1.21 | |
| Switch cover | ||||
| 028 | 452606-4 | 6.00 | 7.26 | |
| Switch Housing | ||||
| 029 | 638759-5 | 11.00 | 13.31 | |
| Switch handle | ||||
| 030 | 452609-8 | 3.60 | 4.36 | |
| Compression Spring 4 | ||||
| 031 | 233133-8 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 032 | 265A48-7 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 033 | 941051-3 | 1.00 | 1.21 | |
| Inner shield | ||||
| 034 | 452605-6 | 13.20 | 15.97 | |
| Tap screw 4x18 | ||||
| 035 | 265A48-7 | 1.00 | 1.21 | |
| Spark plug cap | ||||
| 036 | 450964-2 | 2.40 | 2.90 | |
| Oil Reservoir | ||||
| 037 | 424395-1 | 7.20 | 8.71 | |
| FUEL CAP EBH253U A | ||||
| 038 | 127108-6 | 27.50 | 33.28 | |
| Screw 4x16 A | ||||
| 039 | 911526-6 | 1.00 | 1.21 | |
| Screw 4x16 A | ||||
| 039A | 911526-6 | 1.00 | 1.21 | |
| Warning label "fuel" | ||||
| 040 | 810455-9 | 2.40 | 2.90 | |
| Fuel Line Bhx2500/01 A | ||||
| 041 | 158911-4 | 6.00 | 7.26 | |
| Hose clamp IAS 3 | ||||
| 042 | 345920-4 | 1.00 | 1.21 | |
| Fuel filter | ||||
| 043 | 163447-0 | 11.00 | 13.31 | |
| Tap screw 4x18 | ||||
| 044 | 265A48-7 | 1.00 | 1.21 | |
| Rivet 5mm | ||||
| 045 | 267394-8 | 1.20 | 1.45 | |
| Fuel Cap | ||||
| 046 | 450988-8 | 14.30 | 17.30 | |
| Motor Housing | ||||
| 047 | 452671-3 | 19.80 | 23.96 | |
| Met. Screw Ph2 M5X16Mm Ck A | ||||
| 048 | 922223-9 | 1.00 | 1.21 | |
| Valve Cover | ||||
| 049 | 140B46-7 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 050 | 965603030 | |||
| Valve cover gasket | ||||
| 051 | 162275-0 | 2.40 | 2.90 | |
| Cylinder Block Set | ||||
| 052 | 125914-3 | 71.50 | 86.52 | |
| Control valve | ||||
| 053 | 424201-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 054 | 325666-8 | |||
| No information available, not orderable | ||||
| 055 | 424202-8 | |||
| Hose clamp IAS 3 | ||||
| 056 | 282020-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 057 | 922217-4 | |||
| Crankcase cover gasket | ||||
| 058 | 162274-2 | 2.40 | 2.90 | |
| Housing Cover | ||||
| 059 | 318443-5 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 060 | 922217-4 | |||
| O-ring | ||||
| 061 | 213591-4 | 2.40 | 2.90 | |
| Allen Bolt M5x12mm Ck | ||||
| 062 | 922213-2 | 1.00 | 1.21 | |
| Oil Pipe | ||||
| 063 | 140813-8 | 2.40 | 2.90 | |
| Oil Dipstick | ||||
| 064 | 452610-3 | 9.60 | 11.62 | |
| Gasket | ||||
| 065 | 424343-0 | 1.20 | 1.45 | |
| Oil Cap | ||||
| 066 | 452047-4 | 2.40 | 2.90 | |
| Crankcase gasket | ||||
| 067 | 162276-8 | 2.40 | 2.90 | |
| Feed valve | ||||
| 068 | 346083-9 | 2.40 | 2.90 | |
| Holding Plate | ||||
| 069 | 318440-1 | 2.40 | 2.90 | |
| Allen bolt M4x10 | ||||
| 070 | 922112-8 | 1.00 | 1.21 | |
| Carter Ebh253U A | ||||
| 071 | 318442-7 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 072 | 922217-4 | |||
| Parts Set | ||||
| 073 | 196595-0 | 22.00 | 26.62 | |
| Lock ring for piston pin | ||||
| 074 | 233976-8 | 1.00 | 1.21 | |
| Piston | ||||
| 075 | 318441-9 | 9.60 | 11.62 | |
| Piston Pin | ||||
| 076 | 257781-9 | 3.60 | 4.36 | |
| Seal ring 12 | ||||
| 077 | 213147-3 | 2.40 | 2.90 | |
| Washer 23 | ||||
| 078 | 267400-9 | 2.40 | 2.90 | |
| Inlegspie 3 | ||||
| 079 | 254040-2 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 080 | 188608-1 | |||
| No longer available, no replacement | ||||
| 081 | 213148-1 | |||
| Valve arm | ||||
| 082 | 125554-7 | 4.80 | 5.81 | |
| Valve pin | ||||
| 083 | 256865-0 | 1.00 | 1.21 | |
| Valve Locking Ring | ||||
| 084 | 325668-4 | 2.40 | 2.90 | |
| Compression Spring 9 | ||||
| 085 | 234108-0 | 2.40 | 2.90 | |
| Pen 5mm | ||||
| 086 | 256200-2 | 1.00 | 1.21 | |
| Intake valve | ||||
| 087 | 326367-1 | 4.80 | 5.81 | |
| Exhaust valve | ||||
| 088 | 326366-3 | 4.80 | 5.81 | |
| Spacer Ebh253U A | ||||
| 089 | 424200-2 | 1.00 | 1.21 | |
| Rocker gear | ||||
| 090 | 125552-1 | 23.10 | 27.95 | |
| Pen 5Mm Ebh253U A | ||||
| 091 | 268238-5 | 1.00 | 1.21 | |
| Pin 4mm Ebh253U A | ||||
| 092 | 268239-3 | 1.00 | 1.21 | |
| Cam Tiller | ||||
| 093 | 313169-4 | 3.60 | 4.36 | |
| Startinrichting | ||||
| 094 | 125917-7 | 16.50 | 19.96 | |
| Start pulley | ||||
| 095 | 168483-1 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 096 | 266585-8 | |||
| Swing arm | ||||
| 097 | 325923-4 | 2.40 | 2.90 | |
| Inner Bush | ||||
| 098 | 451938-6 | 2.40 | 2.90 | |
| Starter cord drum | ||||
| 099 | 451937-8 | 4.80 | 5.81 | |
| Starter Spring | ||||
| 100 | 232258-5 | 6.00 | 7.26 | |
| Starter Handle | ||||
| 101 | 424319-7 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 102 | 444019-3 | |||
| Model label | ||||
| 103 | 893305-3 | 2.40 | 2.90 | |
| Screw 4x16 A | ||||
| 104 | 911526-6 | 1.00 | 1.21 | |
| Screw 4x16 A | ||||
| 104A | 911526-6 | 1.00 | 1.21 | |
| Air Intake Ebh253U A | ||||
| 105 | 324961-3 | 3.60 | 4.36 | |
| Insulator gasket | ||||
| 106 | 413120-5 | 1.20 | 1.45 | |
| O-Ring 10 Ebh253U A | ||||
| 107 | 213078-6 | 1.00 | 1.21 | |
| Manifold | ||||
| 108 | 125916-9 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 109 | 266643-0 | |||
| No information available, not orderable | ||||
| 110 | 922228-9 | |||
| Gasket "carburetor" | ||||
| 111 | 413138-6 | 1.20 | 1.45 | |
| Allen Bolt M5x12mm Ck | ||||
| 112 | 922213-2 | 1.00 | 1.21 | |
| Carburetor Bhx2500/01 A | ||||
| 113 | 168641-9 | 93.50 | 113.14 | |
| Pump Cover | ||||
| 114 | 140808-1 | 39.60 | 47.92 | |
| No information available, not orderable | ||||
| 115 | 352010-6 | |||
| Diaphragm Gasket | ||||
| 116 | 442154-1 | 7.20 | 8.71 | |
| Diaphragm | ||||
| 117 | 168620-7 | 38.50 | 46.58 | |
| Air Purifier Case Ebh253U A | ||||
| 118 | 140438-8 | 27.50 | 33.28 | |
| Booster pump | ||||
| 119 | 424314-7 | 11.00 | 13.31 | |
| Pump cover Ebh253U A | ||||
| 120 | 346270-0 | 7.20 | 8.71 | |
| Parker 3X24Mm Ck A | ||||
| 121 | 266582-4 | 3.60 | 4.36 | |
| Met.screw Ph2 M3x18mm Ck | ||||
| 122 | 266581-6 | 1.20 | 1.45 | |
| Swivel element | ||||
| 123 | 325922-6 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 124 | 413140-9 | |||
| Seegering E-3 A | ||||
| 125 | 257964-1 | 7.20 | 8.71 | |
| Compression Spring 5-9mm | ||||
| 126 | 234183-6 | 4.80 | 5.81 | |
| O-ring 2 | ||||
| 127 | 213538-8 | 4.80 | 5.81 | |
| Sprayer Ebh253U P | ||||
| 128 | 326027-5 | 14.30 | 17.30 | |
| Diaphragm Gasket | ||||
| 129 | 442155-9 | 7.20 | 8.71 | |
| Pump diaphragm | ||||
| 130 | WJ00009599 | 3.96 | 4.79 | |
| Hose clamp IAS 3 | ||||
| 131 | 345918-1 | 1.00 | 1.21 | |
| Vent Pipe | ||||
| 132 | 422041-0 | 2.40 | 2.90 | |
| Gas hose | ||||
| 133 | 422070-3 | 2.40 | 2.90 | |
| Air Filter Housing Ebh253U A | ||||
| 134 | 123845-0 | 17.60 | 21.30 | |
| No longer available, no replacement | ||||
| 135 | 451925-5 | |||
| O-ring 15 | ||||
| 136 | 213540-1 | 1.00 | 1.21 | |
| Air Filter Housing Ebh253U A | ||||
| 137 | 123845-0 | 17.60 | 21.30 | |
| Overpressure valve | ||||
| 138 | 424316-3 | 3.60 | 4.36 | |
| O-ring 14 | ||||
| 139 | 213539-6 | 1.00 | 1.21 | |
| Overpressure valve plate | ||||
| 140 | 451924-7 | 1.20 | 1.45 | |
| Overpressure valve | ||||
| 141 | 424315-5 | 1.20 | 1.45 | |
| Separation Gasket | ||||
| 142 | 168577-2 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 143 | 168576-4 | |||
| Cleaner Element | ||||
| 144 | 443140-5 | 3.60 | 4.36 | |
| Cleaner Element | ||||
| 145 | 443141-3 | 2.71 | 3.28 | |
| Cleaner Cover | ||||
| 146 | 450561-4 | 6.00 | 7.26 | |
| Metal screw Ph M5x14mm Ck | ||||
| 147 | 266809-2 | 1.00 | 1.21 | |
| Metric screw Ph2 M5x68mm Ck | ||||
| 148 | 265188-5 | 1.00 | 1.21 | |
| Mounting plate Ebh253U A | ||||
| 149 | 346647-9 | 2.40 | 2.90 | |
| Washer | ||||
| 150 | 423376-2 | 1.20 | 1.45 | |
| Choke plate | ||||
| 151 | 450560-6 | 1.20 | 1.45 | |
| Allen bolt M5x40mm Ck | ||||
| 152 | 266440-4 | 1.20 | 1.45 | |
| Exhaust Bhx2500 A | ||||
| 153 | 168643-5 | 8.40 | 10.16 | |
| Spark Arrestor Ebh253U A | ||||
| 154 | 324980-9 | 7.20 | 8.71 | |
| Exhaust Gasket | ||||
| 155 | 168593-4 | 3.60 | 4.36 | |
| Cable 1 Bhx2500 A | ||||
| 156 | 632F44-4 | 1.20 | 1.45 | |
| Cable 1 Bhx2500 A | ||||
| 156A | 632F44-4 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 157 | 638710-5 | |||
| Cable 2 Bhx2500 A | ||||
| 157A | 632F45-2 | 1.20 | 1.45 | |
| Spark plug cap Ebh253U A | ||||
| 158 | 424105-6 | 3.60 | 4.36 | |
| Bougieveer Ebh253U A | ||||
| 159 | 324891-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 160 | 168501-5 | |||
| Ignition | ||||
| 160A | 168816-0 | 13.20 | 15.97 | |
| Hexagon socket screw M4x20 Ck | ||||
| 161 | 922138-0 | 1.00 | 1.21 | |
| Bolt M6x16mm / rivet EM4250 A | ||||
| 162 | 265577-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 163 | 318702-7 | |||
| Hose clamp IAS 3 | ||||
| 164 | 140352-8 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 165 | 6659500901 | |||
| No information available, not orderable | ||||
| 166 | 6659501000 | |||
| No information available, not orderable | ||||
| 167 | 6659501100 | |||
