Here you will find all available parts and drawings of the 'Makita MT941'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

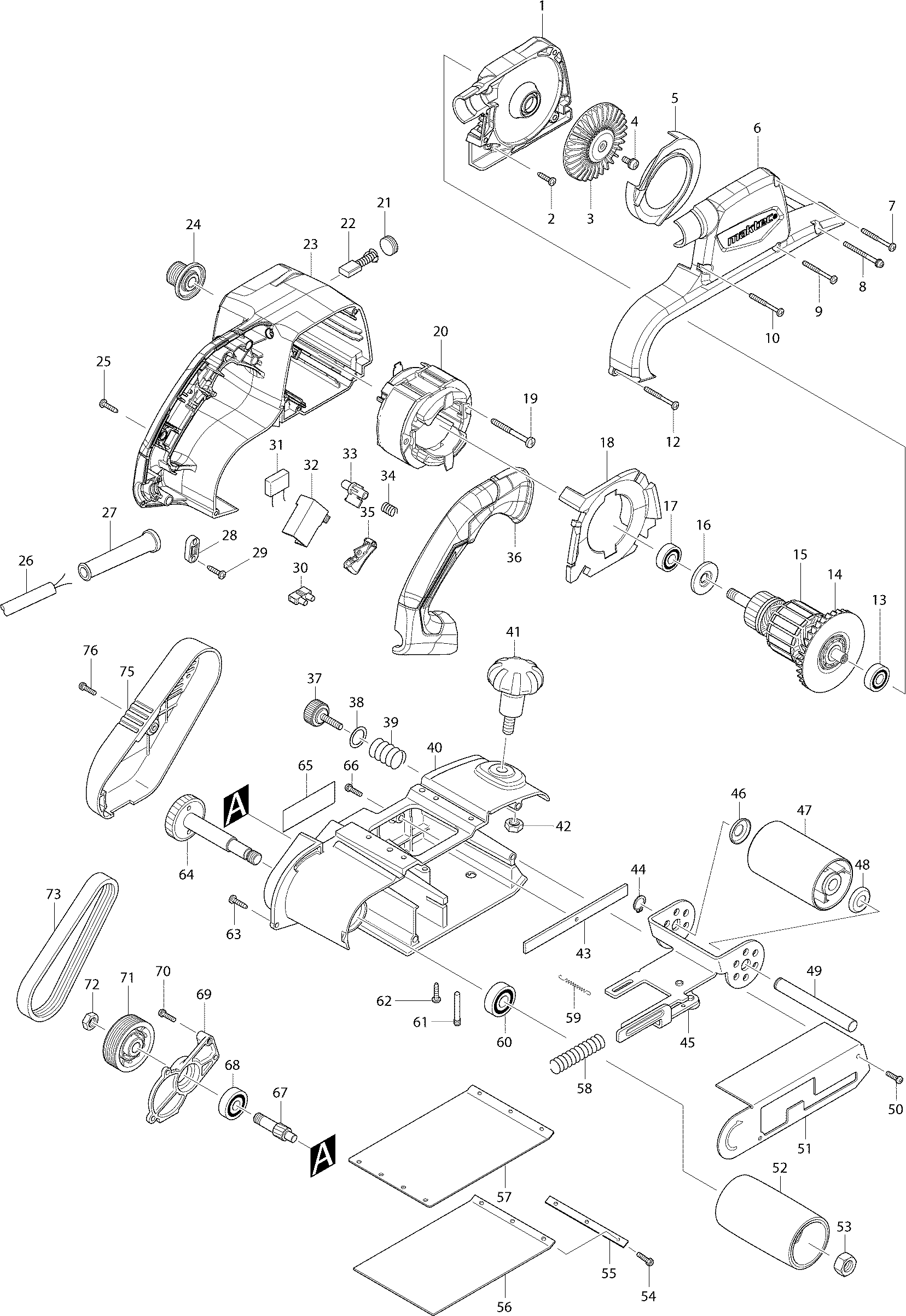

Technical drawing of model Makita MT941
Spare parts list of model Makita MT941
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Dust collection holder | ||||
| 001 | 318921-5 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 002 | 266326-2 | |||
| Fan 80 | ||||
| 003 | 241662-7 | 7.20 | 8.71 | |
| Screw M5X12Mm | ||||
| 004 | 265170-4 | 1.00 | 1.21 | |
| Separation plate | ||||
| 005 | 419580-9 | 1.20 | 1.45 | |
| Dust Cover | ||||
| 006 | 318919-2 | 11.00 | 13.31 | |
| Met. Screw Ck 4x40mm | ||||
| 007 | 266560-4 | 1.00 | 1.21 | |
| Met. Screw Ck 4x40mm | ||||
| 009 | 266560-4 | 1.00 | 1.21 | |
| Met. Screw Ck 4x40mm | ||||
| 010 | 266560-4 | 1.00 | 1.21 | |
| Met. Screw Ck 4x40mm | ||||
| 012 | 266560-4 | 1.00 | 1.21 | |
| Ball Bearing 6000zz | ||||
| 013 | 210067-2 | 1.20 | 1.45 | |
| Fan 84 9403 (Armature) | ||||
| 014 | 240013-1 | 3.60 | 4.36 | |
| Armature 240v | ||||
| 015 | 510292-8 | 35.20 | 42.59 | |
| Insulation ring | ||||
| 016 | 681649-1 | 1.20 | 1.45 | |
| Ball Bearing 6000zz | ||||
| 017 | 210067-2 | 1.20 | 1.45 | |
| Intermediate Plate | ||||
| 018 | 453968-3 | 1.20 | 1.45 | |
| SCREW 5X50 | ||||
| 019 | 266397-9 | 1.00 | 1.21 | |
| Stator spring Mt582 A | ||||
| 020A | 654449-2 | 1.00 | 1.21 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 020B | 654501-6 | 0.83 | 1.00 | |
| Brush holder cap | ||||
| 021 | 643650-4 | 1.20 | 1.45 | |
| Carbon Brush Set Cb-153 | ||||
| 022 | 194985-1 | 4.80 | 5.81 | |
| Motor Housing | ||||
| 023 | 141760-6 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 023A | 643653-8 | |||
| V-Belt Disc 6/23 | ||||
| 024 | 222168-4 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 025 | 266326-2 | |||
| No information available, not orderable | ||||
| 026 | 665852-2 | |||
| No information available, not orderable | ||||
| 027 | 682540-6 | |||
| Clamp Bracket | ||||
| 028 | 687124-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 029 | 266326-2 | |||
| Terminal block Bo4553-Bo4554 A | ||||
| 030 | 654475-1 | 1.00 | 1.21 | |
| Capacitor | ||||
| 031 | 645240-9 | 1.00 | 1.21 | |
| Switch Tga115ct-2 | ||||
| 032 | 650545-4 | 3.60 | 4.36 | |
| Locking Button | ||||
| 033 | 418871-5 | 1.00 | 1.21 | |
| Compression Spring 9 | ||||
| 034 | 233423-9 | 1.00 | 1.21 | |
| Switch handle | ||||
| 035 | 418873-1 | 1.20 | 1.45 | |
| Handle Cover | ||||
| 036 | 453965-9 | 6.00 | 7.26 | |
| Set screw M6x25 | ||||
| 037 | 265763-7 | 1.20 | 1.45 | |
| Rivet 16mm | ||||
| 038 | 267356-6 | 1.00 | 1.21 | |
| Compression spring 16 A | ||||
| 039 | 232573-7 | 1.00 | 1.21 | |
| Motorframe | ||||
| 040 | 158070-4 | 40.70 | 49.25 | |
| Knob 55mm | ||||
| 041 | 271325-1 | 3.60 | 4.36 | |
| NUT M10 | ||||
| 042 | 252172-9 | 1.00 | 1.21 | |
| Wear strip | ||||
| 043 | 345726-0 | 1.20 | 1.45 | |
| Lock washer S-12 | ||||
| 044 | 961052-5 | 1.00 | 1.21 | |
| Tension arm | ||||
| 045 | 163477-1 | 12.10 | 14.64 | |
| Disk Washer M12 | ||||
| 046 | 253922-5 | 1.00 | 1.21 | |
| Tension roller | ||||
| 047 | 142719-6 | 11.00 | 13.31 | |
| Disk Washer M12 | ||||
| 048 | 253922-5 | 1.00 | 1.21 | |
| Tension roller | ||||
| 049 | 323829-0 | 6.00 | 7.26 | |
| Met.screw M4x18mm | ||||
| 050 | 265112-8 | 1.00 | 1.21 | |
| Guard | ||||
| 051 | 344622-9 | 4.80 | 5.81 | |
| Drive roller | ||||
| 052 | 162248-3 | 11.00 | 13.31 | |
| Hex nut 12x19 | ||||
| 053 | 252087-0 | 1.20 | 1.45 | |
| Met.screw M4x18mm | ||||
| 054 | 265112-8 | 1.00 | 1.21 | |
| Support strip | ||||
| 055 | 344623-7 | 1.20 | 1.45 | |
| Carbon Plate | ||||
| 056 | 424057-1 | 3.60 | 4.36 | |
| Rubber Plate | ||||
| 057 | 424058-9 | 1.20 | 1.45 | |
| Compression spring 12 | ||||
| 058 | 233235-0 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 059 | 231819-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 060 | 211145-1 | |||
| Pin | ||||
| 061 | 321980-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 062 | 266326-2 | |||
| No information available, not orderable | ||||
| 063 | 266326-2 | |||
| Gear 42 | ||||
| 064 | 158072-0 | 8.40 | 10.16 | |
| Nameplate Mt941 | ||||
| 065 | 897869-9 | 3.60 | 4.36 | |
| Met.screw M4x18mm | ||||
| 066 | 265112-8 | 1.00 | 1.21 | |
| Gear 10 | ||||
| 067 | 226634-3 | 6.00 | 7.26 | |
| Ball bearing 6200llb | ||||
| 068 | 211066-7 | 4.80 | 5.81 | |
| Gear cap | ||||
| 069 | 318074-0 | 8.40 | 10.16 | |
| Met.screw M4x18mm | ||||
| 070 | 265112-8 | 1.00 | 1.21 | |
| V-belt pulley 6-52.9 | ||||
| 071 | 222169-2 | 7.20 | 8.71 | |
| NUT M10 | ||||
| 072 | 252172-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 073 | 225091-2 | |||
| Belt Cover | ||||
| 075 | 419581-7 | 4.80 | 5.81 | |
| Met.screw M4x18mm | ||||
| 076 | 265112-8 | 1.00 | 1.21 | |
