Here you will find all available parts and drawings of the 'Makita MT902'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

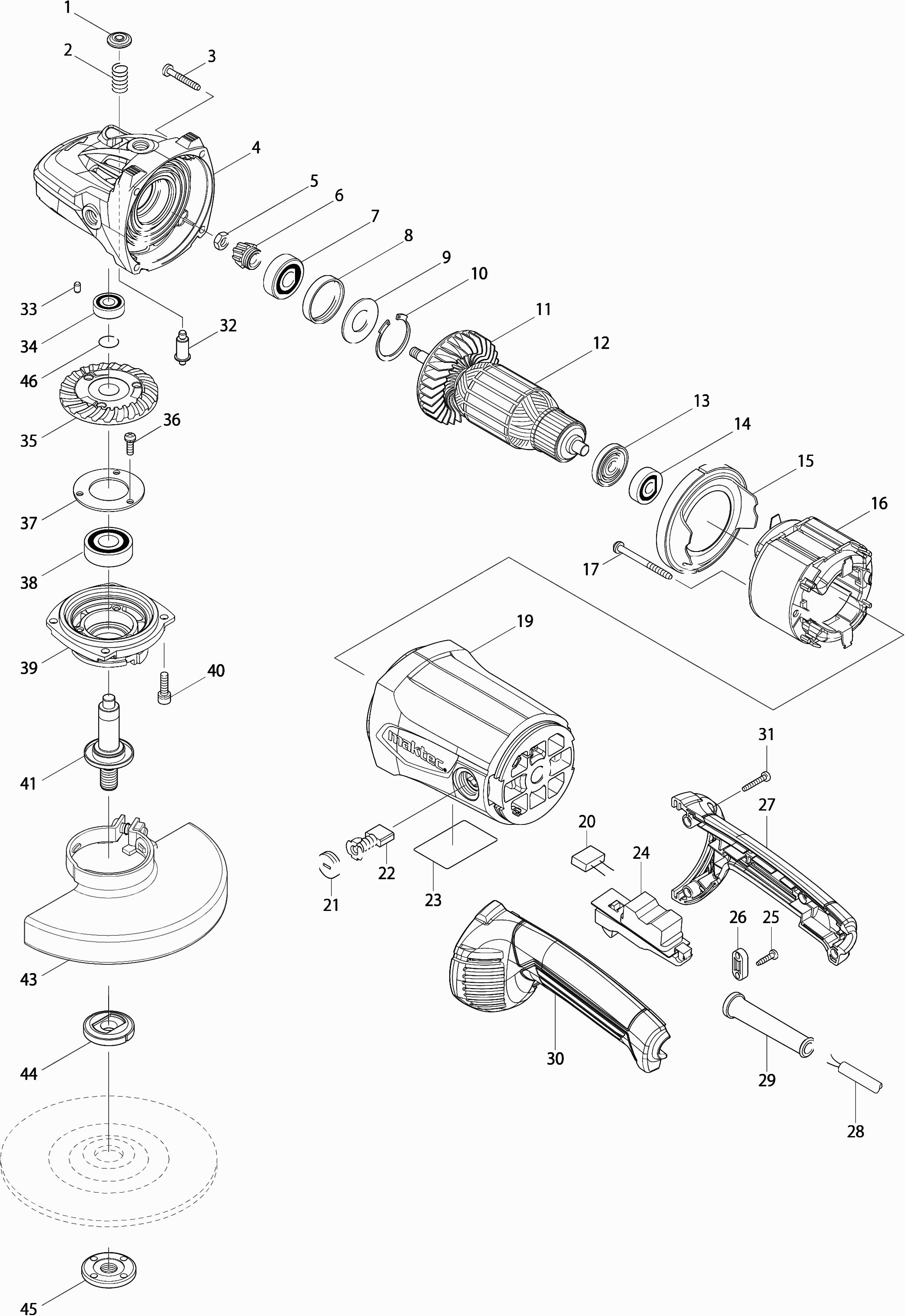

Technical drawing of model Makita MT902
Spare parts list of model Makita MT902
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pushing Button | ||||
| 001 | 419133-4 | 1.00 | 1.21 | |
| Compression spring 12 | ||||
| 002 | 233292-8 | 1.00 | 1.21 | |
| Screw 5x35 | ||||
| 003 | 266373-3 | 0.83 | 1.00 | |
| Gear Cover | ||||
| 004 | 140496-4 | 13.20 | 15.97 | |
| NUT M8 | ||||
| 005 | 252194-9 | 1.00 | 1.21 | |
| Gear 16 | ||||
| 006 | 227488-1 | 4.80 | 5.81 | |
| Ball Bearing 6301llb | ||||
| 007 | 211132-0 | 9.60 | 11.62 | |
| Rubber ring 38 | ||||
| 008 | 262085-6 | 1.00 | 1.21 | |
| Washer 20 | ||||
| 009 | 267299-2 | 1.20 | 1.45 | |
| Lock ring R-42 | ||||
| 010 | 962211-4 | 2.40 | 2.90 | |
| Fan 80 | ||||
| 011 | 240081-4 | 6.00 | 7.26 | |
| Armature | ||||
| 012 | 516948-1 | 40.70 | 49.25 | |
| Insulation ring | ||||
| 013 | 681630-2 | 2.40 | 2.90 | |
| Ball bearing 6200llb | ||||
| 014 | 211066-7 | 4.80 | 5.81 | |
| Middle plate Ga7020 | ||||
| 015 | 419135-0 | 1.20 | 1.45 | |
| S.A.FIELD M65 ( SERVICE ) | ||||
| 016 | 596279-4 | 34.10 | 41.26 | |
| Stator spring | ||||
| 016A | 654197-3 | 1.00 | 1.21 | |
| Clamping bushing for statorv. 2mm | ||||
| 016B | 654502-4 | 1.00 | 1.21 | |
| Tapping Screw 5x65mm | ||||
| 017 | 266352-1 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 019 | 140495-6 | 13.20 | 15.97 | |
| Brush Holder | ||||
| 019A | 643564-7 | 2.40 | 2.90 | |
| Capacitor | ||||
| 020 | 645240-9 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 021 | 643700-5 | 1.20 | 1.45 | |
| Carbon brush set Cb-204 | ||||
| 022 | 194992-4 | 11.00 | 13.31 | |
| Label | ||||
| 023 | 868221-8 | 3.60 | 4.36 | |
| Switch Hy44b | ||||
| 024 | 651183-5 | 12.10 | 14.64 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 025 | 265B67-9 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 026 | 687124-5 | 1.00 | 1.21 | |
| Housing | ||||
| 027 | 188895-2 | 8.40 | 10.16 | |
| Power cord 2x1.00 2.2mtr | ||||
| 028 | 665383-1 | 10.80 | 13.07 | |
| No longer available, no replacement | ||||
| 029 | 682505-8 | |||
| Housing | ||||
| 030 | 188895-2 | 8.40 | 10.16 | |
| No longer available, no replacement | ||||
| 031 | 266374-1 | |||
| Collar Pin 5 | ||||
| 032 | 256491-5 | 1.20 | 1.45 | |
| Rubber Pin 4 | ||||
| 033 | 263002-9 | 1.00 | 1.21 | |
| Ball Bearing 6000zz | ||||
| 034 | 210067-2 | 1.20 | 1.45 | |
| Gear 50b | ||||
| 035 | 227489-9 | 10.80 | 13.07 | |
| Phillips Head Screw M5x16 | ||||
| 036 | 265120-9 | 1.00 | 1.21 | |
| Bearing Lock 50 | ||||
| 037 | 285724-1 | 1.20 | 1.45 | |
| Ball Bearing 6203llu | ||||
| 038 | 211490-4 | 8.40 | 10.16 | |
| Bearing Housing | ||||
| 039 | 318617-8 | 6.00 | 7.26 | |
| Allen screw | ||||
| 040 | 265541-5 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 041 | 158209-9 | 9.60 | 11.62 | |
| BESCHERMKAP 180 MM AFBRAMEN EN SCHUREN | ||||
| 043 | 141P30-9 | 6.00 | 7.26 | |
| O-ring 6 | ||||
| 043A | 213017-6 | 1.00 | 1.21 | |
| Phillips Head Screw M8x25 | ||||
| 043B | 265158-4 | 1.00 | 1.21 | |
| BINNENFLENS HAAKSE SLIJPER EN SLEUVENZAAG | ||||
| 044 | 224415-9 | 3.00 | 3.63 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 045 | 224554-5 | 3.00 | 3.63 | |
| Lock washer 15 | ||||
| 046 | 233946-7 | 1.00 | 1.21 | |
