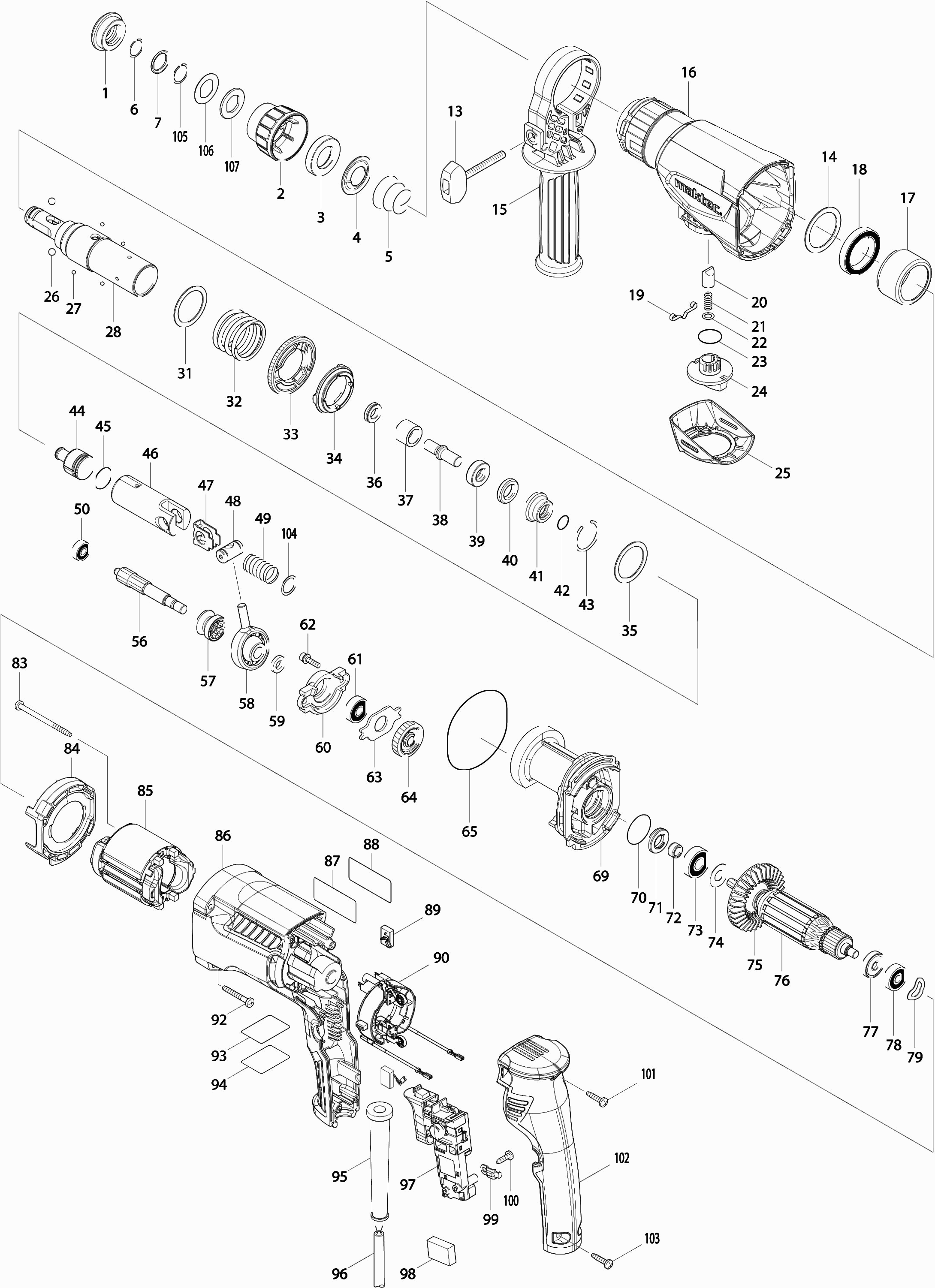

Technical drawing of model Makita MT870
Spare parts list of model Makita MT870
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rubber dust cap 35 | ||||
| 001 | 286288-8 | 0.83 | 1.00 | |
| Chisel Lock Cap Mt870 A | ||||
| 002 | 456529-8 | 0.83 | 1.00 | |
| Locking Ring 21 | ||||
| 003 | 325813-1 | 1.20 | 1.45 | |
| Guide Ring | ||||
| 004 | 346177-0 | 0.83 | 1.00 | |
| Compression Spring 21-29 | ||||
| 005 | 233916-6 | 0.83 | 1.00 | |
| Washer 14 | ||||
| 006 | 233989-9 | 0.83 | 1.00 | |
| Washer 16 | ||||
| 007 | 346221-3 | 0.83 | 1.00 | |
| Wing bolt M6x52mm | ||||
| 013 | 265795-4 | 1.18 | 1.43 | |
| Washer 33mm | ||||
| 014 | 267415-6 | 0.83 | 1.00 | |
| Handle 43mm | ||||
| 015 | 452985-0 | 8.21 | 9.93 | |
| Gear Cover | ||||
| 016 | 141070-1 | 10.50 | 12.70 | |
| Oil Seal 25 | ||||
| 016A | 213636-8 | 3.96 | 4.79 | |
| Socket | ||||
| 017 | 346178-8 | 0.83 | 1.00 | |
| Ball bearing 6806ddw | ||||
| 018 | 211423-9 | 3.96 | 4.79 | |
| Leaf Spring | ||||
| 019 | 232152-1 | 1.39 | 1.68 | |
| Push Pin | ||||
| 020 | 326850-8 | 0.83 | 1.00 | |
| Drukpen HR2600/2601 | ||||
| 020 | 325785-0 | 0.83 | 1.00 | |
| Compression Spring 5 | ||||
| 021 | 234147-0 | 0.83 | 1.00 | |
| Thin Lock Washer 6 | ||||
| 022 | 253308-3 | 0.83 | 1.00 | |
| O-ring 17.5 | ||||
| 023 | 213258-4 | 2.02 | 2.44 | |
| Rotary knob ABB OHYS2AJ | ||||
| 024 | 452983-4 | 1.18 | 1.43 | |
| Switch Button Cap | ||||
| 025 | 452982-6 | 1.18 | 1.43 | |
| Steel ball 7.0 | ||||
| 026 | 216022-2 | 0.83 | 1.00 | |
| Steel ball 3 | ||||
| 027 | 216019-1 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 028 | 141068-8 | |||
| Washer 30 | ||||
| 031 | 267153-0 | 0.83 | 1.00 | |
| Compression Spring 31 | ||||
| 032 | 234222-2 | 9.24 | 11.18 | |
| Gear 51 | ||||
| 033 | 227268-5 | 1.67 | 2.02 | |
| Drive Flange | ||||
| 034 | 313218-7 | 1.75 | 2.12 | |
| Washer 30 | ||||
| 035 | 267153-0 | 0.83 | 1.00 | |
| X-ring 9 | ||||
| 036 | 213075-2 | 0.83 | 1.00 | |
| Bushing 9a | ||||
| 037 | 325782-6 | 1.67 | 2.02 | |
| Slagstuk "a" | ||||
| 038 | 325789-2 | 1.18 | 1.43 | |
| Spacer Ring 10a | ||||
| 039 | 325794-9 | 0.83 | 1.00 | |
| Shock ring 12 | ||||
| 040 | 424267-0 | 1.18 | 1.43 | |
| O-Ring housing "a" | ||||
| 041 | 325798-1 | 2.71 | 3.28 | |
| O-ring 9 | ||||
| 042 | 213073-6 | 0.83 | 1.00 | |
| Spring washer 28 | ||||
| 043 | 233979-2 | 0.83 | 1.00 | |
| Jackhammer | ||||
| 044 | 326096-6 | 2.71 | 3.28 | |
| O-ring 17.5 | ||||
| 045 | 213258-4 | 2.02 | 2.44 | |
| Piston-cylinder | ||||
| 046 | 310345-1 | 8.21 | 9.93 | |
| Guide plate | ||||
| 047 | 346036-8 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 048 | 326097-4 | |||
| Compression Spring 14 | ||||
| 049 | 234098-7 | 0.83 | 1.00 | |
| Ball bearing 606Zz A | ||||
| 050 | 210137-7 | 0.98 | 1.19 | |
| Gear 10 | ||||
| 056 | 227269-3 | 4.45 | 5.38 | |
| Clutch Plate | ||||
| 057 | 223174-2 | 2.02 | 2.44 | |
| Pendulum Bearing 10 | ||||
| 058 | 219021-3 | 9.24 | 11.18 | |
| Washer 8 | ||||
| 059 | 257321-3 | 0.83 | 1.00 | |
| Bearing Housing | ||||
| 060 | 310344-3 | 2.71 | 3.28 | |
| Ball Bearing 608Zz A | ||||
| 061 | 210046-0 | 0.83 | 1.00 | |
| Hex bolt 4x16 | ||||
| 062 | 266437-3 | 0.83 | 1.00 | |
| Bearing Lock | ||||
| 063 | 285735-6 | 0.83 | 1.00 | |
| Gear 27 | ||||
| 064 | 227748-1 | 1.75 | 2.12 | |
| O-ring 63 | ||||
| 065 | 213727-5 | 2.36 | 2.86 | |
| Inner Housing | ||||
| 069 | 141664-2 | 11.82 | 14.30 | |
| O-ring 26 | ||||
| 070 | 213407-3 | 1.18 | 1.43 | |
| Seal Ring 12mm | ||||
| 071 | 213678-2 | 5.06 | 6.12 | |
| Bus 8 | ||||
| 072 | 262571-7 | 1.00 | 1.21 | |
| Ball Bearing 6000zz | ||||
| 073 | 210067-2 | 1.18 | 1.43 | |
| Washer 10 | ||||
| 074 | 267213-8 | 0.83 | 1.00 | |
| Fan 60 Hr2440/50 A | ||||
| 075 | 240084-8 | 1.39 | 1.68 | |
| Armature | ||||
| 076 | 515859-7 | 21.23 | 25.69 | |
| Insulation ring | ||||
| 077 | 681652-2 | 0.83 | 1.00 | |
| Ball Bearing 627Zz A | ||||
| 078 | 210050-9 | 0.98 | 1.19 | |
| No information available, not orderable | ||||
| 079 | 267804-5 | |||
| Self Tapping Screw Pt4X60 * | ||||
| 083 | 266052-3 | 0.83 | 1.00 | |
| Spacer plate | ||||
| 084 | 452984-2 | 0.83 | 1.00 | |
| FIELD 220 / 240V | ||||
| 085 | 633793-0 | 12.22 | 14.79 | |
| Motor Housing | ||||
| 086 | 452979-5 | 8.21 | 9.93 | |
| Nameplate Mt870 | ||||
| 087 | 896464-2 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 088 | 890304-6 | |||
| Carbon brush set Cb-459 | ||||
| 089 | 195026-6 | 2.02 | 2.44 | |
| Brush Holder | ||||
| 090 | 638747-2 | 7.22 | 8.74 | |
| Tap screw 4x30mm DGA520 | ||||
| 092 | 265B70-0 | 0.83 | 1.00 | |
| Label "serienr" | ||||
| 093 | 896453-7 | 2.71 | 3.28 | |
| Protection label | ||||
| 094 | 890297-7 | 2.71 | 3.28 | |
| Cable gland 10 | ||||
| 095 | 682566-8 | 1.18 | 1.43 | |
| Power cord 2x1.50 4.0mtr | ||||
| 096 | 695123-3 | 21.08 | 25.51 | |
| Switch | ||||
| 097 | 650671-9 | 10.52 | 12.73 | |
| Capacitor 0.22uF | ||||
| 098 | 645190-8 | 2.36 | 2.86 | |
| Strain reliever | ||||
| 099 | 687682-1 | 0.83 | 1.00 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 100 | 266385-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 101 | 266326-2 | |||
| No information available, not orderable | ||||
| 102 | 452981-8 | |||
| Handgreepdeksel M8701 | ||||
| 102-1 | 413S72-4 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 103 | 266326-2 | |||
| Sluitring 14mm | ||||
| 104 | 267447-3 | 0.83 | 1.00 | |
| Lock washer 15 | ||||
| 105 | 233992-0 | 0.83 | 1.00 | |
| Washer 17mm | ||||
| 106 | 267437-6 | 0.83 | 1.00 | |
| Rubber ring 16 | ||||
| 107 | 424364-2 | 0.83 | 1.00 | |
