Here you will find all available parts and drawings of the 'Makita MT361'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

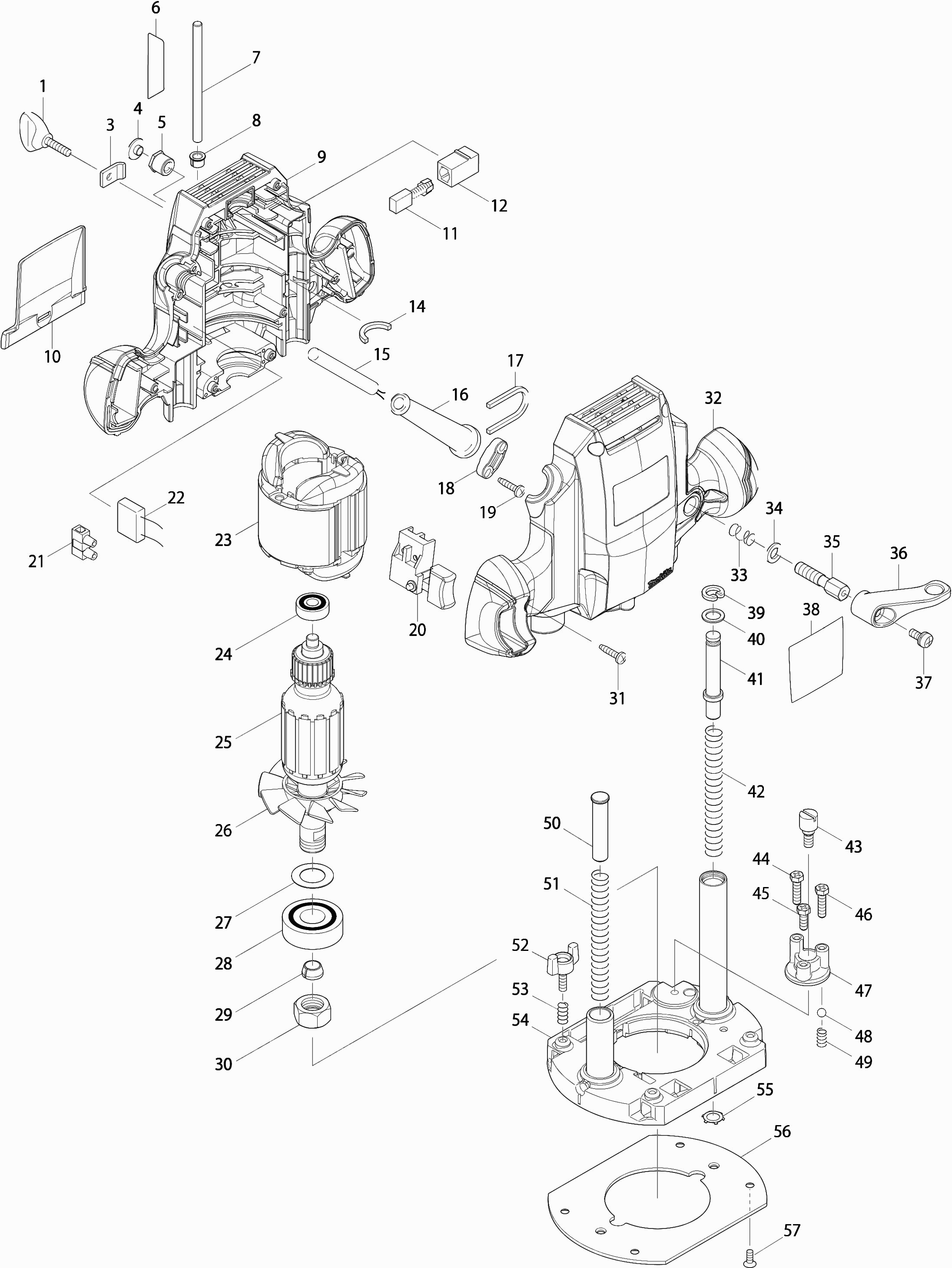

Technical drawing of model Makita MT361
Spare parts list of model Makita MT361
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Locking screw M5x20 | ||||
| 001 | 251878-6 | 1.66 | 2.01 | |
| Pressure Plate | ||||
| 003 | 346007-5 | 0.83 | 1.00 | |
| Cover, rubber | ||||
| 004 | 424156-9 | 0.83 | 1.00 | |
| Nut M/socket M8 | ||||
| 005 | 252094-3 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 006 | 893386-7 | |||
| Diepteinstelpen | ||||
| 007 | 321948-6 | 1.18 | 1.43 | |
| Depth Ring | ||||
| 008 | 451035-8 | 0.83 | 1.00 | |
| Motor Housing | ||||
| 009 | 187202-6 | 21.23 | 25.69 | |
| Rubber Pin 4 | ||||
| 009A | 263002-9 | 0.83 | 1.00 | |
| Rubber pen 6 | ||||
| 009B | 263005-3 | 0.83 | 1.00 | |
| Hex Nut M5 | ||||
| 009C | 931202-6 | 0.83 | 1.00 | |
| Transp. protective cap | ||||
| 010 | 450820-6 | 0.83 | 1.00 | |
| Brush Set CB-106 M3601 A | ||||
| 011 | 194976-2 | 4.45 | 5.38 | |
| Brush Holder | ||||
| 012 | 643601-7 | 1.67 | 2.02 | |
| Felt | ||||
| 014 | 443073-4 | 0.83 | 1.00 | |
| Power cord 2x1.00 2.2mtr | ||||
| 015 | 665383-1 | 10.50 | 12.70 | |
| Cable grommet 9.3-85 | ||||
| 016 | 682516-3 | 0.98 | 1.19 | |
| Felt | ||||
| 017 | 443074-2 | 0.83 | 1.00 | |
| Clamp Bracket | ||||
| 018 | 687124-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 019 | 266326-2 | |||
| Switch Fa1-6/1w1 | ||||
| 020 | 650218-9 | 4.14 | 5.01 | |
| Terminal block Bo4553-Bo4554 A | ||||
| 021 | 654475-1 | 0.83 | 1.00 | |
| Capacitor 0.22uF | ||||
| 022 | 645190-8 | 2.36 | 2.86 | |
| Field Assy 240V Rp0900 A | ||||
| 023 | 590054-0 | 23.29 | 28.18 | |
| Connection unit | ||||
| 023A | 654409-4 | 0.83 | 1.00 | |
| Ball Bearing 608Zz A | ||||
| 024 | 210046-0 | 0.83 | 1.00 | |
| Armature | ||||
| 025 | 510205-9 | 28.02 | 33.90 | |
| Fan 72 | ||||
| 026 | 240123-4 | 7.22 | 8.74 | |
| Washer 17 | ||||
| 027 | 267114-0 | 0.83 | 1.00 | |
| Ball Bearing 6203llu | ||||
| 028 | 211490-4 | 7.22 | 8.74 | |
| Spantang 6mm bovenfrees | ||||
| 029 | 763636-3 | 12.00 | 14.52 | |
| Spanmoer bovenfrees | ||||
| 030 | 763615-1 | 5.00 | 6.05 | |
| No information available, not orderable | ||||
| 031 | 266326-2 | |||
| Motor Housing | ||||
| 032 | 187202-6 | 21.23 | 25.69 | |
| Rubber Pin 4 | ||||
| 032A | 263002-9 | 0.83 | 1.00 | |
| Rubber pen 6 | ||||
| 032B | 263005-3 | 0.83 | 1.00 | |
| Hex Nut M5 | ||||
| 032C | 931202-6 | 0.83 | 1.00 | |
| Compression Spring 8 | ||||
| 033 | 233110-0 | 0.83 | 1.00 | |
| Washer 8 | ||||
| 034 | 941202-8 | 0.83 | 1.00 | |
| Blocking bolt M8 | ||||
| 035 | 266920-0 | 1.18 | 1.43 | |
| Handle 47 | ||||
| 036 | 450821-4 | 0.83 | 1.00 | |
| Screw 5x12 | ||||
| 037 | 911213-7 | 0.83 | 1.00 | |
| Label | ||||
| 038 | 896038-9 | 2.71 | 3.28 | |
| Retaining ring R-15 | ||||
| 039 | 962065-9 | 0.83 | 1.00 | |
| Ring 10 | ||||
| 040 | 267047-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 041 | 451524-3 | |||
| Compression spring 10 | ||||
| 042 | 231416-0 | 2.10 | 2.54 | |
| Screw M6 | ||||
| 043 | 251447-3 | 1.39 | 1.68 | |
| Hex bolt m5x20 | ||||
| 044 | 265587-1 | 0.83 | 1.00 | |
| Hex bolt m5x14 | ||||
| 045 | 265586-3 | 0.83 | 1.00 | |
| Hex bolt m5x20 | ||||
| 046 | 265587-1 | 0.83 | 1.00 | |
| Depth Stop | ||||
| 047 | 135264-8 | 3.12 | 3.78 | |
| Steel ball 7.0 | ||||
| 048 | 216022-2 | 0.83 | 1.00 | |
| Compression Spring 5 | ||||
| 049 | 231419-4 | 0.98 | 1.19 | |
| Pen 10 | ||||
| 050 | 256651-9 | 1.46 | 1.77 | |
| Compression spring 10 | ||||
| 051 | 231417-8 | 1.46 | 1.77 | |
| Thumb screw M5x16 | ||||
| 052 | 265761-1 | 0.83 | 1.00 | |
| Compression Spring 7 | ||||
| 053 | 231240-1 | 0.83 | 1.00 | |
| Foot base Rp0900 | ||||
| 054 | 158808-7 | 19.23 | 23.27 | |
| Lock washer 15 | ||||
| 055 | 259019-8 | 0.83 | 1.00 | |
| Foot plate | ||||
| 056 | 452913-5 | 2.02 | 2.44 | |
| Countersunk screw 4x10 | ||||
| 057 | 912112-6 | 0.83 | 1.00 | |
