Here you will find all available parts and drawings of the 'Makita MT070'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

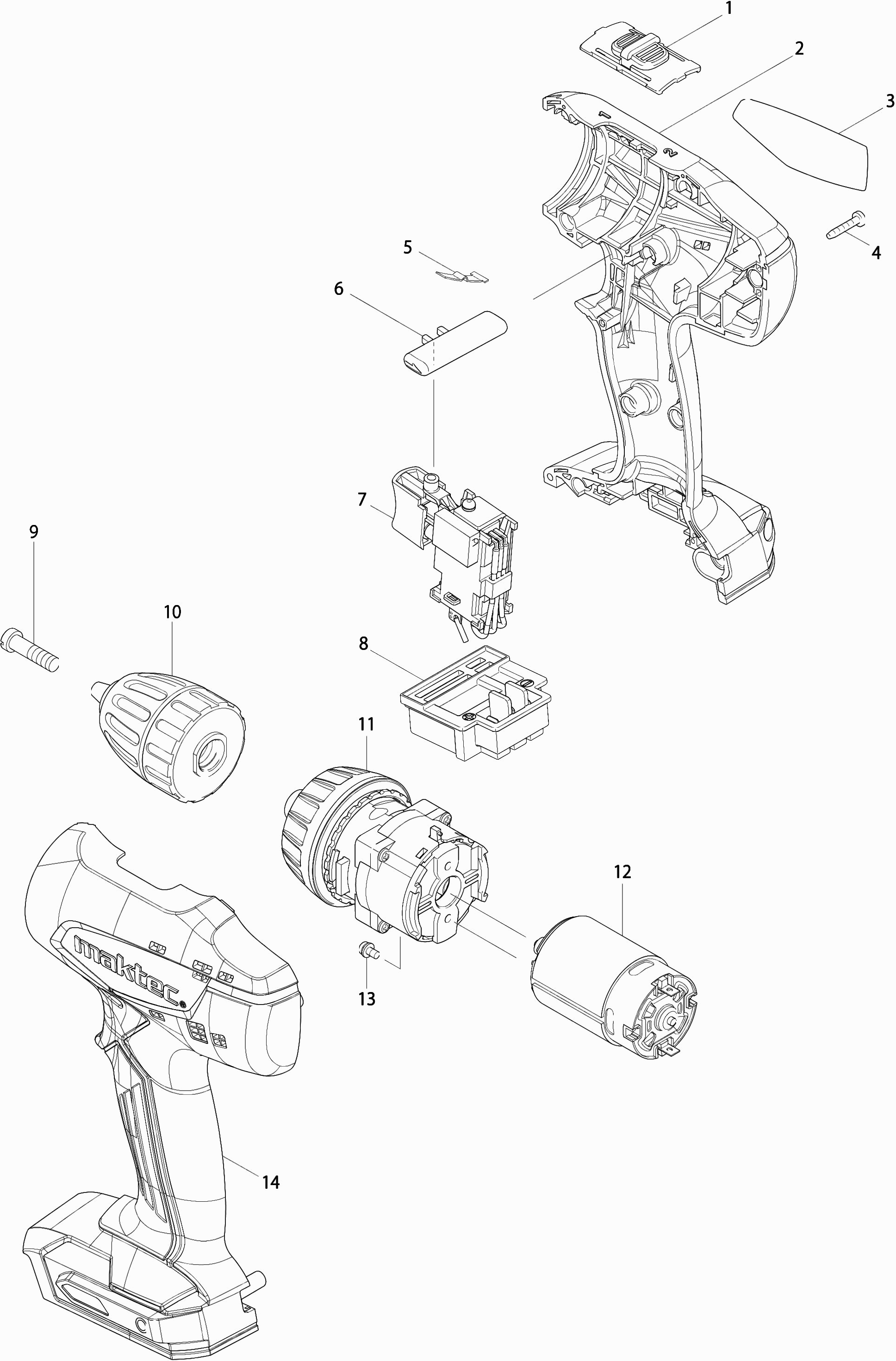

Technical drawing of model Makita MT070
Spare parts list of model Makita MT070
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| High/low speed slide | ||||
| 001 | 125927-4 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 001A | 231433-0 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 002 | 187030-9 | 10.80 | 13.07 | |
| Lock Nut M4x7mm | ||||
| 002A | 252126-6 | 1.00 | 1.21 | |
| Label | ||||
| 003 | 869105-3 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 004 | 266130-9 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 005 | 232182-2 | 1.00 | 1.21 | |
| L/R Switch Button | ||||
| 006 | 452399-3 | 1.20 | 1.45 | |
| Switch | ||||
| 007 | 638886-8 | 18.70 | 22.63 | |
| Connection unit | ||||
| 008 | 643868-7 | 3.60 | 4.36 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 009 | 251468-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 010 | 763181-8 | |||
| Gear set | ||||
| 011 | 140797-0 | 23.10 | 27.95 | |
| Motor 14.4v (white locking plate) | ||||
| 012 | 629875-4 | 11.00 | 13.31 | |
| Screw 3x6 | ||||
| 013 | 911003-8 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 014 | 187030-9 | 10.80 | 13.07 | |
| Lock Nut M4x7mm | ||||
| 014A | 252126-6 | 1.00 | 1.21 | |
