Here you will find all available parts and drawings of the 'Makita MS335.4U'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

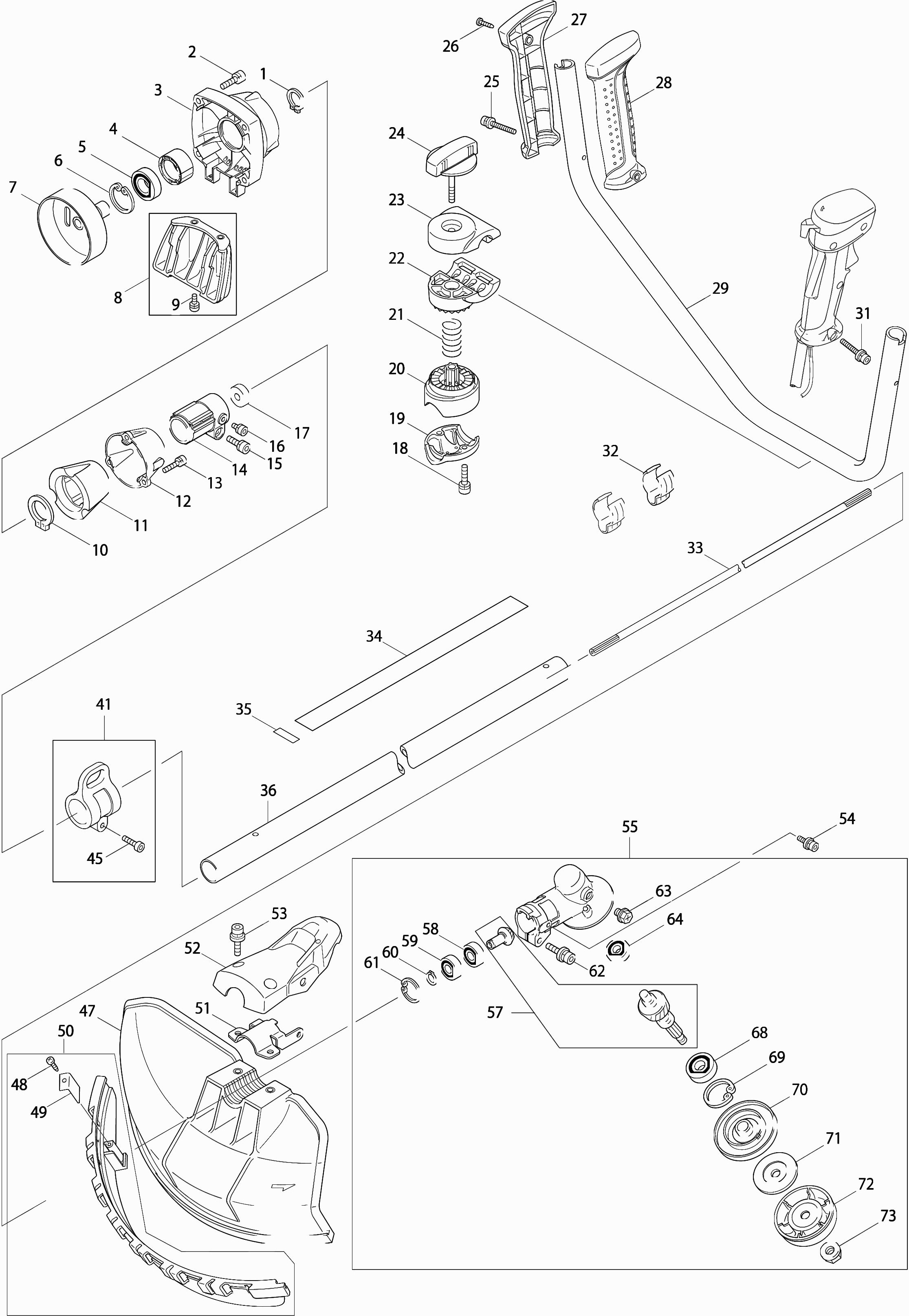

Technical drawing of model Makita MS335.4U

Spare parts list of model Makita MS335.4U

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Lock ring S-17
001 961057-5 0.83 1.00
Inbusbout M6x20
002 265905-3 0.83 1.00
Coupling Housing Ebh341U *
003 318421-5 8.23 9.96
Spacer
004 451157-4 1.24 1.50
Ball bearing 6003llu
005 210126-2 6.38 7.72
Lock Ring R-35
006 962153-2 0.83 1.00
Clutch Drum
007 165577-3 7.22 8.74
Complete Motor Support
008 195144-0 2.48 3.00
Metal screw Ph M5x14mm Ck
009 266809-2 0.83 1.00
Lock Ring S-32
010 961151-3 1.24 1.50
Damper Ebh341U A
011 424204-4 3.12 3.78
Spindle Bushing Ebh341U
012 318453-2 2.70 3.27
Hexagonal bolt 5X20 LF1000 A
013 265550-4 0.83 1.00
Steel Holder Ebh341U A
014 318454-0 6.38 7.72
Inbusbout M6x20
015 265905-3 0.83 1.00
Screw
016 922201-9 0.83 1.00
Felt ring 8mm
017 443146-3 0.83 1.00
Hex bolt 6x25
018 922341-3 0.83 1.00
Tube Grip Bracket
019 318422-3 3.72 4.50
Tube Grip Holder
020 318423-1 6.70 8.11
Compression Spring 20
021 233202-5 0.83 1.00
Handgreephouder
022 318424-9 5.98 7.24
Handle Bracket
023 318425-7 5.98 7.24
No information available, not orderable
024 168524-3
Hex socket screw Ck M5x35mm
025 922256-4 0.83 1.00
No information available, not orderable
026 266326-2
Set Of Handles
027 188660-9 12.22 14.79
Set Of Handles
028 188660-9 12.22 14.79
Handle Bracket
029 331863-6 12.22 14.79
Hex socket screw Ck M5x35mm
031 922256-4 0.83 1.00
Cord Clamp
032 451525-1 2.71 3.28
Inner Shaft
033 325675-7 6.48 7.84
Warning Label
034 810513-1 2.84 3.44
serial number label
035 816551-1 2.71 3.28
Steel
036 140042-3 44.96 54.40
Steel
037 140042-3 44.96 54.40
Steel
038 140042-3 44.96 54.40
No information available, not orderable
039 214048-8
Steel
040 140042-3 44.96 54.40
Carrying eye set
041 125558-9 4.67 5.65
Carrying eye set
042 125558-9 4.67 5.65
Carrying eye set
043 125558-9 4.67 5.65
Carrying eye set
044 125558-9 4.67 5.65
Inbusbout 5X20
045 922232-8 0.98 1.19
Hex Nut M5
046 931202-6 0.83 1.00
No information available, not orderable
047 451091-8
No information available, not orderable
048 266326-2
Cutting knife Em2653Lh A
049 347050-7 1.18 1.43
Blade Holder
050 135398-7 7.00 8.47
Assembly Bracket
051 346072-4 2.71 3.28
Covering hood
052 451090-0 3.54 4.28
Allen Bolt m6x30
053 922353-6 0.83 1.00
Allen bolt Ck M5x14mm
054 922218-2 0.83 1.00
Gearbox Housing Set Ms335.4C A
055 123835-3 45.49 55.04
Gear Cover
056 318444-3 19.29 23.34
Gear 13
057 227553-6 11.34 13.72
Ball bearing 6000
058 211064-1 5.71 6.91
Ball bearing 6000rd
059 211062-5 4.45 5.38
Locking Ring S-10
060 257408-1 0.83 1.00
Lock ring R-26 A
061 962105-3 0.83 1.00
Allen Bolt m6x30
062 922353-6 0.83 1.00
Metal screw Ck M8x10mm
063 265590-2 0.83 1.00
Ball Bearing 629Zz A
064 210084-2 1.18 1.43
Assembly complete
065 140040-7 25.36 30.69
Assembly complete
066 140040-7 25.36 30.69
Assembly complete
067 140040-7 25.36 30.69
No information available, not orderable
068 210116-5
Lock washer r-32
069 962151-6 0.83 1.00
Protection ring 25,4mm
070 332114-0 7.22 8.74
Spring retaining ring
071 346355-2 9.24 11.18
No information available, not orderable
072 168526-9
NUT M10
073 264025-0 2.02 2.44
Gas/Control Handle
074 125545-8 17.38 21.03
No information available, not orderable
075A 188657-8
Handgreepset Ms335.4U *
075B 183A09-4 4.43 5.36
Torsion Spring 11
076 233540-5 1.24 1.50
Throttle Control
077 451084-5 1.46 1.77
Torsion Spring 7
078 233541-3 1.18 1.43
Unlocking lever
079 451083-7 1.18 1.43
External cable
080 451213-0 2.71 3.28
Throttle Wire Comp.
081 168539-0 3.72 4.50
Cable Cleat
082 451081-1 1.18 1.43
Shift lever
083 451082-9 1.18 1.43
Leaf Spring
084 232251-9 1.18 1.43
No information available, not orderable
085A 451085-3
Handle cover Ebh253U A
085B 455722-1 0.83 1.00
Connecting cable
086 638663-8 1.66 2.01
No information available, not orderable
087A 188657-8
Handgreepset Ms335.4U *
087B 183A09-4 4.43 5.36
No information available, not orderable
088 266326-2
Fan Housing Ms335.4U A
089 318614-4 11.22 13.58
Met. Screw Ph2 M5X16Mm Ck A
090 922223-9 0.83 1.00
No information available, not orderable
093 267424-5
Spring Washer 10
094 253385-5 2.36 2.86
Metric Screw M8X23Mm Ms335.4U *
095 266571-9 1.75 2.12
No information available, not orderable
096 168563-3
Coupling Cmpl Ms335.4U A
097 125757-3 10.99 13.30
Bolt M6x16mm / rivet EM4250 A
098 265577-4 0.83 1.00
Flywheel Ms335.4U A
099 319035-3 12.22 14.79
No information available, not orderable
100 168501-5
Hexagon socket screw M4x20 Ck
101 922138-0 0.83 1.00
Bougieveer Ebh253U A
102 324891-8 1.18 1.43
Spark plug cap Ebh253U A
103 424105-6 2.71 3.28
Connecting cable
104 638664-6 1.39 1.68
Connection Cable Ebh253U P
105 638665-4 2.46 2.98
No information available, not orderable
106 424313-9
Clamp
107 345963-6 0.83 1.00
Label "serienr"
108 814995-9 2.71 3.28
Spark plug cap
109 451876-2 2.84 3.44
Metric screw Ck
110 266572-7 0.83 1.00
Label "4-stroke"
111 808633-3 2.84 3.44
Screw 5x12
112 911213-7 0.83 1.00
Cylinder cover
113 451884-3 9.67 11.70
Allen bolt M5x40mm Ck
114 266440-4 1.02 1.23
Metric screw Ph2 M X mm Ck
115 265184-3 0.83 1.00
No information available, not orderable
116 345915-7
Muffler
117 168469-5 12.22 14.79
Exhaust Gasket
118 345916-5 1.46 1.77
Spark Arrestor Ebh253U A
119 324980-9 6.11 7.39
Allen bolt M5x40mm Ck
120 266495-9 0.83 1.00
Valve cover Ms335.4U A
121 140419-2 9.24 11.18
Valve cover gasket
122 162307-3 2.71 3.28
Spark Plug
123 168534-0 11.82 14.30
Crankcase cover gasket
124 162274-2 1.67 2.02
Housing Cover
125 318443-5 4.14 5.01
Hex. Socket Hd. Bolt (w/flange) M5x12
126 922212-4 0.83 1.00
Oil Dipstick
127 450565-6 1.67 2.02
O-ring for oil dipstick A
128 424100-6 0.83 1.00
Hose clamp IAS 3
129 282020-8 0.83 1.00
No information available, not orderable
130 424202-8
No information available, not orderable
131 325666-8
Crankcase gasket
132 162308-1 2.36 2.86
Karter Cover Ms335.4U A
133 318612-8 5.71 6.91
Allen bolt M5x40mm Ck
134 266495-9 0.83 1.00
Metric screw Ck Inb M5x33mm
135 266573-5 0.83 1.00
No information available, not orderable
136 266570-1
Metric screw Ck Inb M4x10mm
137 266569-6 0.83 1.00
Holding Plate
138 318440-1 1.67 2.02
Feed valve
139 346083-9 1.39 1.68
Control valve
140 424201-0 1.67 2.02
Cylinder
141 135373-3 66.70 80.71
Valve arm
142 125554-7 4.45 5.38
Latch retaining ring Ms335.4U A
143 325912-9 1.39 1.68
No information available, not orderable
144 234181-0
Pen 5mm
145 256200-2 0.83 1.00
Valve pin
146 256866-8 0.83 1.00
Spacer Ebh253U A
147 424200-2 0.83 1.00
Pin 4mm Ebh253U A
148 268239-3 0.83 1.00
Cam Tiller
149 313169-4 2.71 3.28
Exhaust Valve Ms335.4U A
150 325913-7 3.54 4.28
Intake valve Ms335.4U A
151 325914-5 3.72 4.50
Rocker gear
152 125552-1 23.06 27.90
Pen 5Mm Ebh253U A
153 268238-5 0.83 1.00
Piston Ring Set
154 195141-6 12.80 15.49
Piston Ms335.4U A
155 318613-6 11.82 14.30
Piston Pin Ms335.4U A
156 257796-6 2.36 2.86
Spring retaining ring
157 233983-1 0.83 1.00
Inlegspie 3
158 254040-2 2.71 3.28
Seal Ring 12mm
159 213537-0 2.71 3.28
Washer 26 Ms335.4U A
160 267425-3 0.83 1.00
Crank Shaft
161 125756-5 58.04 70.23
No longer available, no replacement
162 213148-1
No information available, not orderable
163 125472-9
No information available, not orderable
164 125472-9
No information available, not orderable
165 125472-9
Warning label "fuel"
166 810455-9 2.84 3.44
Damper
167 424104-8 1.67 2.02
FUEL TANK
168 451877-0 15.24 18.44
Fuel filter
169 163447-0 3.11 3.76
Hose clamp IAS 3
170 345920-4 0.83 1.00
Damper Ebh253U A
171 424103-0 0.83 1.00
Damper Ebh253U A
172 424102-2 0.83 1.00
Gas hose
173 162309-9 3.96 4.79
Starting device Assy Ms335 A
174 126475-6 19.23 23.27
Pulley
175 165606-2 4.67 5.65
Set screw
176 5425003010 1.75 2.12
Cord reel
177 451923-9 3.96 4.79
Coil Spring
178 232257-7 9.67 11.70
Starter Handle Ms335.4U A
179 424317-1 2.71 3.28
Start Cord
180 444018-5 2.71 3.28
Metal screw Ph M5x14mm Ck
181 266809-2 0.83 1.00
Label Ms335.4u
182 816453-1 2.71 3.28
Tank support Ms335.4U A
183 162310-4 3.54 4.28
Metal screw Ph M5x14mm Ck
184 266809-2 0.83 1.00
Air intake Ms335.4U A
185 325915-3 2.71 3.28
Insulator gasket
186 413120-5 1.18 1.43
O-Ring 10 (1,7Mm)
187 213063-9 2.71 3.28
Manifold
188 451874-6 3.96 4.79
Carburetor manifold
190 346261-1 3.12 3.78
No information available, not orderable
191 922228-9
Gasket "carburetor"
192 413138-6 1.18 1.43
Clamp
193 450562-2 1.18 1.43
Allen Bolt M5x12mm Ck
194 922213-2 0.83 1.00
Carburetor
195 168561-7 44.96 54.40
Swivel element
196 325922-6 4.14 5.01
No information available, not orderable
197 413140-9
Seegering E-3 A
198 257964-1 2.02 2.44
Met.screw Ph2 M3x18mm Ck
199 266581-6 1.18 1.43
O-ring 2
200 213538-8 2.02 2.44
Needle Ms335.4U A
201 325921-8 7.57 9.16
Compression Spring 5-9mm
202 234183-6 2.84 3.44
Diaphragm Gasket
203 442155-9 2.36 2.86
Pump diaphragm
204 WJ00009599 3.96 4.79
Parker 3X24Mm Ck A
205 266582-4 0.83 1.00
Pump cover Ebh253U A
206 346270-0 3.54 4.28
Booster pump
207 424314-7 3.54 4.28
Air Purifier Case Ebh253U A
208 140438-8 10.50 12.70
Diaphragm
209 WJ00095586 10.50 12.70
Diaphragm Gasket
210 442154-1 2.36 2.86
Pomphuis Ebh253U A
211 140437-0 39.23 47.47
No information available, not orderable
212 352010-6
Hose clamp IAS 3
213 345918-1 0.83 1.00
Vent pipe Ms335.4U A
214 422055-9 2.02 2.44
Vent pipe Ebh253U A
215 422042-8 1.67 2.02
Air Filter Housing Ebh253U A
216 123845-0 17.45 21.11
No longer available, no replacement
217 451925-5
O-ring 15
218 213540-1 0.83 1.00
Overpressure valve
219 424316-3 2.71 3.28
O-ring 14
220 213539-6 0.83 1.00
Overpressure valve plate
221 451924-7 0.83 1.00
Overpressure valve
222 424315-5 0.83 1.00
Separation Gasket
223 168577-2 1.20 1.45
No longer available, no replacement
224 168576-4
Choke plate
225 450560-6 0.83 1.00
Washer
226 423376-2 0.83 1.00
Mounting plate Ebh253U A
227 346647-9 1.67 2.02
Metric screw Ph2 M5x68mm Ck
228 265188-5 0.83 1.00
Cleaner Element
229 443140-5 2.71 3.28
Cleaner Element
230 443141-3 2.71 3.28
Cleaner Cover
231 450561-4 5.71 6.91
Metal screw Ph M5x14mm Ck
232 266809-2 0.83 1.00
Connecting cable
233 638671-9 1.67 2.02
