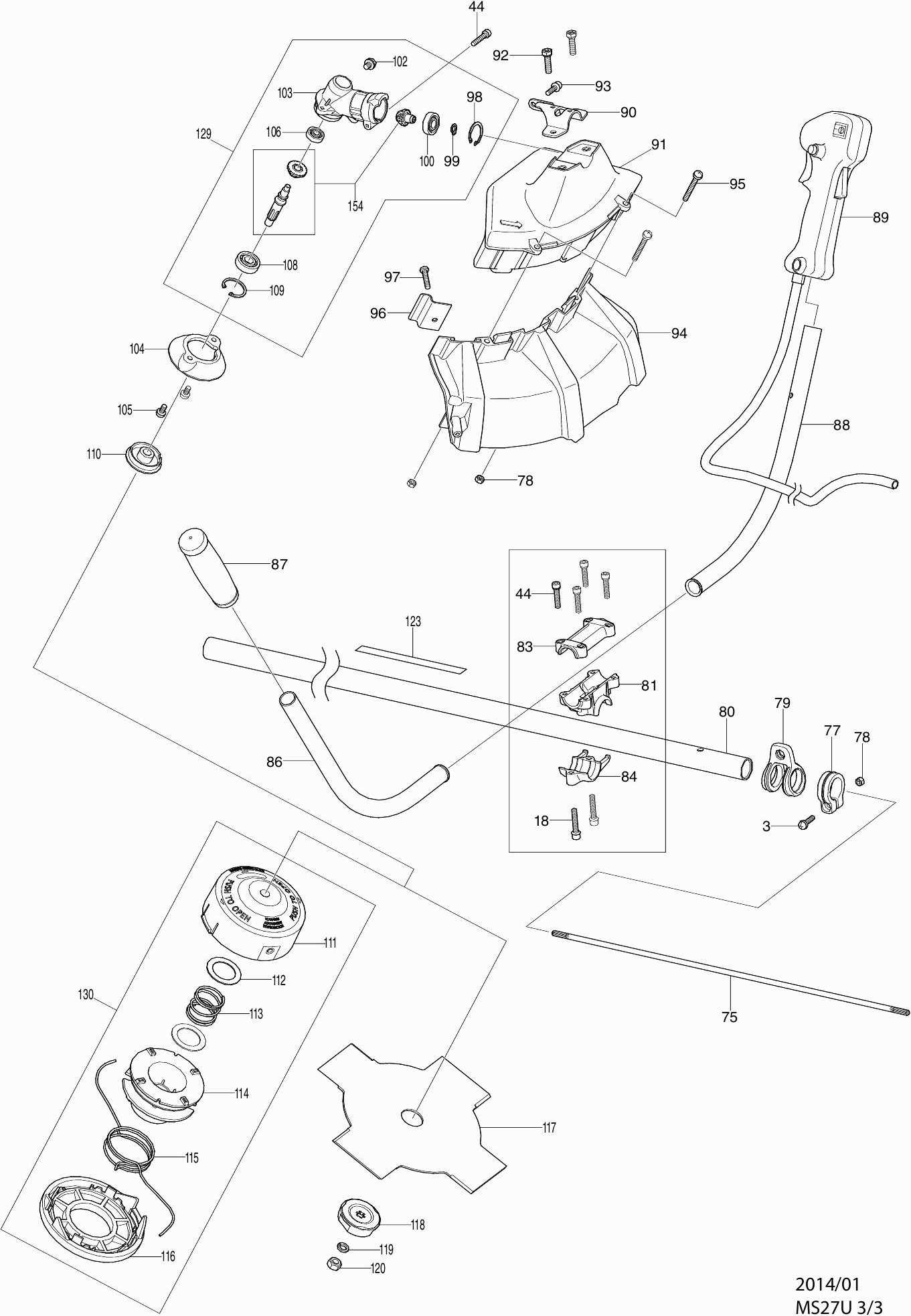

Technical drawing of model Makita MS-27U

Spare parts list of model Makita MS-27U

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Startinrichting
001 DA00000379 48.40 58.56
Startinrichting
1 DA00000379 48.40 58.56
Starter pawl Ms27
002 DA00000380 10.50 12.70
Starter pawl Ms27
2 DA00000380 10.50 12.70
Metal screw
003 DA00000096 0.83 1.00
Metal screw
3 DA00000096 0.83 1.00
Keerring
004 DA00000064 5.98 7.24
Keerring
4 DA00000064 5.98 7.24
Oil seal Ms27
005 DA00000381 6.70 8.11
No information available, not orderable
006 DA00000382
No information available, not orderable
6 DA00000382
No information available, not orderable
007 DA00000383
No information available, not orderable
7 DA00000383
Ball bearing Ms27
008 DA00000384 8.21 9.93
Ball bearing Ms27
8 DA00000384 8.21 9.93
Pin Ms27
009 DA00000385 1.00 1.21
Pin Ms27
9 DA00000385 1.00 1.21
Crankshaft Ms27
010 DA00000386 59.31 71.77
Crankshaft Ms27
10 DA00000386 59.31 71.77
No longer available, no replacement
011 DA00000077
No longer available, no replacement
11 DA00000077
Piston
012 DA00000387 11.82 14.30
Piston
12 DA00000387 11.82 14.30
Piston Ring
013 DA00000388 5.71 6.91
Piston Ring
13 DA00000388 5.71 6.91
Needle bearing 8
014 DA00000073 9.67 11.70
Needle bearing 8
14 DA00000073 9.67 11.70
Piston Pin
015 DA00000389 2.48 3.00
Piston Pin
15 DA00000389 2.48 3.00
Piston pin clip
016 DA00000071 0.83 1.00
Piston pin clip
16 DA00000071 0.83 1.00
Crankcase Gasket Ms27
017 DA00000390 1.02 1.23
Crankcase Gasket Ms27
17 DA00000390 1.02 1.23
Allen Bolt M5x30mm
018 DA00000134 0.83 1.00
Allen Bolt M5x30mm
18 DA00000134 0.83 1.00
Cylinder gasket
019 DA00000391 1.39 1.68
Cylinder gasket
19 DA00000391 1.39 1.68
Cylinder
020 DA00000392 47.10 56.99
Cylinder
20 DA00000392 47.10 56.99
Spark Plug Ms27 A
021 168648-5 3.78 4.57
Spark Plug Ms27 A
21 168648-5 3.78 4.57
Tap bolt M5x20mm
022 DA00000080 0.83 1.00
Tap bolt M5x20mm
22 DA00000080 0.83 1.00
Magneto Rotor Comp.
023 DA00000393 18.20 22.02
Magneto Rotor Comp.
23 DA00000393 18.20 22.02
Ignition
024 DA00000394 36.05 43.62
Ignition
24 DA00000394 36.05 43.62
Insulator
025 DA00000395 1.02 1.23
Insulator
25 DA00000395 1.02 1.23
Tap Bolt M4
026 DA00000396 0.83 1.00
Tap Bolt M4
26 DA00000396 0.83 1.00
Nut M6
027 DA00000397 1.20 1.45
Nut M6
27 DA00000397 1.20 1.45
Lock Washer Ms27
028 DA00000398 1.00 1.21
Lock Washer Ms27
28 DA00000398 1.00 1.21
Clutch cpl
029 DA00000399 11.82 14.30
Clutch cpl
29 DA00000399 11.82 14.30
Lock Washer Ms27
030 DA00000400 0.83 1.00
Lock Washer Ms27
30 DA00000400 0.83 1.00
Coupling bolt Ms27
031 DA00000401 3.54 4.28
Coupling bolt Ms27
31 DA00000401 3.54 4.28
Clutch Drum
032 DA00000402 10.50 12.70
Clutch Drum
32 DA00000402 10.50 12.70
No information available, not orderable
033 DA00000404
No information available, not orderable
33 DA00000404
Spring retaining ring
034 DA00000092 0.83 1.00
Spring retaining ring
34 DA00000092 0.83 1.00
Vibration Damper
035 DA00000405 2.02 2.44
Vibration Damper
35 DA00000405 2.02 2.44
Shaft holder A
036 DA00000406 2.36 2.86
Shaft holder A
36 DA00000406 2.36 2.86
Shaft holder B
037 DA00000407 2.71 3.28
Shaft holder B
37 DA00000407 2.71 3.28
Shaft buffer A
038 DA00000408 2.71 3.28
Shaft buffer A
38 DA00000408 2.71 3.28
Shaft buffer B
039 DA00000409 2.71 3.28
Shaft buffer B
39 DA00000409 2.71 3.28
Inbusbout M5x12mm
040 DA00000410 0.83 1.00
Inbusbout M5x12mm
40 DA00000410 0.83 1.00
Inlet Manifold Gasket
041 DA00000411 1.39 1.68
Inlet Manifold Gasket
41 DA00000411 1.39 1.68
Manifold
042 DA00000412 8.59 10.39
Manifold
42 DA00000412 8.59 10.39
Cable W/Eye Ms27
043 DA00000413 2.71 3.28
Cable W/Eye Ms27
43 DA00000413 2.71 3.28
Allen bolt M5x25mm
044 DA00000137 0.83 1.00
Allen bolt M5x25mm
44 DA00000137 0.83 1.00
Manifold Gasket
045 DA00000414 1.00 1.21
Manifold Gasket
45 DA00000414 1.00 1.21
Gasket Plate Ms27
046 DA00000415 1.39 1.68
Gasket Plate Ms27
46 DA00000415 1.39 1.68
Carburetor gasket
047 DA00000416 0.83 1.00
Carburetor gasket
47 DA00000416 0.83 1.00
Carburetor
048 DA00000417 82.76 100.14
Carburetor
48 DA00000417 82.76 100.14
Carburetor gasket
049 DA00000418 0.83 1.00
Carburetor gasket
49 DA00000418 0.83 1.00
Choke-Slide Ms27
050 DA00000419 0.83 1.00
Choke-Slide Ms27
50 DA00000419 0.83 1.00
No information available, not orderable
051 DA00000420
No information available, not orderable
51 DA00000420
Choke plate
052 DA00000421 0.83 1.00
Choke plate
52 DA00000421 0.83 1.00
Screw St3X10 Ms27
053 DA00000422 0.83 1.00
Screw St3X10 Ms27
53 DA00000422 0.83 1.00
Air filter plate
054 DA00000106 0.83 1.00
Air filter plate
54 DA00000106 0.83 1.00
Metal screw M5x63mm
055 DA00000107 0.83 1.00
Metal screw M5x63mm
55 DA00000107 0.83 1.00
Washer 5Mm A
056 DA00000198 0.83 1.00
Washer 5Mm A
56 DA00000198 0.83 1.00
Air Filter
057 DA00000423 0.98 1.19
Air Filter
57 DA00000423 0.98 1.19
Air filter cover
058 DA00000424 1.67 2.02
Air filter cover
58 DA00000424 1.67 2.02
Exhaust Gasket
059 DA00000425 3.72 4.50
Exhaust Gasket
59 DA00000425 3.72 4.50
Exhaust Ms27
060 DA00000426 41.77 50.54
Exhaust Ms27
60 DA00000426 41.77 50.54
Allen Bolt M5X50Mm
061 DA00000427 1.00 1.21
Allen Bolt M5X50Mm
61 DA00000427 1.00 1.21
FUEL TANK
062 DA00000428 7.22 8.74
FUEL TANK
62 DA00000428 7.22 8.74
Fuel Cap
063 DA00000122 13.82 16.72
Fuel Cap
63 DA00000122 13.82 16.72
Gasoline Hose L
064 DA00000117 2.71 3.28
Gasoline Hose L
64 DA00000117 2.71 3.28
Gasoline hose S
065 DA00000116 2.71 3.28
Gasoline hose S
65 DA00000116 2.71 3.28
Hose clamp IAS 3
066 DA00000120 1.18 1.43
Hose clamp IAS 3
66 DA00000120 1.18 1.43
No information available, not orderable
067 DA00000119
No information available, not orderable
67 DA00000119
Doorvoer LT27 A
068 DA00001303 1.39 1.68
Doorvoer LT27 A
68 DA00001303 1.39 1.68
Vibration Damper
069 DA00000429 1.75 2.12
Vibration Damper
69 DA00000429 1.75 2.12
Vibration Damper
070 DA00000430 2.48 3.00
Vibration Damper
70 DA00000430 2.48 3.00
Support Ms27
071 DA00000431 3.12 3.78
Support Ms27
71 DA00000431 3.12 3.78
Screw St4X12 Ms27
072 DA00000432 0.83 1.00
Screw St4X12 Ms27
72 DA00000432 0.83 1.00
Cylinder cover cap
073 DA00000434 11.34 13.72
Cylinder cover cap
73 DA00000434 11.34 13.72
Exhaust cover
074 DA00000435 5.06 6.12
Exhaust cover
74 DA00000435 5.06 6.12
Drive Shaft
075 DA00000436 12.22 14.79
Drive Shaft
75 DA00000436 12.22 14.79
Hanger Stop
077 DA00000129 1.39 1.68
Hanger Stop
77 DA00000129 1.39 1.68
No information available, not orderable
078 DA00000130
No information available, not orderable
78 DA00000130
No information available, not orderable
079 DA00000131
No information available, not orderable
79 DA00000131
Steel
080 DA00000478 34.95 42.29
Steel
80 DA00000478 34.95 42.29
Handle Holder 3
081 DA00000133 4.67 5.65
Handle Holder 3
81 DA00000133 4.67 5.65
Handle Holder 1
083 DA00000136 2.71 3.28
Handle Holder 1
83 DA00000136 2.71 3.28
Handle holder 2
084 DA00000135 2.71 3.28
Handle holder 2
84 DA00000135 2.71 3.28
Handle part "l"
086 DA00000138 10.99 13.30
Handle part "l"
86 DA00000138 10.99 13.30
"L" Handle
087 DA00000139 5.71 6.91
"L" Handle
87 DA00000139 5.71 6.91
Handle part "r"
088 DA00000140 10.50 12.70
Handle part "r"
88 DA00000140 10.50 12.70
Control Handle
089 DA00000479 22.09 26.73
Control Handle
89 DA00000479 22.09 26.73
Clamp for protective cover
090 DA00000144 2.84 3.44
Clamp for protective cover
90 DA00000144 2.84 3.44
Beschermkap mes
091 DA00000525 7.00 8.47
Beschermkap mes
91 DA00000525 7.00 8.47
Screw M6x23mm
092 DA00000142 0.83 1.00
Screw M6x23mm
92 DA00000142 0.83 1.00
Allen bolt M5x14mm
093 DA00000143 0.83 1.00
Allen bolt M5x14mm
93 DA00000143 0.83 1.00
Guard rim for drd-head
094 DA00000526 8.21 9.93
Guard rim for drd-head
94 DA00000526 8.21 9.93
Screw M5x40mm
095 DA00000146 0.83 1.00
Screw M5x40mm
95 DA00000146 0.83 1.00
Wire Cutter
096 DA00000148 1.67 2.02
Wire Cutter
96 DA00000148 1.67 2.02
Parker St5x25mm
097 DA00000149 0.83 1.00
Parker St5x25mm
97 DA00000149 0.83 1.00
Lock Washer S-
098 DA00000150 0.83 1.00
Lock Washer S-
98 DA00000150 0.83 1.00
Lock Washer R-
099 DA00000151 0.83 1.00
Lock Washer R-
99 DA00000151 0.83 1.00
Ball Bearing 609zz
100 210049-4 3.28 3.97
Oil Bolt M6x8mm
102 DA00000154 0.83 1.00
No information available, not orderable
103 DA00000155
Screening Ring
104 DA00000156 1.39 1.68
Screw M5X25Mm
105 DA00000157 0.83 1.00
Ball bearing 626
106 211019-6 3.72 4.50
Ball bearing 6000ddu
108 210020-8 4.45 5.38
Lock Washer S-
109 DA00000161 0.83 1.00
Protective Washer
110 DA00000162 6.38 7.72
No information available, not orderable
111 DA00000440
Spring Plate
112 DA00000164 1.39 1.68
Compression Spring
113 DA00000165 2.02 2.44
No information available, not orderable
114 DA00000166
No information available, not orderable
115 DA00000167
No information available, not orderable
116 DA00000168
No information available, not orderable
117 DA00000441
Flange
118 DA00000170 3.96 4.79
Washer Spring
119 DA00000171 0.83 1.00
Must ms27
120 DA00000172 0.98 1.19
Label Er2600L *
121 DA00000442 0.83 1.00
Label Ms27u
122 DA00000483 1.00 1.21
Label "warning"
123 DA00000484 2.71 3.28
No information available, not orderable
124 DA00000447
Crankcase "flywheel"
125 DA00000448 28.02 33.90
Crankcase "starter"
126 DA00000449 28.02 33.90
Clutch housing
127 DA00000451 34.95 42.29
Air filter housing cpl
128 DA00000452 5.06 6.12
Gear Cover
129 DA00000453 68.13 82.44
No information available, not orderable
130 DA00000500
Swivel element
137 5246001210 3.12 3.78
No information available, not orderable
138 413140-9
Screw
139 5266009020 0.98 1.19
Seegering E-3 A
140 257964-1 2.02 2.44
CABLE SUPPORT
141 5266009030 5.06 6.12
Diaphragm Gasket
143 442155-9 2.36 2.86
Pump diaphragm
144 WJ00009599 3.96 4.79
Pump Housing
145 5266002010 25.36 30.69
No information available, not orderable
146 352010-6
Diaphragm Gasket
147 442154-1 2.36 2.86
Diaphragm
148 168620-7 13.82 16.72
Air purifier housing
149 140988-3 12.22 14.79
Booster pump
150 424314-7 3.54 4.28
Pump cover Ebh253U A
151 346270-0 3.54 4.28
Parker 3X24Mm Ck A
152 266582-4 0.83 1.00
No information available, not orderable
153 DA00000459
Gear set Ms27
154 DA00000378 33.35 40.35
