Makita Mls100 spare parts and technical drawings

Here you will find all available parts and drawings of the 'Makita MLS100'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

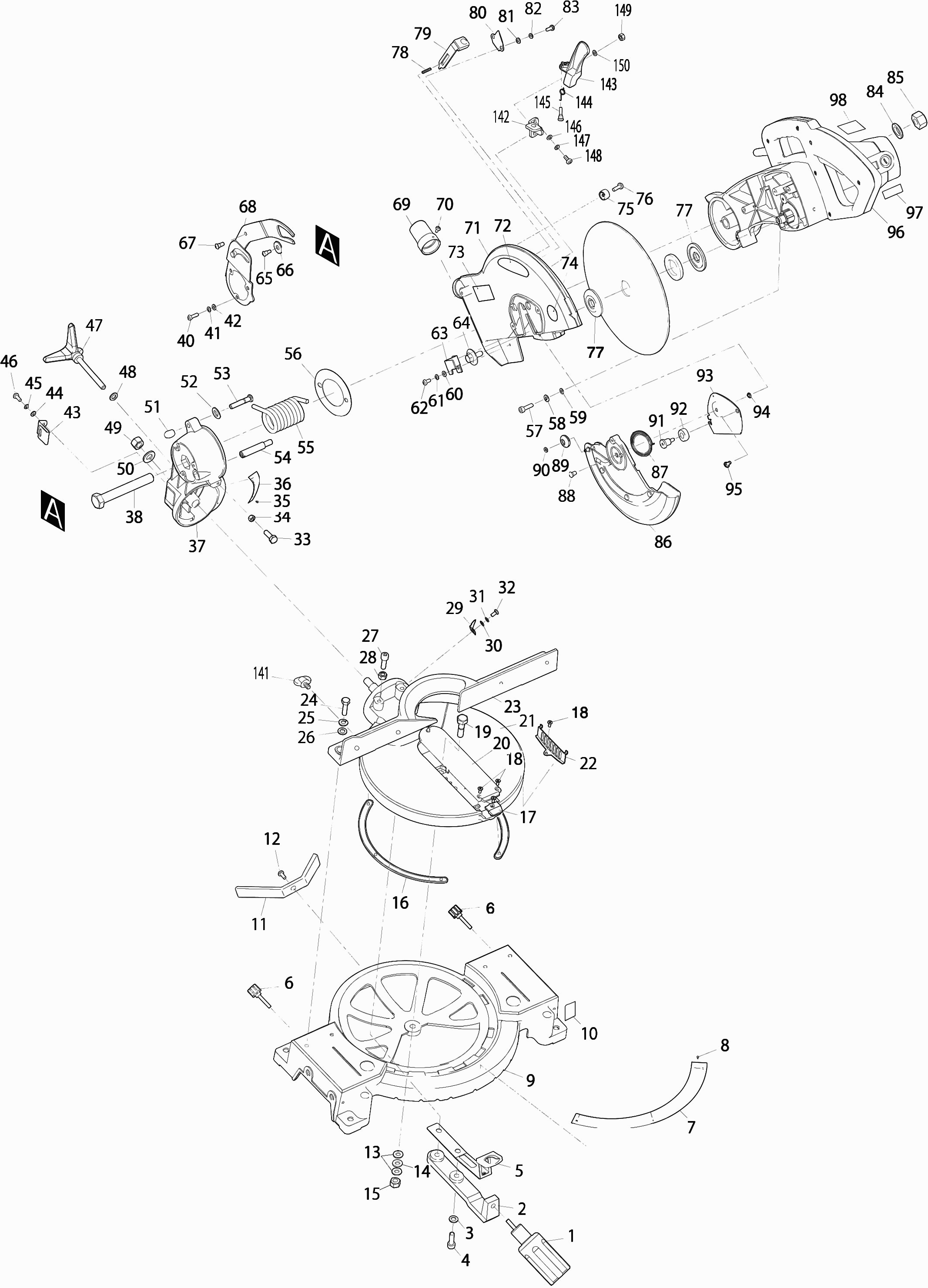

Technical drawing of model Makita MLS100

Spare parts list of model Makita MLS100

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

Rotary Knob
001	JM23000001	3.60	4.36

Handle Bracket
002	JM23000002	3.60	4.36

8Mm spring washer Mls100 *
003	JM23000003	1.00	1.21

Hex Socket Bolt M8x30
004	JM00000207	1.20	1.45

Allen bolt M8X20Mm Mls100 *
004	JM23000004	1.20	1.45

Spiral spring Mls100 *
005	JM23000050	8.40	10.16

Leaf spring set Mls100 A
005	JM23000200	3.60	4.36

Star knob Mls100 *
006	JM23000006	1.20	1.45

Gradenaand Label Mls100 *
007	JM23000007	2.40	2.90

RIVET
008	JM23000008	0.83	1.00

Base plate MLS100N
009	JM00000066	72.60	87.85

Base
009	JM23000009	69.30	83.85

Identification plate Ls800Dw *
010	810965-6	1.20	1.45

ANTIKANTELBEUGEL
011	JM23000011	3.00	3.63

Screw Mls100 *
012	JM23000012	1.20	1.45

Washer 10Mm Mls100 *
013	JM23000013	1.00	1.21

Spacer ring Mls100 *
014	JM23000014	1.00	1.21

Locknut M10 Mls100 *
015	JM23000015	1.20	1.45

Rotating ring Mls100 *
016	JM23000016	2.40	2.90

Degree Indicator Hor Mls100 *
017	JM23000017	1.20	1.45

Metal screw M4X10 Mls100 *
018	JM23000018	1.20	1.45

Cotter pin Mls100 *
019	JM23000019	2.40	2.90

Insert plate
020	JM23000141	2.40	2.90

Rotary Table
021	JM23000021	72.60	87.85

Catch net Mls100 *
022	JM23000022	2.40	2.90

End stop
023	JM23000204	26.40	31.94

Backstop
023	JM23000023	22.00	26.62

Hexagon socket screw M8X30 Mls100 *
024	JM23000024	1.20	1.45

8Mm spring washer Mls100 *
025	JM23000003	1.00	1.21

Washer 8mm
026	JM23000026	1.00	1.21

Hexagon socket screw M8X20 Mls100 *
027	JM23000027	1.20	1.45

Hexagon socket screw M8X30 Mls100 *
027	JM23000024	1.20	1.45

Nut M8 Mls100 *
028	JM23000028	1.00	1.21

Degree indicator Vert. Mls100 *
029	JM23000029	1.20	1.45

Lock washer 5mm Mls100 *
031	JM23000030	1.00	1.21

Metal screw M5X10mm Mls100 *
032	JM23000032	1.20	1.45

Allen bolt M8x16mm
033	JM23000033	1.20	1.45

Nut M8 Mls100 *
034	JM23000028	1.00	1.21

Nail Mls100 *
035	JM23000034	1.00	1.21

Gradenaand Label Mls100 *
036	JM23000035	2.40	2.90

Arm
037	JM23000036	35.20	42.59

Axle Mls100 *
038	JM23000037	4.80	5.81

Holding Plate
039	JM23000038	3.60	4.36

Metal screw M6X16Mm Mls100 *
040	JM23000039	1.20	1.45

Spring washer 6Mm Mls100 *
041	JM23000040	1.00	1.21

6mm Washer
042	JM23000041	1.00	1.21

Clamp Mls100 *
043	JM23000042	1.20	1.45

Lock washer 5mm Mls100 *
044	JM23000030	1.00	1.21

Spring washer 5mm Mls100 *
045	JM23000031	1.00	1.21

Metal screw M5X10mm Mls100 *
046	JM23000032	1.20	1.45

Lever
047	JM23000143	3.60	4.36

Washer 10Mm Mls100 *
048	JM23000013	1.00	1.21

Lock nut M12 Mls100 *
049	JM23000044	1.20	1.45

Washer 12Mm Mls100 *
050	JM23000045	1.00	1.21

Cover Mls100 *
051	JM23000046	1.20	1.45

O-Ring Mls100 *
052	JM23000047	1.20	1.45

Pin Mls100 *
053	JM23000048	1.20	1.45

Cotter pin Mls100 *
054	JM23000049	1.20	1.45

Spiral spring Mls100 *
055	JM23000050	8.40	10.16

Rivet Mls100 *
056	JM23000051	1.20	1.45

Hex socket bolt M6X20 Mls100 *
057	JM23000052	1.20	1.45

Spring washer 6Mm Mls100 *
058	JM23000040	1.00	1.21

6mm Washer
059	JM23000041	1.00	1.21

Lock washer 5mm Mls100 *
060	JM23000030	1.00	1.21

Spring washer 5mm Mls100 *
061	JM23000031	1.00	1.21

Metal screw M5X10mm Mls100 *
062	JM23000032	1.20	1.45

Metal Screw M5x12
062	JM23000069	1.20	1.45

Plate Mls100 *
063	JM23000053	1.20	1.45

Axle Bolt
064	JM23000054	1.20	1.45

Set screw M5 Mls100 *
065	JM23000055	1.20	1.45

Socket Mls100 *
066	JM23000056	1.20	1.45

Adjustment Bolt M6 Mls100 *
067	JM23000057	1.20	1.45

Coupling Strip
068	JM23000058	8.40	10.16

DUST ADAPTER MLS100 A
069	JM23000059	2.40	2.90

Metal Screw M4x10
070	JM23000060	1.00	1.21

Fixed protection cap MLS100N
071	JM00000065	34.10	41.26

Label Makita Mls100 *
072	JM23080002	2.40	2.90

Warning Label
073	817667-5	2.40	2.90

Warning Label
074	810968-0	2.40	2.90

Spacer Ring Mls100 *
075	JM23000063	2.40	2.90

Flange Mls100
077	JM23000065	3.60	4.36

Lock Washer Mls100 *
078	JM23000066	2.40	2.90

Shaft Locking Ring Mls100 *
079	JM23000067	2.40	2.90

Cover Cap Mls100 *
080	JM23000068	1.20	1.45

Lock washer 5mm Mls100 *
081	JM23000030	1.00	1.21

Spring washer 5mm Mls100 *
082	JM23000031	1.00	1.21

Metal Screw M5x12
083	JM23000069	1.20	1.45

Lock Washer 16mm
084	JM23000070	1.00	1.21

Lock Nut M16 Mls100 *
085	JM23000071	1.20	1.45

Spring protection cap
086	JM23000072	28.60	34.61

Spiral spring Mls100 *
087	JM23000073	4.80	5.81

Metal Screw M6X10Mm Mls100 *
088	JM23000074	1.20	1.45

Guide wheel
089	JM23000075	1.20	1.45

E-type Retaining Ring
090	JM23000076	1.00	1.21

Bolt (square) M6x22
091	JM23000077	1.20	1.45

Rubber Bushing Mls100 *
092	JM23000078	2.40	2.90

Mounting plate Mls100 *
093	JM23000079	2.40	2.90

Lock Nut M6
094	JM23000080	1.20	1.45

Bolt M8 Mls100 *
095	JM23000081	1.20	1.45

Warning Label
097	810964-8	2.40	2.90

Label Mls100 *
098	JM23080055	2.40	2.90

Spindle Ass'y
099	JM23000084	3.60	4.36

Locking Pin
100	JM23000085	1.20	1.45

Ball Bearing 6304llu
101	211327-5	10.80	13.07

WASHER SHIM
102	JM23000087	1.00	1.21

Gear wheel Mls100
103	JM23000088	9.60	11.62

Spacer ring 16Mm Mls100 *
104	JM23000089	1.00	1.21

Metal screw M6
105	JM23000090	1.20	1.45

Gearbox Mls100 *
106	JM23000091	48.40	58.56

Metal Screw M5X20 Mls100 *
107	JM23000092	1.20	1.45

Precision plate Mls100 *
108	JM23000093	1.20	1.45

Precision pad Mls100 *
109	JM23000094	1.20	1.45

Adjustable pad Mls100 *
110	JM23000095	1.20	1.45

M4 Nut Mls100 *
111	JM23000096	1.00	1.21

Handle cover blue MLS100N
112	JM00000021	3.60	4.36

Handle Cover
112	JM23000149	3.60	4.36

Air guide Mls100 *
113	JM23000098	2.40	2.90

Ball Bearing 6201
114	211109-5	4.80	5.81

Armature
115	JM23000100	77.00	93.17

Parker 4,8X70mm Mls100 *
116	JM23000101	1.20	1.45

Ball Bearing 6001
117	211104-5	4.80	5.81

Rubber ring Mls100 *
118	JM23000103	1.20	1.45

Field
119	JM23000104	63.80	77.20

Interference condenser Mls100 *
120	JM23000105	4.80	5.81

Parker 4.2X12mm Mls100 *
121	JM23000106	1.20	1.45

Strain relief Mls100 *
122	JM23000107	1.20	1.45

Power cord 2x1.50 4.0mtr
123	695123-3	22.00	26.62

Cable gland Mls100 *
124	JM23000109	2.40	2.90

Capacitor Mls100 *
125	JM23000110	1.20	1.45

Clamp Mls100 *
126	JM23000111	1.20	1.45

Switch MLS100 A
127	JM00000067	9.60	11.62

Parker 3X8 Mls100 *
128	JM23000113	1.20	1.45

Parker 4.2X12mm Mls100 *
128	JM23000106	1.20	1.45

Switch knob MLS100N
129	JM00000272	22.00	26.62

Switch Button Mls100 *
129	JM23000114	2.40	2.90

Parker 2.9x17 MLS100 A
130	JM00000211	1.20	1.45

Field
131	JM23000116	2.40	2.90

Motor housing blue MLS100N
132	JM00000019	19.80	23.96

Motor housing Mls100 *
132	JM23000151	19.80	23.96

Parker ST2.9x30
133	JM00000212	1.20	1.45

Metal Screw M4X30 Mls100 *
133	JM23000118	1.20	1.45

Parker Mls100 *
134	JM23000119	1.20	1.45

Screw 5x25
134	JM00000214	1.20	1.45

Carbon Brush Cap Mls100 *
135	JM23000120	1.20	1.45

Carbon Brush Holder Mls100 *
136	JM23000121	2.40	2.90

Metal screw M5X8 Mls100 *
137	JM23000122	1.20	1.45

Carbon Brush Set Cb-153
138	194985-1	4.80	5.81

Parker 5,2X12 Mls100 *
139	JM23000124	1.20	1.45

Parker ST4.8x9
139	JM00000213	1.00	1.21

Motor housing cover Mls100 *
140	JM23000125	3.60	4.36

Wing Screw Mls100 *
141	JM23000126	1.20	1.45

Bracket Mls100 *
142	JM23000132	1.20	1.45

Adjustable handle Mls100 *
143	JM23000133	1.20	1.45

Spring Mls100 *
144	JM23000134	2.40	2.90

Screw M5 Mls100 *
145	JM23000135	1.20	1.45

Washer 4mm Mls100 *
146	JM23000136	1.00	1.21

Lock washer 4mm Mls100 *
147	JM23000137	1.00	1.21

No information available, not orderable
148	JM23000138

Lock nut M5 Mls100 *
149	JM23000139	1.20	1.45

Lock washer 5mm Mls100 *
150	JM23000030	1.00	1.21

No information available, not orderable
154	JM23000138

No information available, not orderable
155	JM23000138

Lock washer 5mm Mls100 *
166	JM23000030	1.00	1.21

Lock washer 4mm Mls100 *
167	JM23000137	1.00	1.21

Washer 4mm Mls100 *
168	JM23000136	1.00	1.21

Screw M4x8
169	JM00000206	1.00	1.21

Spring washer 6Mm Mls100 *
170	JM23000040	1.00	1.21

6mm Washer
171	JM23000041	1.00	1.21

Washer 10Mm Mls100 *
172	JM23000013	1.00	1.21

Allen bolt M8X20Mm Mls100 *
173	JM23000004	1.20	1.45

Lock washer 6mm cone MLS100N
174	JM00000208	1.20	1.45
