Here you will find all available parts and drawings of the 'Makita ML106'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

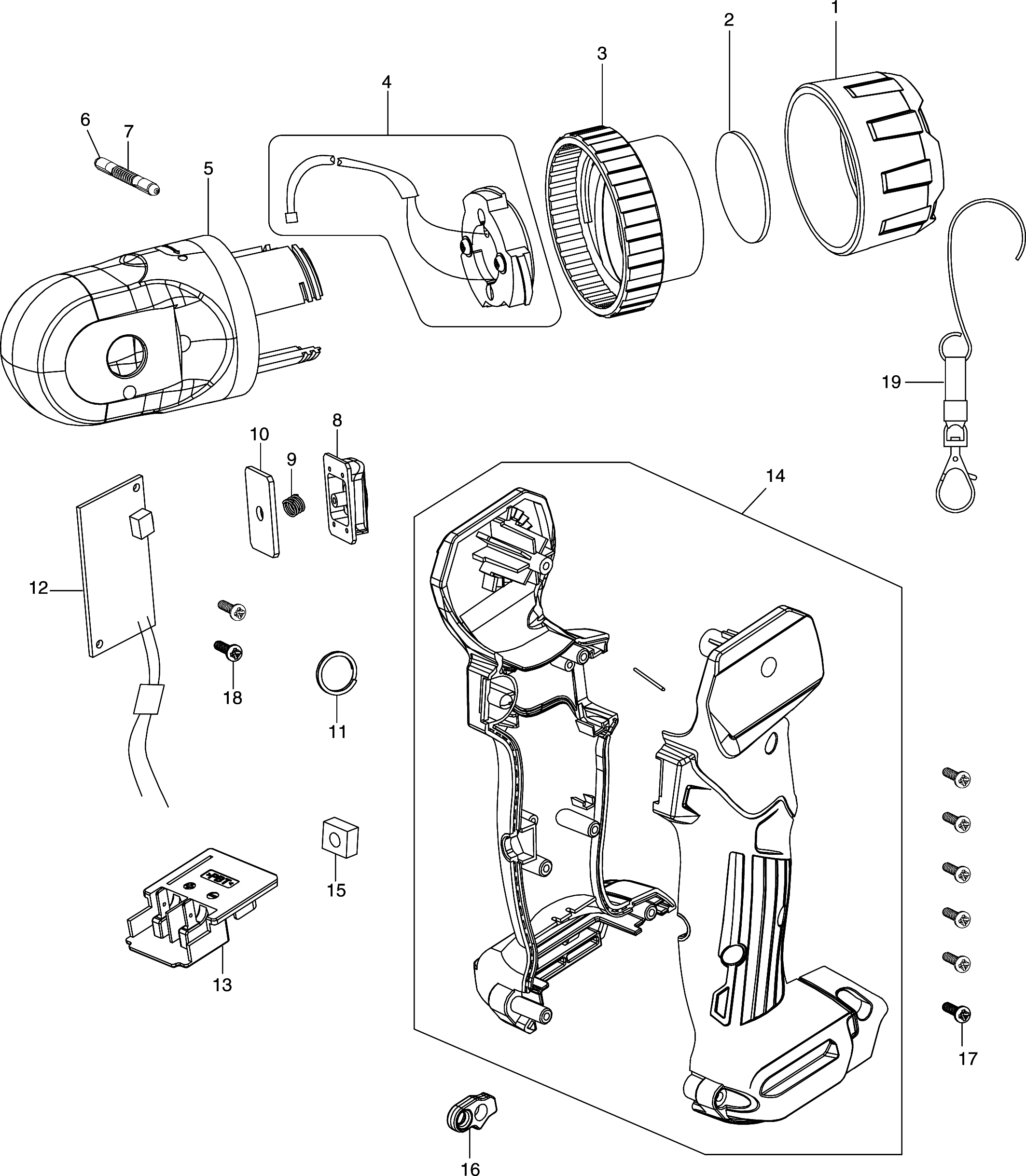

Technical drawing of model Makita ML106
Spare parts list of model Makita ML106
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Washer for Reflector Ml808 | ||||
| 001 | GM00001964 | 2.40 | 2.90 | |
| Semi Convex Lens Ml106 | ||||
| 002 | GM00001963 | 6.00 | 7.26 | |
| Metal Focus Ring Dml808 | ||||
| 003 | GM00001962 | 13.20 | 15.97 | |
| Led Circuit Dml808 | ||||
| 004 | GM00001961 | 14.30 | 17.30 | |
| Lamp Housing Dml808 | ||||
| 005 | GM00001960 | 23.10 | 27.95 | |
| Pivot Pin | ||||
| 006 | GM00001704 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 007 | GM00001958 | |||
| Switch cover | ||||
| 008 | GM00001711 | 1.20 | 1.45 | |
| Switch spring | ||||
| 009 | GM00001710 | 1.00 | 1.21 | |
| Spring Holder | ||||
| 010 | GM00001709 | 1.00 | 1.21 | |
| Compensating washer | ||||
| 011 | SM00000190 | 1.20 | 1.45 | |
| Circuit Board Ml106 | ||||
| 012 | GM00001965 | 14.30 | 17.30 | |
| Battery Holder | ||||
| 013 | GM00001708 | 4.80 | 5.81 | |
| Housing l/r | ||||
| 014 | GM00001705 | 13.20 | 15.97 | |
| Hexagonal nut metal | ||||
| 015 | GM00001687 | 1.20 | 1.45 | |
| Battery clamp plate | ||||
| 016 | GM00001706 | 1.20 | 1.45 | |
| Screw 3X12 Ml184 * | ||||
| 017 | GM00001024 | 1.00 | 1.21 | |
| Screw 2,6x8mm | ||||
| 018 | GM00001395 | 1.00 | 1.21 | |
| Shoulder strap | ||||
| 019 | GM00001289 | 3.60 | 4.36 | |
