Here you will find all available parts and drawings of the 'Makita ML105'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

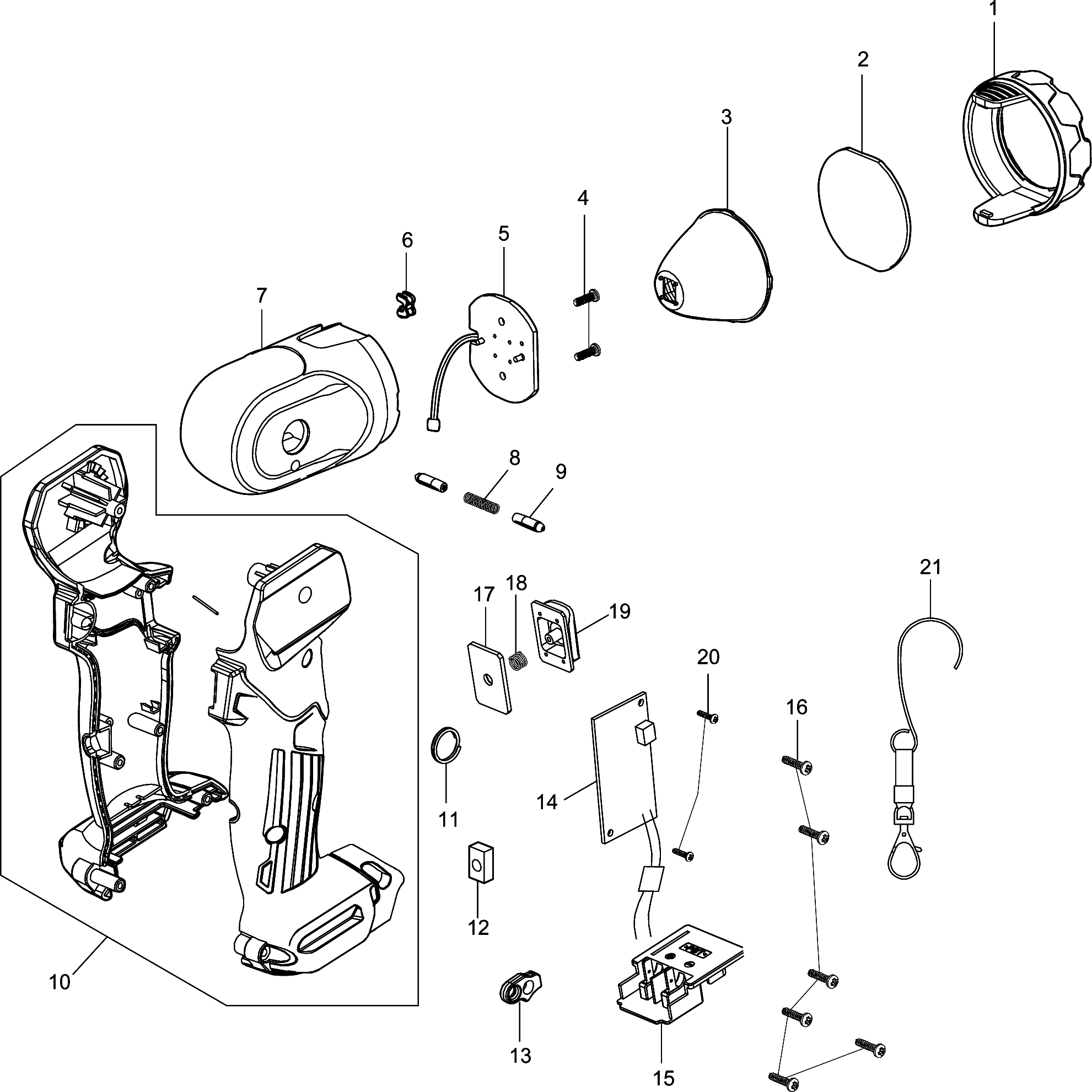

Technical drawing of model Makita ML105
Spare parts list of model Makita ML105
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| MAGNEET TBV ZAKLAMP EN LANTAARN | ||||
| F01 | GM00001683 | 11.00 | 13.31 | |
| Screw Ring+Lamp Holder | ||||
| 001 | GM00001299 | 2.40 | 2.90 | |
| Lens | ||||
| 002 | GM00001298 | 1.20 | 1.45 | |
| Reflector DUO 110 | ||||
| 003 | GM00001297 | 6.00 | 7.26 | |
| Screw M3x8mm | ||||
| 004 | GM00001296 | 1.00 | 1.21 | |
| LED Circuit | ||||
| 005 | GM00001700 | 14.30 | 17.30 | |
| Wire clamp new | ||||
| 006 | GM00001701 | 1.20 | 1.45 | |
| Alu lamp housing | ||||
| 007 | GM00001702 | 16.50 | 19.96 | |
| Hinge pin spring | ||||
| 008 | GM00001703 | 1.20 | 1.45 | |
| Pivot Pin | ||||
| 009 | GM00001704 | 3.60 | 4.36 | |
| Housing l/r | ||||
| 010 | GM00001705 | 13.20 | 15.97 | |
| Compensating washer | ||||
| 011 | SM00000190 | 1.20 | 1.45 | |
| Hexagonal nut metal | ||||
| 012 | GM00001687 | 1.20 | 1.45 | |
| Battery clamp plate | ||||
| 013 | GM00001706 | 1.20 | 1.45 | |
| Circuit board | ||||
| 014 | GM00001707 | 16.50 | 19.96 | |
| Battery Holder | ||||
| 015 | GM00001708 | 4.80 | 5.81 | |
| Screw 3X12 Ml184 * | ||||
| 016 | GM00001024 | 1.00 | 1.21 | |
| Spring Holder | ||||
| 017 | GM00001709 | 1.00 | 1.21 | |
| Switch spring | ||||
| 018 | GM00001710 | 1.00 | 1.21 | |
| Switch cover | ||||
| 019 | GM00001711 | 1.20 | 1.45 | |
| Screw 2,6x8mm | ||||
| 020 | GM00001395 | 1.00 | 1.21 | |
| Shoulder strap | ||||
| 021 | GM00001289 | 3.60 | 4.36 | |
