Here you will find all available parts and drawings of the 'Makita ML104'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

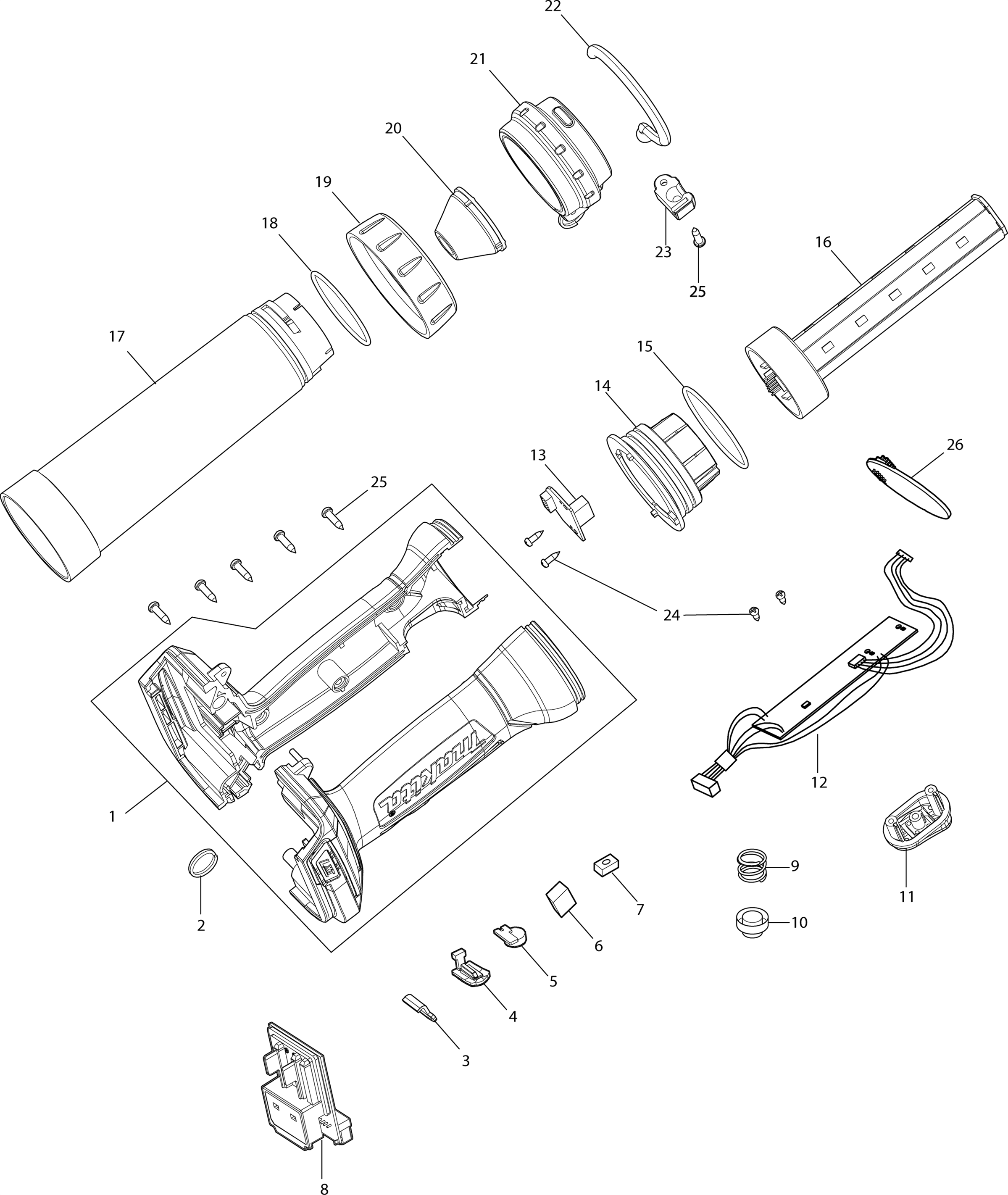

Technical drawing of model Makita ML104
Spare parts list of model Makita ML104
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 00BV1 | GM00001K1O | |||
| No information available, not orderable | ||||
| 00K | GM0000126K | |||
| Circuit | ||||
| 00O | SM00000130 | 19.80 | 23.96 | |
| No information available, not orderable | ||||
| 00Y | GM000014B3 | |||
| No information available, not orderable | ||||
| 0O0 | GM00001423 | |||
| No information available, not orderable | ||||
| 0O1 | GM000014K0 | |||
| No information available, not orderable | ||||
| 0O2 | GM00001232 | |||
| No information available, not orderable | ||||
| 0O4 | GM00001Y3B | |||
| No information available, not orderable | ||||
| 0OB | GM000010O4 | |||
| No information available, not orderable | ||||
| 0OO | GM000014K1 | |||
| No information available, not orderable | ||||
| 0OY | GM000014KO | |||
| Switch | ||||
| 001 | GM00001264 | 2.40 | 2.90 | |
| Mains cable | ||||
| 01B | GM00001424 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 01K | GM0000123B | |||
| Ring magnet | ||||
| 01O | GM00001231 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 01Y | GM0000123O | |||
| No information available, not orderable | ||||
| 002 | GM000012KO | |||
| No information available, not orderable | ||||
| 003 | GM00001263 | |||
| No information available, not orderable | ||||
| 004 | GM0000126B | |||
| Magnetic ring "b" | ||||
| 006 | GM00001266 | 1.00 | 1.21 | |
| Magnetic holder KL 65 | ||||
| 010 | GM00001230 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 011 | GM00001421 | |||
| Circuit | ||||
| 012 | GM00001234 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 013 | GM00001426 | |||
| No information available, not orderable | ||||
| 014 | GM0000123Y | |||
| No information available, not orderable | ||||
| 016 | GM0000142K | |||
