Here you will find all available parts and drawings of the 'Makita ML012G'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

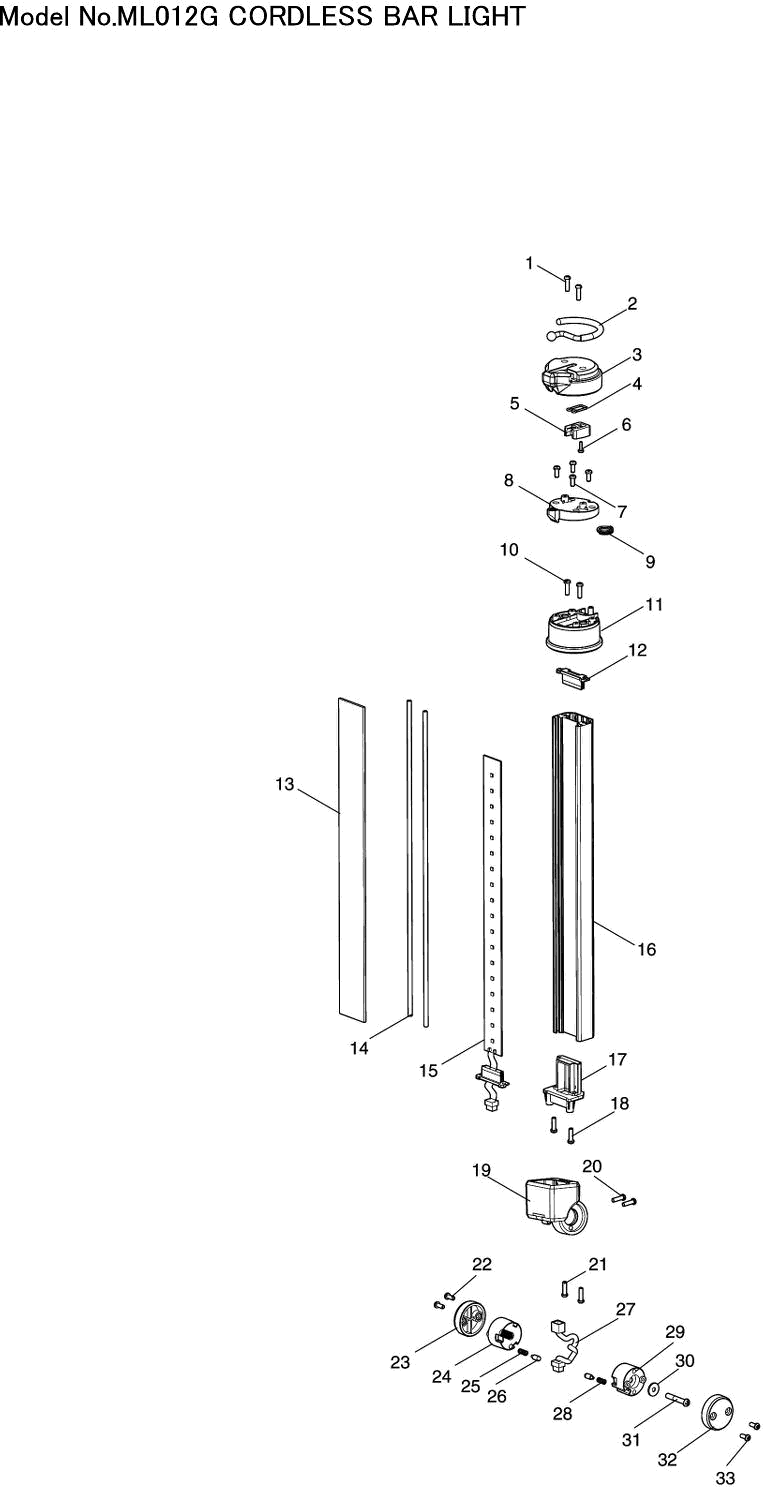

Technical drawing of model Makita ML012G

Spare parts list of model Makita ML012G

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Screw 3X12 Bml145/185
001 GM00001012 1.00 1.21
DRAAGHAAK ASSY
002 GM00002543 3.00 3.63
HOUDER ML012G_DML818
003 GM00002542 3.60 4.36
VEER ML012G_DML818
004 GM00002541 1.00 1.21
VEERAFDEKKAP ML012G_DML818
005 GM00002540 1.20 1.45
Screw 2,6x8mm
006 GM00001322 1.00 1.21
Screw 3x8mm
007 GM00001332 1.00 1.21
HOUDERSUPPORT ML012G_DML818
008 GM00002539 2.40 2.90
Washer ML001G
009 GM00002284 1.00 1.21
SCHROEF 3X12MM ML012G_DML818
010 GM00002546 1.00 1.21
LAMPHOUDER ML012G_DML818
011 GM00002535 2.40 2.90
LENSBUFFER ML012G_DML818
012 GM00002534 1.20 1.45
LENS B ML012G_DML818
013 GM00002538 4.80 5.81
O-RING ML012G_DML818
014 GM00002537 1.20 1.45
LEDSTRIP B ML012G
015 GM00002536 17.60 21.30
LEDSTRIPHOUDER B ML012G_DML818
016 GM00002533 17.60 21.30
HOUDERSUPPORT B1 ML012G_DML818
017 GM00002532 2.40 2.90
SCHROEF 3X12MM ML012G_DML818
018 GM00002546 1.00 1.21
HOUDERSUPPORT B2 ML012G_DML818
019 GM00002531 10.80 13.07
Screw 3X12 Bml145/185
020 GM00001012 1.00 1.21
Screw 3X12 Bml145/185
021 GM00001012 1.00 1.21
Screw 3x8mm
022 GM00001332 1.00 1.21
ASKAP ML012G_DML818
023 GM00002526 2.40 2.90
AS L ML012G_DML818
024 GM00002527 3.60 4.36
Pressure spring DML812
025 GM00002224 1.00 1.21
NAALD B ML012G_DML818
026 GM00002525 1.00 1.21
CONNECTOR 2P ML012G_DML818
027 GM00002528 2.40 2.90
Pressure spring DML812
028 GM00002224 1.00 1.21
AS R ML012G_DML818
029 GM00002529 2.40 2.90
SLUITRING ML012G_DML818
030 GM00002530 1.00 1.21
SCHRROEF 4X26MM ML012G_DML818
031 GM00002547 1.00 1.21
ASKAP ML012G_DML818
032 GM00002526 2.40 2.90
Screw 3x8mm
033 GM00001332 1.00 1.21
HOUDERSUPPORT A2 ML012G_DML818
034 GM00002524 8.40 10.16
Screw 3X12 Bml145/185
035 GM00001012 1.00 1.21
Screw 3X12 Bml145/185
036 GM00001012 1.00 1.21
SCHROEF 3X12MM ML012G_DML818
037 GM00002546 1.00 1.21
HOUDERSUPPORT A1 ML012G_DML818
038 GM00002523 2.40 2.90
LENS A ML012G_DML818
039 GM00002522 4.80 5.81
O-RING A ML012G_DML818
040 GM00002521 2.40 2.90
LEDSTRIP A ML012G
041 GM00002520 25.30 30.61
LEDSTRIPHOUDER A ML012G_DML818
042 GM00002519 19.80 23.96
HOUDERSUPPORT ML012G_DML818
043 GM00002518 3.60 4.36
SCHROEF 3X12MM ML012G_DML818
044 GM00002546 1.00 1.21
NAALDSUPPORT ML012G_DML818
045 GM00002517 1.20 1.45
Parker 2.67x7mm DML812
046 GM00002219 1.00 1.21
BORGRING ML012G_DML818
047 GM00002511 6.00 7.26
SCHAKELKNOP A/U ML012G_DML818
048 GM00002516 4.80 5.81
SCHAKELKNOPPLT ML012G_DML818
049 GM00002515 1.20 1.45
DRUKVEER ML012G_DML818
050 GM00002514 1.00 1.21
SCHAKELAAR A/U ML012G_DML818
051 GM00002512 2.40 2.90
Screw 2,6x8mm
052 GM00001322 1.00 1.21
NAALDKAP ML012G_DML818
053 GM00002510 1.20 1.45
NAALD C ML012G_DML818
054 GM00002570 1.00 1.21
DRUKVEER ML012G_DML818
055 GM00002569 1.00 1.21
Screw 3X12 Bml145/185
056 GM00001012 1.00 1.21
LAMPHUIS ML012G
057 GM00002503 17.60 21.30
O-RING ML012G_DML818
058 GM00002502 1.20 1.45
BATTERIJHOUDER ML012G
059 GM00002501 9.60 11.62
CIRCUIT ML012G
060 GM00002504 34.10 41.26
LAMPHUIS ML012G
061 GM00002503 17.60 21.30
No information available, not orderable
062 GM00002231
AFDEKKAP SCHAK. ML012G_DML818
063 GM00002508 2.40 2.90
HOUDER SCHAK. ML012G_DML818
064 GM00002507 1.20 1.45
CIRCUIT STANDSCH. DML818
065 GM00002505 3.60 4.36
DRAAGHAAK
066 GM00002553 15.00 18.15
No information available, not orderable
067 GM00002565
Screw 3x8mm
068 GM00001332 1.00 1.21
BORGCLIP A DML818
069 GM00002556 2.40 2.90
No information available, not orderable
070 GM00002554
BORGCLIP B DML818
071 GM00002555 3.60 4.36
No information available, not orderable
072 GM00002557
No information available, not orderable
073 GM00002566
BINNENRAIL DML818
074 GM00002558 14.30 17.30
No information available, not orderable
075 GM00002566
No information available, not orderable
076 GM00002559
No information available, not orderable
077 GM00002560
No information available, not orderable
078 GM00002566
KLEM GM00002545
079 GM00002562 11.00 13.31
No information available, not orderable
080 GM00002564
No information available, not orderable
081 GM00002561
BUITENRAIL DML818
082 GM00002563 33.00 39.93
No information available, not orderable
083 GM00002566
No information available, not orderable
084 GM00002560
No information available, not orderable
085 GM00002559
No information available, not orderable
086 GM00002566
BINNENRAIL DML818
087 GM00002558 14.30 17.30
No information available, not orderable
088 GM00002566
No information available, not orderable
089 GM00002557
BORGCLIP B DML818
090 GM00002555 3.60 4.36
No information available, not orderable
091 GM00002554
BORGCLIP A DML818
092 GM00002556 2.40 2.90
Screw 3x8mm
093 GM00001332 1.00 1.21
No information available, not orderable
094 GM00002565
DRAAGHAAK
095 GM00002553 15.00 18.15
