Here you will find all available parts and drawings of the 'Makita ML009G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

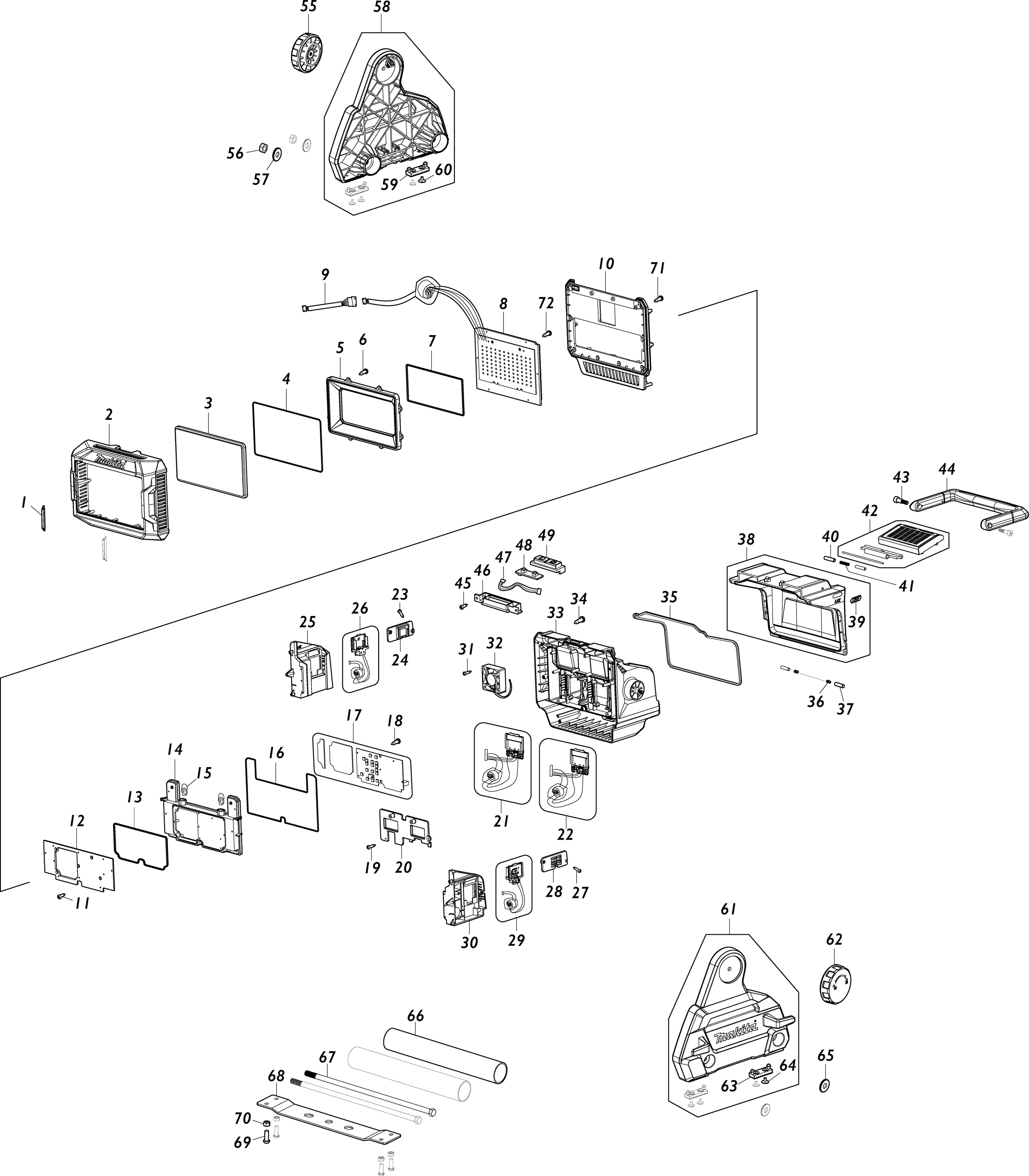

Technical drawing of model Makita ML009G
Spare parts list of model Makita ML009G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| LAMPENKAP BOUWLAMP | ||||
| A01B | GM00002377 | 12.00 | 14.52 | |
| ANTI-VERBLINDINGSFOLIE BOUWLAMP | ||||
| A02A | GM00002376 | 7.00 | 8.47 | |
| STATIEF VOOR BOUWLAMP | ||||
| F01 | GM00002378 | 116.00 | 140.36 | |
| Bow ISC 240 Wire | ||||
| F03 | GM00001396 | 13.00 | 15.73 | |
| VOORAFDEKPLAAT ML009G | ||||
| 001 | GM00002450 | 1.20 | 1.45 | |
| VOORPLAAT ML009G | ||||
| 002 | GM00002418 | 20.90 | 25.29 | |
| LENS ML009G | ||||
| 003 | GM00002419 | 13.20 | 15.97 | |
| O-RING ML009G | ||||
| 004 | GM00002420 | 2.40 | 2.90 | |
| REFLECTOR ML009G | ||||
| 005 | GM00002421 | 13.20 | 15.97 | |
| Screw 3x12mm | ||||
| 006 | GM00001333 | 1.00 | 1.21 | |
| O-RING ML009G | ||||
| 007 | GM00002422 | 2.40 | 2.90 | |
| LEDCIRCUIT ML009G | ||||
| 008 | GM00002423 | 96.80 | 117.13 | |
| KABELBOOM ASSY ML009G | ||||
| 009 | GM00002451 | 4.80 | 5.81 | |
| MIDDENHUISKAP ML009G | ||||
| 010 | GM00002424 | 14.30 | 17.30 | |
| Screw 3x18mm DML811 | ||||
| 011 | GM00002165 | 1.00 | 1.21 | |
| HITTESCHILD ML009G | ||||
| 012 | GM00002425 | 7.20 | 8.71 | |
| O-RING ML009G | ||||
| 013 | GM00002426 | 2.40 | 2.90 | |
| STROOMHUIS ML009G | ||||
| 014 | GM00002427 | 6.00 | 7.26 | |
| Bumper ML003G | ||||
| 015 | GM00002320 | 1.00 | 1.21 | |
| O-RING ML009G | ||||
| 016 | GM00002428 | 3.60 | 4.36 | |
| CIRCUIT HOOFD ML009G P | ||||
| 017 | GM00002455 | 102.30 | 123.78 | |
| No information available, not orderable | ||||
| 017-1 | GM00002495 | |||
| Screw 3x8mm | ||||
| 018 | GM00001332 | 1.00 | 1.21 | |
| Screw 3x18mm DML811 | ||||
| 019 | GM00002165 | 1.00 | 1.21 | |
| LEDHOUDERPLAAT ML009G | ||||
| 020 | GM00002430 | 3.60 | 4.36 | |
| ACCUAANLUITUNIT XGT ML009G | ||||
| 021 | GM00002435 | 11.00 | 13.31 | |
| ACCUAANLUITUNIT XGT ML009G | ||||
| 022 | GM00002436 | 11.00 | 13.31 | |
| Screw 3x18mm DML811 | ||||
| 023 | GM00002165 | 1.00 | 1.21 | |
| LEDHOUDER ML009G | ||||
| 024 | GM00002438 | 1.20 | 1.45 | |
| BATTERIJHOUDER ML009G | ||||
| 025 | GM00002437 | 3.60 | 4.36 | |
| HOUDER LXT ML009G | ||||
| 026 | GM00002433 | 9.60 | 11.62 | |
| Screw 3x18mm DML811 | ||||
| 027 | GM00002165 | 1.00 | 1.21 | |
| LEDHOUDER ML009G | ||||
| 028 | GM00002434 | 1.20 | 1.45 | |
| HOUDER LXT ML009G | ||||
| 029 | GM00002432 | 9.60 | 11.62 | |
| BATTERIJHOUDER ML009G | ||||
| 030 | GM00002431 | 4.80 | 5.81 | |
| Screw 4x30mm | ||||
| 031 | GM00002193 | 1.00 | 1.21 | |
| Fan DML809 | ||||
| 032 | GM00002194 | 39.60 | 47.92 | |
| MIDDENHUIS ML009G | ||||
| 033 | GM00002456 | 31.90 | 38.60 | |
| Screw 3x18mm DML811 | ||||
| 034 | GM00002165 | 1.00 | 1.21 | |
| O-RING ML009G | ||||
| 035 | GM00002440 | 2.40 | 2.90 | |
| VEER ML009G | ||||
| 036 | GM00002441 | 1.00 | 1.21 | |
| Axis ML005G | ||||
| 037 | GM00002403 | 2.40 | 2.90 | |
| SLUITINGKAP ML009G | ||||
| 038 | GM00002442 | 22.00 | 26.62 | |
| LABEL XGT | ||||
| 039 | GM00002310 | 2.40 | 2.90 | |
| Axis A DML809 | ||||
| 040 | GM00002255 | 1.20 | 1.45 | |
| VEER | ||||
| 041 | GM00002309 | 1.00 | 1.21 | |
| SLUITING ML009G | ||||
| 042 | GM00002443 | 2.40 | 2.90 | |
| Allen bolt DML811 | ||||
| 043 | GM00002137 | 1.20 | 1.45 | |
| HANDGREEP ML009G | ||||
| 044 | GM00002444 | 13.20 | 15.97 | |
| Screw 3x18mm DML811 | ||||
| 045 | GM00002165 | 1.00 | 1.21 | |
| SCHAKELAARHOUDER ML009G | ||||
| 046 | GM00002445 | 1.20 | 1.45 | |
| KABELBOOM ASSY ML009G | ||||
| 047 | GM00002446 | 2.40 | 2.90 | |
| Switch circuit DML809 | ||||
| 048 | GM00002182 | 3.60 | 4.36 | |
| Switch DML811 | ||||
| 049 | GM00002141 | 2.40 | 2.90 | |
| Button DML811 | ||||
| 055 | GM00002160 | 4.80 | 5.81 | |
| Nut M8 DML811 | ||||
| 056 | GM00002158 | 1.20 | 1.45 | |
| Rivet 8mm DML811 | ||||
| 057 | GM00002157 | 1.20 | 1.45 | |
| Leg Li ML005G | ||||
| 058 | GM00002413 | 16.50 | 19.96 | |
| Foot DML811 | ||||
| 059 | GM00002154 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 059-1 | GM00002572 | |||
| Screw 3x6mm DML811 | ||||
| 060 | GM00002164 | 1.00 | 1.21 | |
| Leg Re ML005G | ||||
| 061 | GM00002417 | 16.50 | 19.96 | |
| Button DML811 | ||||
| 062 | GM00002160 | 4.80 | 5.81 | |
| Foot DML811 | ||||
| 063 | GM00002154 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 063-1 | GM00002572 | |||
| Screw 3x6mm DML811 | ||||
| 064 | GM00002164 | 1.00 | 1.21 | |
| Rivet 8mm DML811 | ||||
| 065 | GM00002157 | 1.20 | 1.45 | |
| BUIS ML009G | ||||
| 066 | GM00002449 | 7.20 | 8.71 | |
| INB.SCHR M8 ML009G | ||||
| 067 | GM00002448 | 7.20 | 8.71 | |
| BASISPLAAT ML009G | ||||
| 068 | GM00002447 | 13.20 | 15.97 | |
| Parker 5x30mm ML005G | ||||
| 069 | GM00002408 | 1.00 | 1.21 | |
| Nut M5 DML811 | ||||
| 070 | GM00002155 | 1.00 | 1.21 | |
| Screw 3x12mm | ||||
| 071 | GM00001333 | 1.00 | 1.21 | |
| Screw 3x12mm | ||||
| 072 | GM00001333 | 1.00 | 1.21 | |
