Here you will find all available parts and drawings of the 'Makita ML005G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

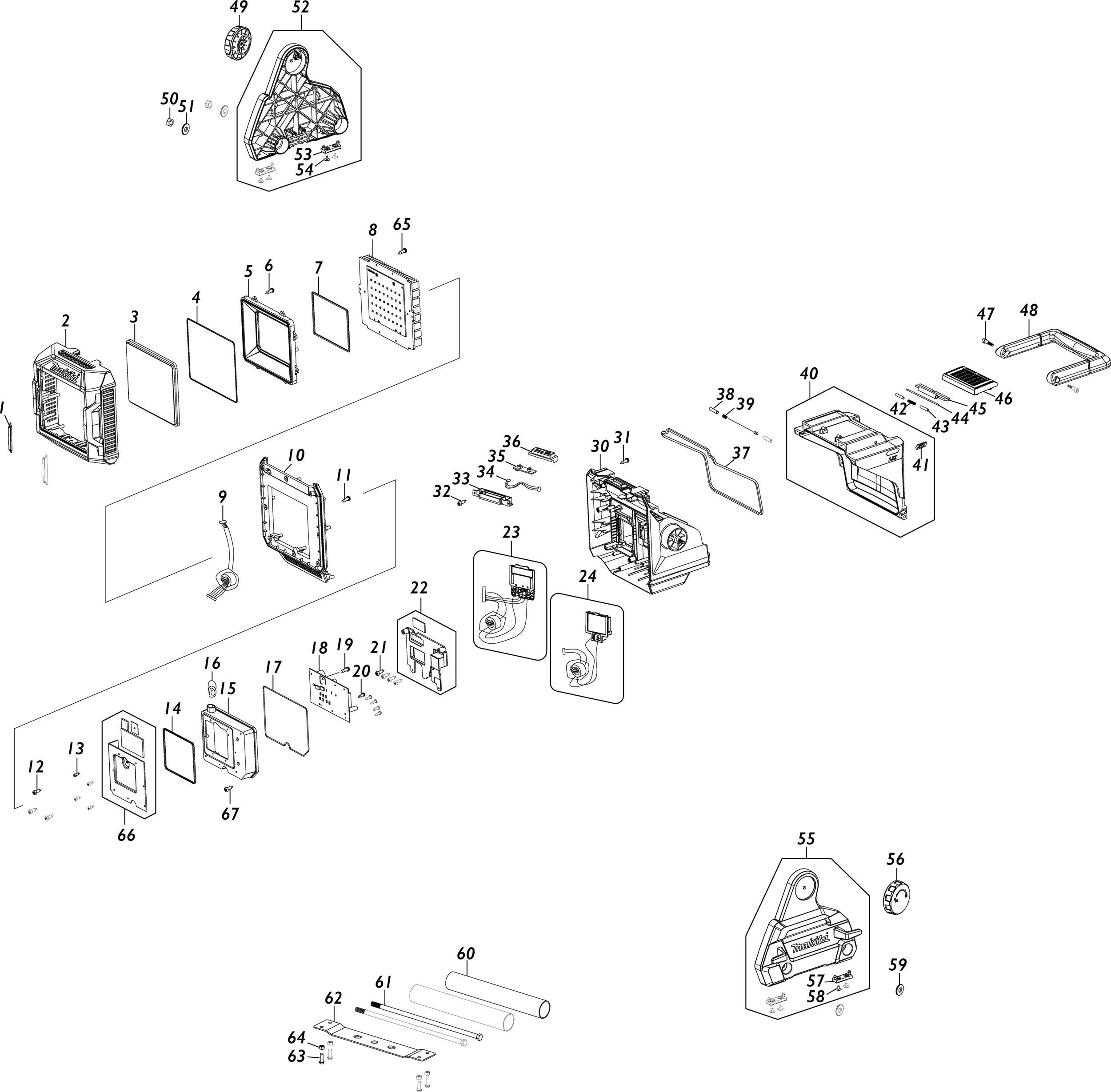

Technical drawing of model Makita ML005G
Spare parts list of model Makita ML005G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| LAMPENKAP BOUWLAMP | ||||
| A01B | GM00002358 | 9.00 | 10.89 | |
| ANTI-VERBLINDINGSFOLIE BOUWLAMP | ||||
| A02A | GM00002359 | 5.00 | 6.05 | |
| STATIEF VOOR BOUWLAMP | ||||
| F01 | GM00002378 | 116.00 | 140.36 | |
| Bow ISC 240 Wire | ||||
| F03 | GM00001396 | 13.00 | 15.73 | |
| Front cover plate ML005G | ||||
| 001 | GM00002396 | 1.20 | 1.45 | |
| Front cover assy ML005G | ||||
| 002 | GM00002380 | 19.80 | 23.96 | |
| Lens ML005G | ||||
| 003 | GM00002381 | 4.80 | 5.81 | |
| O-ring ML005G | ||||
| 004 | GM00002382 | 2.40 | 2.90 | |
| Reflector ML005G | ||||
| 005 | GM00002383 | 12.10 | 14.64 | |
| Screw 3x12mm | ||||
| 006 | GM00001333 | 1.00 | 1.21 | |
| O-ring ML005G | ||||
| 007 | GM00002384 | 2.40 | 2.90 | |
| Led assembly ML005G | ||||
| 008 | GM00002385 | 71.50 | 86.52 | |
| Cable harness ML005G | ||||
| 009 | GM00002397 | 8.40 | 10.16 | |
| Middle housing cap ML005G | ||||
| 010 | GM00002386 | 13.20 | 15.97 | |
| Screw 3x12mm | ||||
| 011 | GM00001333 | 1.00 | 1.21 | |
| Screw 3x18mm DML811 | ||||
| 012 | GM00002165 | 1.00 | 1.21 | |
| Screw 2,6x8mm | ||||
| 013 | GM00001395 | 1.00 | 1.21 | |
| O-ring ML005G | ||||
| 014 | GM00002388 | 2.40 | 2.90 | |
| Powerhouse ML005G | ||||
| 015 | GM00002389 | 6.00 | 7.26 | |
| Bumper ML003G | ||||
| 016 | GM00002320 | 1.00 | 1.21 | |
| O-ring ML005G | ||||
| 017 | GM00002390 | 2.40 | 2.90 | |
| Circuit ML005G | ||||
| 018 | GM00002415 | 58.30 | 70.54 | |
| CIRCUIT ML005G A | ||||
| 018-1 | GM00002491 | 55.00 | 66.55 | |
| Parker 3x8mm ML005G | ||||
| 019 | GM00002414 | 1.00 | 1.21 | |
| Screw 2,6x8mm | ||||
| 020 | GM00001395 | 1.00 | 1.21 | |
| Screw 3x18mm DML811 | ||||
| 021 | GM00002165 | 1.00 | 1.21 | |
| Circuit holder ML005G | ||||
| 022 | GM00002392 | 4.80 | 5.81 | |
| Holder XGT ML005G | ||||
| 023 | GM00002393 | 13.20 | 15.97 | |
| Holder LXT ML005G | ||||
| 024 | GM00002394 | 8.40 | 10.16 | |
| Middle Casing ML005G | ||||
| 030 | GM00002416 | 26.40 | 31.94 | |
| Screw 3x18mm DML811 | ||||
| 031 | GM00002165 | 1.00 | 1.21 | |
| Screw 3x18mm DML811 | ||||
| 032 | GM00002165 | 1.00 | 1.21 | |
| Switch holder ML005G | ||||
| 033 | GM00002406 | 1.20 | 1.45 | |
| Cable harness ML005G | ||||
| 034 | GM00002407 | 2.40 | 2.90 | |
| Switch circuit DML811 | ||||
| 035 | GM00002140 | 3.60 | 4.36 | |
| Switch DML811 | ||||
| 036 | GM00002141 | 2.40 | 2.90 | |
| O-ring ML005G | ||||
| 037 | GM00002401 | 2.40 | 2.90 | |
| Axis ML005G | ||||
| 038 | GM00002403 | 2.40 | 2.90 | |
| Spring ML005G | ||||
| 039 | GM00002402 | 1.00 | 1.21 | |
| Battery cover ML005G | ||||
| 040 | GM00002404 | 19.80 | 23.96 | |
| LABEL XGT | ||||
| 041 | GM00002310 | 2.40 | 2.90 | |
| VEER | ||||
| 042 | GM00002309 | 1.00 | 1.21 | |
| Axis A DML809 | ||||
| 043 | GM00002255 | 1.20 | 1.45 | |
| Axis B DML809 | ||||
| 044 | GM00002256 | 1.20 | 1.45 | |
| Closure B DML809 | ||||
| 045 | GM00002257 | 1.20 | 1.45 | |
| Closure A DML809 | ||||
| 046 | GM00002258 | 2.40 | 2.90 | |
| Allen bolt DML811 | ||||
| 047 | GM00002137 | 1.20 | 1.45 | |
| Handle assembly ML005G | ||||
| 048 | GM00002405 | 13.20 | 15.97 | |
| Button DML811 | ||||
| 049 | GM00002160 | 4.80 | 5.81 | |
| Nut M8 DML811 | ||||
| 050 | GM00002158 | 1.20 | 1.45 | |
| Rivet 8mm DML811 | ||||
| 051 | GM00002157 | 1.20 | 1.45 | |
| Leg Li ML005G | ||||
| 052 | GM00002413 | 16.50 | 19.96 | |
| Foot DML811 | ||||
| 053 | GM00002154 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 053-1 | GM00002572 | |||
| Screw 3x6mm DML811 | ||||
| 054 | GM00002164 | 1.00 | 1.21 | |
| Leg Re ML005G | ||||
| 055 | GM00002417 | 16.50 | 19.96 | |
| Button DML811 | ||||
| 056 | GM00002160 | 4.80 | 5.81 | |
| Foot DML811 | ||||
| 057 | GM00002154 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 057-1 | GM00002572 | |||
| Screw 3x6mm DML811 | ||||
| 058 | GM00002164 | 1.00 | 1.21 | |
| Rivet 8mm DML811 | ||||
| 059 | GM00002157 | 1.20 | 1.45 | |
| Tube ML005G | ||||
| 060 | GM00002411 | 7.20 | 8.71 | |
| Internal screw M8 ML005G | ||||
| 061 | GM00002410 | 7.20 | 8.71 | |
| Baseplate ML005G | ||||
| 062 | GM00002409 | 12.10 | 14.64 | |
| Parker 5x30mm ML005G | ||||
| 063 | GM00002408 | 1.00 | 1.21 | |
| Nut M5 DML811 | ||||
| 064 | GM00002155 | 1.00 | 1.21 | |
| Screw 3x12mm | ||||
| 065 | GM00001333 | 1.00 | 1.21 | |
| Heat shield ML005G | ||||
| 066 | GM00002387 | 10.80 | 13.07 | |
| Screw 3x18mm DML811 | ||||
| 067 | GM00002165 | 1.00 | 1.21 | |
