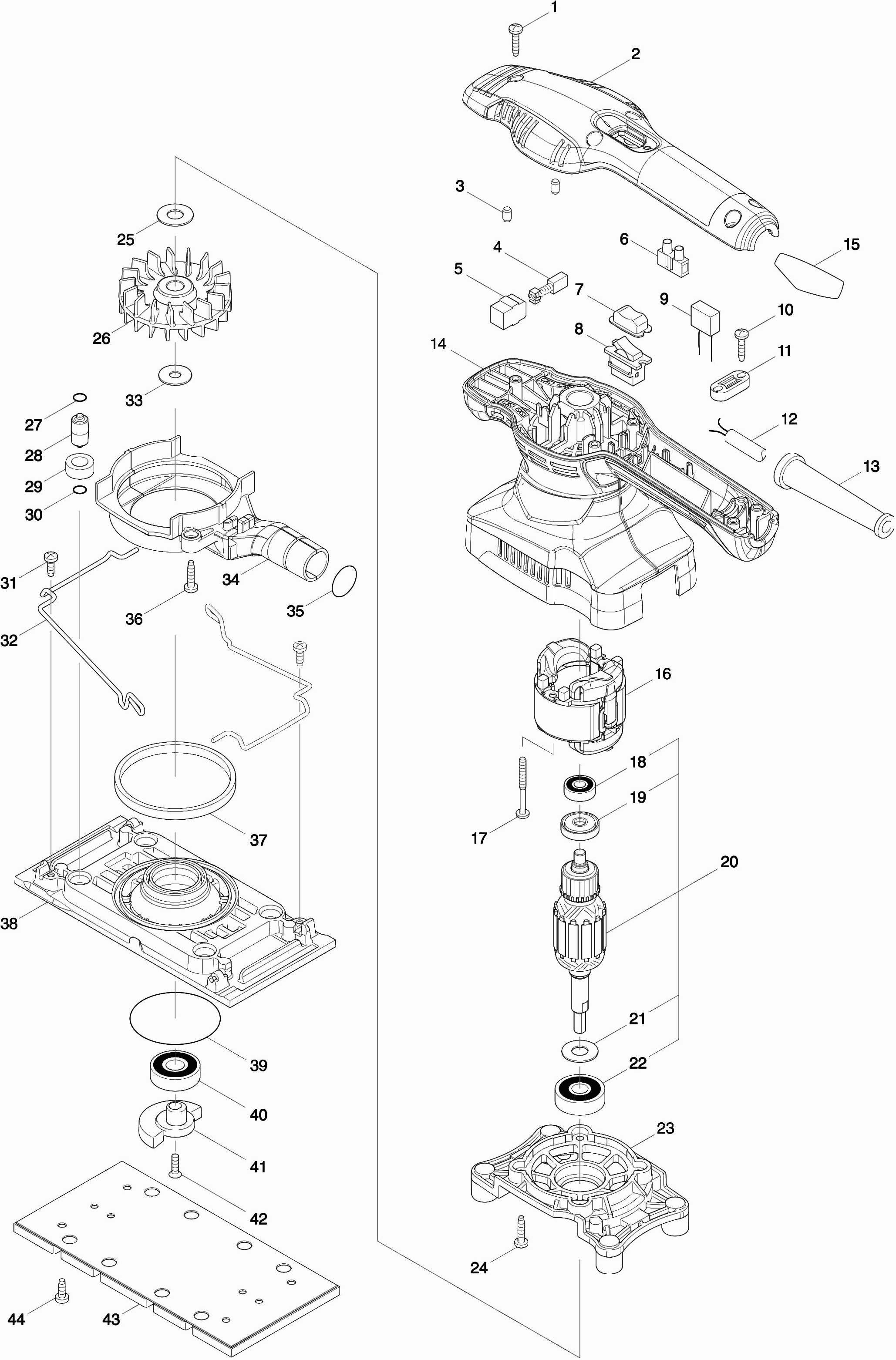

Technical drawing of model Makita M9203
Spare parts list of model Makita M9203
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 266326-2 | |||
| Top cover | ||||
| 002 | 451927-1 | 3.60 | 4.36 | |
| Top cover | ||||
| 002A | 451927-1 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 002B | 456559-9 | |||
| Rubber Pin 4 | ||||
| 003 | 263002-9 | 1.00 | 1.21 | |
| KOOLBORSTEL SET CB-64 A | ||||
| 004 | 194968-1 | 4.80 | 5.81 | |
| Brush Holder | ||||
| 005 | 643552-4 | 1.20 | 1.45 | |
| Terminal block Bo4553-Bo4554 A | ||||
| 006 | 654475-1 | 1.00 | 1.21 | |
| Switch cover | ||||
| 007 | 424086-4 | 1.00 | 1.21 | |
| Switch | ||||
| 008 | 651527-9 | 3.60 | 4.36 | |
| Noise suppression capacitor | ||||
| 009 | 645228-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 010 | 266326-2 | |||
| Clamp Bracket | ||||
| 011 | 687124-5 | 1.00 | 1.21 | |
| Power cord 2x1.00 2.2mtr | ||||
| 012 | 665383-1 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 012-1 | 695556-2 | |||
| Cable grommet 8-85 | ||||
| 013 | 682502-4 | 2.40 | 2.90 | |
| Motor Housing M9203 | ||||
| 014 | 456555-7 | 16.50 | 19.96 | |
| Motor Housing M9203 | ||||
| 014A | 456555-7 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 014B | 456558-1 | |||
| Label | ||||
| 015 | 852B68-2 | 3.60 | 4.36 | |
| FIELD 220 / 240V | ||||
| 016 | 593739-7 | 13.20 | 15.97 | |
| Connection unit | ||||
| 016A | 654409-4 | 1.00 | 1.21 | |
| Connection unit | ||||
| 016C10 | 654409-4 | 1.00 | 1.21 | |
| Met. Screw Ck 4x40mm | ||||
| 017 | 266560-4 | 1.00 | 1.21 | |
| Ball bearing 607Zz A | ||||
| 018 | 211382-7 | 1.20 | 1.45 | |
| Insulation ring | ||||
| 019 | 681652-2 | 1.00 | 1.21 | |
| Armature 240v | ||||
| 020 | 515799-9 | 19.80 | 23.96 | |
| Washer 10 | ||||
| 021 | 253180-3 | 1.20 | 1.45 | |
| Ball bearing 6200dw | ||||
| 022 | 211087-9 | 8.40 | 10.16 | |
| Bearing Housing | ||||
| 023 | 451928-9 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 024 | 266326-2 | |||
| Washer 10 | ||||
| 025 | 253180-3 | 1.20 | 1.45 | |
| Fan 68 | ||||
| 026 | 241677-4 | 6.00 | 7.26 | |
| O-ring 4 | ||||
| 027 | 213983-7 | 1.00 | 1.21 | |
| Footrest | ||||
| 028 | 318151-8 | 1.00 | 1.21 | |
| Sponge case | ||||
| 029 | 424023-8 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 030 | 213983-7 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 031 | 265C54-4 | 1.00 | 1.21 | |
| Tapping screw 4X12 Ms246.4 | ||||
| 031 | 266427-6 | 0.83 | 1.00 | |
| Pressure spring | ||||
| 032 | 324873-0 | 1.20 | 1.45 | |
| Washer 7 | ||||
| 033 | 267239-0 | 1.00 | 1.21 | |
| Fan Housing | ||||
| 034 | 451930-2 | 3.60 | 4.36 | |
| O-ring 19 | ||||
| 035 | 213315-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 036 | 266326-2 | |||
| Sponge ring | ||||
| 037 | 423470-0 | 1.00 | 1.21 | |
| Base Plate | ||||
| 038 | 451929-7 | 9.60 | 11.62 | |
| O-ring 53 | ||||
| 039 | 213656-2 | 1.20 | 1.45 | |
| Ball bearing 6202llb | ||||
| 040 | 211228-7 | 8.40 | 10.16 | |
| Counterweight | ||||
| 041 | 318622-5 | 4.80 | 5.81 | |
| Countersunk screw 4x12 | ||||
| 042 | 912117-6 | 1.00 | 1.21 | |
| STEUNZOOL 93X185 MM | ||||
| 043 | 194929-1 | 5.00 | 6.05 | |
| Screw 4x12 | ||||
| 044 | 265C54-4 | 1.00 | 1.21 | |
| Tapping screw 4X12 Ms246.4 | ||||
| 044 | 266427-6 | 0.83 | 1.00 | |
