Here you will find all available parts and drawings of the 'Makita M9001'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

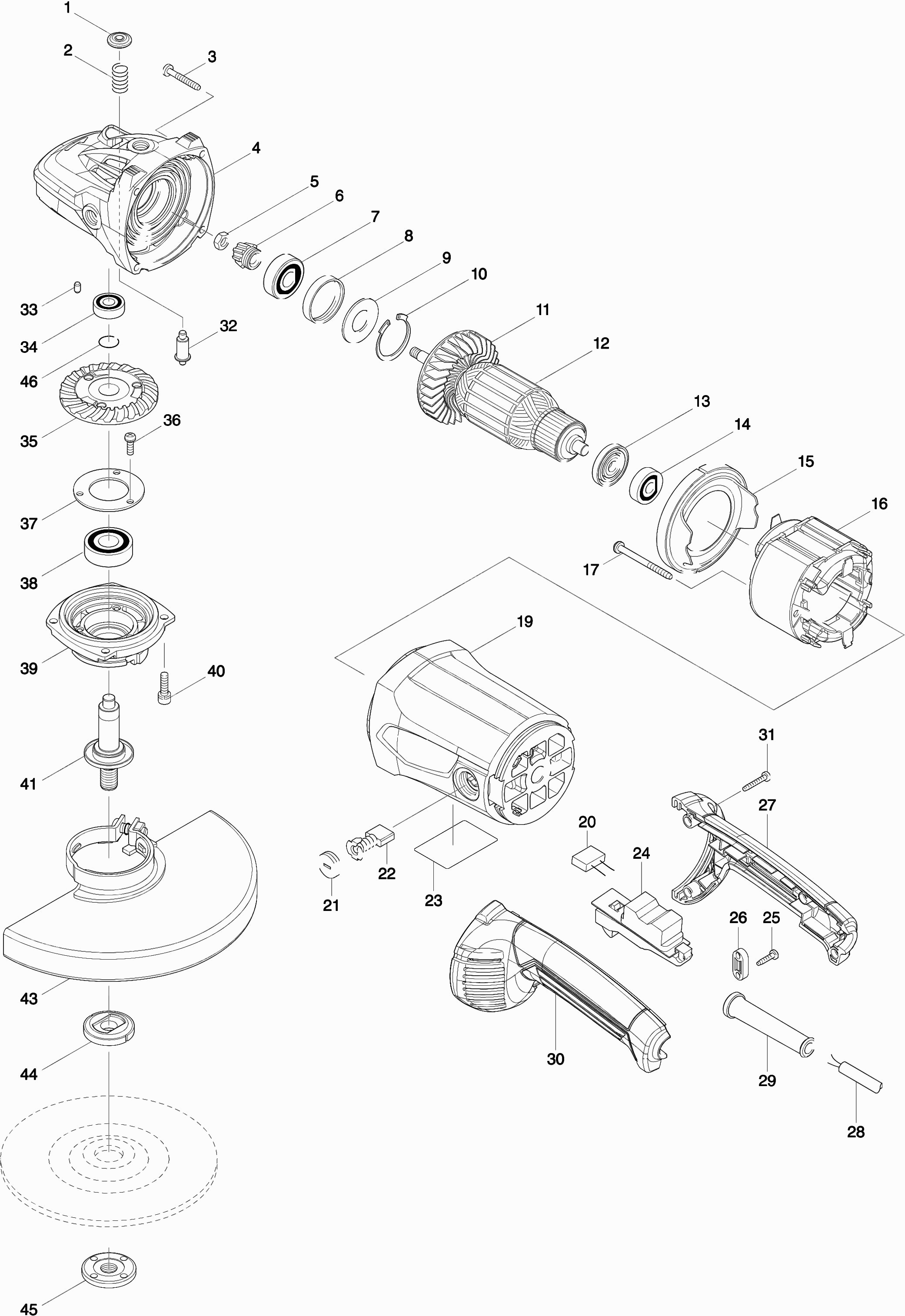

Technical drawing of model Makita M9001
Spare parts list of model Makita M9001
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pushing Button | ||||
| 001 | 419133-4 | 0.83 | 1.00 | |
| Compression spring 12 | ||||
| 002 | 233292-8 | 0.83 | 1.00 | |
| Screw 5x35 | ||||
| 003 | 266373-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 004 | 142753-6 | |||
| NUT M8 | ||||
| 005 | 252194-9 | 0.83 | 1.00 | |
| Gear 12 | ||||
| 006 | 227490-4 | 4.45 | 5.38 | |
| Ball Bearing 6301llb | ||||
| 007 | 211132-0 | 9.24 | 11.18 | |
| Rubber ring 38 | ||||
| 008 | 262085-6 | 0.83 | 1.00 | |
| Washer 20 | ||||
| 009 | 267299-2 | 0.83 | 1.00 | |
| Lock ring R-42 | ||||
| 010 | 962211-4 | 1.39 | 1.68 | |
| Fan 80 | ||||
| 011 | 240081-4 | 5.70 | 6.90 | |
| Armature | ||||
| 012 | 516948-1 | 40.56 | 49.08 | |
| Insulation ring | ||||
| 013 | 681630-2 | 1.39 | 1.68 | |
| Ball bearing 6200llb | ||||
| 014 | 211066-7 | 4.45 | 5.38 | |
| Middle plate Ga7020 | ||||
| 015 | 419135-0 | 0.83 | 1.00 | |
| S.A.FIELD M65 ( SERVICE ) | ||||
| 016 | 596279-4 | 33.35 | 40.35 | |
| Stator spring | ||||
| 016A | 654197-3 | 0.83 | 1.00 | |
| Clamping bushing for statorv. 2mm | ||||
| 016B | 654502-4 | 0.83 | 1.00 | |
| Tapping Screw 5x65mm | ||||
| 017 | 266352-1 | 0.83 | 1.00 | |
| Motor Housing | ||||
| 019 | 143118-5 | 13.82 | 16.72 | |
| Brush Holder | ||||
| 019A | 643564-7 | 2.02 | 2.44 | |
| Capacitor | ||||
| 020 | 645240-9 | 0.83 | 1.00 | |
| Brush holder cap | ||||
| 021 | 643700-5 | 0.98 | 1.19 | |
| Carbon brush set Cb-204 | ||||
| 022 | 194992-4 | 11.82 | 14.30 | |
| Nameplate M9001 | ||||
| 023 | 850W54-3 | 2.71 | 3.28 | |
| Switch Hy44b | ||||
| 024 | 651183-5 | 11.34 | 13.72 | |
| No information available, not orderable | ||||
| 025 | 266326-2 | |||
| Clamp Bracket | ||||
| 026 | 687124-5 | 0.83 | 1.00 | |
| Housing | ||||
| 027 | 188895-2 | 7.22 | 8.74 | |
| Power cord 2x1.00 2.2mtr | ||||
| 028 | 665383-1 | 10.50 | 12.70 | |
| Cable grommet 10-90 | ||||
| 029 | 682505-8 | 1.67 | 2.02 | |
| Housing | ||||
| 030 | 188895-2 | 7.22 | 8.74 | |
| No longer available, no replacement | ||||
| 031 | 266374-1 | |||
| Collar Pin 5 | ||||
| 032 | 256491-5 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 033 | 263002-9 | 0.83 | 1.00 | |
| Ball Bearing 6000zz | ||||
| 034 | 210067-2 | 1.18 | 1.43 | |
| Gear 53a | ||||
| 035 | 227491-2 | 11.82 | 14.30 | |
| Phillips Head Screw M5x16 | ||||
| 036 | 265120-9 | 0.83 | 1.00 | |
| Bearing Lock 50 | ||||
| 037 | 285724-1 | 1.00 | 1.21 | |
| Ball Bearing 6203llu | ||||
| 038 | 211490-4 | 7.22 | 8.74 | |
| Bearing Housing | ||||
| 039 | 318617-8 | 5.09 | 6.16 | |
| Allen screw | ||||
| 040 | 265541-5 | 0.83 | 1.00 | |
| Spindle Ass'y | ||||
| 041 | 158209-9 | 9.24 | 11.18 | |
| No longer available, no replacement | ||||
| 043 | 122891-0 | |||
| O-ring 6 | ||||
| 043A | 213017-6 | 0.83 | 1.00 | |
| Phillips Head Screw M8x25 | ||||
| 043B | 265158-4 | 0.83 | 1.00 | |
| Binnenflens haakse slijper en sleuvenzaag | ||||
| 044 | 224415-9 | 4.00 | 4.84 | |
| Sluitmoer haakse slijper | ||||
| 045 | 224554-5 | 4.00 | 4.84 | |
| Lock washer 15 | ||||
| 046 | 233946-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 047 | 892810-7 | |||
