Here you will find all available parts and drawings of the 'Makita M6200'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

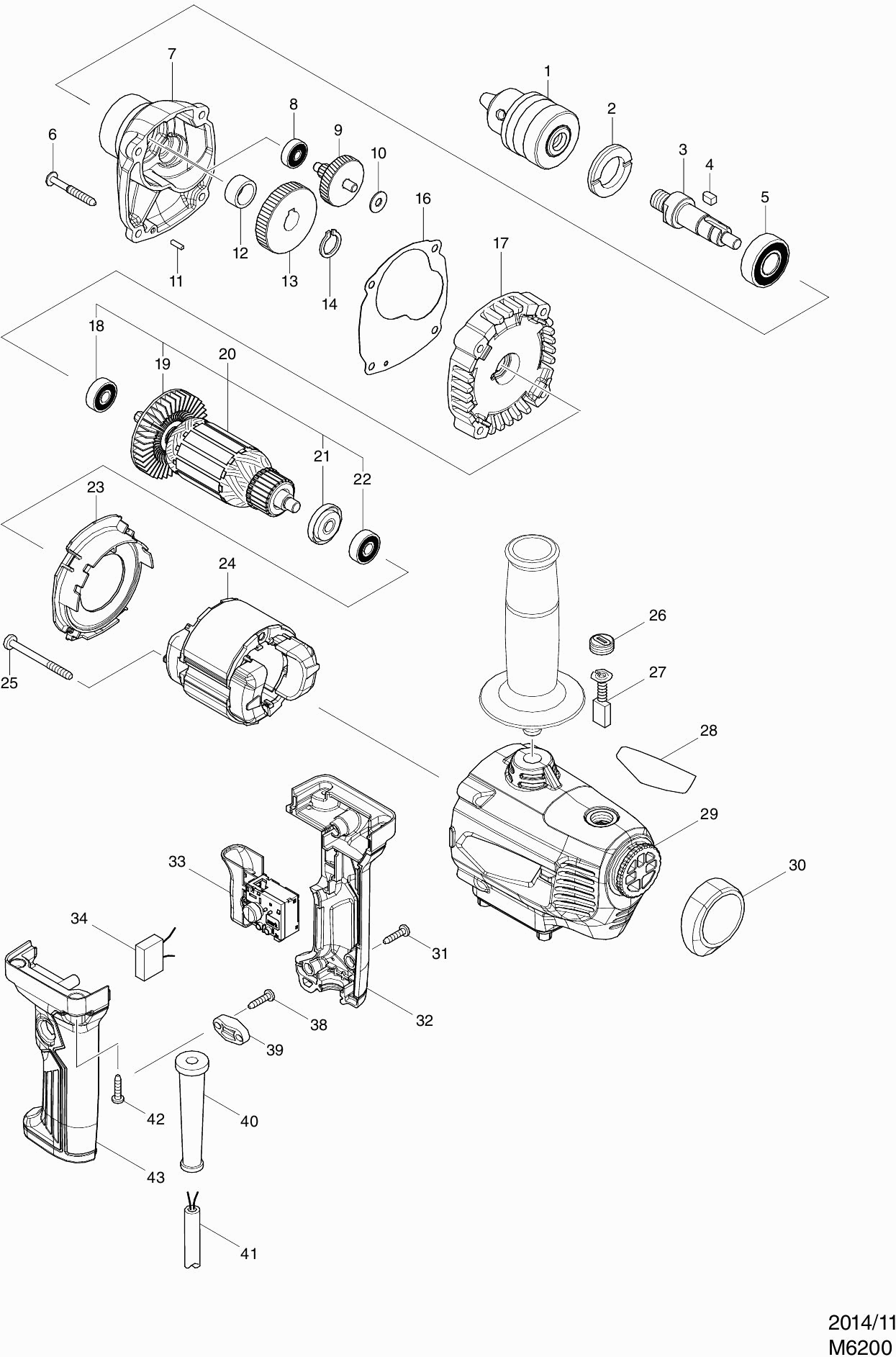

Technical drawing of model Makita M6200
Spare parts list of model Makita M6200
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 766023-5 | |||
| Bearing Locking Ring 23-36 | ||||
| 002 | 285848-3 | 1.20 | 1.45 | |
| Boorkopas M6200 | ||||
| 003 | 326600-1 | 4.80 | 5.81 | |
| Inlegspie 5 | ||||
| 004 | 254211-1 | 1.20 | 1.45 | |
| Ball bearing 6202llb | ||||
| 005 | 211228-7 | 8.40 | 10.16 | |
| Self-tapping screw 5x40 | ||||
| 006 | 266211-9 | 1.00 | 1.21 | |
| Gear Housing M6200 | ||||
| 007 | 142841-9 | 11.00 | 13.31 | |
| Rubber Pin 4 | ||||
| 007C10 | 263002-9 | 1.00 | 1.21 | |
| Ball Bearing 626ZZ DUH604S | ||||
| 008 | 211499-6 | 1.20 | 1.45 | |
| Gear 7-41 | ||||
| 009 | 226028-2 | 20.90 | 25.29 | |
| Washer 6 | ||||
| 010 | 253804-1 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 011 | 256180-2 | 1.00 | 1.21 | |
| Washer 15 | ||||
| 012 | 257018-4 | 2.40 | 2.90 | |
| Gear 47 | ||||
| 013 | 221261-1 | 12.10 | 14.64 | |
| Lock ring S-14 | ||||
| 014 | 961054-1 | 1.00 | 1.21 | |
| Gasket M6200 | ||||
| 016 | 442207-6 | 2.40 | 2.90 | |
| Gear Housing Cap M6200 | ||||
| 017 | 142840-1 | 11.00 | 13.31 | |
| Rubber Pin 4 | ||||
| 017C10 | 263002-9 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 018 | 210046-0 | 1.20 | 1.45 | |
| Fan 60 | ||||
| 019 | 241850-6 | 8.40 | 10.16 | |
| Armature assy 240V M6200 | ||||
| 020 | 518507-7 | 26.40 | 31.94 | |
| Insulation ring | ||||
| 021 | 681644-1 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 022 | 210046-0 | 1.20 | 1.45 | |
| Intermediate Plate M6200 | ||||
| 023 | 455343-9 | 1.20 | 1.45 | |
| Field 240V M6200 | ||||
| 024 | 599056-3 | 22.00 | 26.62 | |
| Stator spring Cb5 | ||||
| 024C10 | 654020-2 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 024C20 | 654501-6 | 0.83 | 1.00 | |
| Threaded bushing M1902 | ||||
| 024C21 | 654485-8 | 1.00 | 1.21 | |
| Self-tapping Screw 5x55mm | ||||
| 025 | 266418-7 | 1.00 | 1.21 | |
| Carbon brush cap | ||||
| 026 | 643515-0 | 1.00 | 1.21 | |
| Carbon brush set Cb-303 | ||||
| 027 | 194996-6 | 6.00 | 7.26 | |
| Nameplate M6200 | ||||
| 028 | 850V95-3 | 3.60 | 4.36 | |
| Motor housing cpl M6200 | ||||
| 029 | 143121-6 | 14.30 | 17.30 | |
| Carbon Brush holder 5X11 A | ||||
| 029C10 | 644501-4 | 2.40 | 2.90 | |
| Cover cap M6200 | ||||
| 030 | 424654-3 | 1.20 | 1.45 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 031 | 265B67-9 | 1.00 | 1.21 | |
| Handle Set M6200 | ||||
| 032 | 187943-4 | 10.80 | 13.07 | |
| Switch | ||||
| 033 | 650714-7 | 9.60 | 11.62 | |
| Capacitor 0.22uF | ||||
| 034 | 645190-8 | 2.40 | 2.90 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 038 | 265B67-9 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 039 | 687124-5 | 1.00 | 1.21 | |
| Cable gland 10 | ||||
| 040 | 682566-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 041 | 665852-2 | |||
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 042 | 265B67-9 | 1.00 | 1.21 | |
| Handle Set M6200 | ||||
| 043 | 187943-4 | 10.80 | 13.07 | |
