Here you will find all available parts and drawings of the 'Makita M4500'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

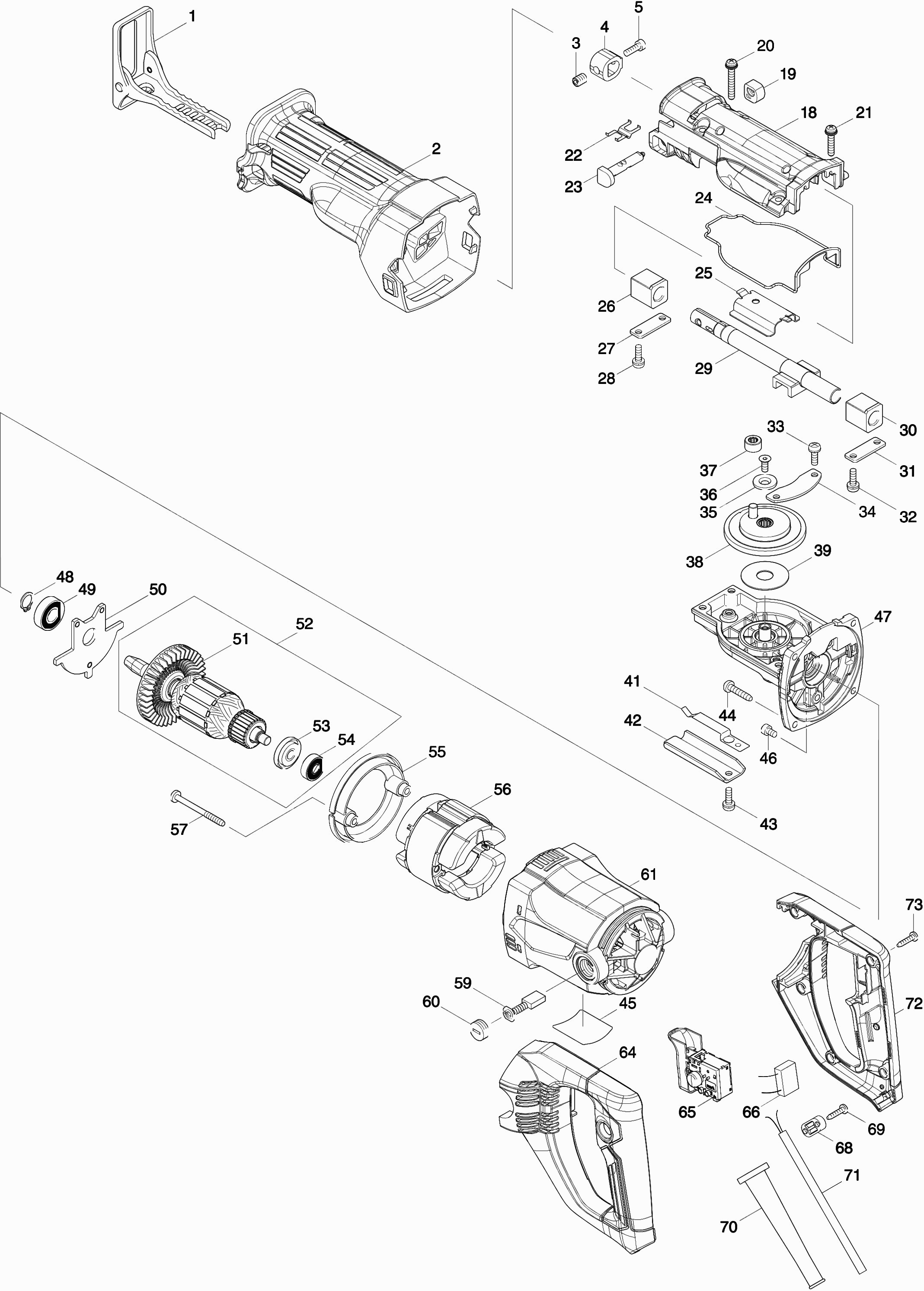

Technical drawing of model Makita M4500
Spare parts list of model Makita M4500
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Adjustable saw shoe | ||||
| 001 | 163541-8 | 10.00 | 12.10 | |
| Protection Sleeve Mt450 | ||||
| 002 | 424588-0 | 8.40 | 10.16 | |
| Set screw M8x10mm | ||||
| 003 | 266202-0 | 8.40 | 10.16 | |
| Saw Clamp | ||||
| 004 | 313075-3 | 2.40 | 2.90 | |
| Hex socket bolt M5x15 | ||||
| 005 | 266090-5 | 1.20 | 1.45 | |
| Gear box cover Mt450 | ||||
| 018 | 142177-6 | 11.00 | 13.31 | |
| Seal ring 14 | ||||
| 018A | 213151-2 | 3.60 | 4.36 | |
| X-ring 14 | ||||
| 018B | 213174-0 | 3.60 | 4.36 | |
| Cap | ||||
| 019 | 418806-6 | 1.00 | 1.21 | |
| Screw 5x36 | ||||
| 020 | 911258-5 | 1.00 | 1.21 | |
| Screw 5x25 | ||||
| 021 | 911243-8 | 1.00 | 1.21 | |
| Leaf Spring A | ||||
| 022 | 232221-8 | 1.00 | 1.21 | |
| Adjustment Knob | ||||
| 023 | 162236-0 | 4.80 | 5.81 | |
| Gasket Ring Mt450 | ||||
| 024 | 424586-4 | 1.20 | 1.45 | |
| Clamping plate Mt450 | ||||
| 025 | 346714-0 | 1.20 | 1.45 | |
| Slide bearing 14 | ||||
| 026 | 214169-6 | 1.20 | 1.45 | |
| Axle lock plate | ||||
| 027 | 341462-6 | 2.40 | 2.90 | |
| Screw 5X16 JR3051T A | ||||
| 028 | 265C32-4 | 1.00 | 1.21 | |
| Plunger | ||||
| 029 | 168821-7 | 13.20 | 15.97 | |
| Slide bearing 14 | ||||
| 030 | 214169-6 | 1.20 | 1.45 | |
| Axle lock plate | ||||
| 031 | 341462-6 | 2.40 | 2.90 | |
| Screw 5X16 JR3051T A | ||||
| 032 | 265C32-4 | 1.00 | 1.21 | |
| Screw 5X16 JR3051T A | ||||
| 033 | 265C32-4 | 1.00 | 1.21 | |
| Gear Wheel Plate Mt450 | ||||
| 034 | 346715-8 | 1.20 | 1.45 | |
| Flat Washer 6mm | ||||
| 035 | 267475-8 | 1.00 | 1.21 | |
| Hex bolt 5x12 | ||||
| 036 | 251969-3 | 1.00 | 1.21 | |
| Needle bearing 708 | ||||
| 037 | 212959-1 | 3.60 | 4.36 | |
| Gear Mt450 | ||||
| 038 | 142176-8 | 13.20 | 15.97 | |
| Flat Washer 14mm | ||||
| 039 | 267474-0 | 1.00 | 1.21 | |
| Leaf Spring B | ||||
| 041 | 232222-6 | 1.00 | 1.21 | |
| Guide plate Mt450 | ||||
| 042 | 346713-2 | 1.20 | 1.45 | |
| Screw 5X16 JR3051T A | ||||
| 043 | 265C32-4 | 1.00 | 1.21 | |
| Self-tapping screw Pf 5x25 | ||||
| 044 | 266459-3 | 1.00 | 1.21 | |
| Label | ||||
| 045 | 852C68-8 | 3.60 | 4.36 | |
| Hex Bolt M5X8 Jr3060T | ||||
| 046 | 265530-0 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 047 | 142178-4 | 13.20 | 15.97 | |
| Hex Nut M6 | ||||
| 047A | 931302-2 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 047B | 941151-9 | 1.00 | 1.21 | |
| Lock washer S-12 | ||||
| 048 | 961052-5 | 1.00 | 1.21 | |
| Ball Bearing 6001zz | ||||
| 049 | 211148-5 | 8.40 | 10.16 | |
| Bearing Lock Mt450 | ||||
| 050 | 285737-2 | 2.40 | 2.90 | |
| Fan 70 | ||||
| 051 | 241863-7 | 8.40 | 10.16 | |
| Armature 240V Mt450 | ||||
| 052 | 518693-4 | 28.60 | 34.61 | |
| Insulation ring | ||||
| 053 | 681644-1 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 054 | 210046-0 | 1.20 | 1.45 | |
| Intermediate plate Mt450 | ||||
| 055 | 454596-7 | 1.20 | 1.45 | |
| Field Assy Mt450 220-240V | ||||
| 056 | 594629-7 | 22.00 | 26.62 | |
| Stator spring Mt582 A | ||||
| 056 | 654449-2 | 1.00 | 1.21 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 056 | 654501-6 | 0.83 | 1.00 | |
| Self-tapping Screw 5x55mm | ||||
| 057 | 266418-7 | 1.00 | 1.21 | |
| Carbon brush set Cb-303 | ||||
| 059 | 194996-6 | 6.00 | 7.26 | |
| Carbon brush cap | ||||
| 060 | 643515-0 | 1.00 | 1.21 | |
| Complete Motor Housing M4501 | ||||
| 061 | 143587-0 | 16.50 | 19.96 | |
| Carbon Brush holder 5X11 A | ||||
| 061 | 644501-4 | 2.40 | 2.90 | |
| Handle Set Mt450 | ||||
| 064 | 187717-3 | 8.40 | 10.16 | |
| Switch | ||||
| 065 | 650714-7 | 9.60 | 11.62 | |
| Capacitor 0.22uF | ||||
| 066 | 645190-8 | 2.40 | 2.90 | |
| Clamp Bracket | ||||
| 068 | 687124-5 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 069 | 265B67-9 | 1.00 | 1.21 | |
| Cable gland 10 | ||||
| 070 | 682573-1 | 2.40 | 2.90 | |
| Power cord 2x1.00 2.2mtr | ||||
| 071 | 665383-1 | 10.80 | 13.07 | |
| Handle Set Mt450 | ||||
| 072 | 187717-3 | 8.40 | 10.16 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 073 | 265B67-9 | 1.00 | 1.21 | |
