Makita M2300 spare parts and technical drawings

Here you will find all available parts and drawings of the 'Makita M2300'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

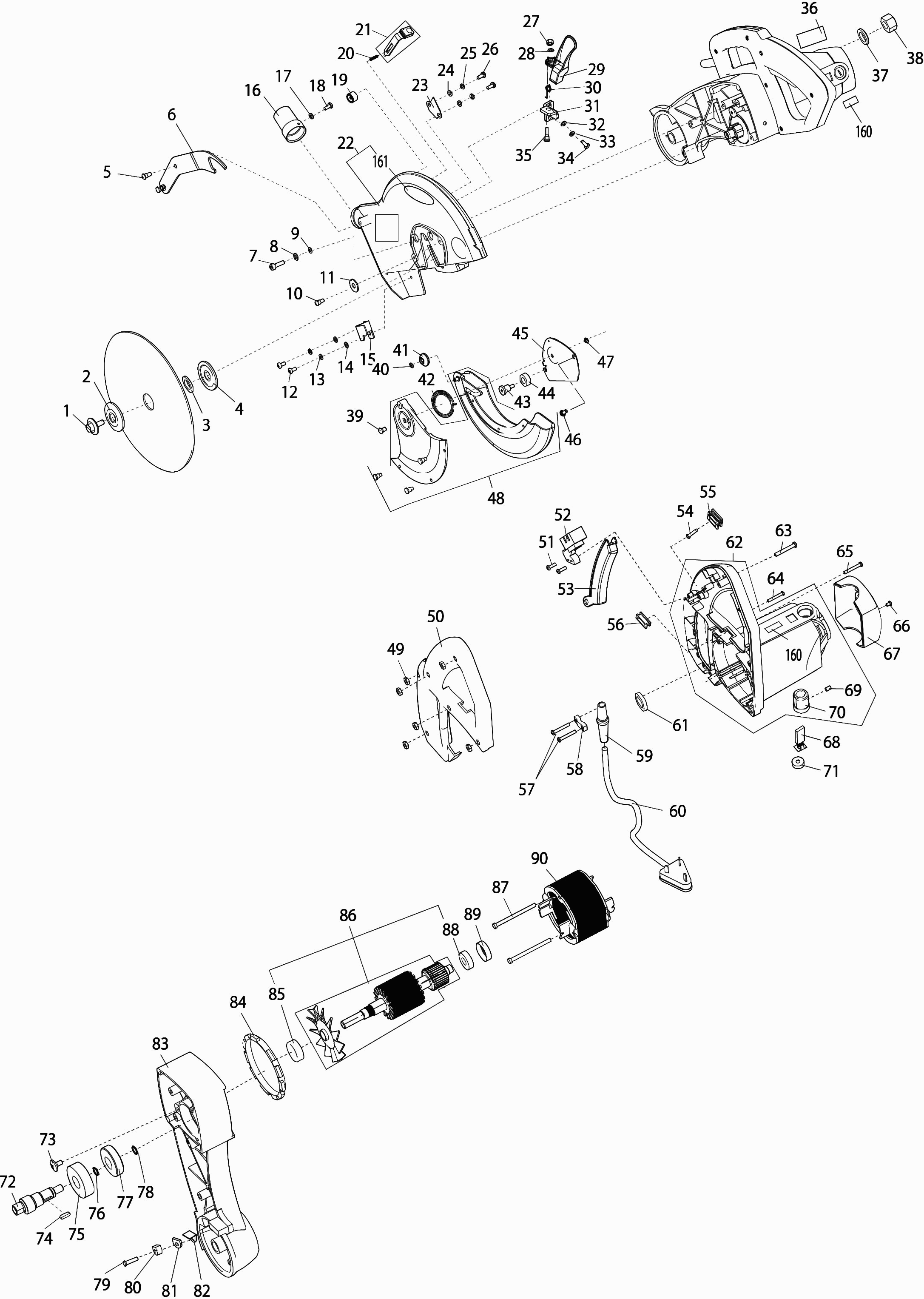

Technical drawing of model Makita M2300

Spare parts list of model Makita M2300

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

Axle Bolt
001	JM23000054	1.20	1.45

Flange Mls100
002	JM23000065	3.60	4.36

Flange Mls100
004	JM23000065	3.60	4.36

Adjustment Bolt M6 Mls100 *
005	JM23000057	1.20	1.45

Coupling Strip
006	JM23000058	8.40	10.16

Hex socket bolt M6X20 Mls100 *
007	JM23000052	1.20	1.45

Spring washer 6Mm Mls100 *
008	JM23000040	1.00	1.21

6mm Washer
009	JM23000041	1.00	1.21

Set screw M5 Mls100 *
010	JM23000055	1.20	1.45

Socket Mls100 *
011	JM23000056	1.20	1.45

Metal Screw M5x12
012	JM23000069	1.20	1.45

Metal screw M5X10mm Mls100 *
012	JM23000032	1.20	1.45

Spring washer 5mm Mls100 *
013	JM23000031	1.00	1.21

Lock washer 5mm Mls100 *
014	JM23000030	1.00	1.21

Plate Mls100 *
015	JM23000053	1.20	1.45

DUST ADAPTER MLS100 A
016	JM23000059	2.40	2.90

Lock washer 5mm Mls100 *
017	JM23000030	1.00	1.21

Washer 4mm Mls100 *
017	JM23000136	1.00	1.21

Metal Screw M4x10
018	JM23000060	1.00	1.21

Spacer Ring Mls100 *
019	JM23000063	2.40	2.90

Lock Washer Mls100 *
020	JM23000066	2.40	2.90

Shaft Locking Ring Mls100 *
021	JM23000067	2.40	2.90

Fixed protection cap MLS100N
022	JM00000065	34.10	41.26

Cover Cap Mls100 *
023	JM23000068	1.20	1.45

Lock washer 5mm Mls100 *
024	JM23000030	1.00	1.21

Spring washer 5mm Mls100 *
025	JM23000031	1.00	1.21

Metal Screw M5x12
026	JM23000069	1.20	1.45

Lock nut M5 Mls100 *
027	JM23000139	1.20	1.45

Lock washer 5mm Mls100 *
028	JM23000030	1.00	1.21

Adjustable handle Mls100 *
029	JM23000133	1.20	1.45

Spring Mls100 *
030	JM23000134	2.40	2.90

Bracket Mls100 *
031	JM23000132	1.20	1.45

Washer 4mm Mls100 *
032	JM23000136	1.00	1.21

Lock washer 4mm Mls100 *
033	JM23000137	1.00	1.21

No information available, not orderable
034	JM23000138

Screw M5 Mls100 *
035	JM23000135	1.20	1.45

No information available, not orderable
036	JM23000083

Lock Washer 16mm
037	JM23000070	1.00	1.21

Lock Nut M16 Mls100 *
038	JM23000071	1.20	1.45

Metal Screw M6X10Mm Mls100 *
039	JM23000074	1.20	1.45

E-type Retaining Ring
040	JM23000076	1.00	1.21

Guide wheel
041	JM23000075	1.20	1.45

Spiral spring Mls100 *
042	JM23000073	4.80	5.81

Bolt (square) M6x22
043	JM23000077	1.20	1.45

Rubber Bushing Mls100 *
044	JM23000078	2.40	2.90

Mounting plate Mls100 *
045	JM23000079	2.40	2.90

Bolt M8 Mls100 *
046	JM23000081	1.20	1.45

Lock Nut M6
047	JM23000080	1.20	1.45

Spring protection cap
048	JM23000072	28.60	34.61

M4 Nut Mls100 *
049	JM23000096	1.00	1.21

Handle Cover
050	JM23000097	3.60	4.36

Parker 4.2X12mm Mls100 *
051	JM23000106	1.20	1.45

Parker 3X8 Mls100 *
051	JM23000113	1.20	1.45

Switch MLS100 A
052	JM00000067	9.60	11.62

Switch knob MLS100N
053	JM00000272	22.00	26.62

Switch Button Mls100 *
053	JM23000114	2.40	2.90

Parker 2.9x17 MLS100 A
054	JM00000211	1.20	1.45

Field
055	JM23000116	2.40	2.90

Clamp Mls100 *
056	JM23000111	1.20	1.45

Parker 4.2X12mm Mls100 *
057	JM23000106	1.20	1.45

Strain relief Mls100 *
058	JM23000107	1.20	1.45

Cable gland Mls100 *
059	JM23000109	2.40	2.90

Power cord 2x1.00 2.2mtr
060	665383-1	10.80	13.07

Capacitor Mls100 *
061	JM23000110	1.20	1.45

Complete Motor House M2300
062	JM23000212	13.20	15.97

Metal Screw M4X30 Mls100 *
063	JM23000118	1.20	1.45

Parker ST2.9x30
064	JM00000212	1.20	1.45

Parker Mls100 *
064	JM23000119	1.20	1.45

Screw 5x25
065	JM00000214	1.20	1.45

Metal Screw M4X30 Mls100 *
065	JM23000118	1.20	1.45

Parker 5,2X12 Mls100 *
066	JM23000124	1.20	1.45

Parker ST4.8x9
066	JM00000213	1.00	1.21

Motor housing cover Mls100 *
067	JM23000125	3.60	4.36

Carbon Brush Set Cb-153
068	194985-1	4.80	5.81

Metal screw M5X8 Mls100 *
069	JM23000122	1.20	1.45

Carbon Brush Holder Mls100 *
070	JM23000121	2.40	2.90

Carbon Brush Cap Mls100 *
071	JM23000120	1.20	1.45

Spindle Ass'y
072	JM23000084	3.60	4.36

Metal screw M6
073	JM23000090	1.20	1.45

Locking Pin
074	JM23000085	1.20	1.45

Ball Bearing 6304llu
075	211327-5	10.80	13.07

WASHER SHIM
076	JM23000087	1.00	1.21

Gear wheel Mls100
077	JM23000088	9.60	11.62

Spacer ring 16Mm Mls100 *
078	JM23000089	1.00	1.21

Metal Screw M5X20 Mls100 *
079	JM23000092	1.20	1.45

Precision plate Mls100 *
080	JM23000093	1.20	1.45

Precision pad Mls100 *
081	JM23000094	1.20	1.45

Adjustable pad Mls100 *
082	JM23000095	1.20	1.45

Gearbox Mls100 *
083	JM23000091	48.40	58.56

Air guide Mls100 *
084	JM23000098	2.40	2.90

Ball Bearing 6201
085	211109-5	4.80	5.81

Armature
086	JM23000100	77.00	93.17

Parker 4,8X70mm Mls100 *
087	JM23000101	1.20	1.45

Ball Bearing 6001
088	211104-5	4.80	5.81

Rubber ring Mls100 *
089	JM23000103	1.20	1.45

Field
090	JM23000104	63.80	77.20

No information available, not orderable
091	JM23000130

Metal screw M6X16Mm Mls100 *
092	JM23000039	1.20	1.45

Spring washer 6Mm Mls100 *
093	JM23000040	1.00	1.21

6mm Washer
094	JM23000041	1.00	1.21

Holding Plate
095	JM23000038	3.60	4.36

Metal screw M5X10mm Mls100 *
096	JM23000032	1.20	1.45

Spring washer 5mm Mls100 *
097	JM23000031	1.00	1.21

Lock washer 5mm Mls100 *
098	JM23000030	1.00	1.21

Clamp Mls100 *
099	JM23000042	1.20	1.45

Axle Mls100 *
100	JM23000037	4.80	5.81

Cotter pin Mls100 *
101	JM23000049	1.20	1.45

Lock nut M12 Mls100 *
102	JM23000044	1.20	1.45

Washer 12Mm Mls100 *
103	JM23000045	1.00	1.21

Arm
104	JM23000036	35.20	42.59

Cover Mls100 *
105	JM23000046	1.20	1.45

O-Ring Mls100 *
106	JM23000047	1.20	1.45

Pin Mls100 *
107	JM23000048	1.20	1.45

Rivet Mls100 *
108	JM23000051	1.20	1.45

Metal screw M4x15mm
109	JM23100014	1.00	1.21

Spiral spring Mls100 *
110	JM23000050	8.40	10.16

Gradenaand Label Mls100 *
111	JM23000035	2.40	2.90

Nail Mls100 *
112	JM23000034	1.00	1.21

Allen bolt M8x16mm
113	JM23000033	1.20	1.45

Nut M8 Mls100 *
114	JM23000028	1.00	1.21

Stop M2300
115	JM23000203	8.40	10.16

KANTELBARE AANSLAG BOVEN LINKS
115	JM23010001	6.00	7.26

Lock Nut M6
116	JM23100110	1.20	1.45

Lock Nut M6
116	JM21000033	1.00	1.21

Screw 4x12
117	911516-9	2.40	2.90

Metal screw M4x15mm
117	JM23100014	1.00	1.21

Lock washer 4mm Mls100 *
118	JM23000137	1.00	1.21

Mounting Plate
119	JM23000202	1.00	1.21

Pressure Plate
120	JM23300239	2.40	2.90

6mm Washer
120	JM23100071	1.00	1.21

Countersunk Screw 6x25
121	JM23000201	1.00	1.21

Wing Screw Mls100 *
122	JM23000126	1.20	1.45

Hexagon socket screw M8X30 Mls100 *
123	JM23000024	1.20	1.45

No information available, not orderable
124	JM23000025

Washer 8mm
125	JM23000026	1.00	1.21

End stop
126	JM23000204	26.40	31.94

Hexagon socket screw M8X20 Mls100 *
127	JM23000027	1.20	1.45

Hexagon socket screw M8X30 Mls100 *
127	JM23000024	1.20	1.45

Nut M8 Mls100 *
128	JM23000028	1.00	1.21

Metal screw M5X10mm Mls100 *
129	JM23000032	1.20	1.45

Spring washer 5mm Mls100 *
130	JM23000031	1.00	1.21

Lock washer 5mm Mls100 *
131	JM23000030	1.00	1.21

Degree indicator Vert. Mls100 *
132	JM23000029	1.20	1.45

Cotter pin Mls100 *
133	JM23000019	2.40	2.90

Insert plate
134	JM23000020	2.40	2.90

Metal screw M4X10 Mls100 *
135	JM23000018	1.20	1.45

Catch net Mls100 *
136	JM23000022	2.40	2.90

Metal screw M4X10 Mls100 *
137	JM23000018	1.20	1.45

Degree Indicator Hor Mls100 *
138	JM23000017	1.20	1.45

Rotary Table
139	JM23000021	72.60	87.85

Rotating ring Mls100 *
140	JM23000016	2.40	2.90

Screw Mls100 *
141	JM23000012	1.20	1.45

ANTIKANTELBEUGEL
142	JM23000011	3.00	3.63

Star knob Mls100 *
143	JM23000006	1.20	1.45

TAFELVERBREDER
144	JM23000127	9.00	10.89

Washer 10Mm Mls100 *
145	JM23000013	1.00	1.21

Spacer ring Mls100 *
146	JM23000014	1.00	1.21

Locknut M10 Mls100 *
147	JM23000015	1.20	1.45

Leaf spring set Mls100 A
148	JM23000200	3.60	4.36

Handle Bracket
149	JM23000002	3.60	4.36

Rotary Knob
150	JM23000001	3.60	4.36

8Mm spring washer Mls100 *
151	JM23000003	1.00	1.21

Allen bolt M8X20Mm Mls100 *
152	JM23000004	1.20	1.45

Hex Socket Bolt M8x30
152	JM00000207	1.20	1.45

No information available, not orderable
153	JM23000128

Identification plate Ls800Dw *
154	810965-6	1.20	1.45

Base plate MLS100N
155	JM00000066	72.60	87.85

Base
155	JM23000009	69.30	83.85

RIVET
156	JM23000008	0.83	1.00

Gradenaand Label Mls100 *
157	JM23000007	2.40	2.90

Button M2300
158	JM23000043	4.80	5.81

Washer 10Mm Mls100 *
159	JM23000013	1.00	1.21

Warning Label
160	810964-8	2.40	2.90

Label, Logo
161	JM23080143	2.40	2.90

Lock washer 5mm Mls100 *
166	JM23000030	1.00	1.21

Lock washer 4mm Mls100 *
167	JM23000137	1.00	1.21

Washer 4mm Mls100 *
168	JM23000136	1.00	1.21

Screw M4x8
169	JM00000206	1.00	1.21

Spring washer 6Mm Mls100 *
170	JM23000040	1.00	1.21

6mm Washer
171	JM23000041	1.00	1.21

Washer 10Mm Mls100 *
172	JM23000013	1.00	1.21

Allen bolt M8X20Mm Mls100 *
173	JM23000004	1.20	1.45

No information available, not orderable
175	JM23000005

Lock button MLS100N
176	JM23000185	1.20	1.45

Warning label LS0815FL
177	JM2708B060	2.40	2.90

Washer 4mm Mls100 *
188	JM23000136	1.00	1.21

Wing Bolt
192	JM23000129	1.20	1.45
