Here you will find all available parts and drawings of the 'Makita M1901'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

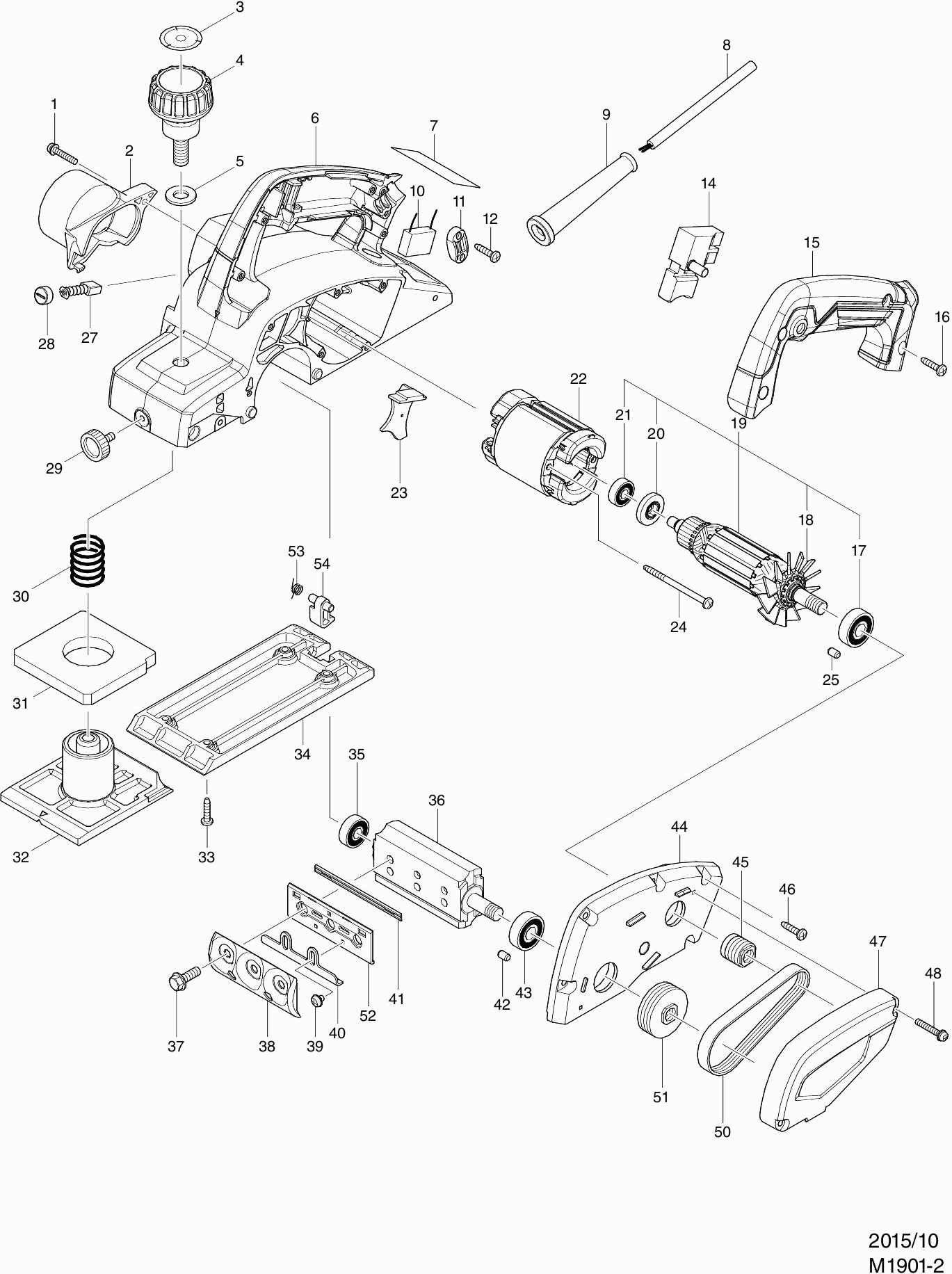

Technical drawing of model Makita M1901
Spare parts list of model Makita M1901
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw M4x22mm | ||||
| 001 | 265147-9 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 002 | 451329-1 | |||
| Scale | ||||
| 003 | 893490-2 | 0.83 | 1.00 | |
| Adjusting knob 44mm | ||||
| 004 | 272408-0 | 3.54 | 4.28 | |
| Washer 10mm | ||||
| 005 | 267278-0 | 0.83 | 1.00 | |
| Frame | ||||
| 006 | 142362-1 | 21.32 | 25.80 | |
| Carbon brush holder Mt191 A | ||||
| 006A | 643509-5 | 1.02 | 1.23 | |
| Nameplate M1901 | ||||
| 007 | 851Y45-9 | 0.83 | 1.00 | |
| Power cord 2x1.00 2.2mtr | ||||
| 008 | 665383-1 | 10.50 | 12.70 | |
| Cable grommet 8-85 | ||||
| 009 | 682502-4 | 1.67 | 2.02 | |
| Capacitor 0.22uF | ||||
| 010 | 645190-8 | 2.36 | 2.86 | |
| Clamp Bracket | ||||
| 011 | 687124-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 012 | 266326-2 | |||
| Switch | ||||
| 014 | 650216-3 | 3.12 | 3.78 | |
| Handle Cover | ||||
| 015 | 452811-3 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 016 | 266326-2 | |||
| Ball Bearing 6000zz | ||||
| 017 | 210067-2 | 1.18 | 1.43 | |
| Fan 52 | ||||
| 018 | 240068-6 | 2.71 | 3.28 | |
| Armature | ||||
| 019 | 510208-3 | 16.35 | 19.78 | |
| Insulation ring | ||||
| 020 | 681672-6 | 0.83 | 1.00 | |
| Ball bearing 607Zz A | ||||
| 021 | 211382-7 | 3.20 | 3.87 | |
| Field | ||||
| 022 | 593589-0 | 19.29 | 23.34 | |
| Field | ||||
| 022 | 654450-7 | 0.83 | 1.00 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 022 | 654501-6 | 0.83 | 1.00 | |
| Fan Guide | ||||
| 023 | 452812-1 | 0.83 | 1.00 | |
| Self Tapping Screw Pt4X60 * | ||||
| 024 | 266052-3 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 025 | 263002-9 | 0.83 | 1.00 | |
| Brush Set CB411 RT0702C | ||||
| 027 | 195010-1 | 4.45 | 5.38 | |
| Carbon brush cap 5-8 Mt191 | ||||
| 028 | 643987-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 029 | 265757-2 | |||
| Compression Spring 18 | ||||
| 030 | 233395-8 | 0.83 | 1.00 | |
| Gasket | ||||
| 031 | 421858-8 | 0.83 | 1.00 | |
| Front Sole | ||||
| 032 | 318780-7 | 12.22 | 14.79 | |
| No information available, not orderable | ||||
| 033 | 266326-2 | |||
| Sole plate Kp0800/Bkp180 A | ||||
| 034 | 319009-4 | 11.82 | 14.30 | |
| Ball Bearing 608Zz A | ||||
| 035 | 210046-0 | 0.83 | 1.00 | |
| Chisel roller | ||||
| 036 | 161140-0 | 23.04 | 27.88 | |
| Fluted bolt M6x17mm | ||||
| 037 | 265512-2 | 0.83 | 1.00 | |
| Chisel Clamp Set | ||||
| 038 | 187679-5 | 10.50 | 12.70 | |
| Screw M4x5 | ||||
| 039 | 265132-2 | 0.83 | 1.00 | |
| Adjustment plate | ||||
| 040 | 347027-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 041 | A-82921 | |||
| Rubber Pin 4 | ||||
| 042 | 263002-9 | 0.83 | 1.00 | |
| Ball Bearing 6000zz | ||||
| 043 | 210067-2 | 1.18 | 1.43 | |
| End Shield | ||||
| 044 | 140944-3 | 9.26 | 11.20 | |
| V-Belt Disc 4-20l Kp0800 | ||||
| 045 | 222163-4 | 1.75 | 2.12 | |
| No information available, not orderable | ||||
| 046 | 266326-2 | |||
| Belt Cover M1901 | ||||
| 047 | 456552-3 | 2.36 | 2.86 | |
| Screw M4x25mm | ||||
| 048 | 265101-3 | 0.83 | 1.00 | |
| V-belt 4-241 | ||||
| 050 | 225092-0 | 3.96 | 4.79 | |
| V-Belt Disc 4-37l Kp0800 | ||||
| 051 | 222164-2 | 2.38 | 2.88 | |
| Wisselbeitelhouder 82mm | ||||
| 052 | A-86175 | 4.00 | 4.84 | |
| Pull spring 7 | ||||
| 053 | 231698-4 | 0.83 | 1.00 | |
| Foot Kp0800 | ||||
| 054 | 451392-4 | 0.83 | 1.00 | |
