Here you will find all available parts and drawings of the 'Makita LS1216L'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

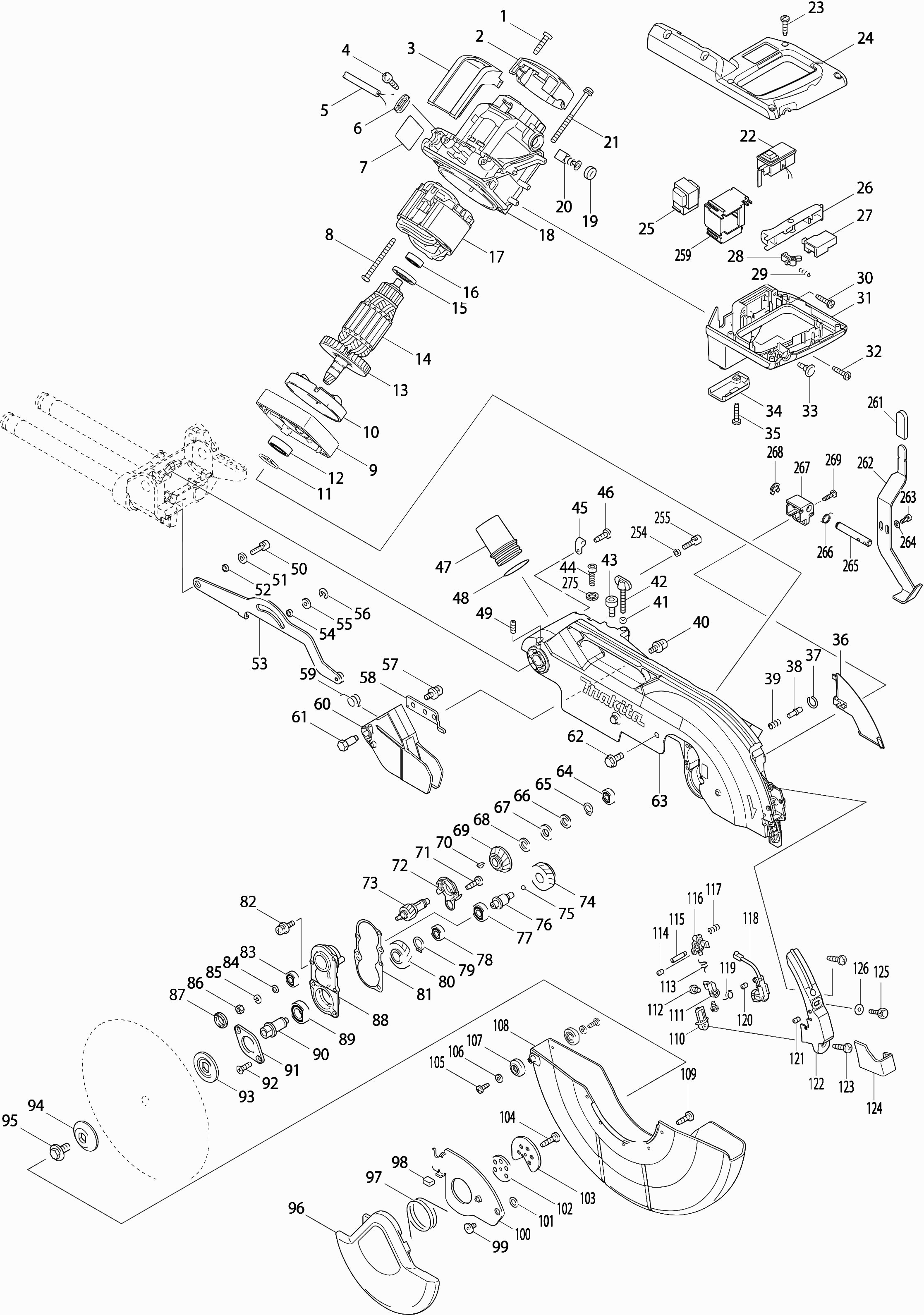

Technical drawing of model Makita LS1216L
Spare parts list of model Makita LS1216L
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.21 | |
| Side Cover | ||||
| 002 | 450999-3 | 3.60 | 4.36 | |
| Speed control circuit | ||||
| 003 | 631866-3 | 28.60 | 34.61 | |
| Tap screw 4x18 | ||||
| 004 | 265A48-7 | 1.00 | 1.21 | |
| Power cord 2x1.50 4.0mtr | ||||
| 005 | 695123-3 | 22.00 | 26.62 | |
| Clamp Bracket | ||||
| 006 | 687124-5 | 1.00 | 1.21 | |
| Nameplate "ls1216lb" | ||||
| 007 | 866948-4 | 3.60 | 4.36 | |
| Self-tapping screw Pt 5x55 Hr5001C A | ||||
| 008 | 266095-5 | 1.20 | 1.45 | |
| Motor mount | ||||
| 009 | 318471-0 | 9.60 | 11.62 | |
| Intermediate Plate | ||||
| 010 | 451194-8 | 1.20 | 1.45 | |
| Lock ring S-17 | ||||
| 011 | 961057-5 | 1.00 | 1.21 | |
| Ball Bearing 6003ddw | ||||
| 012 | 210301-0 | 6.00 | 7.26 | |
| Fan 80 | ||||
| 013 | 240001-8 | 3.60 | 4.36 | |
| Armature 220-240v | ||||
| 014 | 517844-6 | 52.80 | 63.89 | |
| Insulation ring | ||||
| 015 | 681642-5 | 8.40 | 10.16 | |
| Ball Bearing 6000zz | ||||
| 016 | 210067-2 | 1.20 | 1.45 | |
| S.A.FIELD M65 ( SERVICE ) | ||||
| 017 | 596359-6 | 39.60 | 47.92 | |
| Complete motor housing | ||||
| 018 | 158958-8 | 30.80 | 37.27 | |
| Brush holder cap | ||||
| 019 | 643650-4 | 1.20 | 1.45 | |
| Carbon Brush Set Cb-153 | ||||
| 020 | 194985-1 | 4.80 | 5.81 | |
| Screw M6x80mm | ||||
| 021 | 911948-0 | 1.00 | 1.21 | |
| Switch for laser | ||||
| 022 | 638652-3 | 11.00 | 13.31 | |
| Tap screw 4x18 | ||||
| 023 | 265A48-7 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 024 | 158981-3 | 6.00 | 7.26 | |
| Electric circuit Ls1216Lb | ||||
| 025 | 631908-3 | 18.70 | 22.63 | |
| Switch Handle | ||||
| 026 | 451003-1 | 1.20 | 1.45 | |
| Switch Tg72b-1 | ||||
| 027 | 650618-3 | 10.80 | 13.07 | |
| Unlock button | ||||
| 028 | 416356-5 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 029 | 231026-3 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 030 | 265A48-7 | 1.00 | 1.21 | |
| Handle | ||||
| 031 | 140049-9 | 8.40 | 10.16 | |
| Warning Label | ||||
| 031A | 810486-8 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 032 | 265A48-7 | 1.00 | 1.21 | |
| Child lock | ||||
| 033 | 451037-4 | 1.20 | 1.45 | |
| Handle Cover | ||||
| 034 | 158981-3 | 6.00 | 7.26 | |
| Cable protection holder | ||||
| 034 | 451000-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 035 | 265A48-7 | 1.00 | 1.21 | |
| Cord Protector | ||||
| 036 | 451199-8 | 1.20 | 1.45 | |
| Lock washer 8 | ||||
| 037 | 231928-3 | 1.00 | 1.21 | |
| Locking Pin 6 4110C | ||||
| 038 | 256633-1 | 1.20 | 1.45 | |
| Compression Spring 7 | ||||
| 039 | 231240-1 | 1.00 | 1.21 | |
| Screw 4X10 | ||||
| 040 | 911113-1 | 1.00 | 1.21 | |
| Plastic Washer 5 | ||||
| 041 | 262001-8 | 1.39 | 1.68 | |
| Wing Bolt m6x43 | ||||
| 042 | 265717-4 | 2.40 | 2.90 | |
| Hex Bolt M8x20 Ck | ||||
| 043 | 266488-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 044 | 922332-4 | |||
| Strain reliever | ||||
| 045 | 687042-7 | 1.00 | 1.21 | |
| Tapping screw M4x12mm Ck | ||||
| 046 | 266026-4 | 1.00 | 1.21 | |
| STOFAFZUIGADAPTER AFKORTZAAG | ||||
| 047 | 419277-0 | 2.00 | 2.42 | |
| O-ring 35 | ||||
| 048 | 213460-9 | 1.20 | 1.45 | |
| Adjusting screw M6x16 | ||||
| 049 | 266321-2 | 1.00 | 1.21 | |
| Inbusbout M6x20 | ||||
| 050 | 265905-3 | 1.20 | 1.45 | |
| Washer 6 | ||||
| 051 | 253804-1 | 1.00 | 1.21 | |
| Washer 16 | ||||
| 052 | 257163-5 | 1.20 | 1.45 | |
| Connection Plate | ||||
| 053 | 140164-9 | 12.10 | 14.64 | |
| Washer 16 | ||||
| 054 | 257163-5 | 1.20 | 1.45 | |
| Washer 6 | ||||
| 055 | 253804-1 | 1.00 | 1.21 | |
| Retaining Ring E-5 | ||||
| 056 | 961018-5 | 1.00 | 1.21 | |
| Screw 4X10 | ||||
| 057 | 911113-1 | 1.00 | 1.21 | |
| Mounting bracket | ||||
| 058 | 346050-4 | 1.00 | 1.21 | |
| Torsion Spring 11 | ||||
| 059 | 231675-6 | 1.20 | 1.45 | |
| Protective Shield | ||||
| 060 | 453635-0 | 6.00 | 7.26 | |
| Guide Sleeve | ||||
| 061 | 325645-6 | 1.20 | 1.45 | |
| Flange Bolt M8x12 | ||||
| 062 | 265324-3 | 1.20 | 1.45 | |
| FIXED PROTECTIVE COVER | ||||
| 063 | 140148-7 | 181.50 | 219.62 | |
| Rubber pen 6 | ||||
| 063A | 263005-3 | 1.00 | 1.21 | |
| Warning Label | ||||
| 063B | 810064-4 | 2.40 | 2.90 | |
| Connection Pen | ||||
| 063C | 322316-6 | 2.40 | 2.90 | |
| Ball Bearing 608ddw | ||||
| 064 | 210005-4 | 4.80 | 5.81 | |
| Lock washer S-12 | ||||
| 065 | 961052-5 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 066 | 253744-3 | 1.00 | 1.21 | |
| Rubber ring 12mm | ||||
| 067 | 261104-5 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 068 | 253744-3 | 1.00 | 1.21 | |
| Gear 32 | ||||
| 069 | 227550-2 | 6.00 | 7.26 | |
| Feather Key 4 | ||||
| 070 | 254001-2 | 1.00 | 1.21 | |
| Tapping screw M4x12mm Ck | ||||
| 071 | 266026-4 | 1.00 | 1.21 | |
| Seal | ||||
| 072 | 451002-3 | 1.00 | 1.21 | |
| Gear 14 | ||||
| 073 | 227701-7 | 6.00 | 7.26 | |
| Gear 27 | ||||
| 074 | 227702-5 | 6.00 | 7.26 | |
| Steel ball 4 | ||||
| 075 | 216024-8 | 1.00 | 1.21 | |
| Gear Shaft | ||||
| 076 | 325643-0 | 3.60 | 4.36 | |
| Ball Bearing 6000zz | ||||
| 077 | 210067-2 | 1.20 | 1.45 | |
| Ball Bearing 608ddw | ||||
| 078 | 210005-4 | 4.80 | 5.81 | |
| Lock washer S-15 | ||||
| 079 | 961055-9 | 1.00 | 1.21 | |
| Gear 28 | ||||
| 080 | 227703-3 | 6.00 | 7.26 | |
| Gasket | ||||
| 081 | 442147-8 | 2.40 | 2.90 | |
| Screw 5x16 | ||||
| 082 | 911224-2 | 1.00 | 1.21 | |
| Ball Bearing 608ddw | ||||
| 083 | 210005-4 | 4.80 | 5.81 | |
| Lock washer 5 | ||||
| 084 | 267010-2 | 1.00 | 1.21 | |
| Spring washer 5MM DLS211 | ||||
| 085 | 253427-5 | 1.00 | 1.21 | |
| Hex Nut M5 | ||||
| 086 | 931202-6 | 1.00 | 1.21 | |
| Bearing Locking Ring 14-23 | ||||
| 087 | 285847-5 | 4.80 | 5.81 | |
| Bearing Housing | ||||
| 088 | 158957-0 | 12.10 | 14.64 | |
| Rubber Pin 4 | ||||
| 088A | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 6002ddw | ||||
| 089 | 211236-8 | 9.60 | 11.62 | |
| Plunger | ||||
| 090 | 325644-8 | 6.00 | 7.26 | |
| Bearing Lock 51 | ||||
| 091 | 285732-2 | 1.20 | 1.45 | |
| Countersunk screw 5x13 | ||||
| 092 | 265034-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 093 | 224434-5 | |||
| Outer flange 62 | ||||
| 094 | 224433-7 | 4.80 | 5.81 | |
| Allen Bolt M10x20mm | ||||
| 095 | 266755-9 | 2.40 | 2.90 | |
| Guard | ||||
| 096 | 158959-6 | 14.30 | 17.30 | |
| Washer Ring 45 | ||||
| 097 | 233554-4 | 1.00 | 1.21 | |
| Buffer | ||||
| 098 | 424190-9 | 1.00 | 1.21 | |
| Hexagonal Bolt M6 | ||||
| 099 | 265985-9 | 2.40 | 2.90 | |
| Cover Plate | ||||
| 100 | 346048-1 | 4.80 | 5.81 | |
| Spring Washer 10 | ||||
| 101 | 253932-2 | 1.00 | 1.21 | |
| Centering Washer | ||||
| 102 | 344539-6 | 2.40 | 2.90 | |
| Centering plate | ||||
| 103 | 346047-3 | 1.20 | 1.45 | |
| Tapping Screw Ct4x16 | ||||
| 104 | 266034-5 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 105 | 265C54-4 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 106 | 941051-3 | 1.00 | 1.21 | |
| ROLLER | ||||
| 107 | 424193-3 | 1.00 | 1.21 | |
| Guard | ||||
| 108 | 451197-2 | 22.00 | 26.62 | |
| Tapping screw M4x12mm Ck | ||||
| 109 | 266026-4 | 1.00 | 1.21 | |
| Lens for laser line | ||||
| 110 | 418104-8 | 2.40 | 2.90 | |
| Mounting Block B >0506 | ||||
| 111 | 419378-4 | 3.60 | 4.36 | |
| Screw 3x6 | ||||
| 112 | 911003-8 | 1.00 | 1.21 | |
| Torsion Spring 9 Ls0714 | ||||
| 113 | 231664-1 | 1.00 | 1.21 | |
| Hex Bolt 4x6 | ||||
| 114 | 266318-1 | 1.00 | 1.21 | |
| Brush screw M5 | ||||
| 115 | 266306-8 | 2.40 | 2.90 | |
| Mounting Block C >0506 | ||||
| 116 | 419379-2 | 4.80 | 5.81 | |
| Compression Spring 6 | ||||
| 117 | 233471-8 | 1.00 | 1.21 | |
| Circuit for laser | ||||
| 118 | 638651-5 | 28.60 | 34.61 | |
| Torsion Spring 9 Ls0714 | ||||
| 119 | 231664-1 | 1.00 | 1.21 | |
| Hex Bolt 4x6 | ||||
| 120 | 266318-1 | 1.00 | 1.21 | |
| Hexagon Bolt 5x8 | ||||
| 121 | 266229-0 | 1.00 | 1.21 | |
| Laser cap Ls1216Lb A | ||||
| 122 | 458903-6 | 2.40 | 2.90 | |
| Tapping Screw Ct4x16 | ||||
| 123 | 266034-5 | 1.00 | 1.21 | |
| Protective Shield | ||||
| 124 | 451038-2 | 1.00 | 1.21 | |
| Knob bolt 5x24 | ||||
| 125 | 265753-0 | 2.40 | 2.90 | |
| Lock washer 5 | ||||
| 126 | 253807-5 | 1.00 | 1.21 | |
| Crosshead screw M4 | ||||
| 127 | 265026-1 | 2.40 | 2.90 | |
| Lock washer 5 | ||||
| 128 | 941102-2 | 1.00 | 1.21 | |
| Compression Spring 7 | ||||
| 129 | 233267-7 | 1.20 | 1.45 | |
| Lock washer 5 | ||||
| 130 | 941102-2 | 1.00 | 1.21 | |
| Knob 45 | ||||
| 131 | 272261-4 | 1.20 | 1.45 | |
| Verbindingbus | ||||
| 132 | 325651-1 | 2.40 | 2.90 | |
| Washer 6 | ||||
| 133 | 253804-1 | 1.00 | 1.21 | |
| Upper stop 'r' | ||||
| 134 | 142815-0 | 26.40 | 31.94 | |
| Warning Label | ||||
| 134A | 810503-4 | 2.40 | 2.90 | |
| Sliding Plate | ||||
| 135 | 346058-8 | 1.20 | 1.45 | |
| Lower Stop 'R' | ||||
| 136 | 318476-0 | 17.60 | 21.30 | |
| Knob Bolt M6x18mm | ||||
| 137 | 265783-1 | 1.20 | 1.45 | |
| Rear scale | ||||
| 138 | 318411-8 | 41.80 | 50.58 | |
| Allen bolt M8x25 | ||||
| 139 | 922443-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 140 | 256226-4 | |||
| Hexagon bolt 5x6 | ||||
| 141 | 266264-8 | 1.00 | 1.21 | |
| Knob Bolt M6x18mm | ||||
| 142 | 265783-1 | 1.20 | 1.45 | |
| Lower stop 'L' | ||||
| 143 | 318863-3 | 17.60 | 21.30 | |
| Upper stop 'l' | ||||
| 144 | 142814-2 | 23.10 | 27.95 | |
| Warning Label | ||||
| 144A | 810503-4 | 2.40 | 2.90 | |
| Locking arm | ||||
| 145 | 346049-9 | 2.40 | 2.90 | |
| Washer 20 | ||||
| 146 | 253948-7 | 1.00 | 1.21 | |
| Washer 8 x 14 x 1mm | ||||
| 147 | 253835-0 | 1.00 | 1.21 | |
| Screw M6 | ||||
| 148 | 251267-5 | 1.00 | 1.21 | |
| Bush 17 | ||||
| 149 | 451202-5 | 2.40 | 2.90 | |
| Rod 16 | ||||
| 150 | 323740-6 | 3.60 | 4.36 | |
| Knob 20 | ||||
| 151 | 271601-3 | 1.00 | 1.21 | |
| O-ring 5 | ||||
| 152 | 213021-5 | 1.00 | 1.21 | |
| Transport pin | ||||
| 153 | 322629-5 | 3.60 | 4.36 | |
| Locking Bolt | ||||
| 153 | 324183-5 | 1.20 | 1.45 | |
| Washer Ring 40 Ls1216Lb | ||||
| 154 | 233542-1 | 14.30 | 17.30 | |
| Tapping screw M4x12mm Ck | ||||
| 155 | 266026-4 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 156 | 158962-7 | 1.20 | 1.45 | |
| Rubber Pin 4 | ||||
| 156A | 263002-9 | 1.00 | 1.21 | |
| Complete front arm | ||||
| 157 | 140976-0 | 83.60 | 101.16 | |
| Dust filter | ||||
| 157A | 424438-9 | 2.40 | 2.90 | |
| Knob Bolt M6x18mm | ||||
| 158 | 265783-1 | 1.20 | 1.45 | |
| Compression Spring 7 | ||||
| 159 | 231240-1 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 160 | 266034-5 | 1.00 | 1.21 | |
| Arm cpl | ||||
| 161 | 140155-0 | 106.70 | 129.11 | |
| Felt ring 25 | ||||
| 161A | 262077-5 | 2.40 | 2.90 | |
| Rubber pen 6 | ||||
| 161B | 263005-3 | 1.00 | 1.21 | |
| Baffle | ||||
| 161C | 344638-4 | 1.20 | 1.45 | |
| Saw Arm Plate | ||||
| 162 | 318403-7 | 9.60 | 11.62 | |
| Hex socket head bolt M6x8 | ||||
| 163 | 265894-2 | 1.00 | 1.21 | |
| Tapping screw M4x12mm Ck | ||||
| 164 | 266026-4 | 1.00 | 1.21 | |
| Strain reliever | ||||
| 165 | 687042-7 | 1.00 | 1.21 | |
| Screw 4X10 | ||||
| 166 | 911113-1 | 1.00 | 1.21 | |
| Nut M10-17 | ||||
| 167 | 264005-6 | 2.40 | 2.90 | |
| Ring 10 | ||||
| 168 | 253024-7 | 1.00 | 1.21 | |
| Thrust needle bearing 1023 | ||||
| 169 | 216413-7 | 3.60 | 4.36 | |
| Clamp Lever | ||||
| 170 | 451019-6 | 3.60 | 4.36 | |
| Hex Bolt M10 | ||||
| 171 | 265589-7 | 3.60 | 4.36 | |
| Ring 10 | ||||
| 172 | 253024-7 | 1.00 | 1.21 | |
| Pushbutton | ||||
| 173 | 415208-7 | 2.40 | 2.90 | |
| Compression spring 12 | ||||
| 174 | 233031-6 | 1.00 | 1.21 | |
| Hex Bolt M8x20 Ck | ||||
| 175 | 266488-6 | 1.00 | 1.21 | |
| End stop | ||||
| 176 | 318405-3 | 3.60 | 4.36 | |
| Lock washer S-12 | ||||
| 177 | 961052-5 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 178 | 253744-3 | 1.00 | 1.21 | |
| Torsion Spring 14 | ||||
| 179 | 231646-3 | 1.00 | 1.21 | |
| Rubber ring 9mm | ||||
| 180 | 262158-5 | 1.00 | 1.21 | |
| Plate | ||||
| 181 | 346071-6 | 1.20 | 1.45 | |
| Plate | ||||
| 182 | 346071-6 | 1.20 | 1.45 | |
| Covering hood | ||||
| 183 | 451200-9 | 3.60 | 4.36 | |
| Tapping Screw Ct4x16 | ||||
| 184 | 266034-5 | 1.00 | 1.21 | |
| Marking point | ||||
| 185 | 343678-9 | 1.20 | 1.45 | |
| Tapping Screw Ct4x16 | ||||
| 186 | 266034-5 | 1.00 | 1.21 | |
| Slide Arm | ||||
| 187 | 158964-3 | 41.80 | 50.58 | |
| Rubber pen 6 | ||||
| 187A | 263005-3 | 1.00 | 1.21 | |
| Scale Label | ||||
| 187B | 816927-2 | 2.40 | 2.90 | |
| Indicator label | ||||
| 187C | 816937-9 | 2.40 | 2.90 | |
| Hex Bolt M8x20 Ck | ||||
| 188 | 266488-6 | 1.00 | 1.21 | |
| Retaining Ring E-4 | ||||
| 189 | 961011-9 | 1.00 | 1.21 | |
| Cam | ||||
| 190 | 451044-7 | 1.20 | 1.45 | |
| Rod 6mm | ||||
| 191 | 325656-1 | 1.20 | 1.45 | |
| Knob 22 | ||||
| 192 | 272262-2 | 1.00 | 1.21 | |
| Screw 4X10 | ||||
| 193 | 911113-1 | 1.00 | 1.21 | |
| Compression Spring 6 | ||||
| 194 | 234122-6 | 1.20 | 1.45 | |
| Locking Pin 8 Ls1216Lb A | ||||
| 195 | 325865-2 | 1.20 | 1.45 | |
| Leaf Spring | ||||
| 196 | 232250-1 | 1.00 | 1.21 | |
| Centreerbout | ||||
| 197 | 325646-4 | 2.40 | 2.90 | |
| Indicator plate | ||||
| 198 | 451039-0 | 1.20 | 1.45 | |
| Covering hood | ||||
| 199 | 451070-6 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 200 | 266034-5 | 1.00 | 1.21 | |
| Square pin | ||||
| 201 | 158967-7 | 3.60 | 4.36 | |
| Rubber pen 6 | ||||
| 201A | 263005-3 | 1.00 | 1.21 | |
| Hex bolt 5x30 | ||||
| 202 | 925251-3 | 1.00 | 1.21 | |
| Tapping screw M4x12mm Ck | ||||
| 203 | 266026-4 | 1.00 | 1.21 | |
| Insert plate | ||||
| 204 | 451201-7 | 3.60 | 4.36 | |
| Hex bolt M8x45mm | ||||
| 205 | 265585-5 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 206 | 253762-1 | 1.20 | 1.45 | |
| Rotary Table | ||||
| 207 | 140166-5 | 81.40 | 98.49 | |
| Indicator label | ||||
| 207A | 816930-3 | 2.40 | 2.90 | |
| Tapping screw M4x12mm Ck | ||||
| 208 | 266026-4 | 1.00 | 1.21 | |
| Indicator Plate | ||||
| 209 | 451009-9 | 1.20 | 1.45 | |
| Serrated plate | ||||
| 210 | 451011-2 | 1.20 | 1.45 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 211 | 265B74-2 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 211 | 266385-6 | 0.83 | 1.00 | |
| 4 Washer | ||||
| 212 | 941051-3 | 1.00 | 1.21 | |
| Tapping screw M4x12mm Ck | ||||
| 213 | 266026-4 | 1.00 | 1.21 | |
| Clamping Plate | ||||
| 214 | 346052-0 | 6.00 | 7.26 | |
| Baffle | ||||
| 215 | 286039-9 | 1.00 | 1.21 | |
| Stopring E-7 | ||||
| 216 | 961013-5 | 1.00 | 1.21 | |
| Cam | ||||
| 217 | 313165-2 | 3.60 | 4.36 | |
| Compression Spring 11 | ||||
| 218 | 231131-6 | 1.00 | 1.21 | |
| Ring 10 | ||||
| 219 | 267047-9 | 1.00 | 1.21 | |
| Handle 50 | ||||
| 220 | 273666-1 | 4.80 | 5.81 | |
| Pin Holder | ||||
| 221 | 318410-0 | 4.80 | 5.81 | |
| Tapping Screw Ct4x16 | ||||
| 222 | 266034-5 | 1.00 | 1.21 | |
| Deblock handle | ||||
| 223 | 451010-4 | 1.20 | 1.45 | |
| Blocking Plate | ||||
| 224 | 345272-3 | 1.20 | 1.45 | |
| Tapping Screw Ct4x16 | ||||
| 225 | 266034-5 | 1.00 | 1.21 | |
| Screw M6x12mm | ||||
| 226 | 266505-2 | 1.00 | 1.21 | |
| Blocking Plate | ||||
| 228 | 346094-4 | 4.80 | 5.81 | |
| Compression Spring 13 | ||||
| 229 | 234104-8 | 1.00 | 1.21 | |
| Brush screw M5 | ||||
| 230 | 266306-8 | 2.40 | 2.90 | |
| Compression Spring 6 | ||||
| 231 | 231325-3 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 232 | 256158-5 | 1.20 | 1.45 | |
| Stopper Pin Ass'y Includ.94 | ||||
| 233 | 325695-1 | 1.20 | 1.45 | |
| Bearing Housing | ||||
| 234 | 158968-5 | 47.30 | 57.23 | |
| Gear 43 | ||||
| 235 | 451018-8 | 2.40 | 2.90 | |
| Leaf Spring | ||||
| 236 | 232249-6 | 1.00 | 1.21 | |
| Tapping screw M4x12mm Ck | ||||
| 237 | 266026-4 | 1.00 | 1.21 | |
| Socket Head Cap Screw M8x25 ck/zwt | ||||
| 238 | 922442-7 | 1.20 | 1.45 | |
| Foot cap | ||||
| 239 | 421845-7 | 1.20 | 1.45 | |
| 4 Washer | ||||
| 240 | 267195-4 | 1.20 | 1.45 | |
| Tapping screw M4x12mm Ck | ||||
| 241 | 266026-4 | 1.00 | 1.21 | |
| Foot pad | ||||
| 242 | 140054-6 | 112.20 | 135.76 | |
| Warning Label | ||||
| 243 | 810495-7 | 2.40 | 2.90 | |
| Warning Label | ||||
| 246 | 817283-3 | 1.00 | 1.21 | |
| Scale | ||||
| 247 | 816920-6 | 6.00 | 7.26 | |
| Clamping Plate | ||||
| 248 | 451012-0 | 6.00 | 7.26 | |
| Tapping screw M4x12mm Ck | ||||
| 249 | 266026-4 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 250 | 266034-5 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 251 | 232075-3 | 1.20 | 1.45 | |
| Warning Label | ||||
| 252 | 817283-3 | 1.00 | 1.21 | |
| Bushing 6 | ||||
| 254 | 257785-1 | 1.00 | 1.21 | |
| Allen bolt 5x18 | ||||
| 255 | 922226-3 | 1.00 | 1.21 | |
| Steel ball 4 | ||||
| 256 | 216024-8 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 257 | 253874-0 | 1.00 | 1.21 | |
| Self-tapping screw 4x20 | ||||
| 258 | 266042-6 | 1.00 | 1.21 | |
| Housing | ||||
| 259 | 451412-4 | 1.00 | 1.21 | |
| Baffle | ||||
| 261 | 421589-9 | 1.20 | 1.45 | |
| Lock Lever | ||||
| 262 | 346097-8 | 2.40 | 2.90 | |
| Allen bolt M4x10 | ||||
| 263 | 922112-8 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 264 | 941051-3 | 1.00 | 1.21 | |
| Rod 8 | ||||
| 265 | 325664-2 | 1.20 | 1.45 | |
| Pull Spring 8 | ||||
| 266 | 231633-2 | 1.20 | 1.45 | |
| Axle Holder | ||||
| 267 | 451129-9 | 1.20 | 1.45 | |
| STOPRING E-6 A | ||||
| 268 | 961012-7 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 269 | 266034-5 | 1.00 | 1.21 | |
| Blocking Plate | ||||
| 271 | 140165-7 | 6.00 | 7.26 | |
| Pin 6 | ||||
| 272 | 256246-8 | 1.00 | 1.21 | |
| Plate | ||||
| 273 | 346096-0 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 274 | 266034-5 | 1.00 | 1.21 | |
| Spring Washer 6 A | ||||
| 275 | 253903-9 | 1.00 | 1.21 | |
| Hex Bolt 4x6 | ||||
| 276 | 266318-1 | 1.00 | 1.21 | |
| Thin Washer 14 | ||||
| 277 | 253313-0 | 1.00 | 1.21 | |
| Hex Nut M6 | ||||
| 278 | 931302-2 | 1.00 | 1.21 | |
| Carrier plate | ||||
| 279 | 168424-7 | 11.00 | 13.31 | |
| Plate | ||||
| 280 | 346474-4 | 3.60 | 4.36 | |
| Tapping screw M4x12mm Ck | ||||
| 281 | 266026-4 | 1.00 | 1.21 | |
