Here you will find all available parts and drawings of the 'Makita LS1019L'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

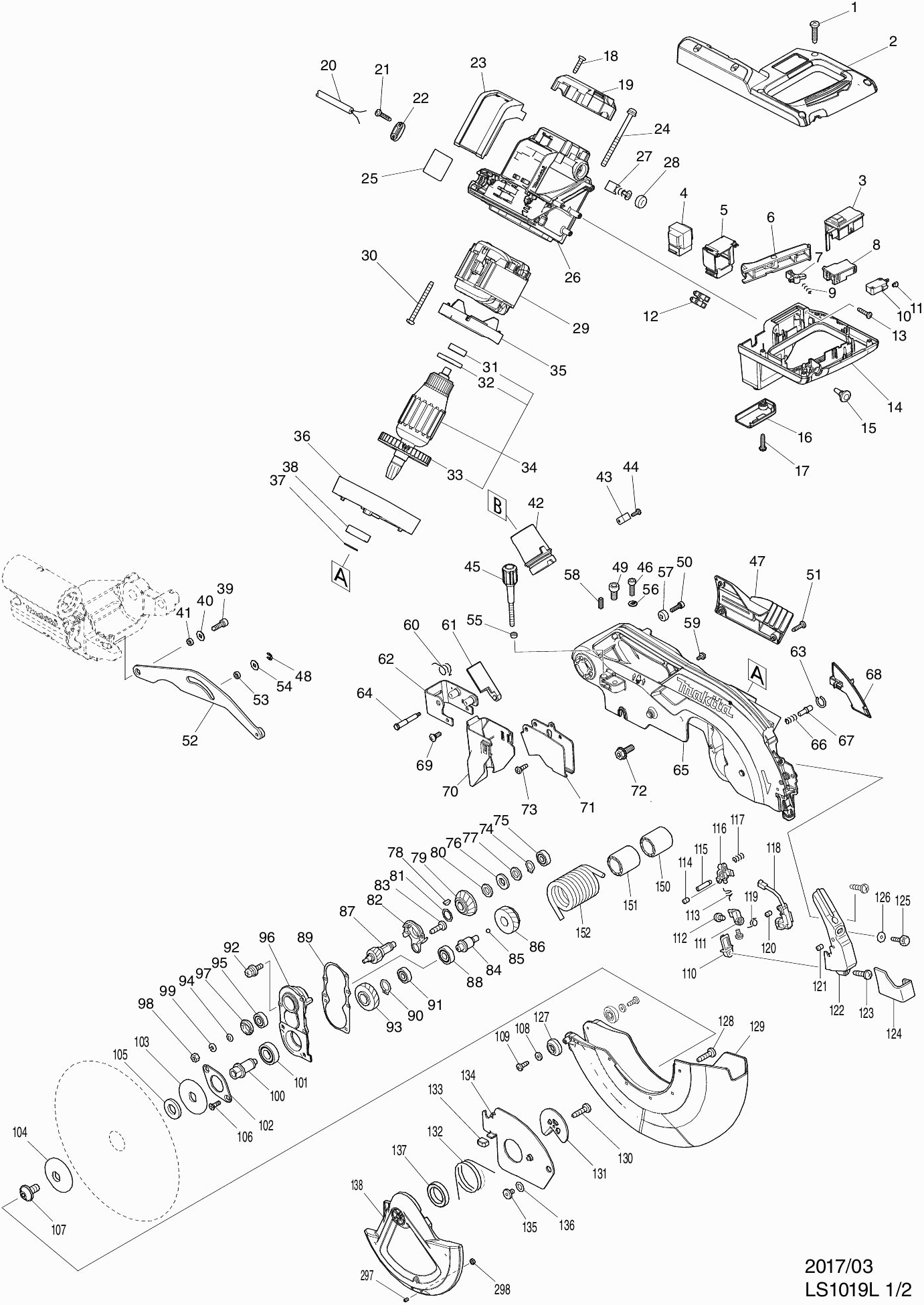

Technical drawing of model Makita LS1019L

Spare parts list of model Makita LS1019L

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Tap screw 4x18
001 265A48-7 0.83 1.00
Handle Set Ls1019L
002 183H19-3 11.82 14.30
Warning Label
002C10 810486-8 2.71 3.28
Switch indication label
002C20 808641-4 0.83 1.00
Switch for laser
003 638652-3 11.82 14.30
Electric circuit Ls1216Lb
004 631908-3 18.20 22.02
Housing
005 451412-4 0.83 1.00
Switch Handle
006 451003-1 1.18 1.43
Unlock button
007 416356-5 1.39 1.68
Switch
008 650687-4 8.21 9.93
Compression Spring 4
009 231026-3 0.83 1.00
Micro Switch
010 651941-9 3.12 3.78
Socket
011 686015-7 0.83 1.00
Terminal block
012 654531-7 2.10 2.54
Tap screw 4x18
013 265A48-7 0.83 1.00
Handle Set Ls1019L
014 183H19-3 11.82 14.30
Warning Label
014C10 810486-8 2.71 3.28
Switch indication label
014C20 808641-4 0.83 1.00
Child lock
015 451037-4 1.00 1.21
Cable protection holder
016 451000-7 0.83 1.00
Tap screw 4x18
017 265A48-7 0.83 1.00
Tap screw 4x18
018 265A48-7 0.83 1.00
Tail Cover
019 457652-2 2.02 2.44
Power cord 2x1.50 4.0mtr
020 695123-3 21.08 25.51
Tap screw 4x18
021 265A48-7 0.83 1.00
Clamp Bracket
022 687124-5 0.83 1.00
Speed control circuit
023 631866-3 28.02 33.90
Screw M6x80mm
024 911948-0 0.83 1.00
Label
025 853H90-8 2.71 3.28
Complete Motor Housing Ls1019L
026 144533-6 17.38 21.03
No information available, not orderable
026C10 643653-8
Carbon Brush Set Cb-153
027 194985-1 3.96 4.79
Brush holder cap
028 643650-4 0.83 1.00
S.A.FIELD M65 ( SERVICE )
029 596349-9 32.15 38.90
Stator spring Cb5
029C10 654020-2 0.83 1.00
Clamping bushing for statorv. 2mm
029C20 654502-4 0.83 1.00
Self-tapping screw Pt 5x55 Hr5001C A
030 266095-5 0.98 1.19
Ball Bearing 6000zz
031 210067-2 1.18 1.43
Insulation ring
032 681642-5 8.21 9.93
Fan 80
033 240001-8 3.28 3.97
Armature
034 517824-2 48.40 58.56
Intermediate Plate
035 451001-5 0.83 1.00
Motor mount
036 319591-3 9.24 11.18
Lock ring S-17
037 961057-5 0.83 1.00
Ball Bearing 6003ddw
038 210301-0 5.80 7.02
Inbusbout M6x20
039 265905-3 0.83 1.00
Washer 6
040 253804-1 0.83 1.00
Washer 16
041 257163-5 1.20 1.45
Dust Adapter DLS211
042 459250-8 2.38 2.88
Dust Adapter DLS211
042A 459250-8 2.38 2.88
Dust Adapter DLS211
042B 459250-8 2.38 2.88
Strain reliever
043 687042-7 0.83 1.00
Tapping screw M4x12mm Ck
044 266026-4 0.83 1.00
Adjusting screw M6x40
045 251554-2 1.20 1.45
No information available, not orderable
046 922332-4
Label "makita"
047 457667-9 2.38 2.88
Retaining Ring E-5
048 961018-5 0.83 1.00
Allen bolt M8x25
049 251547-9 0.83 1.00
Allen bolt 5x18
050 922226-3 0.83 1.00
Tapping Screw Ct4x16
051 266034-5 0.83 1.00
Connection Plate Ls1019L
052 144529-7 8.21 9.93
Washer 16
053 257163-5 1.20 1.45
Washer 6
054 253804-1 0.83 1.00
Plastic Washer 5
055 262001-8 1.39 1.68
Spring Washer 6 A
056 253903-9 0.83 1.00
Bushing 6
057 257785-1 0.83 1.00
Adjusting screw M6x16
058 266321-2 0.83 1.00
Screw 4X10
059 911114-9 0.83 1.00
Torsion Spring 11
060 232412-1 0.83 1.00
Dust Guide Plate
061 457764-1 0.98 1.19
Mounting bracket
062 161647-6 3.96 4.79
Lock washer 8
063 231928-3 0.83 1.00
Met. screw M4
064 251544-5 0.83 1.00
FIXED PROTECTIVE COVER
065 144634-0 73.41 88.83
Rubber pen 6
065 263005-3 0.83 1.00
Warning Label
065C10 810064-4 2.84 3.44
Rubber pen 6
065C10 263005-3 0.83 1.00
Warning Label
065C20 810064-4 2.84 3.44
Laser beam label Ls0714 A
065C20 810354-5 0.83 1.00
Laser beam label Ls0714 A
065C30 810354-5 0.83 1.00
Compression Spring 7
066 231240-1 0.83 1.00
Locking Pin 6 4110C
067 256633-1 0.83 1.00
Cable protection holder
068 457659-8 1.00 1.21
Crosshead screw 4x11
069 265028-7 1.18 1.43
Shield cap
070 422155-5 2.02 2.44
Guide plate
071 347215-1 2.02 2.44
Allen bolt M8x20
072 266283-4 1.18 1.43
No information available, not orderable
073 266020-6
Lock washer S-12
074 961052-5 0.83 1.00
Ball Bearing 608ddw
075 210005-4 4.45 5.38
Rubber ring 12mm
076 261104-5 0.83 1.00
Washer 12
077 253744-3 0.83 1.00
Feather Key 4
078 254001-2 0.83 1.00
Gear 32
079 227550-2 5.71 6.91
Washer 12
080 253744-3 0.83 1.00
Thin Washer 14
081 253313-0 0.83 1.00
Seal
082 451002-3 0.83 1.00
Tapping screw M4x12mm Ck
083 266026-4 0.83 1.00
Gear Shaft
084 325643-0 3.28 3.97
Steel ball 4
085 216024-8 0.83 1.00
Gear 27
086 227702-5 5.30 6.41
Gear 14
087 227701-7 5.30 6.41
Ball Bearing 6000zz
088 210067-2 1.18 1.43
Gasket
089 442147-8 2.02 2.44
Lock washer S-15
090 961055-9 0.83 1.00
Ball Bearing 608ddw
091 210005-4 4.45 5.38
Screw 5x16
092 911224-2 0.83 1.00
Gear 28
093 227703-3 5.30 6.41
Lock washer 5
094 267010-2 0.83 1.00
Ball Bearing 608ddw
095 210005-4 4.45 5.38
Bearing Housing
096 158957-0 11.32 13.70
Rubber Pin 4
096 263002-9 0.83 1.00
Bearing Locking Ring 14-23
097 285847-5 4.45 5.38
Hex Nut M5
098 931202-6 0.83 1.00
Spring washer 5MM DLS211
099 253427-5 0.83 1.00
Plunger
100 325644-8 5.06 6.12
Ball bearing 6002ddw
101 211236-8 9.24 11.18
Bearing Lock 51
102 285732-2 0.83 1.00
Inner Flange 53
103 224431-1 3.54 4.28
Outer Flange 53
104 224432-9 3.54 4.28
Reduceerring 30x15,88x4mm
105 257295-8 1.00 1.21
Countersunk screw 5x13
106 265034-2 0.83 1.00
Allen Bolt M10x20mm
107 266755-9 2.36 2.86
4 Washer
108 941051-3 0.83 1.00
No information available, not orderable
109 266020-6
Lens for laser line
110 418104-8 2.02 2.44
Mounting Block B >0506
111 419378-4 2.71 3.28
Screw 3x6
112 911003-8 0.83 1.00
Torsion Spring 9 Ls0714
113 231664-1 0.83 1.00
Hex Bolt 4x6
114 266318-1 0.83 1.00
Brush screw M5
115 266306-8 1.67 2.02
Mounting Block C >0506
116 419379-2 4.14 5.01
Compression Spring 6
117 233471-8 0.83 1.00
Circuit for laser
118 638651-5 28.02 33.90
Torsion Spring 9 Ls0714
119 231664-1 0.83 1.00
Hex Bolt 4x6
120 266318-1 0.83 1.00
Hexagon Bolt 5x8
121 266229-0 0.83 1.00
Laser protective cap
122 457660-3 2.36 2.86
Tapping Screw Ct4x16
123 266034-5 0.83 1.00
Protective Shield
124 457664-5 0.83 1.00
Knob bolt 5x24
125 265753-0 1.39 1.68
Lock washer 5
126 253807-5 0.83 1.00
ROLLER
127 424193-3 0.83 1.00
Tapping screw 4X14 Ga7020 A
128 266385-6 0.83 1.00
Saw protective cover
129 457499-4 13.82 16.72
Tapping screw 4X14 Ga7020 A
130 266385-6 0.83 1.00
Centering plate
131 347213-5 1.67 2.02
Torsion spring 45
132 231634-0 2.02 2.44
Buffer
133 424190-9 0.83 1.00
Center Plate Housing
134 347214-3 2.36 2.86
Hexagonal Bolt M6
135 265985-9 1.39 1.68
Spring Washer 10
136 253932-2 0.83 1.00
Ball Bearing 6805ddw
137 210168-6 2.02 2.44
Guard
138 458437-9 5.06 6.12
Extraction Adapter LS1019L
139 123980-4 21.08 25.51
Extraction Adapter LS1019L
139A 123980-4 21.08 25.51
Vacuum attachment
139B 127274-9 19.29 23.34
Stofafzuigadapterset
139B 127427-0 19.00 22.99
Switch button A DCL281F
139BC10 458939-5 0.83 1.00
Compression Spring 5
139BC20 232485-4 0.83 1.00
Tap screw 4x18
140 265A48-7 0.83 1.00
Suction Adapter
141 183G68-4 4.45 5.38
Suction Adapter
141A 183G68-4 4.45 5.38
Hose connector A
141B 413J67-3 4.00 4.84
Hose
142 245041-1 10.50 12.70
Sleeve
143 457672-6 0.83 1.00
Stopper
144 457673-4 0.83 1.00
Suction Adapter
145 457669-5 1.20 1.45
Elbow piece
147 457703-1 1.39 1.68
Elbow piece
147A 457703-1 1.39 1.68
Dust Adapter DLS211
147B 459249-3 5.09 6.16
Suction Adapter
148 183G68-4 4.45 5.38
Hose connector A
148B 413J67-3 4.00 4.84
Tapping Screw Ct4x16
149 266034-5 0.83 1.00
Bush 17
150 457665-3 1.00 1.21
Bush 17
151 457665-3 1.00 1.21
Torsion Spring 35
152 233537-4 5.71 6.91
Screw M6
153 251267-5 0.83 1.00
Washer 20
154 253948-7 0.83 1.00
Washer 8 x 14 x 1mm
155 253835-0 0.83 1.00
Locking arm
156 347221-6 1.39 1.68
Forearm plate
157 347222-4 0.83 1.00
Felt ring 30
158 262076-7 2.38 2.88
Rod 16
159 326994-4 1.99 2.41
Knob 22
160 271437-0 0.83 1.00
Stopring E-7
161 961013-5 0.83 1.00
Tapping Screw Ct4x16
162 266034-5 0.83 1.00
Complete Forearm Ls1019L
163 144531-0 75.22 91.02
Rubber pen 6
163C10 263005-3 0.83 1.00
Compression Spring 4
164 231314-8 0.83 1.00
Pen 4
165 256364-2 0.83 1.00
Connection Pen
165A 322316-6 2.02 2.44
Compression spring 10
166 232384-0 0.83 1.00
Locking Bolt
167 326977-4 0.83 1.00
Covering hood
168 457653-0 4.92 5.95
Complete Holder Ls1019L
169 144658-6 11.82 14.30
Indicator label
169C10 812X89-8 2.71 3.28
Flat head screw M5
170 265008-3 1.18 1.43
Pulley 17-19.3
171 222191-9 5.06 6.12
Ball Bearing 6900llb
172 210057-5 3.59 4.34
No information available, not orderable
173 267804-5
Spindle Ass'y
174 326975-8 1.39 1.68
Ball Bearing 6900llb
175 210057-5 3.59 4.34
Strain reliever
176 687042-7 0.83 1.00
Screw m8x12
177 913416-9 0.83 1.00
Key clamp
178 416536-3 1.75 2.12
Tapping screw M4x12mm Ck
179 266026-4 0.83 1.00
Expansion pin 4-14
180 951107-4 0.83 1.00
Handle 50 B
181 273016-0 5.06 6.12
Bolt
182 265919-2 3.38 4.09
Met. bolt M6
183 251545-3 0.83 1.00
Stopper Pal Ls1019L
184 144657-8 2.02 2.44
Indicator label
184C10 812X87-2 2.71 3.28
Washer 20
185 253948-7 0.83 1.00
Washer 8 x 14 x 1mm
186 253835-0 0.83 1.00
Screw M6
187 251267-5 0.83 1.00
Pin 9-365
188 326987-1 2.36 2.86
Lock washer 5
189 253194-2 0.83 1.00
Bus 5
190 257426-9 0.83 1.00
Washer 8
191 253165-9 0.83 1.00
Housing 20
192 457666-1 0.83 1.00
Locking Bolt
193 326977-4 0.83 1.00
Pulley 17-87.8
194 222192-7 5.71 6.91
Hex Nut M10-19
195 326980-5 1.39 1.68
Drive Belt 15-756
196 225101-5 19.23 23.27
Compression spring 10
197 232384-0 0.83 1.00
Washer 10
198 253388-9 0.83 1.00
Hex Nut M10-17
199 252244-0 1.39 1.68
Ring 10
200 253024-7 0.83 1.00
Thrust needle bearing 1023
202 216413-7 2.71 3.28
Ring 10
203 253024-7 0.83 1.00
Thrust needle bearing 1023
204 216413-7 2.71 3.28
Stopring E-7
205 961013-5 0.83 1.00
Knob 22
206 271437-0 0.83 1.00
Ring 10
207 253024-7 0.83 1.00
Complete Arm Ls1019L
208 144530-2 92.95 112.47
Indicator label
208C10 812X88-0 2.71 3.28
Allen bolt M8x25
209 251547-9 0.83 1.00
Indicator label R
210 457871-0 0.83 1.00
Tapping screw M4x12mm Ck
211 266026-4 0.83 1.00
Tapping Screw Ct4x16
212 266034-5 0.83 1.00
Pushbutton
213 415208-7 1.39 1.68
Compression spring 12
214 233031-6 0.83 1.00
Dust guide holder
215 457654-8 3.54 4.28
Indicator label L
216 457870-2 0.83 1.00
Tapping screw M4x12mm Ck
217 266026-4 0.83 1.00
Washer 94
218 253389-7 0.83 1.00
Dust Guide
219 422156-3 5.06 6.12
Stopper
220 319593-9 3.12 3.78
Torsion Spring 14
221 231646-3 0.83 1.00
Washer 12
222 253744-3 0.83 1.00
Lock washer S-12
223 961052-5 0.83 1.00
Tapping screw M4x12mm Ck
224 266026-4 0.83 1.00
Holder
225 457668-7 0.83 1.00
Aanslag boven rechts
226 144650-2 16.00 19.36
Warning Label
226C10 810503-4 2.71 3.28
Aanslag boven links
227 144646-3 16.00 19.36
Warning Label
227C10 810503-4 2.71 3.28
Socket Head Cap Screw M8X35 with Wr
228 922458-2 0.83 1.00
Wing Bolt M6X10mm
229 251887-5 0.92 1.11
Wing Bolt 6x10
229 924306-1 0.83 1.00
Hex screw M10x12
230 251561-5 0.83 1.00
Rear scale
231 319565-4 38.75 46.89
Tapping screw M4x12mm Ck
232 266026-4 0.83 1.00
Insert plate
233 451013-8 2.71 3.28
Hex bolt 8x40
235 265442-7 0.83 1.00
Washer 8
236 253852-0 1.18 1.43
Thrust needle bearing 1023
237 216413-7 2.71 3.28
No information available, not orderable
239 812X86-4
Allen bolt M8x25
240 251547-9 0.83 1.00
Allen bolt M8x25
241 251547-9 0.83 1.00
No information available, not orderable
243 813L22-1
Tapping screw M4x12mm Ck
244 266026-4 0.83 1.00
Indicator label
245 457702-3 0.83 1.00
LOCK PIN 8
246 326970-8 1.20 1.45
Compression Spring 6
247 234122-6 0.83 1.00
Lock Lever
249 457657-2 0.83 1.00
Washer 6
250 253804-1 0.83 1.00
Retaining Ring E-5
251 961018-5 0.83 1.00
Rotary Plate Complete Ls1019L
252 144654-4 127.34 154.08
Warning Label
253 812X85-6 2.71 3.28
Extension rod
254 326973-2 2.02 2.44
Baffle
255 286039-9 0.83 1.00
Centreerbout
256 326976-6 2.02 2.44
Screw 4X10
257 911113-1 0.83 1.00
Compression Spring 6
258 231325-3 0.83 1.00
Rotary Stopper
259 310803-7 1.18 1.43
Lever plate
260 347217-7 2.71 3.28
Pin 5
261 256186-0 0.98 1.19
Screw 5x18
262 911230-7 0.89 1.08
End stop
263 347219-3 0.83 1.00
Locking rod
264 326971-6 0.83 1.00
Lock Lever
265 457656-4 1.39 1.68
Stopper Pin Ass'y Includ.94
266 326969-3 1.26 1.52
Pen 3
267 256158-5 0.83 1.00
Compression Spring 6
268 231325-3 0.83 1.00
Cam plate
269 347237-1 0.83 1.00
Pin Holder
270 319592-1 3.54 4.28
Hexagonal bolt 5X20 LF1000 A
271 265550-4 0.83 1.00
Blocking Plate
272 347216-9 1.67 2.02
Rod 6
274 326972-4 1.18 1.43
Retaining Ring E-4
275 961011-9 0.83 1.00
Washer 15
276 257425-1 0.83 1.00
Lock washer 5
277 253194-2 0.83 1.00
Hexagonal bolt 5X20 LF1000 A
278 265550-4 0.83 1.00
Screw 4X10
279 911113-1 0.83 1.00
Blocking handle complete
280 144656-0 0.83 1.00
Rubber pen 6
280C10 263005-3 0.83 1.00
Screw 3x8
281 911008-8 0.83 1.00
Blocking Plate
282 345272-3 1.18 1.43
Handle 50 A
283 273015-2 5.06 6.12
Tapping screw M4x12mm Ck
284 266026-4 0.83 1.00
Guide Plate
285 457655-6 1.67 2.02
Scale
286 347412-9 6.38 7.72
Metal screw M5
287 251546-1 0.83 1.00
Blocking Plate
288 347218-5 2.71 3.28
Screw M5x16mm
289 265786-5 0.83 1.00
Foot sole LS1019/DLS111 A
290 310891-4 111.57 135.00
Foot cap
291 421845-7 0.98 1.19
4 Washer
292 267195-4 0.83 1.00
Tapping screw M4x12mm Ck
293 266026-4 0.83 1.00
Holder
294 326978-2 5.71 6.91
Retaining Ring E-9
295 961015-1 0.83 1.00
Tapping screw M4x12mm Ck
296 266026-4 0.83 1.00
Hex Bolt 4x6
297 266318-1 0.83 1.00
Hex nut M4
298 931102-0 0.83 1.00
Table Expander Base DLS211
305 319815-7 19.23 23.27
Rod 12 DLS211
306 327315-3 3.12 3.78
Screw 4X10
307 911113-1 0.83 1.00
Stop DLS211
308 347509-4 3.12 3.78
Allen bolt M8x25
309 922443-5 1.18 1.43

There are 0 items in your shopping basket.
