Here you will find all available parts and drawings of the 'Makita LS1017L'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

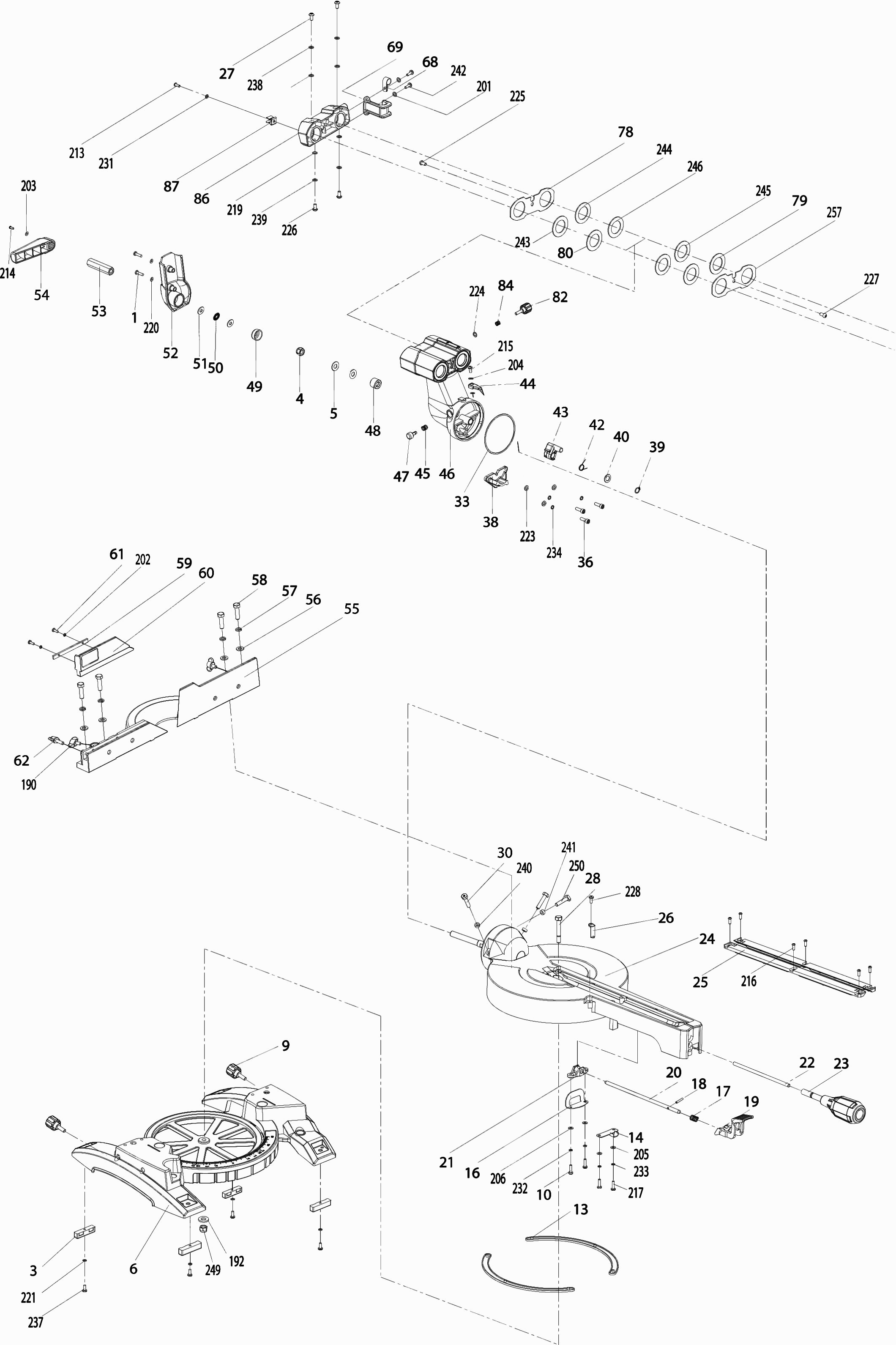

Technical drawing of model Makita LS1017L

Spare parts list of model Makita LS1017L

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Metal screw M5x20mm
001 JM23100006 0.83 1.00
5mm Washer
002 JM23100007 0.83 1.00
Rubber cap
003 JM23100008 1.39 1.68
Locknut M10
004 JM23100009 0.83 1.00
Washer 10mm
005 JM23100010 0.83 1.00
Foot pad
006 JM23100300 92.95 112.47
Label "warning"
006A JM2708A060 2.71 3.28
Label "grade indication"
006C20 JM23100012 2.71 3.28
Label "grade indication"
007 JM23100012 2.71 3.28
Sterknop
009 JM23100013 1.18 1.43
Screw 6x20
009 JM00000074 0.83 1.00
Metal screw M4x15mm
010 JM23100014 0.83 1.00
Lock Washer M4
011 942051-6 0.83 1.00
No longer available, no replacement
012 JM23100016
Sliding Plate
013 JM23100017 2.71 3.28
Lock plate "a"
014 JM23100018 2.02 2.44
Metal screw M4x18mm
015 JM23100019 0.83 1.00
Locking plate "b"
016 JM23100020 2.02 2.44
Holding Spring
017 JM23100021 1.67 2.02
Locking Bolt
018 JM23100022 1.67 2.02
Pressure Plate
019 JM23100023 1.18 1.43
Locking pin B
020 JM23100024 2.71 3.28
Holder
021 JM23100025 1.67 2.02
Locking pin A
022 JM23100026 1.18 1.43
Lock Lever
023 JM23100027 2.71 3.28
Rotary Table
024 JM23100310 68.53 82.92
Angle scale
024C10 JM23100036 2.84 3.44
Pin 4x20mm
024C20 JM23100038 0.83 1.00
Blocking Pin
024C30 JM23100039 2.71 3.28
Locknut M10
024C40 JM23100009 0.83 1.00
Insert plate
025 JM23100029 3.54 4.28
Marking point
026 JM23100030 1.18 1.43
Metal screw M5x15mm
027 JM23100031 0.83 1.00
Centreerbout
028 JM23100032 3.12 3.78
Screw 4x12
029 911516-9 1.39 1.68
Hex socket screw M6x28mm
030 JM23100034 1.02 1.23
Spring retaining ring
031 JM23100035 0.83 1.00
Angle scale
032 JM23100036 2.84 3.44
Sliding Plate
033 JM23100037 1.18 1.43
Pin 4x20mm
034 JM23100038 0.83 1.00
Blocking Pin
035 JM23100039 2.71 3.28
Hexagon bolt M6x20mm
036 JM23100040 1.02 1.23
Washer
037 JM23100041 0.83 1.00
Stop 45gr.
038 JM23100042 3.54 4.28
Locking ring 12mm
039 JM27100102 0.83 1.00
Washer 12x20x1mm
040 JM23100044 0.83 1.00
Stop Shaft
041 JM23100045 2.02 2.44
Spring
042 JM23100046 1.24 1.50
90Gr stop Ls1017L
043 JM23100047 3.96 4.79
Marking point
044 JM23100048 1.18 1.43
Compression Spring
045 JM23100049 1.18 1.43
Arm Holder
046 JM23100330 77.67 93.98
No information available, not orderable
046-1 JM00000415
Stop Shaft
046C10 JM23100045 2.02 2.44
Damping Buffer
046C20 JM23100081 1.67 2.02
Linear bearing
046C30 JM23100085 13.82 16.72
Locking screw M6x8
046C40 JM23100087 0.83 1.00
Damping Buffer
046C50 JM23100081 1.67 2.02
Holding Pin
047 JM23100051 0.98 1.19
Clamping Plate
048 JM23100052 1.02 1.23
Base plate
049 JM23100053 1.02 1.23
Plain bearing
050 JM23100054 6.38 7.72
Lock washer 10x26x2.5mm
051 JM23100055 1.02 1.23
Spacer
052 JM23100056 1.24 1.50
Nut
053 JM23100057 1.00 1.21
Handle
054 JM23100058 2.71 3.28
No information available, not orderable
055 JM00000076
Washer 8mm
056 JM23100060 0.83 1.00
No information available, not orderable
057 JM23100061
Alan bolt M8x30mm
058 JM23100062 0.98 1.19
Plate
059 JM23100063 1.39 1.68
Rear stop Li
060A JM23210006 10.50 12.70
Label "Safety"
060A01 JM23180060 2.71 3.28
Rear stop Li
060B JM23210006 10.50 12.70
Metal screw M4x8mm
061 JM23100065 0.83 1.00
Wing bolt M6x20mm
062 JM23100066 2.71 3.28
Allen bolt M4x12mm
063 JM23100067 0.83 1.00
Allen bolt M4x10mm
063 JM23100146 0.83 1.00
No information available, not orderable
064 JM23100068
Strain relief "laser"
065 JM23100069 0.83 1.00
No information available, not orderable
066 JM23100070
6mm Washer
067 JM23100071 0.83 1.00
Strain reliever
068 JM23100072 0.83 1.00
Cable guide support
069 JM23100073 1.67 2.02
No information available, not orderable
070 JM23100342
Label "Safety"
070A JM23180059 2.84 3.44
Pin 5x30mm
070C10 JM23100145 0.83 1.00
No information available, not orderable
071 JM23100075
Allen bolt M4X6MM LS1018L
072 JM23300038 0.83 1.00
Connection shaft
073 JM23100077 2.71 3.28
Torsion Spring
074 JM23100078 7.22 8.74
Collar
075 JM23100079 0.98 1.19
No information available, not orderable
076 JM23100080
Damping Buffer
077 JM23100081 1.67 2.02
Bearing sheet
078 JM23100082 1.67 2.02
Spacer
079 JM23100083 1.00 1.21
Dust Ring
080 JM23100084 0.83 1.00
Linear bearing
081 JM23100085 13.82 16.72
Lock button
082 JM23100086 1.00 1.21
Locking screw M6x8
083 JM23100087 0.83 1.00
Compression Spring
084 JM23100088 1.00 1.21
Metal screw M5x12mm
085 JM23100089 0.83 1.00
Slide Bar Cap
086 JM23100090 9.24 11.18
Key Holder
087 JM23100091 1.00 1.21
Depth Setting Plate
089 JM23100092 1.00 1.21
Pin "c"
090 JM23100193 1.00 1.21
Washer Spring
091 JM23100094 0.83 1.00
Washer 8x14x1
092 JM23100095 0.83 1.00
Depth Setting Bolt
093 JM23100096 0.83 1.00
Pin cap
094 JM23100097 1.00 1.21
Verbindingbus
095 JM23100098 0.83 1.00
Connection Plate
096 JM23100099 2.71 3.28
Zaagkap Ls1017L A
097 JM23210008 16.56 20.04
Rivet
097C10 JM23100101 0.83 1.00
Saw cap plate
097C20 JM23100105 5.71 6.91
Lock washer 5
097C30 253811-4 0.83 1.00
Rivet
098 JM23100101 0.83 1.00
ROLLER
099 JM23100102 0.83 1.00
Spring retaining ring
100 JM23100103 0.83 1.00
Lock washer 5
101 253811-4 0.83 1.00
Saw cap plate
102 JM23100105 5.71 6.91
Bolt Mx12mm
103 JM23100106 0.83 1.00
Saw cap spring
104 JM23100107 2.71 3.28
Base plate
105 JM23100108 0.98 1.19
Saw cap plate
106 JM23100109 0.98 1.19
Lock Nut M6
107 JM23100110 0.83 1.00
Hex socket screw M6x45mm
108 JM23100111 0.83 1.00
Hex Socket Head Cap Screw
109 JM23100112 0.98 1.19
Screw
110 JM23100113 0.98 1.19
Pin
111 JM23100114 0.83 1.00
Lock ring R-5
112 JM23100115 0.83 1.00
Locking Screw M6x12mm
113 JM23100116 0.83 1.00
Stofafzuigadapter afkortzaag
114 JM23100117 3.00 3.63
Allen screw M6x25mm
115 JM23100118 0.83 1.00
ADJUSTING BOLT
116 JM23100119 2.02 2.44
Allen Screw M6x15mm
117 JM23100120 0.83 1.00
Fixed Saw Cap
118 JM23100365 48.40 58.56
Label "Safety"
118A JM23180058 2.71 3.28
Pin
118C20 JM23100114 0.83 1.00
Stop cap
118C30 JM23100147 1.39 1.68
Dust Guide
119 JM23100122 1.39 1.68
No information available, not orderable
120 JM23100123
Outer Flange
121 JM23100124 5.06 6.12
No information available, not orderable
123 JM23100125
No information available, not orderable
124 JM23100126
No information available, not orderable
125 JM23100127
No information available, not orderable
126 JM23100128
No information available, not orderable
127 JM23100129
Parker 2,9x12mm
128 JM23100130 0.83 1.00
No information available, not orderable
129 JM23100131
No information available, not orderable
130 JM23100132
No information available, not orderable
131 JM23100133
Blocking Plate
132 JM23100134 1.20 1.45
Holding Spring
133 JM23100135 1.00 1.21
Mounting Plate
134 JM23100136 1.00 1.21
Insert
135 JM23100137 1.00 1.21
Covering hood
136 JM23100138 1.02 1.23
Screw
137 JM23100139 0.98 1.19
Spring
138 JM23100140 1.20 1.45
Locknut M5
139 264007-2 2.71 3.28
Deblock handle
140 JM23100142 1.20 1.45
Unblocking Support
141 JM23100143 1.18 1.43
Plunger
143 JM23100155 9.26 11.20
Key 5x10mm
144 JM23100156 1.20 1.45
Ball Bearing 6304llu
145 211327-5 10.50 12.70
Locking ring R-20
146 JM23100158 0.83 1.00
Gear
147 JM23100159 10.52 12.73
Locking ring E-16
148 JM23100160 0.83 1.00
Locking screw M8x12mm
149 JM23100161 0.83 1.00
Socket
150 JM23100162 3.54 4.28
Gear Cover
151 JM23100380 23.04 27.88
Socket
151C10 JM23100162 3.54 4.28
Engine housing "left"
152 JM23100164 7.21 8.72
Cable grommet
153 JM23100165 2.71 3.28
Power cord 2x1.50 4.0mtr
154 695123-3 21.08 25.51
Strain reliever
155 JM23100166 0.83 1.00
Parker M4x16
156 JM23100167 1.00 1.21
Parker 4.2X12mm Mls100 *
156 JM23000106 1.00 1.21
Dust Ring
157 JM23100168 1.02 1.23
Armature
158 JM23000100 76.04 92.01
Noise suppression capacitor
159 JM23100169 3.96 4.79
Parker M5x70
160 JM23100170 1.20 1.45
Contact point
161 JM23100171 1.67 2.02
Field
162 JM23100001 72.58 87.82
Shim ring
163 JM23100172 1.20 1.45
Switch Support
164 JM23100173 0.98 1.19
Switch Handle
165 JM23100174 3.12 3.78
Shift Plate
166 JM23100175 2.02 2.44
Switch spring
167 JM23100176 2.02 2.44
Child lock
168 JM23100177 0.83 1.00
Safety Switch
169 JM23100178 2.71 3.28
Switch
170 JM23100179 12.22 14.79
Handle cover "right"
171 JM23100180 7.22 8.74
Motor Housing
173 JM23100370 19.29 23.34
Label "Safety"
173A JM23180057 2.71 3.28
Label "LS1017L"
173B JM23180021 2.71 3.28
Brush Holder
173C40 JM23100184 2.71 3.28
Allen bolt M5X8mm
173C50 JM23100185 0.83 1.00
Brush Cap
174 JM23100182 0.98 1.19
Carbon Brush Set Cb-153
175 194985-1 3.96 4.79
Brush Holder
176 JM23100184 2.71 3.28
Allen bolt M5X8mm
177 JM23100185 0.83 1.00
Soft start circuit
178 JM23100186 19.23 23.27
Metal screw M5x35mm
179 JM23100187 0.83 1.00
Motor Housing Cover
180 JM23100188 2.71 3.28
Metal screw M6x70mm
181 JM23100189 1.20 1.45
Reducer Ring
182 JM23100144 3.12 3.78
Pin 5x30mm
183 JM23100145 0.83 1.00
Allen bolt M4x10mm
184 JM23100146 0.83 1.00
Stop cap
185 JM23100147 1.39 1.68
Hexagon bolt M6x20mm
186 JM23100148 1.00 1.21
Lock washer 5mm
187 JM23100149 0.83 1.00
Washer
188 JM23100150 1.00 1.21
Washer 6mm
189 JM23100151 0.83 1.00
Wing Bolt M6X10mm
190 JM23100152 0.98 1.19
Bolt for saw blade
191 JM23100153 2.71 3.28
Body washer 10mm
192 JM23100154 0.83 1.00
Rivet 6mm
193 JM23100190 1.00 1.21
No longer available, no replacement
194 JM23100016
No longer available, no replacement
195 JM23100016
No longer available, no replacement
196 JM23100016
No longer available, no replacement
197 JM23100016
No longer available, no replacement
198 JM23100016
No longer available, no replacement
199 JM23100016
No longer available, no replacement
200 JM23100016
No longer available, no replacement
201 JM23100016
No longer available, no replacement
202 JM23100016
No longer available, no replacement
203 JM23100016
No longer available, no replacement
204 JM23100016
No longer available, no replacement
205 JM23100016
No longer available, no replacement
206 JM23100016
Screw 4x12
207 911516-9 1.39 1.68
Screw 4x12
208 911516-9 1.39 1.68
Screw 4x12
209 911516-9 1.39 1.68
Screw 4x12
210 911516-9 1.39 1.68
Screw 4x12
211 911516-9 1.39 1.68
Screw 4x12
212 911516-9 1.39 1.68
Screw 4x12
213 911516-9 1.39 1.68
Screw 4x12
214 911516-9 1.39 1.68
Screw 4x12
215 911516-9 1.39 1.68
Screw 4x12
216 911516-9 1.39 1.68
Screw 4x12
217 911516-9 1.39 1.68
5mm Washer
218 JM23100007 0.83 1.00
5mm Washer
219 JM23100007 0.83 1.00
5mm Washer
220 JM23100007 0.83 1.00
5mm Washer
221 JM23100007 0.83 1.00
5mm Washer
222 JM23100007 0.83 1.00
Washer
223 JM23100041 0.83 1.00
Washer
224 JM23100041 0.83 1.00
Metal screw M5x12mm
225 JM23100089 0.83 1.00
Metal screw M5x12mm
226 JM23100089 0.83 1.00
Metal screw M5x12mm
227 JM23100089 0.83 1.00
Metal screw M5x12mm
228 JM23100089 0.83 1.00
Lock Washer M4
229 942051-6 0.83 1.00
Lock Washer M4
230 942051-6 0.83 1.00
Lock Washer M4
231 942051-6 0.83 1.00
Lock Washer M4
232 942051-6 0.83 1.00
Lock Washer M4
233 942051-6 0.83 1.00
Washer 6mm
234 JM23100151 0.83 1.00
Parker M4x16
235 JM23100167 1.00 1.21
Parker M4x16
236 JM23100167 1.00 1.21
Parker S.42X18 LS1018L
236 JM00000217 0.83 1.00
Metal screw M5x20mm
237 JM23100006 0.83 1.00
Metal screw M5x18mm
237 JM23200029 0.83 1.00
Lock washer 5mm
238 JM23100149 0.83 1.00
Lock washer 5mm
239 JM23100149 0.83 1.00
Spring retaining ring
240 JM23100035 0.83 1.00
Spring retaining ring
241 JM23100035 0.83 1.00
Metal screw M4x18mm
242 JM23100019 0.83 1.00
Spacer
243 JM23100083 1.00 1.21
Spacer
244 JM23100083 1.00 1.21
Dust Ring
245 JM23100084 0.83 1.00
Dust Ring
246 JM23100084 0.83 1.00
Lock washer 5
247 253811-4 0.83 1.00
Locknut M10
248 JM23100009 0.83 1.00
Locknut M10
249 JM23100009 0.83 1.00
Hex socket screw M6x28mm
250 JM23100034 1.02 1.23
Strain relief "laser"
251 JM23100069 0.83 1.00
Strain relief "laser"
252 JM23100069 0.83 1.00
6mm Washer
253 JM23100071 0.83 1.00
Strain reliever
254 JM23100072 0.83 1.00
Cable guide support
255 JM23100073 1.67 2.02
Damping Buffer
256 JM23100081 1.67 2.02
Bearing sheet
257 JM23100082 1.67 2.02
Verbindingbus
258 JM23100098 0.83 1.00
Outer Flange
259 JM23100124 5.06 6.12
Laser Unit
260 JM23100390 19.23 23.27
No longer available, no replacement
261 JM23100016
Metal screw M4x18mm
262 JM23100019 0.83 1.00
No longer available, no replacement
263 JM23100016
No longer available, no replacement
264 JM23100016
Metal screw M4x18mm
265 JM23100019 0.83 1.00
5mm Washer
266 JM23100007 0.83 1.00
5mm Washer
267 JM23100007 0.83 1.00
Lock washer 10x26x2.5mm
268 JM23100055 1.02 1.23
Washer 10mm
269 JM23100010 0.83 1.00
No information available, not orderable
270 JM23500053
Hex socket screw M6x28mm
271 JM23100034 1.02 1.23
Spring retaining ring
272 JM23100035 0.83 1.00
5mm Washer
273 JM23100007 0.83 1.00
Lock washer 5
274 JM00000216 0.83 1.00
No information available, not orderable
276 JM23100500
Tafelverbreder houder
277 JM00000038 13.00 15.73
Wing bolt M6x14mm LS1017L
278 JM00000259 1.26 1.52
Adjustable foot bolt M8x45
279 JM00000260 1.51 1.83
Rotary Ls1017L platform
280 JM23100028 70.46 85.26
Pin 4x20mm
281 JM23100038 0.83 1.00
Blocking Pin
282 JM23100039 2.71 3.28
Locknut M10
283 JM23100009 0.83 1.00
Ball Bearing 6201
284 211109-5 4.45 5.38
No information available, not orderable
285 JM23200032
Spring retaining ring
286 JM23100035 0.83 1.00
Pin
287 JM23100114 0.83 1.00
Stop cap
288 JM23100147 1.39 1.68
Washer
289 JM23100041 0.83 1.00
Damping Buffer
290 JM23100081 1.67 2.02
Linear bearing
291 JM23100085 13.82 16.72
Linear bearing
292 JM23100085 13.82 16.72
Locking screw M6x8
293 JM23100087 0.83 1.00
Damping Buffer
294 JM23100081 1.67 2.02
Warning label LS0815FL
295 JM2708B060 1.00 1.21

There are 0 items in your shopping basket.
