Here you will find all available parts and drawings of the 'Makita LS1013L'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

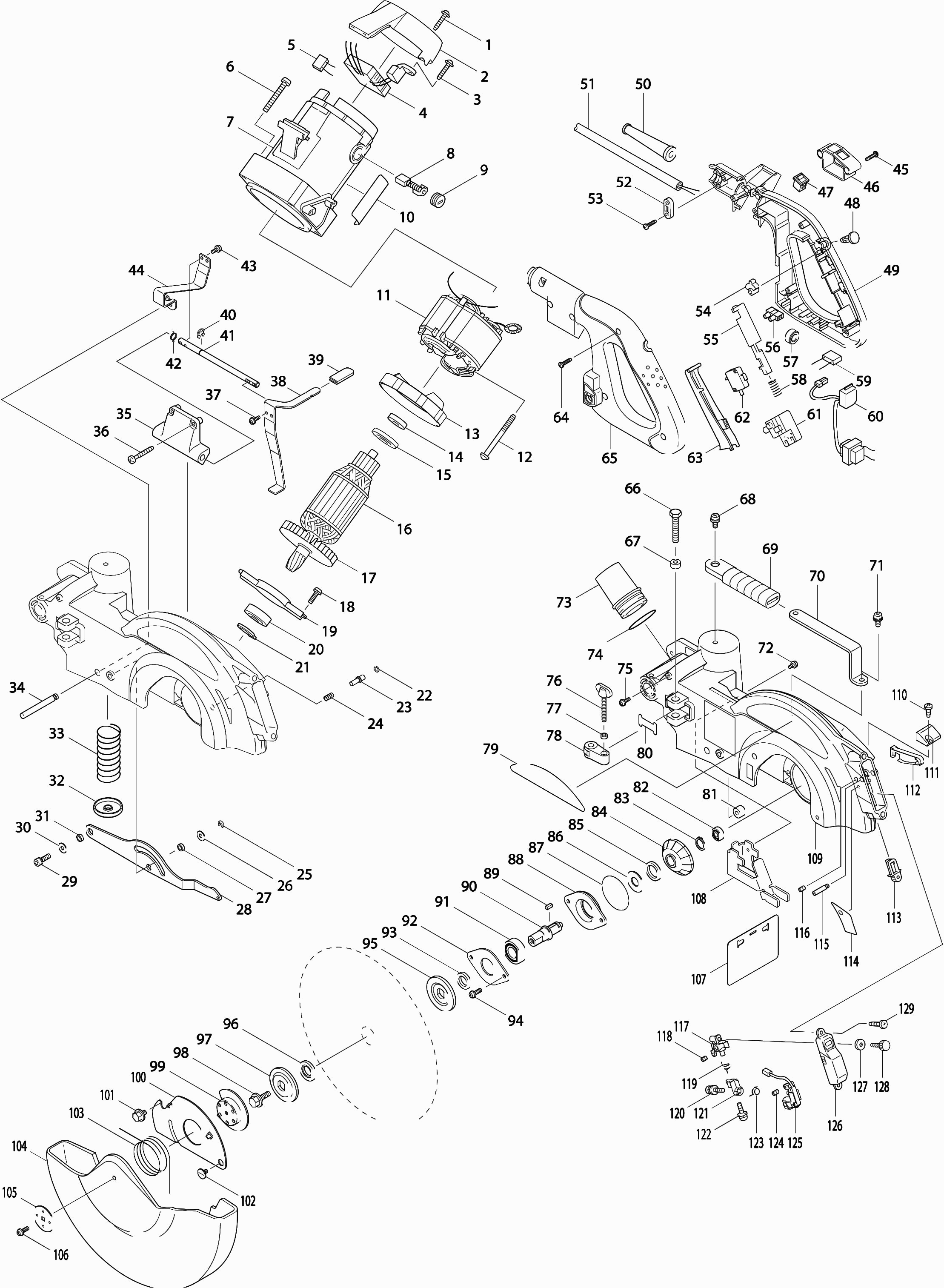

Technical drawing of model Makita LS1013L
Spare parts list of model Makita LS1013L
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.21 | |
| Cover lid | ||||
| 002 | 416075-3 | 4.80 | 5.81 | |
| Tap screw 4x18 | ||||
| 003 | 265A48-7 | 1.00 | 1.21 | |
| Control circuit | ||||
| 004 | 631219-6 | 51.70 | 62.56 | |
| Capacitor 0,47uf | ||||
| 005 | 645006-7 | 2.40 | 2.90 | |
| Cross-head screw M6X50 * | ||||
| 006 | 911373-5 | 1.20 | 1.45 | |
| Motor Housing | ||||
| 007 | 154718-6 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 007A | 643653-8 | |||
| Warning Label | ||||
| 007B | 810966-4 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 007C | 817320-3 | |||
| Carbon Brush Set Cb-153 | ||||
| 008 | 194985-1 | 4.80 | 5.81 | |
| Brush holder cap | ||||
| 009 | 643650-4 | 1.20 | 1.45 | |
| Nameplate Ls1013l | ||||
| 010 | 861577-8 | 3.60 | 4.36 | |
| Field | ||||
| 011 | 599506-8 | 72.60 | 87.85 | |
| Stator spring Cb5 | ||||
| 011A | 654020-2 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 2mm | ||||
| 011B | 654502-4 | 1.00 | 1.21 | |
| Tapping screw Pt 5x65 | ||||
| 012 | 266029-8 | 2.40 | 2.90 | |
| Intermediate Plate | ||||
| 013 | 416107-6 | 2.40 | 2.90 | |
| Ball bearing 6000llb | ||||
| 014 | 211061-7 | 8.40 | 10.16 | |
| Insulation ring | ||||
| 015 | 681642-5 | 8.40 | 10.16 | |
| Armature | ||||
| 016 | 516928-7 | 99.00 | 119.79 | |
| Fan 80 | ||||
| 017 | 240001-8 | 3.60 | 4.36 | |
| Screw 5x16 | ||||
| 018 | 911224-2 | 1.00 | 1.21 | |
| Bearing Plate 94 | ||||
| 019 | 285686-3 | 3.60 | 4.36 | |
| Ball Bearing 6003ddw | ||||
| 020 | 210301-0 | 6.00 | 7.26 | |
| Lock ring S-17 | ||||
| 021 | 961057-5 | 1.00 | 1.21 | |
| Lock washer 8 | ||||
| 022 | 231928-3 | 1.00 | 1.21 | |
| Locking Pin 6 4110C | ||||
| 023 | 256633-1 | 1.20 | 1.45 | |
| Compression Spring 7 | ||||
| 024 | 231240-1 | 1.00 | 1.21 | |
| Retaining Ring E-5 | ||||
| 025 | 961018-5 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 026 | 253804-1 | 1.00 | 1.21 | |
| Washer 16 | ||||
| 027 | 257163-5 | 1.20 | 1.45 | |
| Connection Plate | ||||
| 028 | 345604-4 | 6.00 | 7.26 | |
| Inbusbout M6x20 | ||||
| 029 | 265905-3 | 1.20 | 1.45 | |
| Washer 6 | ||||
| 030 | 253804-1 | 1.00 | 1.21 | |
| Washer 16 | ||||
| 031 | 257163-5 | 1.20 | 1.45 | |
| Spring Holder Ls1013 | ||||
| 032 | 344464-1 | 2.40 | 2.90 | |
| Compression Spring 28 | ||||
| 033 | 233461-1 | 4.80 | 5.81 | |
| Locking pin 8 | ||||
| 034 | 324609-7 | 3.60 | 4.36 | |
| Axle Holder | ||||
| 035 | 419075-2 | 3.60 | 4.36 | |
| Self Tapping Screw Pt4x30 | ||||
| 036 | 266050-7 | 1.00 | 1.21 | |
| Screw 4X10 | ||||
| 037 | 911113-1 | 1.00 | 1.21 | |
| Lock Lever | ||||
| 038 | 345828-2 | 3.60 | 4.36 | |
| Baffle | ||||
| 039 | 421589-9 | 1.20 | 1.45 | |
| Retaining ring E-6 A | ||||
| 040 | 961012-7 | 1.00 | 1.21 | |
| Rod 8 | ||||
| 041 | 324608-9 | 9.60 | 11.62 | |
| Pull Spring 8 | ||||
| 042 | 231633-2 | 1.20 | 1.45 | |
| Screw 4X10 | ||||
| 043 | 911113-1 | 1.00 | 1.21 | |
| Blocking Plate | ||||
| 044 | 345608-6 | 4.80 | 5.81 | |
| Tap screw 4x18 | ||||
| 045 | 265A48-7 | 1.00 | 1.21 | |
| Laser beam label Ls0714 A | ||||
| 046 | 810354-5 | 2.40 | 2.90 | |
| Switch | ||||
| 047 | 651522-9 | 3.60 | 4.36 | |
| Unlock button | ||||
| 048 | 417113-4 | 1.20 | 1.45 | |
| Handle set | ||||
| 049 | 183980-6 | 16.50 | 19.96 | |
| No longer available, no replacement | ||||
| 050 | 682505-8 | |||
| Power cord 2x1.50 4.0mtr | ||||
| 051 | 695123-3 | 22.00 | 26.62 | |
| Clamp Bracket | ||||
| 052 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 053 | 265A48-7 | 1.00 | 1.21 | |
| Cam | ||||
| 054 | 414546-4 | 1.20 | 1.45 | |
| Unlock handle | ||||
| 055 | 416000-4 | 1.20 | 1.45 | |
| Terminal block | ||||
| 056 | 654575-7 | 3.60 | 4.36 | |
| Line filter | ||||
| 057 | 688131-1 | 1.00 | 1.21 | |
| Compression Spring 3 | ||||
| 058 | 231457-6 | 1.00 | 1.21 | |
| Capacitor 0,1uf | ||||
| 059 | 645105-5 | 3.60 | 4.36 | |
| Electric Circuit | ||||
| 060 | 631617-4 | 16.50 | 19.96 | |
| Switch Sw-127 | ||||
| 061 | 651923-1 | 13.20 | 15.97 | |
| Micro Switch | ||||
| 062 | 651941-9 | 3.60 | 4.36 | |
| Switch Handle LS1013 A | ||||
| 063 | 459017-4 | 1.20 | 1.45 | |
| Tap screw 4x18 | ||||
| 064 | 265A48-7 | 1.00 | 1.21 | |
| Handle set | ||||
| 065 | 183980-6 | 16.50 | 19.96 | |
| Hexagonal bolt M8X45 * | ||||
| 066 | 921467-8 | 1.00 | 1.21 | |
| Rubber carbon brush ring | ||||
| 067 | 262003-4 | 1.20 | 1.45 | |
| Hex bolt 6x16 | ||||
| 068 | 911323-0 | 1.00 | 1.21 | |
| Handle | ||||
| 069 | 421562-9 | 2.40 | 2.90 | |
| Grip holder | ||||
| 070 | 344420-1 | 3.60 | 4.36 | |
| Hex bolt 6x16 | ||||
| 071 | 911323-0 | 1.00 | 1.21 | |
| Screw 4X10 | ||||
| 072 | 911114-9 | 1.00 | 1.21 | |
| STOFAFZUIGADAPTER AFKORTZAAG | ||||
| 073 | 419277-0 | 2.00 | 2.42 | |
| O-ring 35 | ||||
| 074 | 213460-9 | 1.20 | 1.45 | |
| Screw 4X10 | ||||
| 075 | 911113-1 | 1.00 | 1.21 | |
| Wing Bolt m6x43 | ||||
| 076 | 265717-4 | 2.40 | 2.90 | |
| Plastic Washer 5 | ||||
| 077 | 262001-8 | 1.39 | 1.68 | |
| Locking arm | ||||
| 078 | 317176-9 | 8.40 | 10.16 | |
| Label Makita | ||||
| 079 | 819214-8 | 2.40 | 2.90 | |
| Retaining sheet | ||||
| 080 | 344045-1 | 1.00 | 1.21 | |
| Vibration Rubber Ls1214L | ||||
| 081 | 421952-6 | 1.00 | 1.21 | |
| Ball bearing 607llb | ||||
| 082 | 211021-9 | 4.80 | 5.81 | |
| Lock ring S-14 | ||||
| 083 | 961054-1 | 1.00 | 1.21 | |
| Gear 33 | ||||
| 084 | 226742-0 | 23.10 | 27.95 | |
| Rubber ring 20 | ||||
| 085 | 262074-1 | 1.00 | 1.21 | |
| Washer 14 | ||||
| 086 | 267035-6 | 1.20 | 1.45 | |
| O-ring 52 | ||||
| 087 | 213673-2 | 1.20 | 1.45 | |
| Bearing Housing | ||||
| 088 | 316836-0 | 8.40 | 10.16 | |
| Feather Key 4 | ||||
| 089 | 254202-2 | 1.00 | 1.21 | |
| Plunger | ||||
| 090 | 322899-6 | 4.80 | 5.81 | |
| Ball Bearing 6003ddw | ||||
| 091 | 210301-0 | 6.00 | 7.26 | |
| Bearing Holder 66 | ||||
| 092 | 285828-9 | 2.40 | 2.90 | |
| REDUCEERRING 25X15,88X4MM | ||||
| 093 | 257022-3 | 2.00 | 2.42 | |
| Screw 5x16 | ||||
| 094 | 911224-2 | 1.00 | 1.21 | |
| Inside/outside Flange | ||||
| 095 | 224333-1 | 3.60 | 4.36 | |
| REDUCEERRING 30X15,88X4MM | ||||
| 096 | 257295-8 | 1.00 | 1.21 | |
| Inside/outside Flange | ||||
| 097 | 224333-1 | 3.60 | 4.36 | |
| Allen bolt M8x22 | ||||
| 098 | 266762-2 | 2.40 | 2.90 | |
| Centering plate | ||||
| 099 | 344473-0 | 28.60 | 34.61 | |
| Centering cap | ||||
| 100 | 345603-6 | 2.40 | 2.90 | |
| Flange Bolt M8x12 | ||||
| 101 | 265324-3 | 1.20 | 1.45 | |
| Flat head screw M5 | ||||
| 102 | 265008-3 | 1.20 | 1.45 | |
| Torsion spring 45 | ||||
| 103 | 231613-8 | 2.40 | 2.90 | |
| Saw protective cover | ||||
| 104 | 419073-6 | 17.60 | 21.30 | |
| Washer 6 | ||||
| 105 | 253977-0 | 2.40 | 2.90 | |
| Metal screw Ph M5x14mm Ck | ||||
| 106 | 266809-2 | 1.00 | 1.21 | |
| Guide | ||||
| 107 | 421916-0 | 1.20 | 1.45 | |
| Guard Plate | ||||
| 108 | 345610-9 | 2.40 | 2.90 | |
| FIXED PROTECTIVE COVER | ||||
| 109 | 188020-5 | 137.50 | 166.38 | |
| Warning Label | ||||
| 109A | 817667-5 | 2.40 | 2.90 | |
| Warning Label | ||||
| 109B | 817874-0 | 2.40 | 2.90 | |
| Rubber pen 6 | ||||
| 109C | 263005-3 | 1.00 | 1.21 | |
| Connection Pen | ||||
| 109D | 322316-6 | 2.40 | 2.90 | |
| Tapping screw M4x12mm Ck | ||||
| 110 | 266026-4 | 1.00 | 1.21 | |
| Cable protection holder | ||||
| 111 | 419078-6 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 112 | 419076-0 | |||
| Lens for laser line | ||||
| 113 | 418104-8 | 2.40 | 2.90 | |
| Laser-Line Label <0506 | ||||
| 114 | 801262-1 | 2.40 | 2.90 | |
| Brush screw M5 | ||||
| 115 | 266306-8 | 2.40 | 2.90 | |
| Hexagon Bolt 5x8 | ||||
| 116 | 266229-0 | 1.00 | 1.21 | |
| Mounting Block C >0506 | ||||
| 117 | 419379-2 | 4.80 | 5.81 | |
| Hex Bolt 4x6 | ||||
| 118 | 266318-1 | 1.00 | 1.21 | |
| Torsion Spring 9 Ls0714 | ||||
| 119 | 231664-1 | 1.00 | 1.21 | |
| Screw 3X10 Ls0714 * | ||||
| 120 | 911014-3 | 1.00 | 1.21 | |
| Mounting Block B >0506 | ||||
| 121 | 419378-4 | 3.60 | 4.36 | |
| Screw 3X10 Ls0714 * | ||||
| 122 | 911014-3 | 1.00 | 1.21 | |
| Torsion Spring 9 Ls0714 | ||||
| 123 | 231664-1 | 1.00 | 1.21 | |
| Hex Bolt 4x6 | ||||
| 124 | 266318-1 | 1.00 | 1.21 | |
| Circuit for Laser Ls0714 A | ||||
| 125 | 638442-4 | 26.40 | 31.94 | |
| Protective cover for laser | ||||
| 126 | 418108-0 | 2.40 | 2.90 | |
| Lock washer 5 | ||||
| 127 | 253807-5 | 1.00 | 1.21 | |
| Knob bolt 5x24 | ||||
| 128 | 265753-0 | 2.40 | 2.90 | |
| Self-tapping screw 4x20 | ||||
| 129 | 266042-6 | 1.00 | 1.21 | |
| Bus 16-113 | ||||
| 130 | 331428-4 | 6.00 | 7.26 | |
| Lock nut M8x13 high | ||||
| 131 | 252105-4 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 132 | 941202-8 | 1.00 | 1.21 | |
| Arm | ||||
| 133 | 317983-0 | 62.70 | 75.87 | |
| Strain reliever | ||||
| 134 | 687042-7 | 1.00 | 1.21 | |
| Tapping screw M4x12mm Ck | ||||
| 135 | 266026-4 | 1.00 | 1.21 | |
| Locking Bolt | ||||
| 136 | 324183-5 | 1.20 | 1.45 | |
| O-ring 5 | ||||
| 137 | 213021-5 | 1.00 | 1.21 | |
| Knob 20 | ||||
| 138 | 271601-3 | 1.00 | 1.21 | |
| Hexagonal bolt 6x10 | ||||
| 139 | 251961-9 | 1.00 | 1.21 | |
| Hex bolt 8x30 | ||||
| 140 | 265371-4 | 1.20 | 1.45 | |
| Hex bolt 8x20 | ||||
| 141 | 265412-6 | 1.20 | 1.45 | |
| Steel ball 10 | ||||
| 142 | 216003-6 | 1.00 | 1.21 | |
| Guide plate | ||||
| 143 | 345418-1 | 8.40 | 10.16 | |
| Torsion Spring 28 | ||||
| 144 | 231626-9 | 2.40 | 2.90 | |
| Indicator Plate | ||||
| 145 | 413067-3 | 1.20 | 1.45 | |
| Screw 4X10 | ||||
| 146 | 911114-9 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 147 | 233168-9 | 1.20 | 1.45 | |
| Allen screw M2x12 | ||||
| 148 | 266131-7 | 1.00 | 1.21 | |
| Arm Holder | ||||
| 149 | 151459-5 | 126.50 | 153.06 | |
| Scale distribution label | ||||
| 149A | 816771-7 | 2.40 | 2.90 | |
| Hex bolt 10X90 Ls1013 | ||||
| 150 | 251668-7 | 2.40 | 2.90 | |
| Screw 4X10 | ||||
| 151 | 911113-1 | 1.00 | 1.21 | |
| Handle | ||||
| 152 | 416006-2 | 4.80 | 5.81 | |
| Hex nut 10x17 | ||||
| 153 | 252144-4 | 3.60 | 4.36 | |
| Ring 10 | ||||
| 154 | 253024-7 | 1.00 | 1.21 | |
| Spring 5 for lever 100 | ||||
| 155 | 231266-3 | 1.20 | 1.45 | |
| Square Pen Ls1013 * | ||||
| 156 | 152542-1 | 14.30 | 17.30 | |
| Rubber pen 6 | ||||
| 156A | 263005-3 | 1.00 | 1.21 | |
| Hex head bolt 6x35 | ||||
| 157 | 921356-7 | 1.00 | 1.21 | |
| Rotary Table | ||||
| 158 | 153832-5 | 169.40 | 204.97 | |
| Linear Ball Bearing 3064 | ||||
| 158A | 211444-1 | 29.70 | 35.94 | |
| Bearing 30 | ||||
| 158B | 219002-7 | 16.50 | 19.96 | |
| Felt ring 30 | ||||
| 158C | 262048-2 | 2.40 | 2.90 | |
| Rubber pen 6 | ||||
| 158D | 263005-3 | 1.00 | 1.21 | |
| Baffle | ||||
| 158E | 343676-3 | 2.40 | 2.90 | |
| Warning Label | ||||
| 158F | 817283-3 | 1.00 | 1.21 | |
| Bearing housing B | ||||
| 159 | 152540-5 | 47.30 | 57.23 | |
| Linear Ball Bearing 3064 | ||||
| 159A | 211444-1 | 29.70 | 35.94 | |
| Felt ring 30 | ||||
| 159B | 262048-2 | 2.40 | 2.90 | |
| Baffle | ||||
| 159C | 343676-3 | 2.40 | 2.90 | |
| Bearing housing B | ||||
| 159D | 316837-8 | 22.00 | 26.62 | |
| Hex Socket Bolt M8x30 | ||||
| 160 | 922451-6 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 161 | 253852-0 | 1.20 | 1.45 | |
| Hex bolt 8x40 | ||||
| 162 | 265442-7 | 1.20 | 1.45 | |
| Insert plate | ||||
| 163 | 419222-5 | 3.60 | 4.36 | |
| Tapping screw M4x12mm Ck | ||||
| 164 | 266026-4 | 1.00 | 1.21 | |
| Screw 4x8 | ||||
| 165 | 911109-2 | 1.00 | 1.21 | |
| Locknut 6-10 | ||||
| 166 | 252014-7 | 1.00 | 1.21 | |
| Support for Stop | ||||
| 167 | 344463-3 | 1.20 | 1.45 | |
| End stop | ||||
| 168 | 154564-7 | 14.30 | 17.30 | |
| Warning Label | ||||
| 168A | 810967-2 | 2.40 | 2.90 | |
| Hexagonal bolt M8X30 A | ||||
| 169 | 265488-3 | 2.40 | 2.90 | |
| Backstop | ||||
| 170 | 316840-9 | 48.40 | 58.56 | |
| Countersunk screw 6x35 | ||||
| 171 | 912357-6 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 172 | 253715-0 | 1.20 | 1.45 | |
| Wing Bolt 6x10 | ||||
| 173 | 924306-1 | 1.20 | 1.45 | |
| Tapping screw M4x12mm Ck | ||||
| 174 | 266026-4 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 175 | 816326-8 | |||
| Screw 8x320 | ||||
| 176 | 266132-5 | 4.80 | 5.81 | |
| NUT M8 | ||||
| 177 | 931402-8 | 1.00 | 1.21 | |
| Handle 40 | ||||
| 178 | 271314-6 | 8.40 | 10.16 | |
| Washer 8 | ||||
| 179 | 941202-8 | 1.00 | 1.21 | |
| Rotary Knob | ||||
| 180 | 152541-3 | 8.40 | 10.16 | |
| No longer available, no replacement | ||||
| 181 | 331491-7 | |||
| Cap 10 | ||||
| 182 | 421563-7 | 1.20 | 1.45 | |
| Spring | ||||
| 183 | 322924-3 | 1.20 | 1.45 | |
| Stopper Pin Ass'y Includ.94 | ||||
| 184 | 322909-9 | 7.20 | 8.71 | |
| Washer 6 | ||||
| 185 | 253804-1 | 1.00 | 1.21 | |
| Compression Spring 6 | ||||
| 186 | 231307-5 | 1.00 | 1.21 | |
| Retaining Ring E-5 | ||||
| 187 | 961018-5 | 1.00 | 1.21 | |
| Pin Holder | ||||
| 188 | 316899-6 | 9.60 | 11.62 | |
| Tapping Screw Ct4x16 | ||||
| 189 | 266034-5 | 1.00 | 1.21 | |
| Guide stopper | ||||
| 190 | 344411-2 | 2.40 | 2.90 | |
| Screw M6 | ||||
| 191 | 251267-5 | 1.00 | 1.21 | |
| Pen 5 | ||||
| 192 | 256196-7 | 1.00 | 1.21 | |
| Rotary Stopper | ||||
| 193 | 331493-3 | 78.10 | 94.50 | |
| Stopper holder | ||||
| 194 | 344412-0 | 10.80 | 13.07 | |
| Tapping Screw Ct4x16 | ||||
| 195 | 266034-5 | 1.00 | 1.21 | |
| Tapping screw M4x12mm Ck | ||||
| 196 | 266026-4 | 1.00 | 1.21 | |
| Indicator Plate | ||||
| 197 | 816128-2 | 1.20 | 1.45 | |
| Guide Plate | ||||
| 198 | 344477-2 | 2.40 | 2.90 | |
| Tapping Screw Ct4x16 | ||||
| 199 | 266034-5 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 200 | 232075-3 | 1.20 | 1.45 | |
| Wing Bolt 6x10 | ||||
| 201 | 924306-1 | 1.20 | 1.45 | |
| Foot pad | ||||
| 202 | 153889-6 | 104.50 | 126.44 | |
| Identification plate Ls800Dw * | ||||
| 202A | 810965-6 | 1.20 | 1.45 | |
| Covering hood | ||||
| 203 | 416972-3 | 1.20 | 1.45 | |
