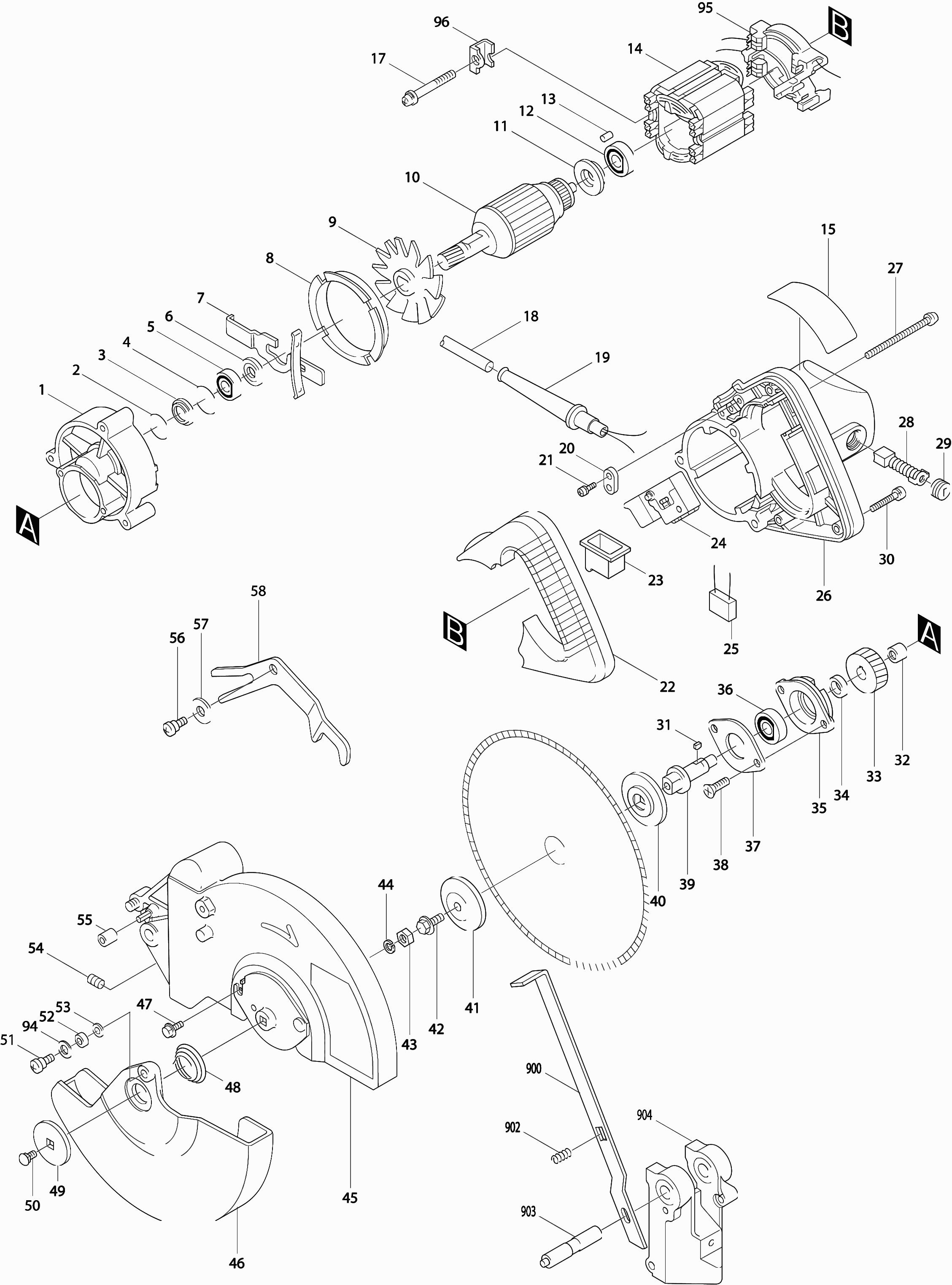

Technical drawing of model Makita LS0810
Spare parts list of model Makita LS0810
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 157402-2 | |||
| O-ring 26 | ||||
| 002 | 213407-3 | 1.20 | 1.45 | |
| Lock washer 23 * | ||||
| 003 | 343318-9 | 1.20 | 1.45 | |
| O-ring 30 | ||||
| 004 | 213406-5 | 1.20 | 1.45 | |
| Ball bearing 6200llb | ||||
| 005 | 211066-7 | 4.80 | 5.81 | |
| Washer 10 | ||||
| 006 | 253769-7 | 1.20 | 1.45 | |
| Clamping Block Ls0810 * | ||||
| 007 | 163109-0 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 008 | 343319-7 | |||
| Fan 70 * | ||||
| 009 | 241119-8 | 6.00 | 7.26 | |
| Armature | ||||
| 010 | 512868-7 | 58.30 | 70.54 | |
| Insulation ring | ||||
| 011 | 681625-5 | 1.20 | 1.45 | |
| Ball bearing 608llb | ||||
| 012 | 210043-6 | 2.40 | 2.90 | |
| Rubber Pin 4 | ||||
| 013 | 263014-2 | 1.00 | 1.21 | |
| Field | ||||
| 014 | 634133-5 | 40.70 | 49.25 | |
| Clamping bushing for statorv. 2mm | ||||
| 015 | 654502-4 | 1.00 | 1.21 | |
| Stator spring Cb5 | ||||
| 016 | 654020-2 | 1.20 | 1.45 | |
| Screw 5X60 * | ||||
| 017 | 911681-4 | 1.20 | 1.45 | |
| Power cord 2x1.50 4.0mtr | ||||
| 018 | 695123-3 | 22.00 | 26.62 | |
| Cable grommet 10-85 | ||||
| 019 | 682504-0 | 2.40 | 2.90 | |
| Clamp Bracket | ||||
| 020 | 687001-1 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 021 | 911131-9 | 1.00 | 1.21 | |
| Handle cover Ls0810 * | ||||
| 022 | 410650-7 | 8.40 | 10.16 | |
| Dust cover for switch | ||||
| 023 | 421142-1 | 2.40 | 2.90 | |
| Switch 651245-9 LS0810* | ||||
| 024 | 651245-9 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 026 | 157614-7 | |||
| Screw 5x65 | ||||
| 027 | 911290-9 | 1.20 | 1.45 | |
| Carbon Brush Set Cb-100 | ||||
| 028 | 181030-1 | 3.54 | 4.28 | |
| Carbon Brush CB100 | ||||
| 028 | 194974-6 | 3.54 | 4.28 | |
| Brush holder cap | ||||
| 029 | 643600-9 | 1.20 | 1.45 | |
| Screw 4x25 | ||||
| 030 | 911148-2 | 1.00 | 1.21 | |
| Feather Key 4 | ||||
| 031 | 254011-9 | 1.00 | 1.21 | |
| Needle Bearing 810 | ||||
| 032 | 212004-2 | 4.80 | 5.81 | |
| Gear 44 | ||||
| 033 | 221602-1 | 28.60 | 34.61 | |
| Washer 12 | ||||
| 034 | 257010-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 035 | 315875-7 | |||
| Ball Bearing 6201dw1 | ||||
| 036 | 211129-9 | 8.40 | 10.16 | |
| No longer available, no replacement | ||||
| 037 | 285659-6 | |||
| Countersink Screw M4X20 * | ||||
| 038 | 251316-8 | 1.00 | 1.21 | |
| Axle Ls0810 * | ||||
| 039 | 321904-6 | 23.10 | 27.95 | |
| Inner flange 45 | ||||
| 040 | 224233-5 | 10.80 | 13.07 | |
| Outer Flange 45 | ||||
| 041 | 224234-3 | 4.80 | 5.81 | |
| Hex bolt 6x17 | ||||
| 042 | 265226-3 | 1.00 | 1.21 | |
| Hex Nut M5 | ||||
| 043 | 931202-6 | 1.00 | 1.21 | |
| Spring washer 5MM DLS211 | ||||
| 044 | 253427-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 045 | 151270-5 | |||
| Plastic protective cover | ||||
| 046 | 419479-8 | 12.10 | 14.64 | |
| No information available, not orderable | ||||
| 047 | 265323-5 | |||
| Torsion Spring 24 | ||||
| 048 | 231934-8 | 2.40 | 2.90 | |
| Washer 6 | ||||
| 049 | 253977-0 | 2.40 | 2.90 | |
| Slot bolt M5X8 * | ||||
| 050 | 923901-4 | 1.20 | 1.45 | |
| Screw M6 | ||||
| 051 | 251331-2 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 052 | 257157-0 | 2.40 | 2.90 | |
| Washer 6x12mm | ||||
| 053 | 941151-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 054 | 265832-4 | |||
| Rubber Bush 5 * | ||||
| 055 | 262513-1 | 2.40 | 2.90 | |
| Screw M6 | ||||
| 056 | 251331-2 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 057 | 253022-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 058 | 343466-4 | |||
| No information available, not orderable | ||||
| 059 | 231771-0 | |||
| No information available, not orderable | ||||
| 060 | 251210-4 | |||
| Compression Spring 5.5 | ||||
| 061 | 231038-6 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 062 | 322110-6 | |||
| No information available, not orderable | ||||
| 063 | 951234-7 | |||
| Arm Comp Ls0810 * | ||||
| 064 | 152311-0 | 48.40 | 58.56 | |
| No information available, not orderable | ||||
| 065 | 321906-2 | |||
| O-ring 5 | ||||
| 066 | 213021-5 | 1.00 | 1.21 | |
| Metal screw Ph M5x14mm Ck | ||||
| 067 | 266809-2 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 068 | 163272-9 | |||
| Locking screw M6X40 * | ||||
| 069 | 251872-8 | 2.40 | 2.90 | |
| Pen 5 * | ||||
| 070 | 263003-7 | 1.00 | 1.21 | |
| Bolt M6 Ls0810 * | ||||
| 071 | 322051-6 | 4.80 | 5.81 | |
| Spring Washer 6 A | ||||
| 072 | 253903-9 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 073 | 941151-9 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 074 | 414232-7 | |||
| Guide plate nw low | ||||
| 075 | 414233-5 | 3.60 | 4.36 | |
| Guide plate nw low | ||||
| 075A | 414233-5 | 3.60 | 4.36 | |
| Steel ball 7.9 | ||||
| 076 | 216004-4 | 1.00 | 1.21 | |
| Compression Spring 5.5 | ||||
| 077 | 231038-6 | 1.00 | 1.21 | |
| Washer 5mm DSP601 A | ||||
| 078 | 253414-4 | 1.00 | 1.21 | |
| Hex Socket Bolt Ck M5x25mm | ||||
| 079 | 922241-7 | 1.00 | 1.21 | |
| Turntable LS0810 * | ||||
| 080 | 315868-4 | 52.80 | 63.89 | |
| No longer available, no replacement | ||||
| 081 | 443067-9 | |||
| Screw,M4x12 | ||||
| 082 | 251314-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 083 | 342948-3 | |||
| Screw 5x25 | ||||
| 084 | 911241-2 | 1.00 | 1.21 | |
| Compression Spring 5.5 | ||||
| 085 | 231038-6 | 1.00 | 1.21 | |
| Hex nut M4 | ||||
| 086 | 931102-0 | 1.00 | 1.21 | |
| Countersunk Screw 5x18 | ||||
| 087 | 912227-9 | 1.00 | 1.21 | |
| Washer 7 | ||||
| 088 | 253930-6 | 2.40 | 2.90 | |
| Foot | ||||
| 089 | 154909-9 | 35.20 | 42.59 | |
| Cut-in piece | ||||
| 090 | 410645-0 | 1.46 | 1.77 | |
| Cut-in piece | ||||
| 091 | 410645-0 | 1.46 | 1.77 | |
| Hex Socket Bolt M6x55 | ||||
| 092 | 922376-4 | 1.20 | 1.45 | |
| Washer 6x12mm | ||||
| 093 | 941151-9 | 1.00 | 1.21 | |
| Washer 8x0.5mm | ||||
| 094 | 253139-0 | 1.00 | 1.21 | |
| Field | ||||
| 095 | 632675-3 | 4.80 | 5.81 | |
| Wing Nut M6 * | ||||
| 400 | 252628-2 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 401 | 164806-1 | |||
| No information available, not orderable | ||||
| 402 | 271271-8 | |||
| LINNEN STOFZAK AFKORTZAAG | ||||
| 404 | 122351-2 | 6.00 | 7.26 | |
| DOPSLEUTEL SW9 | ||||
| 406 | 782209-3 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 407 | A-81789 | |||
| No information available, not orderable | ||||
| 408 | 122344-9 | |||
| No longer available, no replacement | ||||
| 900 | 164837-0 | |||
| Retaining Ring E-5 | ||||
| 901 | 961018-5 | 1.00 | 1.21 | |
| Compression Spring 6 | ||||
| 902 | 231223-1 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 903 | 322110-6 | |||
| Arm Comp Ls0810 * | ||||
| 904 | 152311-0 | 48.40 | 58.56 | |
