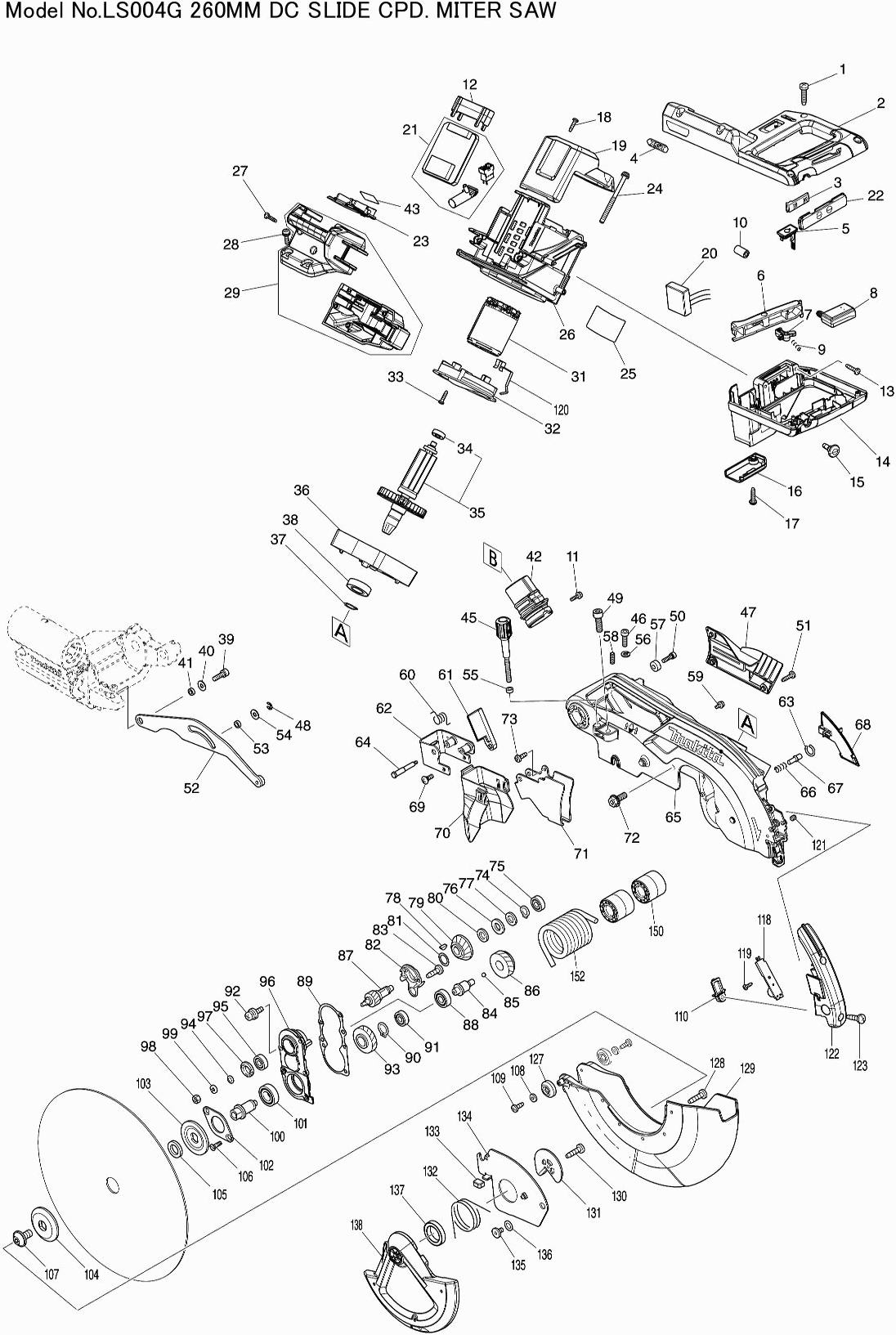

Technical drawing of model Makita LS004G

Spare parts list of model Makita LS004G

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Tap screw 4x18
001 265A48-7 0.83 1.00
Handle Cover LS003/4G
002 183T58-5 11.77 14.24
Warning Label
002C10 810486-8 2.71 3.28
Switching unit Bub360
003 631973-2 6.38 7.72
No information available, not orderable
004 8032A7-2
No information available, not orderable
005 140G30-2
O-ring 16
005C10 213218-6 0.83 1.00
O-ring 16 SP001G
005C11 213A05-9 0.83 1.00
Hood label DLS211
005C20 818H48-4 1.00 1.21
Switch Handle Dls111
006 457935-0 2.71 3.28
Unlock button
007 416356-5 1.39 1.68
Switch C3Xa-1Pspm Dsp600
008 651083-9 19.29 23.34
Compression Spring 4
009 231026-3 0.83 1.00
Line filter
010 688163-8 0.83 1.00
Screw 4x14
011 911123-8 0.83 1.00
Spacer LS003/4G
012 413590-8 0.98 1.19
Tap screw 4x18
013 265A48-7 0.83 1.00
Handle Cover LS003/4G
014 183T58-5 11.77 14.24
Warning Label
014C10 810486-8 2.71 3.28
Child lock
015 451037-4 1.00 1.21
Cable protection holder
016 451000-7 0.83 1.00
Tap screw 4x18
017 265A48-7 0.83 1.00
Tap screw 4x18
018 265A48-7 0.83 1.00
Rear Cover Dls111
019 457933-4 5.09 6.16
Power circuit LS002G
020 620E08-4 15.65 18.94
Controller LS004G
021 620F17-9 107.06 129.54
Switch Plate LS003/4G
022 141C22-0 2.12 2.57
No information available, not orderable
022C10 8032A8-0
Control unit GA-40V series
023 632P65-6 8.21 9.93
Screw M6x80mm
024 911948-0 0.83 1.00
Nameplate LS004G
025 811T43-5 0.83 1.00
Motor housing Dls111
026 457906-7 12.19 14.75
Tap screw 4x18
027 265A48-7 0.83 1.00
Screw 5x25
028 911243-8 0.83 1.00
Battery Housing LS004G
029 183T51-9 6.38 7.72
Rubber pen 6
029C10 263005-3 0.83 1.00
Armature LS003/4G
031 629A76-0 41.77 50.54
Intermediate plate LS003/4G
032 413E35-6 1.82 2.20
Tap screw 4x18
033 265A48-7 0.83 1.00
Ball bearing 607llb
034 211021-9 4.45 5.38
Armature Dls111
035 519454-5 44.96 54.40
Motor Support LS004G
036 312B60-5 11.82 14.30
Lock ring S-17
037 961057-5 0.83 1.00
Ball Bearing 6003ddw
038 210301-0 5.80 7.02
No information available, not orderable
039 922331-6
Washer 6
040 253804-1 0.83 1.00
Washer 16
041 257163-5 1.20 1.45
Dust Adapter DLS211
042 459250-8 2.38 2.88
No information available, not orderable
043 811T49-3
Adjusting screw M6x40
045 251554-2 1.20 1.45
No information available, not orderable
046 922332-4
Label "makita"
047 457667-9 2.38 2.88
Retaining Ring E-5
048 961018-5 0.83 1.00
Allen bolt M8x25
049 251547-9 0.83 1.00
Allen bolt 5x18
050 922226-3 0.83 1.00
Tapping Screw Ct4x16
051 266034-5 0.83 1.00
Connection Plate Ls1019L
052 144529-7 8.21 9.93
Washer 16
053 257163-5 1.20 1.45
Washer 6
054 253804-1 0.83 1.00
No information available, not orderable
055 262190-9
No information available, not orderable
056 253428-3
Bushing 6
057 257785-1 0.83 1.00
Adjusting screw M6x16
058 266321-2 0.83 1.00
Screw 4X10
059 911114-9 0.83 1.00
Torsion Spring 11
060 232412-1 0.83 1.00
Dust Guide Plate
061 457764-1 0.98 1.19
Mounting bracket
062 161647-6 3.96 4.79
Lock washer 8
063 231928-3 0.83 1.00
Met. screw M4
064 251544-5 0.83 1.00
Saw Cover LS004G
065 141C76-7 74.54 90.19
Rubber pen 6
065C10 263005-3 0.83 1.00
Compression Spring 7
066 231240-1 0.83 1.00
Locking Pin 6 4110C
067 256633-1 0.83 1.00
Cable protection holder
068 457659-8 1.00 1.21
Crosshead screw 4x11
069 265028-7 1.18 1.43
Shield cap
070 422155-5 2.02 2.44
Guide plate
071 347215-1 2.02 2.44
Allen bolt M8x20
072 266283-4 1.18 1.43
No information available, not orderable
073 266020-6
Lock washer S-12
074 961052-5 0.83 1.00
Ball Bearing 608ddw
075 210005-4 4.45 5.38
Rubber ring 12mm
076 261104-5 0.83 1.00
Washer 12
077 253744-3 0.83 1.00
Feather Key 4
078 254001-2 0.83 1.00
Gear 32
079 227550-2 5.71 6.91
Washer 12
080 253744-3 0.83 1.00
Thin Washer 14
081 253313-0 0.83 1.00
Seal
082 451002-3 0.83 1.00
Tapping screw M4x12mm Ck
083 266026-4 0.83 1.00
Gear Shaft
084 325643-0 3.28 3.97
Ball 4mm LS003G
085 216049-2 0.83 1.00
Gear 27
086 227702-5 5.30 6.41
Gear 14
087 227701-7 5.30 6.41
Ball Bearing 6000zz
088 210067-2 1.18 1.43
Gasket
089 442147-8 2.02 2.44
Lock washer S-15
090 961055-9 0.83 1.00
Ball Bearing 608ddw
091 210005-4 4.45 5.38
No information available, not orderable
092 911223-4
Gear 28
093 227703-3 5.30 6.41
Lock washer 5
094 267010-2 0.83 1.00
Ball Bearing 608ddw
095 210005-4 4.45 5.38
Bearing Housing
096 158957-0 11.32 13.70
Rubber Pin 4
096C10 263002-9 0.83 1.00
Bearing Locking Ring 14-23
097 285847-5 4.45 5.38
Hex Nut M5
098 931202-6 0.83 1.00
Spring washer 5MM DLS211
099 253427-5 0.83 1.00
Plunger
100 325644-8 5.06 6.12
Ball bearing 6002ddw
101 211236-8 9.24 11.18
Bearing Lock 51
102 285732-2 0.83 1.00
Inner Flange 53
103 224431-1 3.54 4.28
Outer Flange 53
104 224432-9 3.54 4.28
No information available, not orderable
105 257262-3
Countersunk screw 5x13
106 265034-2 0.83 1.00
Allen Bolt M10x20mm
107 266755-9 2.36 2.86
4 Washer
108 941051-3 0.83 1.00
No information available, not orderable
109 266020-6
Lens for laser line
110 418104-8 2.02 2.44
LED circuit LS003/4G
118 620F05-6 5.17 6.26
Screw 3x10
119 266421-8 0.83 1.00
Plate LS003/4G
120 347947-0 0.83 1.00
Hexagon bolt 5x6
121 266264-8 0.83 1.00
Ledafdekkap LS004G
122 141D32-3 3.13 3.79
Warning label LS002G
122C10 8024V4-4 0.83 1.00
Tapping Screw Ct4x16
123 266034-5 0.83 1.00
ROLLER
127 424193-3 0.83 1.00
Tapping screw 4X14 Ga7020 A
128 266385-6 0.83 1.00
Protective Cap B LS004G
129 413825-7 21.08 25.51
Tapping screw 4X14 Ga7020 A
130 266385-6 0.83 1.00
Centering plate
131 347213-5 1.67 2.02
Torsion spring 45
132 231634-0 2.02 2.44
Buffer
133 424190-9 0.83 1.00
Center Plate LS003/4G
134 347835-1 3.23 3.91
Hexagonal Bolt M6
135 265985-9 1.39 1.68
Spring Washer 10
136 253932-2 0.83 1.00
Ball Bearing 6805ddw
137 210168-6 2.02 2.44
Guard
138 458437-9 5.06 6.12
Stofafzuigadapterset
139 127427-0 19.00 22.99
Hose connector A
141 413J67-3 4.00 4.84
Hose
142 245041-1 10.50 12.70
Sleeve
143 457672-6 0.83 1.00
Stopper
144 457673-4 0.83 1.00
Switch button A DCL281F
145 458939-5 0.83 1.00
Compression Spring 5
146 232485-4 0.83 1.00
Dust Adapter DLS211
147 459249-3 5.09 6.16
Tapping Screw Ct4x16
149 266034-5 0.83 1.00
Bush 17
150 457665-3 1.00 1.21
Torsion Spring 35
152 233537-4 5.71 6.91
Screw M6
153 251267-5 0.83 1.00
Washer 20
154 253948-7 0.83 1.00
Washer 8 x 14 x 1mm
155 253835-0 0.83 1.00
Locking arm
156 347221-6 1.39 1.68
Forearm plate
157 347222-4 0.83 1.00
Felt ring 30
158 262076-7 2.38 2.88
Rod 16
159 326994-4 1.99 2.41
Knob 22
160 271437-0 0.83 1.00
Stopring E-7
161 961013-5 0.83 1.00
Tapping Screw Ct4x16
162 266034-5 0.83 1.00
Front arm cpl LS004G
163 141C83-0 75.47 91.32
Rubber pen 6
163C10 263005-3 0.83 1.00
No information available, not orderable
164 233151-6
Pen 4
165 256364-2 0.83 1.00
Compression spring 10
166 232384-0 0.83 1.00
Locking Bolt
167 326977-4 0.83 1.00
Covering hood
168 457653-0 4.92 5.95
Holder cpl LS003/4G
169 141C11-5 9.53 11.53
Indicator label
169C10 812X89-8 2.71 3.28
Flat head screw M5
170 265008-3 1.18 1.43
Pulley 17-19.3
171 222191-9 5.06 6.12
No information available, not orderable
172 210167-8
No information available, not orderable
173 267804-5
Spindle Ass'y
174 326975-8 1.39 1.68
No information available, not orderable
175 210167-8
Screw m8x12
177 913416-9 0.83 1.00
Key clamp
178 416536-3 1.75 2.12
Tapping screw M4x12mm Ck
179 266026-4 0.83 1.00
Expansion pin 4-14
180 951107-4 0.83 1.00
Handle 50 B
181 273016-0 5.06 6.12
Bolt
182 265919-2 3.38 4.09
Met. bolt M6
183 251545-3 0.83 1.00
Stopper Pal Ls1019L
184 144657-8 2.02 2.44
Indicator label
184C10 812X87-2 2.71 3.28
Washer 20
185 253948-7 0.83 1.00
Washer 8 x 14 x 1mm
186 253835-0 0.83 1.00
Screw M6
187 251267-5 0.83 1.00
Pin 9-365
188 326987-1 2.36 2.86
Lock washer 5
189 253194-2 0.83 1.00
Bus 5
190 257426-9 0.83 1.00
Washer 8
191 253165-9 0.83 1.00
Housing 20
192 457666-1 0.83 1.00
Locking Bolt
193 326977-4 0.83 1.00
Pulley 17-87.8
194 222192-7 5.71 6.91
Hex Nut M10-19
195 326980-5 1.39 1.68
Drive Belt 15-756
196 225101-5 19.23 23.27
Compression spring 10
197 232384-0 0.83 1.00
Washer 10
198 253388-9 0.83 1.00
Hex Nut M10-17
199 252244-0 1.39 1.68
Ring 10
200 253024-7 0.83 1.00
Thrust needle bearing 1023
202 216413-7 2.71 3.28
Ring 10
203 253024-7 0.83 1.00
Thrust needle bearing 1023
204 216413-7 2.71 3.28
Stopring E-7
205 961013-5 0.83 1.00
Knob 22
206 271437-0 0.83 1.00
Ring 10
207 253024-7 0.83 1.00
Arm cpl LS004G
208 141C80-6 87.89 106.35
Indicator label
208C10 812X88-0 2.71 3.28
Allen bolt M8x25
209 251547-9 0.83 1.00
Indicator label R
210 457871-0 0.83 1.00
Tapping screw M4x12mm Ck
211 266026-4 0.83 1.00
Tapping Screw Ct4x16
212 266034-5 0.83 1.00
Pushbutton
213 415208-7 1.39 1.68
Compression spring 12
214 233031-6 0.83 1.00
Dust guide holder
215 457654-8 3.54 4.28
Indicator label L
216 457870-2 0.83 1.00
Tapping screw M4x12mm Ck
217 266026-4 0.83 1.00
Washer 94
218 253389-7 0.83 1.00
Dust Guide
219 422156-3 5.06 6.12
Stopper
220 319593-9 3.12 3.78
Torsion Spring 14
221 231646-3 0.83 1.00
Washer 12
222 253744-3 0.83 1.00
Lock washer S-12
223 961052-5 0.83 1.00
Tapping screw M4x12mm Ck
224 266026-4 0.83 1.00
Holder
225 457668-7 0.83 1.00
Stop R LS004G
226 141C82-2 21.88 26.47
Warning Label
226C10 810503-4 2.71 3.28
Stop L LS004G
227 141C81-4 21.63 26.17
Warning Label
227C10 810503-4 2.71 3.28
Socket Head Cap Screw M8X35 with Wr
228 922458-2 0.83 1.00
Wing Bolt M6X10mm
229 251887-5 0.92 1.11
Hex screw M10x12
230 251561-5 0.83 1.00
Guide Plate LS003/4G
231 312B37-0 40.35 48.82
Tapping screw M4x12mm Ck
232 266026-4 0.83 1.00
Cutting Plate LS004G
233 413826-5 2.80 3.39
Hex bolt 8x40
235 265442-7 0.83 1.00
Washer 8
236 253852-0 1.18 1.43
Thrust needle bearing 1023
237 216413-7 2.71 3.28
Allen bolt M8x25
240 251547-9 0.83 1.00
Allen bolt M8x25
241 251547-9 0.83 1.00
Tapping screw M4x12mm Ck
244 266026-4 0.83 1.00
Indicator label
245 457702-3 0.83 1.00
LOCK PIN 8
246 326970-8 1.20 1.45
Compression Spring 6
247 234122-6 0.83 1.00
Lock Lever
249 457657-2 0.83 1.00
Washer 6
250 253804-1 0.83 1.00
Retaining Ring E-5
251 961018-5 0.83 1.00
Turntable LS004G
252 141E93-9 141.42 171.12
No information available, not orderable
252C10 813L22-1
No information available, not orderable
252C20 812X86-4
Warning Label
252C30 812X85-6 2.71 3.28
Extension rod
254 326973-2 2.02 2.44
Baffle
255 286039-9 0.83 1.00
Centreerbout
256 326976-6 2.02 2.44
Screw 4X10
257 911113-1 0.83 1.00
Compression Spring 6
258 231325-3 0.83 1.00
Rotary Stopper
259 310803-7 1.18 1.43
Lever plate
260 347217-7 2.71 3.28
Pin 5
261 256186-0 0.98 1.19
No information available, not orderable
262 911231-5
End stop
263 347219-3 0.83 1.00
Locking rod
264 326971-6 0.83 1.00
Lock Lever
265 457656-4 1.39 1.68
Stopper Pin Ass'y Includ.94
266 326969-3 1.26 1.52
Pen 3
267 256158-5 0.83 1.00
Compression Spring 6
268 233201-7 0.83 1.00
Cam plate
269 347237-1 0.83 1.00
Pin Holder
270 319592-1 3.54 4.28
Hexagonal bolt 5X20 LF1000 A
271 265550-4 0.83 1.00
Blocking Plate
272 347216-9 1.67 2.02
Rod 6
274 326972-4 1.18 1.43
Retaining Ring E-4
275 961011-9 0.83 1.00
Washer 15
276 257425-1 0.83 1.00
Lock washer 5
277 253194-2 0.83 1.00
Hexagonal bolt 5X20 LF1000 A
278 265550-4 0.83 1.00
Screw 4X10
279 911113-1 0.83 1.00
Blocking handle complete
280 144656-0 0.83 1.00
Rubber pen 6
280C10 263005-3 0.83 1.00
Screw 3x8
281 911008-8 0.83 1.00
Blocking Plate
282 345272-3 1.18 1.43
Handle 50 A
283 273015-2 5.06 6.12
Tapping screw M4x12mm Ck
284 266026-4 0.83 1.00
Guide Plate
285 457655-6 1.67 2.02
Scale Division LS003/4G
286 347837-7 10.72 12.97
Metal screw M5
287 251546-1 0.83 1.00
Blocking Plate
288 347218-5 2.71 3.28
Screw M5x16mm
289 265786-5 0.83 1.00
Table LS003/4G
290 312B35-4 90.62 109.65
Foot cap
291 421845-7 0.98 1.19
4 Washer
292 267195-4 0.83 1.00
Tapping screw M4x12mm Ck
293 266026-4 0.83 1.00
Table Expander Base DLS211
294 319815-7 19.23 23.27
Retaining Ring E-9
295 961015-1 0.83 1.00
Tapping screw M4x12mm Ck
296 266026-4 0.83 1.00

There are 0 items in your shopping basket.
