Here you will find all available parts and drawings of the 'Makita LM430DWBE'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

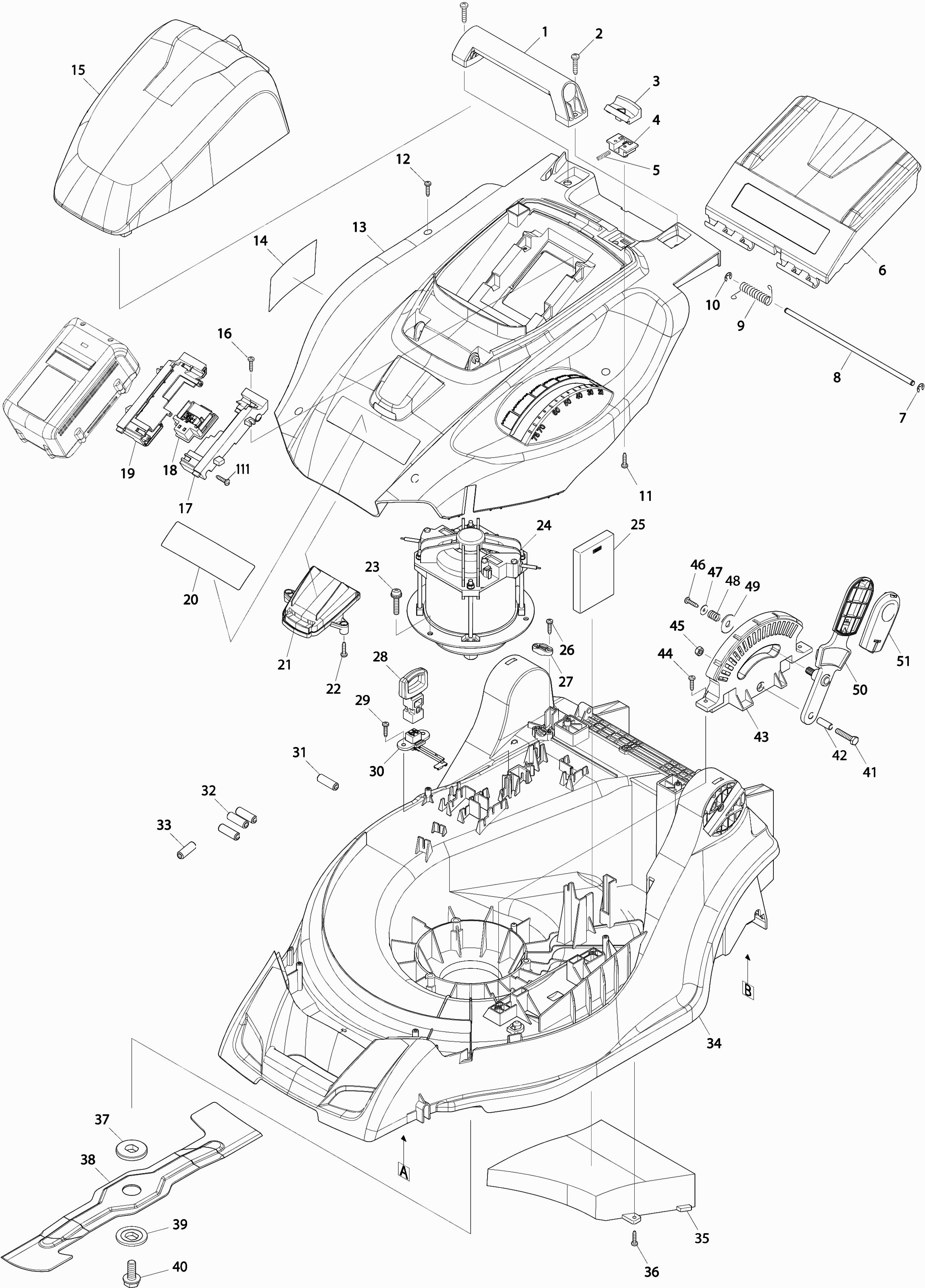

Technical drawing of model Makita LM430DWBE
Spare parts list of model Makita LM430DWBE
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handle | ||||
| 001 | 273675-0 | 3.60 | 4.36 | |
| Self-tapping screw Pf 5x25 | ||||
| 002 | 266459-3 | 1.00 | 1.21 | |
| Unlock button | ||||
| 003 | 453250-0 | 2.40 | 2.90 | |
| Unlock button base | ||||
| 004 | 453251-8 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 005 | 233173-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 006-1 | 144076-8 | |||
| Retaining Ring E-5 | ||||
| 007 | 961018-5 | 1.00 | 1.21 | |
| Rod 6 | ||||
| 008 | 256871-5 | 2.40 | 2.90 | |
| Torsion spring 6mm | ||||
| 009 | 233597-6 | 1.20 | 1.45 | |
| Retaining Ring E-5 | ||||
| 010 | 961018-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 011 | 266326-2 | |||
| No information available, not orderable | ||||
| 012 | 266326-2 | |||
| Upper cap | ||||
| 013 | 453235-6 | 23.10 | 27.95 | |
| No longer available, no replacement | ||||
| 014 | 896597-3 | |||
| No information available, not orderable | ||||
| 015-1 | 143852-7 | |||
| No information available, not orderable | ||||
| 016 | 266326-2 | |||
| No information available, not orderable | ||||
| 017 | 187254-7 | |||
| Connection unit | ||||
| 018 | 643849-1 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 019 | 187254-7 | |||
| Label "makita" Blm430 | ||||
| 020 | 890383-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 021 | 453258-4 | |||
| No information available, not orderable | ||||
| 022 | 266326-2 | |||
| No information available, not orderable | ||||
| 023 | 266774-5 | |||
| Motor 36,0v | ||||
| 024 | 629933-6 | 118.80 | 143.75 | |
| Speed control circuit | ||||
| 025 | 620084-8 | 104.50 | 126.44 | |
| No information available, not orderable | ||||
| 026 | 266326-2 | |||
| Clamp Bracket | ||||
| 027 | 687053-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 029 | 266326-2 | |||
| Cable harness | ||||
| 030 | 638946-6 | 3.60 | 4.36 | |
| Line filter | ||||
| 031 | 688165-4 | 1.00 | 1.21 | |
| Line filter | ||||
| 032 | 688165-4 | 1.00 | 1.21 | |
| Line filter | ||||
| 033 | 688165-4 | 1.00 | 1.21 | |
| Upper cap | ||||
| 034-3 | 456787-6 | 59.40 | 71.87 | |
| Lower cap | ||||
| 035 | 453239-8 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 036 | 266326-2 | |||
| Inner Flange 40 | ||||
| 037 | 224444-2 | 3.60 | 4.36 | |
| CIRKELMES COMBI 43CM | ||||
| 038-1 | 191D43-8 | 9.00 | 10.89 | |
| Outer Flange 40 | ||||
| 039 | 224445-0 | 3.60 | 4.36 | |
| Allen bolt M10X25mm Am/Blm | ||||
| 040 | 266731-3 | 1.20 | 1.45 | |
| Hex Socket Screw M6X30Mm Am/Blm | ||||
| 041 | 921352-5 | 1.00 | 1.21 | |
| Sleeve 6 Am/Blm | ||||
| 042 | 257670-8 | 1.00 | 1.21 | |
| Adjusting Plate | ||||
| 043 | 453255-0 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 044 | 266326-2 | |||
| Hex Nut M6 | ||||
| 045 | 931302-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 046 | 266326-2 | |||
| No information available, not orderable | ||||
| 047 | 267102-7 | |||
| No information available, not orderable | ||||
| 048 | 231297-2 | |||
| Lock washer 5 | ||||
| 049 | 253808-3 | 1.20 | 1.45 | |
| Adjustment lever | ||||
| 050 | 453252-6 | 3.60 | 4.36 | |
| Cover Blm430 | ||||
| 051 | 453253-4 | 2.40 | 2.90 | |
| Wheel cap "rear" | ||||
| 052 | 453241-1 | 8.40 | 10.16 | |
| Lock nut M8 Dcs230T A | ||||
| 053 | 252145-2 | 1.00 | 1.21 | |
| Slide Bearing 10 | ||||
| 054 | 214067-4 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 055 | 453243-7 | |||
| Ball bearing 6200llb | ||||
| 056 | 211066-7 | 4.80 | 5.81 | |
| Rear Axle Blm/Am A | ||||
| 057 | 162C97-6 | 17.60 | 21.30 | |
| Ball bearing 6200llb | ||||
| 058 | 211066-7 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 059 | 453243-7 | |||
| Slide Bearing 10 | ||||
| 060 | 214067-4 | 1.20 | 1.45 | |
| Lock nut M8 Dcs230T A | ||||
| 061 | 252145-2 | 1.00 | 1.21 | |
| Wheel cap "rear" | ||||
| 062 | 453241-1 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 063 | 266326-2 | |||
| Mounting plate Blm/Am | ||||
| 064 | 346545-7 | 2.40 | 2.90 | |
| Hex lock nut 5x8 | ||||
| 065 | 252103-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 066 | 941101-4 | |||
| Coupling rod | ||||
| 067 | 346543-1 | 14.30 | 17.30 | |
| Pull Spring 16mm | ||||
| 068 | 231875-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 069 | 941101-4 | |||
| Hex lock nut 5x8 | ||||
| 070 | 252103-8 | 1.20 | 1.45 | |
| Front wheel DLM382 | ||||
| 071 | 459100-7 | 13.20 | 15.97 | |
| Lock nut M8 Dcs230T A | ||||
| 072 | 252145-2 | 1.00 | 1.21 | |
| Slide Bearing 10 | ||||
| 073 | 214067-4 | 1.20 | 1.45 | |
| Front wheel DLM382 | ||||
| 074 | 459100-7 | 13.20 | 15.97 | |
| Ball bearing 6200llb | ||||
| 075 | 211066-7 | 4.80 | 5.81 | |
| No longer available, no replacement | ||||
| 076 | 165668-0 | |||
| No information available, not orderable | ||||
| 077 | 266326-2 | |||
| Covering hood | ||||
| 078-1 | 456353-9 | 6.00 | 7.26 | |
| Ball bearing 6200llb | ||||
| 079 | 211066-7 | 4.80 | 5.81 | |
| Front wheel DLM382 | ||||
| 080 | 459100-7 | 13.20 | 15.97 | |
| Slide Bearing 10 | ||||
| 081 | 214067-4 | 1.20 | 1.45 | |
| Lock nut M8 Dcs230T A | ||||
| 082 | 252145-2 | 1.00 | 1.21 | |
| Front wheel DLM382 | ||||
| 083 | 459100-7 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 084 | 331975-5 | |||
| Switch lever housing | ||||
| 085 | 453246-1 | 2.40 | 2.90 | |
| Switch lever housing cover | ||||
| 086 | 453247-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 087 | 266326-2 | |||
| No information available, not orderable | ||||
| 088 | 266326-2 | |||
| Switch Housing | ||||
| 089 | 141298-1 | 4.80 | 5.81 | |
| Screw 4x20 | ||||
| 090 | 911138-5 | 1.00 | 1.21 | |
| Lever | ||||
| 091 | 453248-7 | 2.40 | 2.90 | |
| Pull spring 9mm | ||||
| 092 | 231876-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 093 | 453249-5 | |||
| Compression spring 6mm | ||||
| 094 | 233068-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 095 | 650681-6 | |||
| Switch Housing | ||||
| 096 | 453244-5 | 4.80 | 5.81 | |
| Clamp Bracket | ||||
| 097 | 687053-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 098 | 266326-2 | |||
| Push Rod (upper) | ||||
| 099-1 | 143510-5 | 14.30 | 17.30 | |
| Wiring | ||||
| 100 | 664780-8 | 4.80 | 5.81 | |
| Moerbout M6x50mm | ||||
| 101-1 | 265A14-4 | 1.00 | 1.21 | |
| Star Knob M6 | ||||
| 102 | 264070-5 | 2.40 | 2.90 | |
| Star Knob M6 | ||||
| 103 | 264070-5 | 2.40 | 2.90 | |
| Moerbout M6x50mm | ||||
| 104-1 | 265A14-4 | 1.00 | 1.21 | |
| Push bar (lower) | ||||
| 105-1 | 326635-2 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 106 | 453385-7 | |||
| Star knob M8X35mm Am/Blm | ||||
| 107 | 266729-0 | 2.40 | 2.90 | |
| Star knob M8X35mm Am/Blm | ||||
| 108 | 266729-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 111 | 266326-2 | |||
| Grass Bag Bracket DLM431 | ||||
| 112 | 327179-5 | 13.20 | 15.97 | |
| Lock washer 5 | ||||
| 113 | 267438-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 114 | 266326-2 | |||
