Here you will find all available parts and drawings of the 'Makita LH1201FL'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

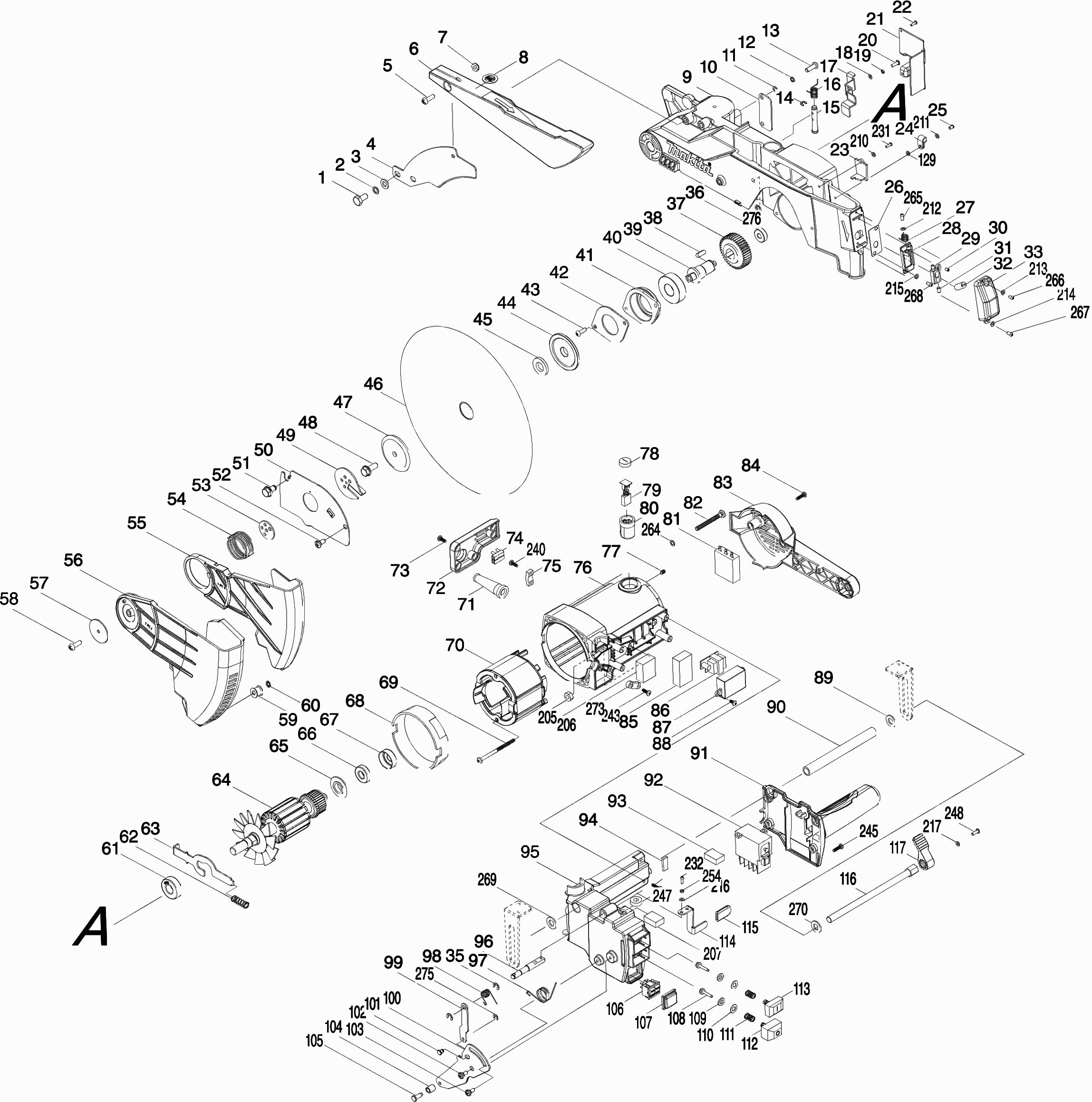

Technical drawing of model Makita LH1201FL

Spare parts list of model Makita LH1201FL

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Bolt M8X16Mm Lh1200Fl
001 JM23300009 0.83 1.00
Washer 8Mm Lh1200Fl
002 JM23300010 0.83 1.00
Lock Washer 8mm Lh1200Fl
003 JM23300011 0.83 1.00
Riving Knife
004 JM23300012 23.06 27.90
Metal Screw M6x16mm
005 JM23300013 0.83 1.00
Saw cap "top"
006 JM23300300 23.06 27.90
Lock Nut M6
007 JM23300015 0.83 1.00
Warning Label
008 JM27080060 2.84 3.44
Saw Cap
009 JM23300244 76.04 92.01
Pressure Plate
010 JM23300239 1.39 1.68
No information available, not orderable
011 JM23300019
No information available, not orderable
012 JM23300020
Met. Scr. ck M6x16mm
013 JM23300248 1.00 1.21
Retaining Ring E-5
014 JM23300022 0.83 1.00
Push Pin
015 JM23300023 1.39 1.68
Torsion Spring
016 JM23300024 0.83 1.00
Holding Plate
017 JM23300025 1.46 1.77
4 Washer
018 941052-1 0.83 1.00
Spring Washer 4mm Lh1200Fl
019 JM23300027 0.83 1.00
Metal screw M4x12mm
020 JM23300028 0.83 1.00
Covering hood
021 JM23300029 1.39 1.68
Phillips Screw 4x10
022 251308-7 0.83 1.00
Covering hood
023 JM23300031 1.20 1.45
No information available, not orderable
024 JM23300032
No information available, not orderable
025 JM23300033
Gasket
026 JM23300034 1.20 1.45
No information available, not orderable
027 JM23300035
Support
028 JM23300036 2.71 3.28
Support "Laser a/u"
029 JM23300037 1.67 2.02
Allen bolt M4X6MM LS1018L
030 JM23300038 0.83 1.00
No information available, not orderable
031 JM23300039
Laser "diode"
032 JM23300040 12.22 14.79
Laser cover cap
033 JM23300041 1.20 1.45
Locking ring E-6
035 JM23300042 0.83 1.00
Ball Bearing 608
036 210007-0 5.71 6.91
Saw gear wheel
037 JM23300044 18.20 22.02
Key 6x16mm
038 JM23300045 0.83 1.00
Plunger
039 JM23300046 18.20 22.02
Ball Bearing 6204
040 211306-3 10.50 12.70
Bearing Carrier
041 JM23300048 8.21 9.93
Bearing Cover
042 JM23300049 2.71 3.28
Allen Bolt M5X16Mm Lh1200Fl
043 JM23300050 0.83 1.00
Inner Flange
044 JM23300051 8.59 10.39
Reducer Ring
045 JM23100144 3.12 3.78
Outer Flange
047 JM23300053 8.21 9.93
Axle Bolt M8x20mm
048 JM23300054 2.71 3.28
Centering plate
049 JM23300055 1.18 1.43
Mounting plate
050 JM23300056 5.06 6.12
Metal Screw M8X12Mm Lh1200Fl
051 JM23300057 0.98 1.19
Locking bolt
052 JM23300058 0.83 1.00
Centering Rivet
053 JM23300059 0.83 1.00
Torsion Spring
054 JM23300060 2.71 3.28
Saw cap "inside"
055 JM23300061 8.21 9.93
Saw cap "outer"
056 JM23300310 19.23 23.27
Mounting plate
057 JM23300063 0.83 1.00
Metal screw M5x25mm
058 JM23300064 0.83 1.00
ROLLER
059 JM23300065 1.39 1.68
Spacer ring 5mm
060 JM23300066 0.83 1.00
Ball bearing 6202llb
061 211228-7 7.22 8.74
Compression Spring
062 JM23300068 1.20 1.45
Axle blocking plate
063 JM23300069 2.71 3.28
Armature 230v
064 JM23300001 81.38 98.47
Keerring
065 JM23300070 0.83 1.00
Ball Bearing 6001llu
066 211138-8 4.45 5.38
Damping rubber
067 JM23300072 0.83 1.00
Intermediate Plate
068 JM23300073 1.39 1.68
Taper screw 4.8x75mm
069 JM23300074 0.83 1.00
Field 230v
070 JM23300003 76.04 92.01
Cable grommet
071 JM23300075 0.98 1.19
Covering hood
072 JM23300076 2.71 3.28
No information available, not orderable
073 JM23300077
No information available, not orderable
074 JM23300078
No information available, not orderable
075 JM23300079
Motor Housing
076 JM23300320 38.75 46.89
No information available, not orderable
077 JM23300081
Brush Cap
078 JM23300082 0.83 1.00
Carbon Brush Set Cb-153
079 194985-1 3.96 4.79
Brush Holder
080 JM23300084 2.71 3.28
Connecting piece
081 JM23300085 17.38 21.03
No information available, not orderable
082 JM23300086
Fan cover
083 JM23300087 13.82 16.72
No information available, not orderable
084 JM23300088
Sponge A
085 JM23300089 1.00 1.21
Inverter
086 JM23300090 13.82 16.72
Covering hood
087 JM23300091 1.39 1.68
No information available, not orderable
088 JM23300092
No information available, not orderable
089 JM23300093
Protection Sleeve
090 JM23300094 3.12 3.78
Handle Cover
091 JM23300095 15.65 18.94
Switch
092 JM23300096 23.06 27.90
Capacitor
093 JM23300097 3.54 4.28
Sponge B
094 JM23300098 1.00 1.21
Handle
095 JM23300099 23.04 27.88
Locking Bolt
096 JM23300100 3.54 4.28
Torsion Spring
097 JM23300101 0.83 1.00
Torsion Spring
098 JM23300102 0.83 1.00
Blocking handle "b"
099 JM23300103 0.83 1.00
Blocking Plate
100 JM23300330 12.22 14.79
No information available, not orderable
101 JM23300105
Connector screw
102 JM23300106 0.83 1.00
Pin
103 JM23300107 0.83 1.00
Guide Bush
104 JM23300108 1.39 1.68
Pin
105 JM23300109 0.83 1.00
Switch Hy39-2
106 JM23300110 8.21 9.93
Switch cover
107 JM23300111 0.83 1.00
Pushing Button
108 JM23300112 1.67 2.02
Felt ring
109 JM23300113 2.71 3.28
No information available, not orderable
110 JM23300114
Pressure spring Lh1200Fl
111 JM23300115 0.83 1.00
Switch button "off"
112 JM23300116 1.00 1.21
Switch button "on"
113 JM23300117 0.83 1.00
Deblock handle
114 JM23300118 1.00 1.21
Baffle
115 JM23300119 0.83 1.00
Table lock bolt
116 JM23300120 3.54 4.28
Table lock handle
117 JM23300121 0.83 1.00
Blocking Plate
118 JM23300245 8.21 9.93
Locknut M5 Lh1200Fl
119 JM23300123 0.83 1.00
Met. Screw M5X14Mm Lh1200Fl
120 JM23300124 0.83 1.00
Self-tapping Screw 3.5X14Mm Lh1200Fl
121 JM23300125 0.83 1.00
Tabletop
122 JM23300126 63.68 77.05
Adjusting pipe
123 JM23300236 19.29 23.34
Pressure Rivet
124 JM23300128 1.39 1.68
Holding Spring
125 JM23300129 0.83 1.00
Table lock bolt
126 JM23300130 3.12 3.78
Scale
127 JM23300131 1.20 1.45
Tafelsteun
128 JM23300132 3.12 3.78
No information available, not orderable
129 JM23300133
No information available, not orderable
130 JM23300134
Junction Box
131 JM23300135 2.71 3.28
Cover
132 JM23300136 1.39 1.68
No information available, not orderable
133 JM23300137
Lamp unit cover
134 JM23300138 1.46 1.77
Lamp unit
135 JM23300139 21.08 25.51
No information available, not orderable
136 JM23300140
Dust Guide
137 JM23300141 18.20 22.02
Compression Spring
138 JM23300142 2.71 3.28
No information available, not orderable
139 JM23300143
No information available, not orderable
140 JM23300144
Connection Plate
141 JM23300340 19.23 23.27
Spacer bush
142 JM23300146 1.20 1.45
Guide pin
143 JM23300147 0.83 1.00
Compensating washer
144 JM23300148 0.83 1.00
Sluitring 6Mm Lh1200Fl Dun
145 JM23300149 1.20 1.45
6mm Washer
146 JM23300150 2.84 3.44
Ball bearing 619-6-2z
147 JM23300151 4.67 5.65
Alignment pin
148 JM23300152 0.83 1.00
Compression Spring
149 JM23300153 17.40 21.05
Covering hood
150 JM23300154 1.39 1.68
No information available, not orderable
151 JM23300155
Spring support
152 JM23300156 2.71 3.28
Spring support support
153 JM23300157 2.71 3.28
Knob
154 JM23300158 0.83 1.00
Support Arm
155 JM23300159 54.30 65.70
O-ring 8.5mm
156 JM23300160 0.83 1.00
O-ring 9
156 213054-0 0.83 1.00
Locking Bolt
157 JM23300161 2.71 3.28
Lever
158 JM23300162 3.54 4.28
No information available, not orderable
159 JM23300163
No information available, not orderable
160 JM23300164
Locking bolt
161 JM23300165 3.54 4.28
Locking gas
162 JM23300166 3.54 4.28
No information available, not orderable
163 JM23300167
Damping Ring
164 JM23300168 0.83 1.00
No information available, not orderable
165 JM23300169
Metal screw M5x8mm
166 JM23300170 0.83 1.00
Lock washer 5mm
167 JM23300171 0.83 1.00
Mounting plate
168 JM23300172 13.82 16.72
Shield
169 JM23300173 19.23 23.27
Spring screw
170 JM23300174 1.00 1.21
Scale
171 JM23300175 1.00 1.21
Adjusting Screw
172 JM23300176 1.20 1.45
Compression Spring
173 JM23300178 1.00 1.21
Adjusting Nut
174 JM23300177 1.20 1.45
Holding Pin
175 JM23300179 4.45 5.38
No information available, not orderable
176 JM23300180
Extension table KS 120
177 JM23300181 10.50 12.70
Marking point
178 JM23300182 0.83 1.00
Dust Guide
179 JM23300183 2.71 3.28
Pin 4x30mm
180 JM23300184 0.83 1.00
Friction Ring
181 JM23300185 1.39 1.68
Dust Seal
182 JM23300186 1.39 1.68
Wing Knob
183 JM23300187 0.83 1.00
No information available, not orderable
184 JM23300188
Carr. Ring 8mm
185 JM23300189 0.83 1.00
End stop
186 JM23300240 15.60 18.88
Re-Cutting Plate
187 JM23300191 3.96 4.79
Cut-in plate Li
188 JM23300192 3.96 4.79
No information available, not orderable
189 JM23300193
Marking point
190 JM23300194 0.83 1.00
Rotary Table
191 JM23300195 76.04 92.01
Insert plate
192 JM23300196 0.83 1.00
Wing Knob
193 JM23300197 0.83 1.00
Foot table
194 JM23300350 97.39 117.84
Scale
196 JM23300199 2.71 3.28
Pressure Plate
197 JM23300200 1.39 1.68
Locking rod
198 JM23300201 1.18 1.43
Holding Spring
199 JM23300202 0.83 1.00
Pressure Plate
200 JM23300203 1.39 1.68
Adjustment Button
201 JM23300204 3.54 4.28
Borgpin
202 JM23300205 1.39 1.68
No information available, not orderable
203 JM23300206
Foot cap
204 JM23300207 0.98 1.19
No information available, not orderable
205 JM23300208
Sponge C
206 JM23300209 1.00 1.21
Sponge D
207 JM23300210 1.00 1.21
Arm Comp.
208 JM23300360 44.96 54.40
Power cord 2x1.50 4.0mtr
209 695123-3 21.08 25.51
4 Washer
210 941052-1 0.83 1.00
4 Washer
211 941052-1 0.83 1.00
4 Washer
212 941052-1 0.83 1.00
4 Washer
213 941052-1 0.83 1.00
4 Washer
214 941052-1 0.83 1.00
4 Washer
215 941052-1 0.83 1.00
4 Washer
216 941052-1 0.83 1.00
4 Washer
217 941052-1 0.83 1.00
4 Washer
218 941052-1 0.83 1.00
4 Washer
219 941052-1 0.83 1.00
4 Washer
220 941052-1 0.83 1.00
4 Washer
221 941052-1 0.83 1.00
4 Washer
222 941052-1 0.83 1.00
4 Washer
223 941052-1 0.83 1.00
4 Washer
224 941052-1 0.83 1.00
4 Washer
225 941052-1 0.83 1.00
4 Washer
226 941052-1 0.83 1.00
4 Washer
227 941052-1 0.83 1.00
4 Washer
228 941052-1 0.83 1.00
4 Washer
229 941052-1 0.83 1.00
4 Washer
230 941052-1 0.83 1.00
Phillips Screw 4x10
231 251308-7 0.83 1.00
Phillips Screw 4x10
232 251308-7 0.83 1.00
Phillips Screw 4x10
233 251308-7 0.83 1.00
Phillips Screw 4x10
234 251308-7 0.83 1.00
Phillips Screw 4x10
235 251308-7 0.83 1.00
Phillips Screw 4x10
236 251308-7 0.83 1.00
Phillips Screw 4x10
237 251308-7 0.83 1.00
Phillips Screw 4x10
238 251308-7 0.83 1.00
Phillips Screw 4x10
239 251308-7 0.83 1.00
No information available, not orderable
240 JM23300077
No information available, not orderable
241 JM23300077
No information available, not orderable
242 JM23300077
No information available, not orderable
243 JM23300077
No information available, not orderable
244 JM23300088
No information available, not orderable
245 JM23300088
No information available, not orderable
246 JM23300133
No information available, not orderable
247 JM23300208
Metal screw M4x12mm
248 JM23300028 0.83 1.00
Metal screw M4x12mm
249 JM23300028 0.83 1.00
Metal screw M4x12mm
250 JM23300028 0.83 1.00
Metal screw M4x12mm
251 JM23300028 0.83 1.00
Metal screw M4x12mm
252 JM23300028 0.83 1.00
Metal screw M4x12mm
253 JM23300028 0.83 1.00
Spring Washer 4mm Lh1200Fl
254 JM23300027 0.83 1.00
Spring Washer 4mm Lh1200Fl
255 JM23300027 0.83 1.00
Spring Washer 4mm Lh1200Fl
256 JM23300027 0.83 1.00
Spring Washer 4mm Lh1200Fl
257 JM23300027 0.83 1.00
Spring Washer 4mm Lh1200Fl
258 JM23300027 0.83 1.00
Spring Washer 4mm Lh1200Fl
259 JM23300027 0.83 1.00
Met. Screw M5X14Mm Lh1200Fl
260 JM23300124 0.83 1.00
Met. Screw M5X14Mm Lh1200Fl
261 JM23300124 0.83 1.00
Met. Screw M5X14Mm Lh1200Fl
262 JM23300124 0.83 1.00
Washer 8Mm Lh1200Fl
263 JM23300010 0.83 1.00
No information available, not orderable
264 JM23300019
No information available, not orderable
265 JM23300033
No information available, not orderable
266 JM23300033
No information available, not orderable
267 JM23300033
No information available, not orderable
268 JM23300033
No information available, not orderable
269 JM23300093
No information available, not orderable
270 JM23300093
No information available, not orderable
271 JM23300093
No information available, not orderable
272 JM23300093
No information available, not orderable
273 JM23300079
No information available, not orderable
274 JM23300079
Retaining Ring E-5
275 JM23300022 0.83 1.00
Retaining Ring E-5
276 JM23300022 0.83 1.00
Retaining Ring E-5
277 JM23300022 0.83 1.00
Warning Label
278 JM27080060 2.84 3.44
Table lock handle
279 JM23300121 0.83 1.00
No information available, not orderable
280 JM23300169
Borgring LH1201FL
281 JM23300226 0.83 1.00
Drukknop L LH1200FL
282 JM23300227 0.83 1.00
Height Adjustment Plate
283 JM23300246 1.99 2.41
Met. Screw M5X14Mm Lh1200Fl
284 JM23300124 0.83 1.00
Ring
285 JM23300247 1.00 1.21
Gear height adjustment
286 JM23300241 3.11 3.76
Height adjustment knob
287 JM23300242 1.99 2.41
Fixing bolt
288 JM23300243 1.00 1.21

There are 0 items in your shopping basket.
