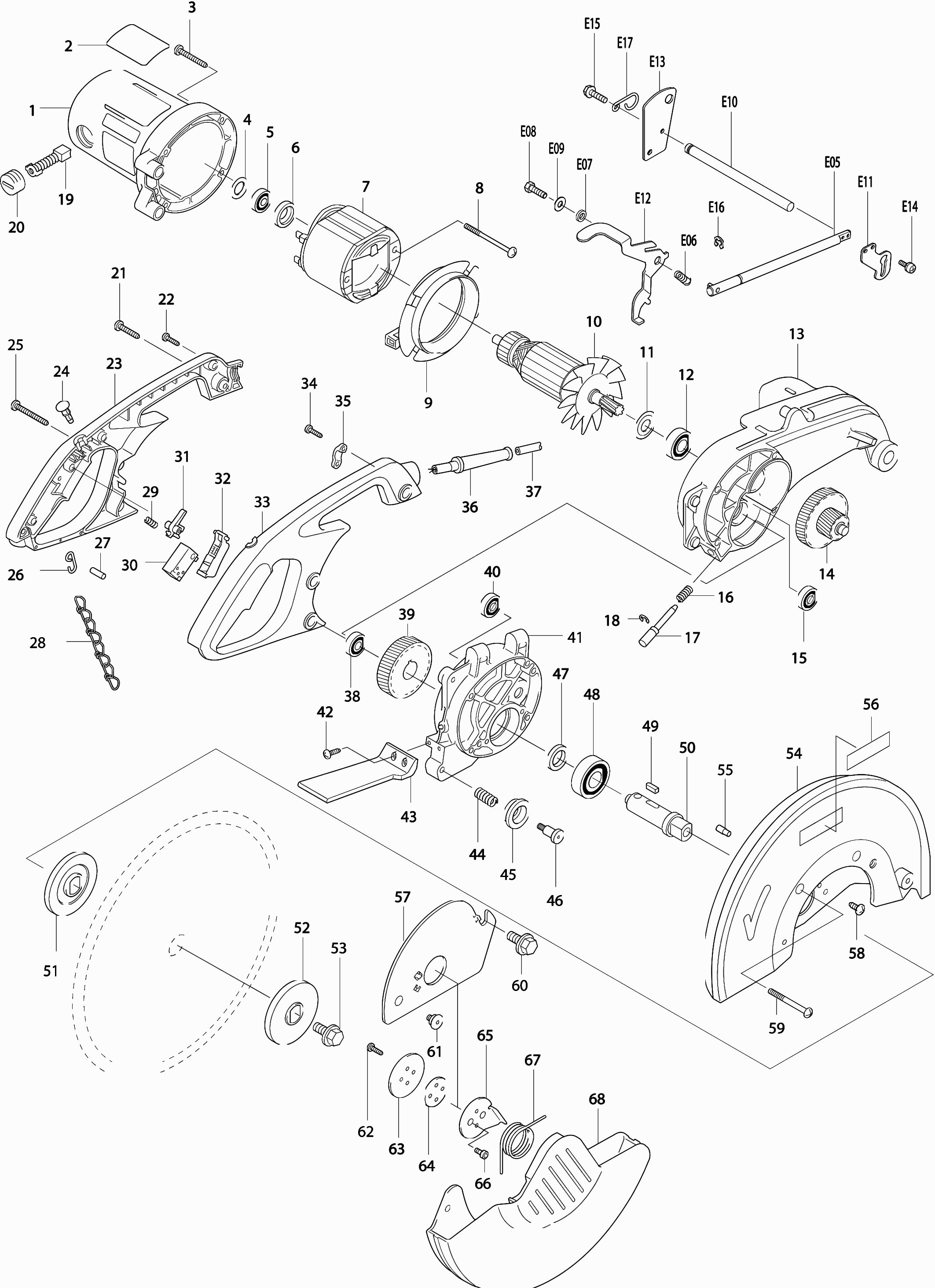

Technical drawing of model Makita LC1230
Spare parts list of model Makita LC1230
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 001 | 151641-6 | 55.00 | 66.55 | |
| Tapping screw 5x40 * | ||||
| 003 | 266028-0 | 1.00 | 1.21 | |
| 16 * Washer | ||||
| 004 | 253749-3 | 1.00 | 1.21 | |
| Ball bearing 629ddw | ||||
| 005 | 211092-6 | 4.80 | 5.81 | |
| Insulation ring | ||||
| 006 | 681633-6 | 2.40 | 2.90 | |
| Field | ||||
| 007 | 636168-2 | 29.70 | 35.94 | |
| Zelftapper Pt 5x75 | ||||
| 008 | 266059-9 | 2.40 | 2.90 | |
| Intermediate Plate | ||||
| 009 | 415475-4 | 2.40 | 2.90 | |
| Armature | ||||
| 010 | 510283-9 | 46.20 | 55.90 | |
| Washer 15 | ||||
| 011 | 267714-6 | 1.20 | 1.45 | |
| Ball bearing 6202llb | ||||
| 012 | 211228-7 | 8.40 | 10.16 | |
| Gear Cover | ||||
| 013 | 317147-6 | 58.30 | 70.54 | |
| Gear 16-44 | ||||
| 014 | 226122-0 | 15.40 | 18.63 | |
| Ball bearing 6000ddw | ||||
| 015 | 211088-7 | 10.00 | 12.10 | |
| Ball bearing 6000DDW A | ||||
| 015 | 210315-9 | 6.00 | 7.26 | |
| Compression Spring 9 | ||||
| 016 | 231418-6 | 1.00 | 1.21 | |
| Axle Lock | ||||
| 017 | 322678-2 | 3.60 | 4.36 | |
| E8 retaining ring | ||||
| 018 | 961014-3 | 1.00 | 1.21 | |
| KOOLBORSTEL SET CB-203 A | ||||
| 019 | 194991-6 | 7.20 | 8.71 | |
| Brush holder cap | ||||
| 020 | 643700-5 | 1.20 | 1.45 | |
| Tapping screw Ct 5X30 * | ||||
| 021 | 266032-9 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 022 | 265A48-7 | 1.00 | 1.21 | |
| Handle set | ||||
| 023 | 182628-7 | 20.90 | 25.29 | |
| Unlock button | ||||
| 024 | 417113-4 | 1.20 | 1.45 | |
| Tapping Screw Ct 5x50 | ||||
| 025 | 266033-7 | 1.00 | 1.21 | |
| Hanger | ||||
| 026 | 281216-8 | 1.00 | 1.21 | |
| Pin 6 | ||||
| 027 | 256012-3 | 1.00 | 1.21 | |
| Chain | ||||
| 028 | 282016-9 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 029 | 231397-8 | 1.00 | 1.21 | |
| Switch Sw-131 | ||||
| 030 | 651922-3 | 11.00 | 13.31 | |
| Locking Button 2414B | ||||
| 031 | 415366-9 | 1.20 | 1.45 | |
| Switch Button | ||||
| 032 | 152463-7 | 3.60 | 4.36 | |
| Handle set | ||||
| 033 | 182628-7 | 20.90 | 25.29 | |
| Tap screw 4x18 | ||||
| 034 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 035 | 687124-5 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 036 | 682505-8 | |||
| Power cord 2x1.50 4.0mtr | ||||
| 037 | 695123-3 | 22.00 | 26.62 | |
| Ball bearing 6000ddw | ||||
| 038 | 211088-7 | 10.00 | 12.10 | |
| Ball bearing 6000DDW A | ||||
| 038 | 210315-9 | 6.00 | 7.26 | |
| Gear 38 | ||||
| 039 | 226427-8 | 9.60 | 11.62 | |
| Ball bearing 6000ddw | ||||
| 040 | 211088-7 | 10.00 | 12.10 | |
| Ball bearing 6000DDW A | ||||
| 040 | 210315-9 | 6.00 | 7.26 | |
| Gear Cover | ||||
| 041 | 317226-0 | 39.60 | 47.92 | |
| Screw 4x14 | ||||
| 042 | 911121-2 | 1.00 | 1.21 | |
| Protective Shield | ||||
| 043 | 416869-6 | 8.40 | 10.16 | |
| Compression Spring 11 | ||||
| 044 | 231226-5 | 1.00 | 1.21 | |
| Blade guide | ||||
| 045 | 415474-6 | 2.40 | 2.90 | |
| Screw M6 | ||||
| 046 | 266391-1 | 1.20 | 1.45 | |
| Washer 20 Lc1230 * | ||||
| 047 | 257139-2 | 2.40 | 2.90 | |
| Ball Bearing 6204ddw | ||||
| 048 | 211329-1 | 8.40 | 10.16 | |
| Crankshaft key | ||||
| 049 | 254229-2 | 1.20 | 1.45 | |
| Plunger | ||||
| 050 | 323828-2 | 25.30 | 30.61 | |
| Inner Flange 70 | ||||
| 051 | 224308-0 | 14.30 | 17.30 | |
| Outer Flange 70 | ||||
| 052 | 224379-7 | 14.30 | 17.30 | |
| Hexagonal bolt 10x120 | ||||
| 053 | 265414-2 | 4.80 | 5.81 | |
| FIXED PROTECTIVE COVER | ||||
| 054 | 183089-4 | 23.10 | 27.95 | |
| Pin 6-7 | ||||
| 055 | 256405-4 | 6.00 | 7.26 | |
| Cover Plate | ||||
| 057 | 344737-2 | 7.20 | 8.71 | |
| Tapping Screw 5x12 | ||||
| 058 | 266035-3 | 1.00 | 1.21 | |
| Screw 6x60 | ||||
| 059 | 911383-2 | 1.00 | 1.21 | |
| Hexagonal bolt 10x120 | ||||
| 060 | 265414-2 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 061 | 265020-3 | |||
| Screw 4x14 | ||||
| 062 | 911121-2 | 1.00 | 1.21 | |
| Centering plate base | ||||
| 063 | 344735-6 | 1.20 | 1.45 | |
| Centering Washer | ||||
| 064 | 344734-8 | 1.20 | 1.45 | |
| Centering plate | ||||
| 065 | 344736-4 | 3.60 | 4.36 | |
| Allen bolt 4x8 | ||||
| 066 | 922106-3 | 1.00 | 1.21 | |
| Torsion Spring 38 | ||||
| 067 | 231643-9 | 1.20 | 1.45 | |
| Spring protection cap | ||||
| 068 | 317152-3 | 28.60 | 34.61 | |
| Pen 5 | ||||
| 069 | 256098-7 | 1.20 | 1.45 | |
| Axle Bolt | ||||
| 070 | 323882-6 | 6.00 | 7.26 | |
| Washer 12 | ||||
| 071 | 253843-1 | 1.20 | 1.45 | |
| Screw 4x6 | ||||
| 072 | 911103-4 | 1.00 | 1.21 | |
| Indicator Plate | ||||
| 073 | 816128-2 | 1.20 | 1.45 | |
| Material support | ||||
| 074 | 310086-9 | 33.00 | 39.93 | |
| Pen 12 | ||||
| 075 | 256453-3 | 2.40 | 2.90 | |
| Compression Spring 45 | ||||
| 076 | 233103-7 | 8.40 | 10.16 | |
| Spring Holder | ||||
| 077 | 165066-8 | 7.20 | 8.71 | |
| Hex bolt 8x20 | ||||
| 078 | 265412-6 | 1.20 | 1.45 | |
| Screw 4x14 | ||||
| 079 | 911121-2 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 080 | 232075-3 | 1.20 | 1.45 | |
| Hex bolt M16 * | ||||
| 081 | 265413-4 | 10.80 | 13.07 | |
| 16 * Washer | ||||
| 082 | 253771-0 | 1.00 | 1.21 | |
| Hex nut M16X24 * | ||||
| 083 | 252044-8 | 2.40 | 2.90 | |
| Dust box | ||||
| 084 | 344740-3 | 10.80 | 13.07 | |
| Rubber plate | ||||
| 085 | 421671-4 | 3.60 | 4.36 | |
| Vibration plate | ||||
| 086 | 421670-6 | 2.40 | 2.90 | |
| Washer 8 | ||||
| 087 | 257222-5 | 2.40 | 2.90 | |
| Washer 8 | ||||
| 088 | 253731-2 | 1.00 | 1.21 | |
| Pen 16 * | ||||
| 089 | 268040-6 | 6.00 | 7.26 | |
| Clamping Plate | ||||
| 090 | 344118-0 | 7.20 | 8.71 | |
| Connection Plate | ||||
| 091 | 344738-0 | 6.00 | 7.26 | |
| Washer 8x0.5mm | ||||
| 092 | 253139-0 | 1.00 | 1.21 | |
| Screw M6 | ||||
| 093 | 251331-2 | 1.20 | 1.45 | |
| Countersunk screw 5x12 | ||||
| 094 | 912212-2 | 1.00 | 1.21 | |
| Guide plate | ||||
| 095 | 344119-8 | 6.00 | 7.26 | |
| Lower Plate | ||||
| 096 | 344739-8 | 6.00 | 7.26 | |
| Tapping screw M4x12mm Ck | ||||
| 097 | 266026-4 | 1.00 | 1.21 | |
| Covering hood | ||||
| 098 | 416972-3 | 1.20 | 1.45 | |
| Foot pad | ||||
| 099 | 151624-6 | 127.60 | 154.40 | |
| Cover 16 | ||||
| 100 | 286236-7 | 1.00 | 1.21 | |
| E8 retaining ring | ||||
| 101 | 961014-3 | 1.00 | 1.21 | |
| Hand Grips | ||||
| 102 | 323883-4 | 4.80 | 5.81 | |
| Ring 10 | ||||
| 103 | 253024-7 | 1.00 | 1.21 | |
| Hex nut 10x27 | ||||
| 104 | 252161-4 | 2.40 | 2.90 | |
| Handgreephouder | ||||
| 105 | 151622-0 | 4.80 | 5.81 | |
| Washer 6mm A | ||||
| 106 | 267214-6 | 1.00 | 1.21 | |
| Hex bolt 6x16 | ||||
| 107 | 265251-4 | 1.00 | 1.21 | |
| Expansion pin 3-16 | ||||
| 108 | 951063-8 | 1.00 | 1.21 | |
| Clamp Screw | ||||
| 109 | 322679-0 | 6.00 | 7.26 | |
| Quick-release nut | ||||
| 110 | 322209-7 | 11.00 | 13.31 | |
| Screw 8x30 | ||||
| 111 | 911451-1 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 112 | 311949-2 | |||
| Handle 100 | ||||
| 113 | 271072-4 | 12.10 | 14.64 | |
| Spring Pin 5-24 | ||||
| 114 | 951166-8 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 115 | 257157-0 | 2.40 | 2.90 | |
