Here you will find all available parts and drawings of the 'Makita JS1660'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

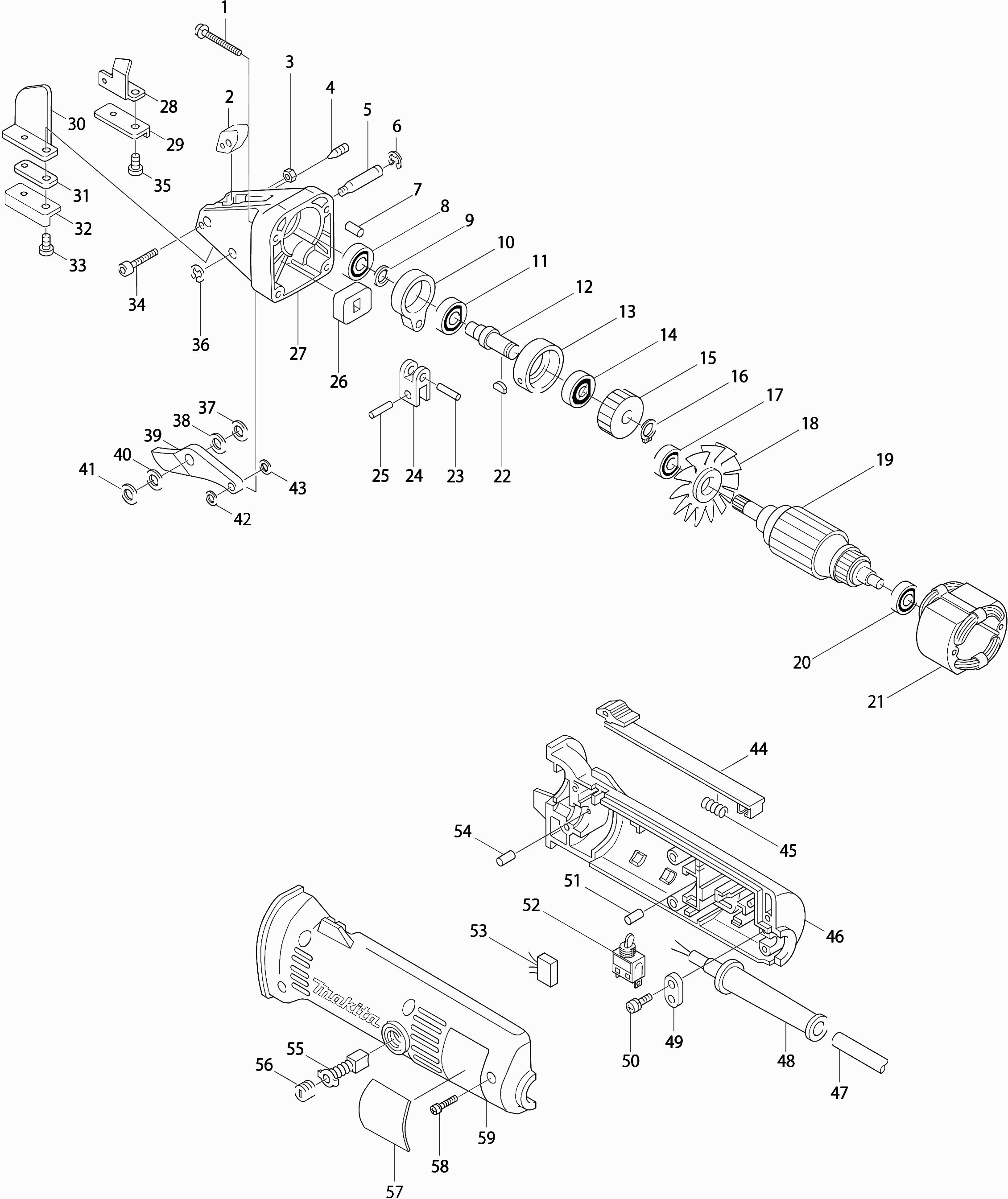

Technical drawing of model Makita JS1660
Spare parts list of model Makita JS1660
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 4x35 | ||||
| 001 | 911163-6 | 1.00 | 1.21 | |
| Guide Block | ||||
| 002 | 325727-4 | 7.20 | 8.71 | |
| Hex lock nut 4x7 | ||||
| 003 | 252083-8 | 1.00 | 1.21 | |
| Screw 5x12 | ||||
| 004 | 265901-1 | 2.40 | 2.90 | |
| Pin 7 | ||||
| 005 | 256733-7 | 2.40 | 2.90 | |
| STOPRING E-6 A | ||||
| 006 | 961012-7 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 007 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 627llb | ||||
| 008 | 210025-8 | 3.60 | 4.36 | |
| Washer 7 | ||||
| 009 | 253133-2 | 1.00 | 1.21 | |
| Connecting Rod | ||||
| 010 | 331273-7 | 13.20 | 15.97 | |
| Ball bearing 6000llb | ||||
| 011 | 211061-7 | 8.40 | 10.16 | |
| Crank Shaft | ||||
| 012 | 321850-3 | 10.80 | 13.07 | |
| Plain bearing | ||||
| 013 | 315819-7 | 8.40 | 10.16 | |
| Ball bearing 6000ddw | ||||
| 014 | 211088-7 | 10.00 | 12.10 | |
| Ball bearing 6000DDW A | ||||
| 014 | 210315-9 | 6.00 | 7.26 | |
| Gear 44 Js1650-1660-1670 * | ||||
| 015 | 221743-3 | 11.00 | 13.31 | |
| Locking Ring S-10 | ||||
| 016 | 257408-1 | 1.20 | 1.45 | |
| Ball bearing 608llb | ||||
| 017 | 210043-6 | 2.40 | 2.90 | |
| Fan 52 | ||||
| 018 | 241100-9 | 6.00 | 7.26 | |
| Armature | ||||
| 019 | 511528-8 | 41.80 | 50.58 | |
| Ball bearing 627llb | ||||
| 020 | 210025-8 | 3.60 | 4.36 | |
| Field | ||||
| 021 | 527005-0 | 48.40 | 58.56 | |
| Inlegspie 3 | ||||
| 022 | 254031-3 | 1.00 | 1.21 | |
| Pen 5 | ||||
| 023 | 256155-1 | 1.00 | 1.21 | |
| Drive lock | ||||
| 024 | 331329-6 | 13.20 | 15.97 | |
| Pen 5 | ||||
| 025 | 256155-1 | 1.00 | 1.21 | |
| Dust Seal Js1650-1660-167 | ||||
| 026 | 423118-4 | 1.20 | 1.45 | |
| Crankcase Js1660 | ||||
| 027 | 157817-3 | 67.10 | 81.19 | |
| Pen 3 | ||||
| 027A | 256180-2 | 1.00 | 1.21 | |
| Mesh Holder R Js1660 | ||||
| 028 | 343479-5 | 2.40 | 2.90 | |
| ZIJMESSEN SET | ||||
| 029 | 792533-6 | 38.00 | 45.98 | |
| Blade Holder | ||||
| 030 | 343480-0 | 2.40 | 2.90 | |
| Spacer plate | ||||
| 031 | 343481-8 | 1.00 | 1.21 | |
| ZIJMESSEN SET | ||||
| 032 | 792533-6 | 38.00 | 45.98 | |
| Screw 5x10 | ||||
| 033 | 251951-2 | 1.00 | 1.21 | |
| Hexagon Socket Screw M4X25 | ||||
| 034 | 922147-9 | 1.00 | 1.21 | |
| Screw 5x10 | ||||
| 035 | 251951-2 | 1.00 | 1.21 | |
| Retaining Ring E-4 | ||||
| 036 | 961011-9 | 1.00 | 1.21 | |
| Plastic Washer 7 Bjs160/Js1000 | ||||
| 037 | 261065-9 | 2.40 | 2.90 | |
| Thin Washer 7 | ||||
| 038 | 253338-4 | 1.20 | 1.45 | |
| MIDDENMES | ||||
| 039 | 792534-4 | 52.00 | 62.92 | |
| Thin Washer 7 | ||||
| 040 | 253338-4 | 1.20 | 1.45 | |
| Plastic Washer 7 Bjs160/Js1000 | ||||
| 041 | 261065-9 | 2.40 | 2.90 | |
| Lock washer 5 | ||||
| 042 | 267010-2 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 043 | 267010-2 | 1.00 | 1.21 | |
| Control rod | ||||
| 044 | 410529-2 | 2.40 | 2.90 | |
| Compression Spring 6 | ||||
| 045 | 231223-1 | 1.20 | 1.45 | |
| Motor Housing | ||||
| 046 | 181848-0 | 29.70 | 35.94 | |
| Power cord 2x1.00 2.2mtr | ||||
| 047 | 665383-1 | 10.80 | 13.07 | |
| Cable grommet 10-85 | ||||
| 048 | 682504-0 | 2.40 | 2.90 | |
| Clamp Bracket | ||||
| 049 | 687031-2 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 050 | 911133-5 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 051 | 263002-9 | 1.00 | 1.21 | |
| Switch Sw-62 | ||||
| 052 | 651433-8 | 4.80 | 5.81 | |
| No longer available, no replacement | ||||
| 053 | 645209-3 | |||
| Rubber Pin 4 | ||||
| 054 | 263002-9 | 1.00 | 1.21 | |
| KOOLBORSTEL SET CB-65 A | ||||
| 055 | 194969-9 | 4.80 | 5.81 | |
| Brush holder cap | ||||
| 056 | 643550-8 | 1.20 | 1.45 | |
| Nameplate Js1660 * | ||||
| 057 | 855949-7 | 3.60 | 4.36 | |
| Screw 4x30 | ||||
| 058 | 911158-9 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 059 | 181848-0 | 29.70 | 35.94 | |
| Stator spring Cb 9 | ||||
| 060 | 654018-9 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 2mm | ||||
| 061 | 654502-4 | 1.00 | 1.21 | |
