Here you will find all available parts and drawings of the 'Makita JS1300'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

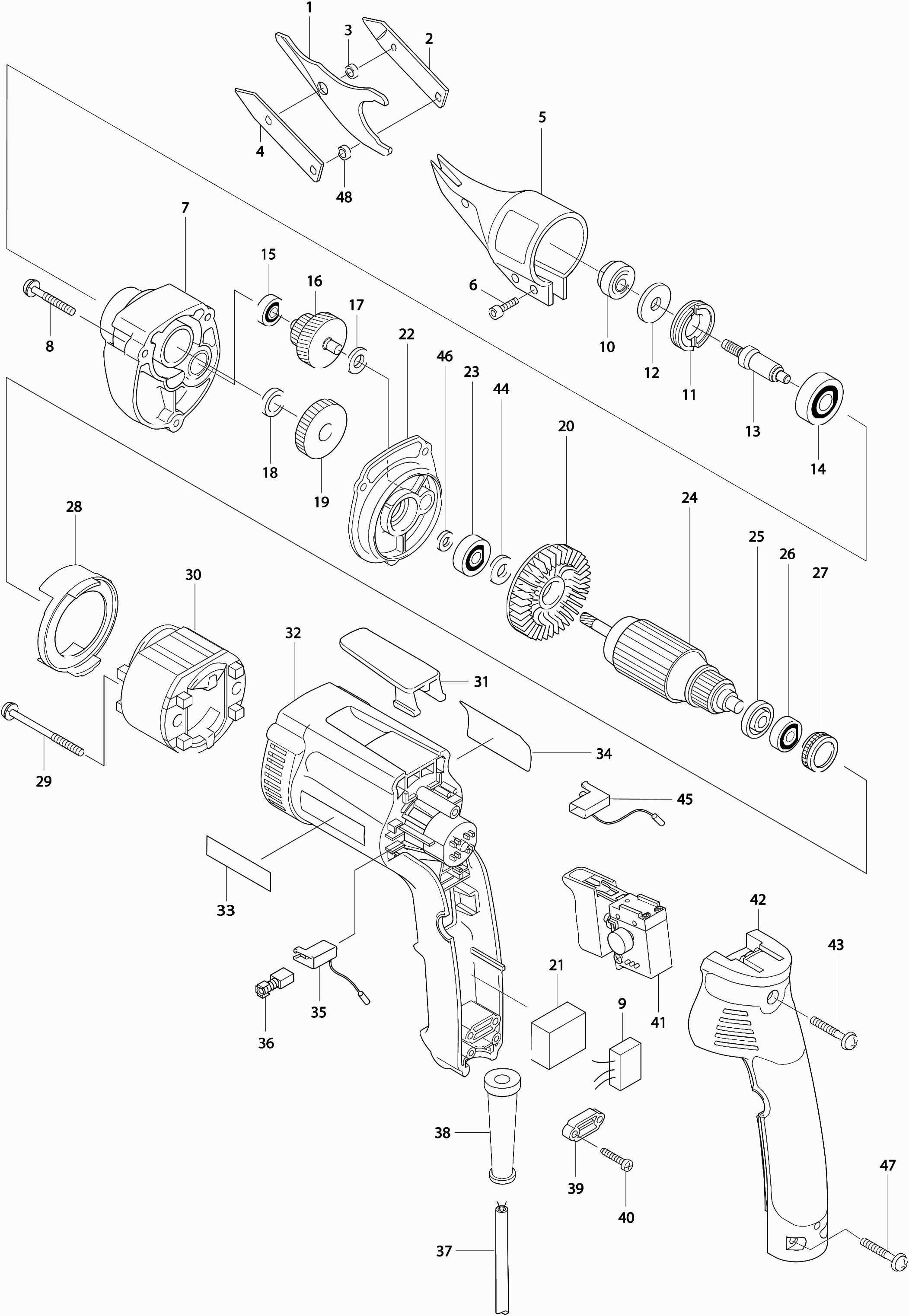

Technical drawing of model Makita JS1300
Spare parts list of model Makita JS1300
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| MIDDENMES | ||||
| 001 | 792744-3 | 39.00 | 47.19 | |
| ZIJMES RECHTS BJS130/JS1300 | ||||
| 002 | 792742-7 | 35.00 | 42.35 | |
| Bus 5 | ||||
| 003 | 257705-5 | 4.80 | 5.81 | |
| ZIJMES LINKS | ||||
| 004 | 792743-5 | 35.00 | 42.35 | |
| Cutting Head | ||||
| 005 | 152663-9 | 95.70 | 115.80 | |
| Allen bolt 10-24unc | ||||
| 006 | 266268-0 | 6.00 | 7.26 | |
| Gearbox Js1300 * | ||||
| 007 | 317419-9 | 25.30 | 30.61 | |
| Self Tapping Screw Pt4x30 | ||||
| 008 | 266050-7 | 1.00 | 1.21 | |
| Capacitor | ||||
| 009 | 645253-0 | 4.80 | 5.81 | |
| Bearing Holder | ||||
| 010 | 125111-1 | 38.50 | 46.58 | |
| Bearing Lock 19-33 | ||||
| 011 | 285802-7 | 2.40 | 2.90 | |
| Washer 10 | ||||
| 012 | 267223-5 | 3.60 | 4.36 | |
| Spindle Ass'y | ||||
| 013 | 324066-9 | 23.10 | 27.95 | |
| Ball Bearing 6201dw1 | ||||
| 014 | 211129-9 | 8.40 | 10.16 | |
| Ball bearing 606Zz A | ||||
| 015 | 210137-7 | 1.20 | 1.45 | |
| Complete Gear 17-35 Js130* | ||||
| 016 | 226133-5 | 9.60 | 11.62 | |
| Washer 8 | ||||
| 017 | 267017-8 | 1.20 | 1.45 | |
| Washer 12 | ||||
| 018 | 257010-0 | 1.20 | 1.45 | |
| Gear 36 Js1300 * | ||||
| 019 | 227010-4 | 19.80 | 23.96 | |
| Fan 52 6824+6825 * | ||||
| 020 | 240022-0 | 2.40 | 2.90 | |
| Sponge rubber | ||||
| 021 | 685700-9 | 1.00 | 1.21 | |
| Inner Cover | ||||
| 022 | 151721-8 | 22.00 | 26.62 | |
| Ball Bearing 608 | ||||
| 023 | 210007-0 | 6.00 | 7.26 | |
| Armature | ||||
| 024 | 517374-7 | 48.40 | 58.56 | |
| Insulation ring | ||||
| 025 | 681636-0 | 1.20 | 1.45 | |
| Ball bearing 607llb | ||||
| 026 | 211021-9 | 4.80 | 5.81 | |
| Rubber Ring for Bearing | ||||
| 027 | 421479-6 | 4.80 | 5.81 | |
| Intermediate Plate | ||||
| 028 | 416993-5 | 1.20 | 1.45 | |
| Tapping screw Pf 4x55 | ||||
| 029 | 266147-2 | 1.20 | 1.45 | |
| Field | ||||
| 030 | 633484-3 | 16.50 | 19.96 | |
| Hang Hook | ||||
| 031 | 417625-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 032 | 183285-4 | |||
| Label "makita" | ||||
| 033 | 819197-2 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 034 | 852518-5 | |||
| Carbon Brush Holder Js1300 * | ||||
| 035 | 643971-4 | 2.40 | 2.90 | |
| Brush Set CB-419 | ||||
| 036 | 195015-1 | 4.80 | 5.81 | |
| Power cord 2x1.00 2.2mtr | ||||
| 037 | 665383-1 | 10.80 | 13.07 | |
| Cable gland 10 | ||||
| 038 | 682566-8 | 1.20 | 1.45 | |
| Clamp Bracket | ||||
| 039 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 040 | 265A48-7 | 1.00 | 1.21 | |
| Switch Js1300 * | ||||
| 041 | 651296-2 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 042 | 151961-8 | |||
| No information available, not orderable | ||||
| 043 | 265999-8 | |||
| Washer 8x0.5mm | ||||
| 044 | 253139-0 | 1.00 | 1.21 | |
| Carbon Brush Holder Js1300 * | ||||
| 045 | 643972-2 | 6.00 | 7.26 | |
| RING 8 HP2071 A | ||||
| 046 | 257857-2 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 046 | 262087-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 047 | 265999-8 | |||
| Bus 5 | ||||
| 048 | 257705-5 | 4.80 | 5.81 | |
| Gasket | ||||
| 049 | 442136-3 | 2.40 | 2.90 | |
