Here you will find all available parts and drawings of the 'Makita JR3000VT'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

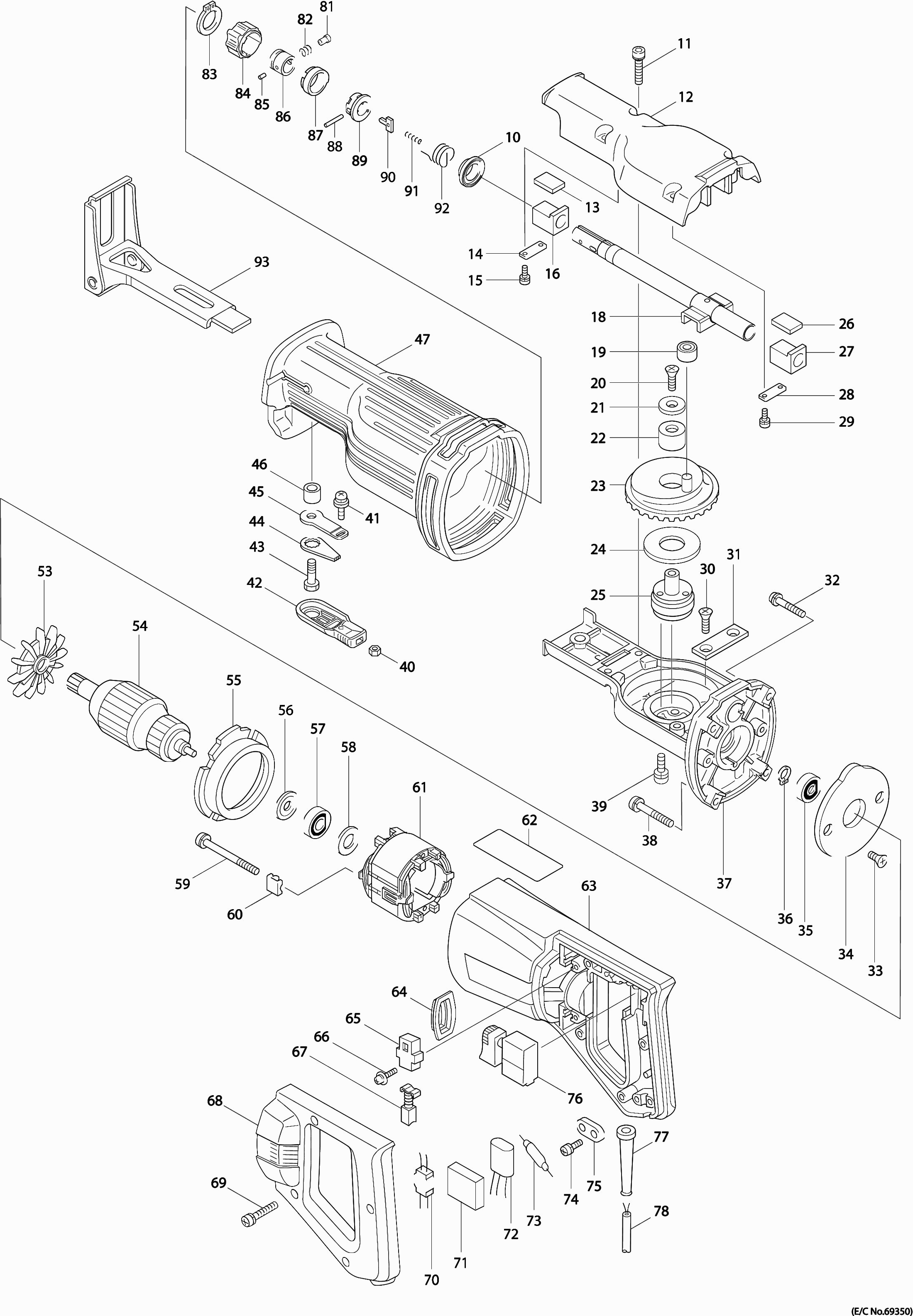

Technical drawing of model Makita JR3000VT
Spare parts list of model Makita JR3000VT
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Saw Clamp | ||||
| 001 | 310138-6 | 19.80 | 23.96 | |
| Steel ball 4.8 | ||||
| 002 | 216002-8 | 1.00 | 1.21 | |
| Pin 5.5x6 | ||||
| 003 | 256454-1 | 1.20 | 1.45 | |
| Torx screw 5x10 | ||||
| 004 | 266272-9 | 1.20 | 1.45 | |
| Washer 5 | ||||
| 004A | 267758-6 | 1.00 | 1.21 | |
| Push Pin | ||||
| 005 | 323916-5 | 6.00 | 7.26 | |
| Compression Spring 3 | ||||
| 006 | 233018-8 | 1.00 | 1.21 | |
| Pushing Button | ||||
| 007 | 162215-8 | 19.80 | 23.96 | |
| Pressure spring 16 | ||||
| 008 | 233247-3 | 1.00 | 1.21 | |
| Washer 13 | ||||
| 009 | 257226-7 | 3.60 | 4.36 | |
| Seal | ||||
| 010 | 155896-5 | 2.40 | 2.90 | |
| Screw 5x22 | ||||
| 011 | 911238-1 | 1.00 | 1.21 | |
| Gear housing cover Jr3000Vt * | ||||
| 012 | 317691-3 | 13.20 | 15.97 | |
| Plate 12x16 | ||||
| 013 | 443070-0 | 1.20 | 1.45 | |
| Axle lock plate | ||||
| 014 | 341462-6 | 2.40 | 2.90 | |
| Screw 5X16 JR3051T A | ||||
| 015 | 265C32-4 | 1.00 | 1.21 | |
| Slide bearing 12.7 | ||||
| 016 | 214167-0 | 2.40 | 2.90 | |
| Expansion pin 3-16 | ||||
| 017 | 951063-8 | 1.00 | 1.21 | |
| Plunger | ||||
| 018 | 168339-8 | 35.20 | 42.59 | |
| Needle bearing 708 | ||||
| 019 | 212959-1 | 3.60 | 4.36 | |
| Hex bolt 5x12 | ||||
| 020 | 251969-3 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 021 | 253816-4 | 3.60 | 4.36 | |
| Needle bearing 1216 | ||||
| 022 | 212115-3 | 8.40 | 10.16 | |
| Gear | ||||
| 023 | 133244-8 | 67.10 | 81.19 | |
| Washer 18 | ||||
| 024 | 253805-9 | 3.60 | 4.36 | |
| Gear Shaft | ||||
| 025 | 321263-8 | 16.50 | 19.96 | |
| Plate 12x16 | ||||
| 026 | 443070-0 | 1.20 | 1.45 | |
| Slide bearing 12.7 | ||||
| 027 | 214167-0 | 2.40 | 2.90 | |
| Axle lock plate | ||||
| 028 | 341462-6 | 2.40 | 2.90 | |
| Screw 5X16 JR3051T A | ||||
| 029 | 265C32-4 | 1.00 | 1.21 | |
| Hex bolt 5x12 | ||||
| 030 | 251969-3 | 1.00 | 1.21 | |
| Plate C | ||||
| 031 | 343981-8 | 2.40 | 2.90 | |
| Screw 5x30 | ||||
| 032 | 911251-9 | 1.00 | 1.21 | |
| Countersunk screw M4x14 | ||||
| 033 | 251295-0 | 1.00 | 1.21 | |
| Bearing Lock 54 | ||||
| 034 | 285650-4 | 2.40 | 2.90 | |
| Ball bearing 6200llb | ||||
| 035 | 211066-7 | 4.80 | 5.81 | |
| Locking Ring S-10 | ||||
| 036 | 257408-1 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 037 | 151902-4 | |||
| Screw 5x35 | ||||
| 038 | 911256-9 | 1.00 | 1.21 | |
| Screw 5x12 | ||||
| 039 | 911215-3 | 1.00 | 1.21 | |
| Hex nut M4 | ||||
| 040 | 931102-0 | 1.00 | 1.21 | |
| Screw 4X10 | ||||
| 041 | 911114-9 | 1.00 | 1.21 | |
| Locking Handle Jr3030T | ||||
| 042 | 272240-2 | 1.20 | 1.45 | |
| Hexagonal bolt M8X25 | ||||
| 043 | 921442-4 | 1.20 | 1.45 | |
| Blocking Plate | ||||
| 044 | 344733-0 | 3.60 | 4.36 | |
| Insert plate Jr3030T | ||||
| 045 | 344732-2 | 4.80 | 5.81 | |
| Sleeve 9 | ||||
| 046 | 257558-2 | 1.20 | 1.45 | |
| Protection Sleeve | ||||
| 047 | 421723-1 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 048A | 168337-2 | |||
| Complete swivel saw foot | ||||
| 048B | 163441-2 | 10.80 | 13.07 | |
| No longer available, no replacement | ||||
| 053 | 241631-8 | |||
| Armature | ||||
| 054 | 516063-1 | 81.40 | 98.49 | |
| No information available, not orderable | ||||
| 055 | 411612-8 | |||
| Insulation ring | ||||
| 056 | 681613-2 | 1.00 | 1.21 | |
| Ball Bearing 608ddw | ||||
| 057 | 210005-4 | 4.80 | 5.81 | |
| Washer 14 | ||||
| 058 | 253192-6 | 1.00 | 1.21 | |
| Screw 5x55 | ||||
| 059 | 911276-3 | 1.00 | 1.21 | |
| Spacer Jr3030T * | ||||
| 060 | 343657-7 | 1.20 | 1.45 | |
| Field Jr3000Vt * | ||||
| 061 | 599012-3 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 063 | 159482-4 | |||
| Dust cover for switch | ||||
| 064 | 411852-8 | 1.20 | 1.45 | |
| Brush Holder | ||||
| 065 | 643551-6 | 1.20 | 1.45 | |
| Screw 4x14 | ||||
| 066 | 911123-8 | 1.00 | 1.21 | |
| Carbon Brush Set Cb-55 | ||||
| 067 | 181026-2 | 6.00 | 7.26 | |
| Handle Cover | ||||
| 068 | 410068-2 | 8.40 | 10.16 | |
| Screw 4x28 | ||||
| 069 | 911151-3 | 1.00 | 1.21 | |
| Interference filter | ||||
| 070 | 646358-9 | 2.40 | 2.90 | |
| Sponge rubber Hm1810 | ||||
| 071 | 685718-0 | 1.00 | 1.21 | |
| Capacitor | ||||
| 072 | 645173-8 | 8.40 | 10.16 | |
| Capacitor | ||||
| 073 | 646049-2 | 6.00 | 7.26 | |
| Screw 4X18 | ||||
| 074 | 911133-5 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 075 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 075 | 687124-5 | 1.00 | 1.21 | |
| Switch Sw-121 | ||||
| 076 | 651256-4 | 28.60 | 34.61 | |
| Cable grommet 8-85 | ||||
| 077 | 682502-4 | 2.40 | 2.90 | |
| Power cord 2x1.50 4.0mtr | ||||
| 078 | 695123-3 | 22.00 | 26.62 | |
| Washer 5 | ||||
| 079 | 267758-6 | 1.00 | 1.21 | |
| Label Makita | ||||
| 080 | 819063-3 | 2.40 | 2.90 | |
| Collar Pin 5 | ||||
| 081 | 256492-3 | 1.20 | 1.45 | |
| Compression Spring 6 | ||||
| 082 | 233345-3 | 1.00 | 1.21 | |
| Lock Ring S-18 | ||||
| 083 | 961078-7 | 1.20 | 1.45 | |
| Control Bushing | ||||
| 084 | 162228-9 | 9.60 | 11.62 | |
| Pin 3 | ||||
| 085 | 268094-3 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 086 | 331639-1 | |||
| Steering sleeve guide | ||||
| 087 | 417791-0 | 2.40 | 2.90 | |
| Pen 3 | ||||
| 088 | 256158-5 | 1.20 | 1.45 | |
| Sleeve | ||||
| 089 | 418311-3 | 1.20 | 1.45 | |
| Pressure Plate | ||||
| 090 | 345214-7 | 1.20 | 1.45 | |
| Pressure Spring 2 | ||||
| 091 | 233025-1 | 1.00 | 1.21 | |
| Torsion Spring 17 | ||||
| 092 | 231687-9 | 1.00 | 1.21 | |
| Complete swivel saw foot | ||||
| 093 | 163441-2 | 10.80 | 13.07 | |
