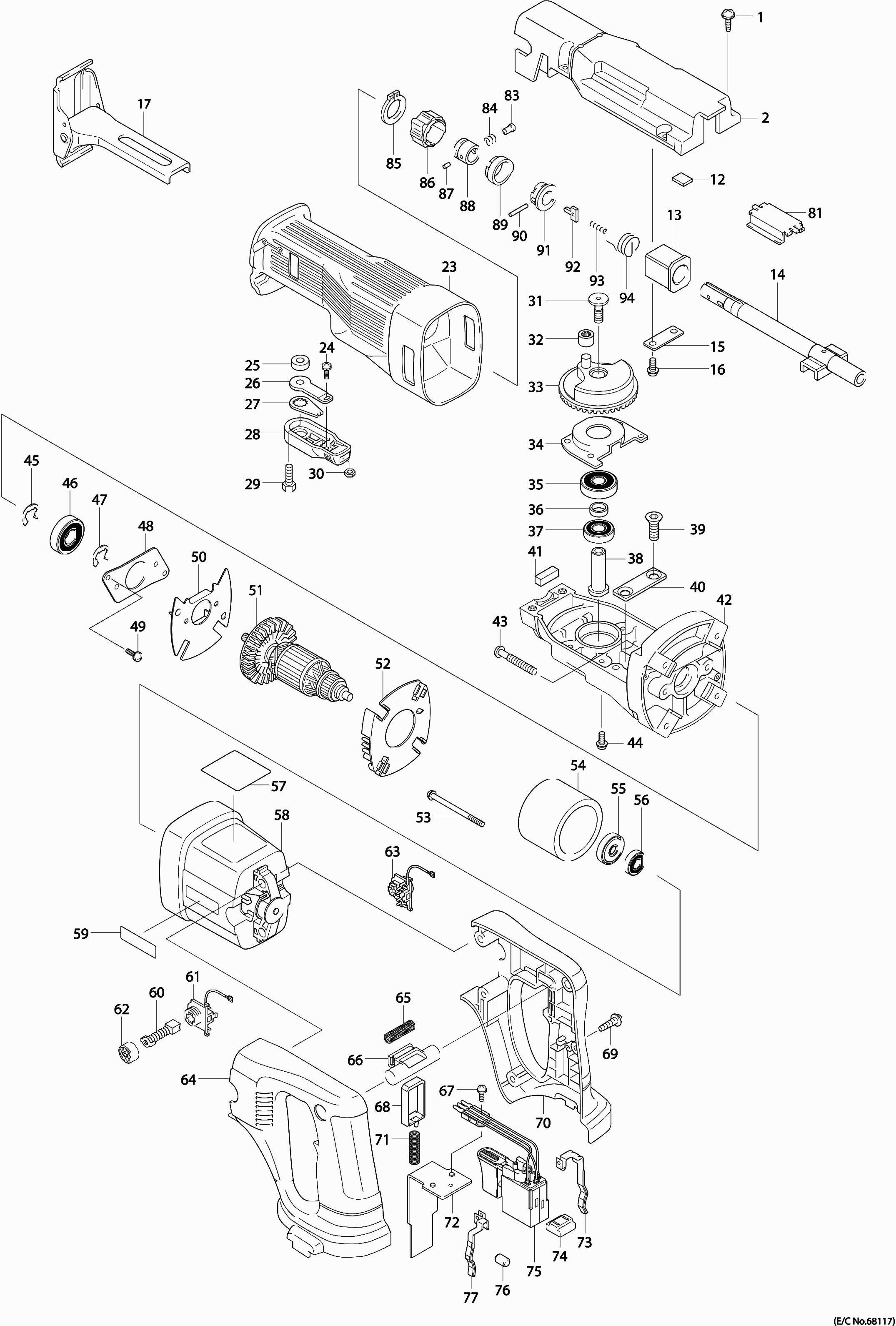

Technical drawing of model Makita JR180D
Spare parts list of model Makita JR180D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 5x20 | ||||
| 001 | 911228-4 | 1.00 | 1.21 | |
| Gear housing cover Jr180D * | ||||
| 002 | 151941-4 | 34.10 | 41.26 | |
| Steel ball 4.8 | ||||
| 003 | 216002-8 | 1.00 | 1.21 | |
| Pin 5.5x6 | ||||
| 004 | 256454-1 | 1.20 | 1.45 | |
| Saw Clamp | ||||
| 005 | 310138-6 | 19.80 | 23.96 | |
| Torx screw 5x10 | ||||
| 006 | 266272-9 | 1.20 | 1.45 | |
| Pushing Button | ||||
| 007 | 162215-8 | 19.80 | 23.96 | |
| Push Pin | ||||
| 008 | 323916-5 | 6.00 | 7.26 | |
| Compression Spring 3 | ||||
| 009 | 233018-8 | 1.00 | 1.21 | |
| Pressure spring 16 | ||||
| 010 | 233247-3 | 1.00 | 1.21 | |
| Washer 13 | ||||
| 011 | 257226-7 | 3.60 | 4.36 | |
| Plate 12x16 | ||||
| 012 | 443070-0 | 1.20 | 1.45 | |
| Slide bearing 14 | ||||
| 013 | 214169-6 | 1.20 | 1.45 | |
| Pressure Saw Blade | ||||
| 014 | 168328-3 | 34.10 | 41.26 | |
| Axle lock plate | ||||
| 015 | 341462-6 | 2.40 | 2.90 | |
| Screw 5X16 JR3051T A | ||||
| 016 | 265C32-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 017 | 168337-2 | |||
| Protection Sleeve | ||||
| 023 | 421693-4 | 13.20 | 15.97 | |
| Screw 4X10 | ||||
| 024 | 911114-9 | 1.00 | 1.21 | |
| Sleeve 9 | ||||
| 025 | 257558-2 | 1.20 | 1.45 | |
| Insert plate Jr3030T | ||||
| 026 | 344732-2 | 4.80 | 5.81 | |
| Blocking Plate | ||||
| 027 | 344733-0 | 3.60 | 4.36 | |
| Locking Handle Jr3030T | ||||
| 028 | 272240-2 | 1.20 | 1.45 | |
| Hexagonal bolt M8X25 | ||||
| 029 | 921442-4 | 1.20 | 1.45 | |
| Hex nut M4 | ||||
| 030 | 931102-0 | 1.00 | 1.21 | |
| Torx bolt M6X15 * | ||||
| 031 | 266220-8 | 2.40 | 2.90 | |
| Needle bearing 708 | ||||
| 032 | 212959-1 | 3.60 | 4.36 | |
| Gear Jr180D * | ||||
| 033 | 153267-0 | 72.60 | 87.85 | |
| Bearing Lock A Jr180D * | ||||
| 034 | 285696-0 | 3.60 | 4.36 | |
| Ball bearing 6000llb | ||||
| 035 | 211061-7 | 8.40 | 10.16 | |
| Ring 10 | ||||
| 036 | 257146-5 | 2.40 | 2.90 | |
| Ball Bearing 6900llb | ||||
| 037 | 210057-5 | 3.60 | 4.36 | |
| Gear Shaft Jr180D * | ||||
| 038 | 323887-6 | 4.80 | 5.81 | |
| Hex bolt 5x12 | ||||
| 039 | 251969-3 | 1.00 | 1.21 | |
| Plate C | ||||
| 040 | 344795-8 | 2.40 | 2.90 | |
| Felt 8x24 | ||||
| 041 | 443107-3 | 1.00 | 1.21 | |
| Gear Housing Jr180D * | ||||
| 042 | 317229-4 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 043 | 266012-5 | |||
| Screw 5x8 | ||||
| 044 | 911601-8 | 1.00 | 1.21 | |
| Retaining Ring E-10 | ||||
| 045 | 961016-9 | 1.00 | 1.21 | |
| Ball Bearing 6001dw | ||||
| 046 | 211131-2 | 9.60 | 11.62 | |
| Retaining Ring E-10 | ||||
| 047 | 961016-9 | 1.00 | 1.21 | |
| Bearing Lock B Jr180D * | ||||
| 048 | 285697-8 | 2.40 | 2.90 | |
| Screw 4x12 | ||||
| 049 | 911516-9 | 2.40 | 2.90 | |
| Fan Guide Plate Jr180D * | ||||
| 050 | 416960-0 | 2.40 | 2.90 | |
| Armature Jr180D * | ||||
| 051 | 519051-7 | 78.10 | 94.50 | |
| Intermediate Plate Jr180D * | ||||
| 052 | 416959-5 | 2.40 | 2.90 | |
| Tapping screw 4x60 | ||||
| 053 | 266209-6 | 1.20 | 1.45 | |
| Magnet holder | ||||
| 054 | 632828-4 | 23.10 | 27.95 | |
| Insulation ring | ||||
| 055 | 681652-2 | 1.00 | 1.21 | |
| Ball bearing 607llb | ||||
| 056 | 211021-9 | 4.80 | 5.81 | |
| Label | ||||
| 057 | 851734-6 | 3.60 | 4.36 | |
| Motor Housing | ||||
| 058 | 416957-9 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 059 | 819720-3 | |||
| KOOLBORSTEL SET CB-441 A | ||||
| 060 | 195022-4 | 4.80 | 5.81 | |
| Brush Holder | ||||
| 061 | 643949-7 | 3.60 | 4.36 | |
| Brush holder cap | ||||
| 062 | 643941-3 | 2.40 | 2.90 | |
| Carbon Brush Holder L Jr180D * | ||||
| 063 | 643950-2 | 3.60 | 4.36 | |
| Handle set | ||||
| 064 | 183141-8 | 26.40 | 31.94 | |
| Compression Spring 4 | ||||
| 065 | 231469-9 | 1.00 | 1.21 | |
| Unlock button | ||||
| 066 | 416958-7 | 1.20 | 1.45 | |
| Schroef 3x8 | ||||
| 067 | 652066-2 | 1.00 | 1.21 | |
| Locking Bracket | ||||
| 068 | 416976-5 | 1.20 | 1.45 | |
| Tap screw 4x18 | ||||
| 069 | 265A48-7 | 1.00 | 1.21 | |
| Handle set | ||||
| 070 | 183141-8 | 26.40 | 31.94 | |
| Compression Spring 4 | ||||
| 071 | 231469-9 | 1.00 | 1.21 | |
| Heat conduction plate Jr180D * | ||||
| 072 | 689090-2 | 9.60 | 11.62 | |
| Contact strip plus | ||||
| 073 | 654195-7 | 3.60 | 4.36 | |
| Holder | ||||
| 074 | 687085-9 | 1.20 | 1.45 | |
| Switch | ||||
| 075 | 651979-4 | 59.40 | 71.87 | |
| Rubber Pin 4 | ||||
| 076 | 263024-9 | 1.20 | 1.45 | |
| Contact strip min | ||||
| 077 | 654196-5 | 2.40 | 2.90 | |
| Washer 5 | ||||
| 079 | 267758-6 | 1.00 | 1.21 | |
| Sliding Plate | ||||
| 081 | 344858-0 | 2.40 | 2.90 | |
