Here you will find all available parts and drawings of the 'Makita JR100D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

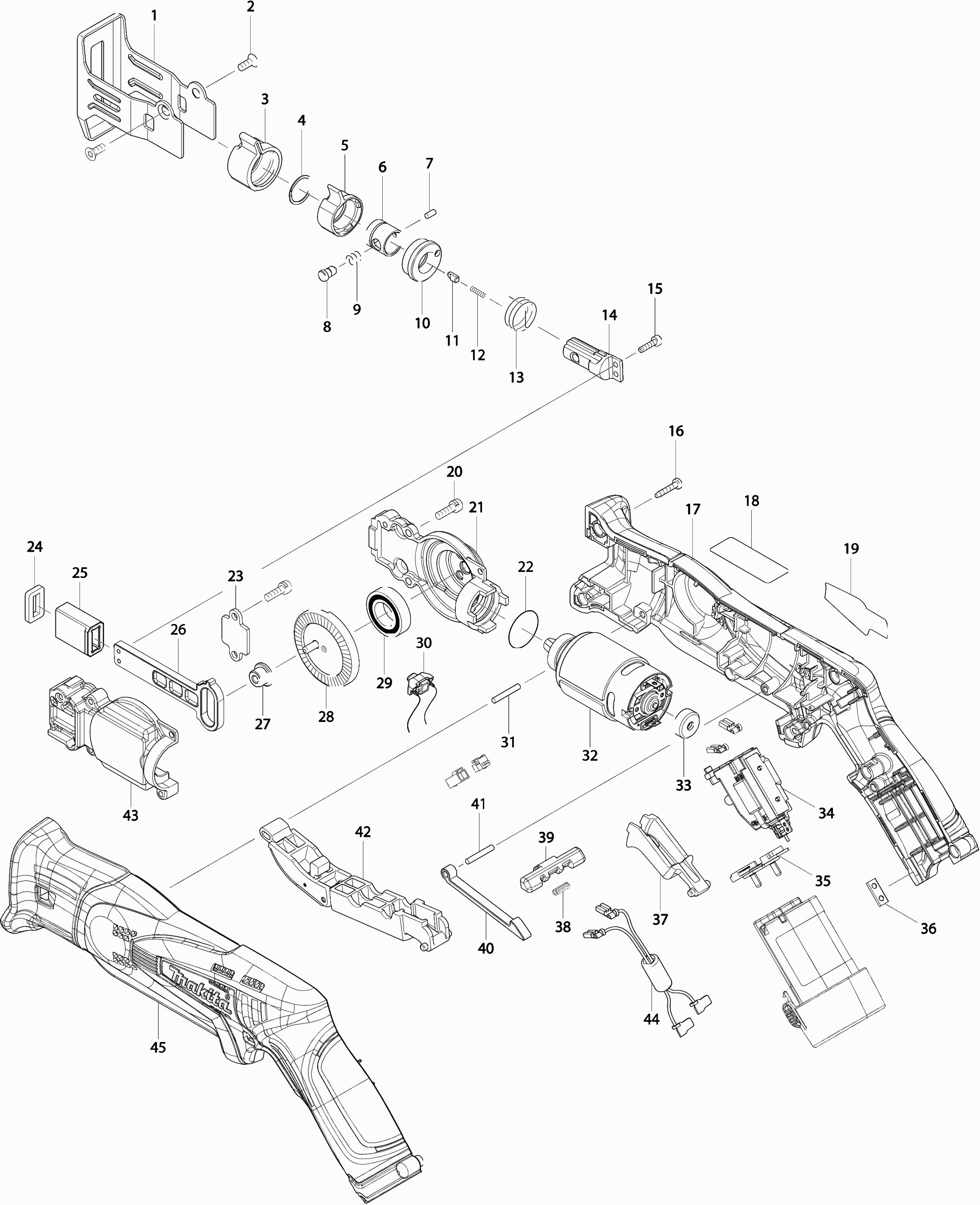

Technical drawing of model Makita JR100D
Spare parts list of model Makita JR100D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Saw foot | ||||
| 001 | 346524-5 | 3.60 | 4.36 | |
| Phillips Screw 4x10 | ||||
| 002 | 265035-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 003 | 424466-4 | |||
| No information available, not orderable | ||||
| 004 | 257981-1 | |||
| No information available, not orderable | ||||
| 005 | 310496-0 | |||
| No information available, not orderable | ||||
| 006 | 331963-2 | |||
| Pin 3 | ||||
| 007 | 268094-3 | 2.40 | 2.90 | |
| Collar Pin 5 | ||||
| 008 | 256492-3 | 1.20 | 1.45 | |
| Compression Spring 6 | ||||
| 009 | 233345-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 010 | 453071-0 | |||
| No information available, not orderable | ||||
| 011 | 310495-2 | |||
| Pressure Spring 2 | ||||
| 012 | 233025-1 | 1.00 | 1.21 | |
| Torsion Spring 17 JR3051 | ||||
| 013 | 233594-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 014 | 326113-2 | |||
| Saw Set (incl. no. 3 to 14) | ||||
| 014A | 126201-3 | 23.10 | 27.95 | |
| Hex bolt M3x12mm | ||||
| 015 | 265910-0 | 1.20 | 1.45 | |
| INBUSBOUT M3X10MM JR100 | ||||
| 015-1 | 265D80-9 | 1.20 | 1.45 | |
| Tapping Screw 3x16 | ||||
| 016 | 266130-9 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 017 | 187270-9 | 13.20 | 15.97 | |
| Label | ||||
| 019 | 896377-7 | 3.60 | 4.36 | |
| Tapping Screw M4X14Mm JR100/102D | ||||
| 020 | 266747-8 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 021 | 318805-7 | 8.40 | 10.16 | |
| O-ring 22 | ||||
| 022 | 213961-7 | 1.00 | 1.21 | |
| Guide Plate | ||||
| 023 | 346525-3 | 1.00 | 1.21 | |
| Rubber Gasket | ||||
| 024 | 423424-7 | 1.00 | 1.21 | |
| Saw guide | ||||
| 025 | 313220-0 | 2.40 | 2.90 | |
| Plunger | ||||
| 026 | 313221-8 | 3.60 | 4.36 | |
| Sleeve 4 | ||||
| 027 | 326112-4 | 1.20 | 1.45 | |
| Gear | ||||
| 028 | 141127-8 | 11.00 | 13.31 | |
| Ball bearing 6902Zz A | ||||
| 029 | 210153-9 | 1.20 | 1.45 | |
| Light circuit | ||||
| 030 | 620028-8 | 7.20 | 8.71 | |
| Pen 3 | ||||
| 031 | 256158-5 | 1.20 | 1.45 | |
| Motor 10.8v | ||||
| 032 | 629914-0 | 14.30 | 17.30 | |
| Stop ring | ||||
| 033 | 424467-2 | 1.00 | 1.21 | |
| Switch | ||||
| 034 | 650666-2 | 30.80 | 37.27 | |
| Motor connection | ||||
| 035 | 643830-2 | 1.20 | 1.45 | |
| Clamp Plate Set | ||||
| 036 | 345998-7 | 1.00 | 1.21 | |
| Switch button "r" | ||||
| 037 | 453072-8 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 038 | 233438-6 | 1.00 | 1.21 | |
| Knob | ||||
| 039 | 453070-2 | 1.20 | 1.45 | |
| Connecting rod | ||||
| 040 | 313219-5 | 2.40 | 2.90 | |
| Pen 3 | ||||
| 041 | 256158-5 | 1.20 | 1.45 | |
| Switch handle 'f' | ||||
| 042 | 141128-6 | 4.80 | 5.81 | |
| Gear Housing Cover | ||||
| 043 | 318806-5 | 7.20 | 8.71 | |
| Line filter | ||||
| 044 | 638932-7 | 3.60 | 4.36 | |
| Motor connection | ||||
| 044 | 654069-2 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 045 | 187270-9 | 13.20 | 15.97 | |
