Here you will find all available parts and drawings of the 'Makita JR001G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

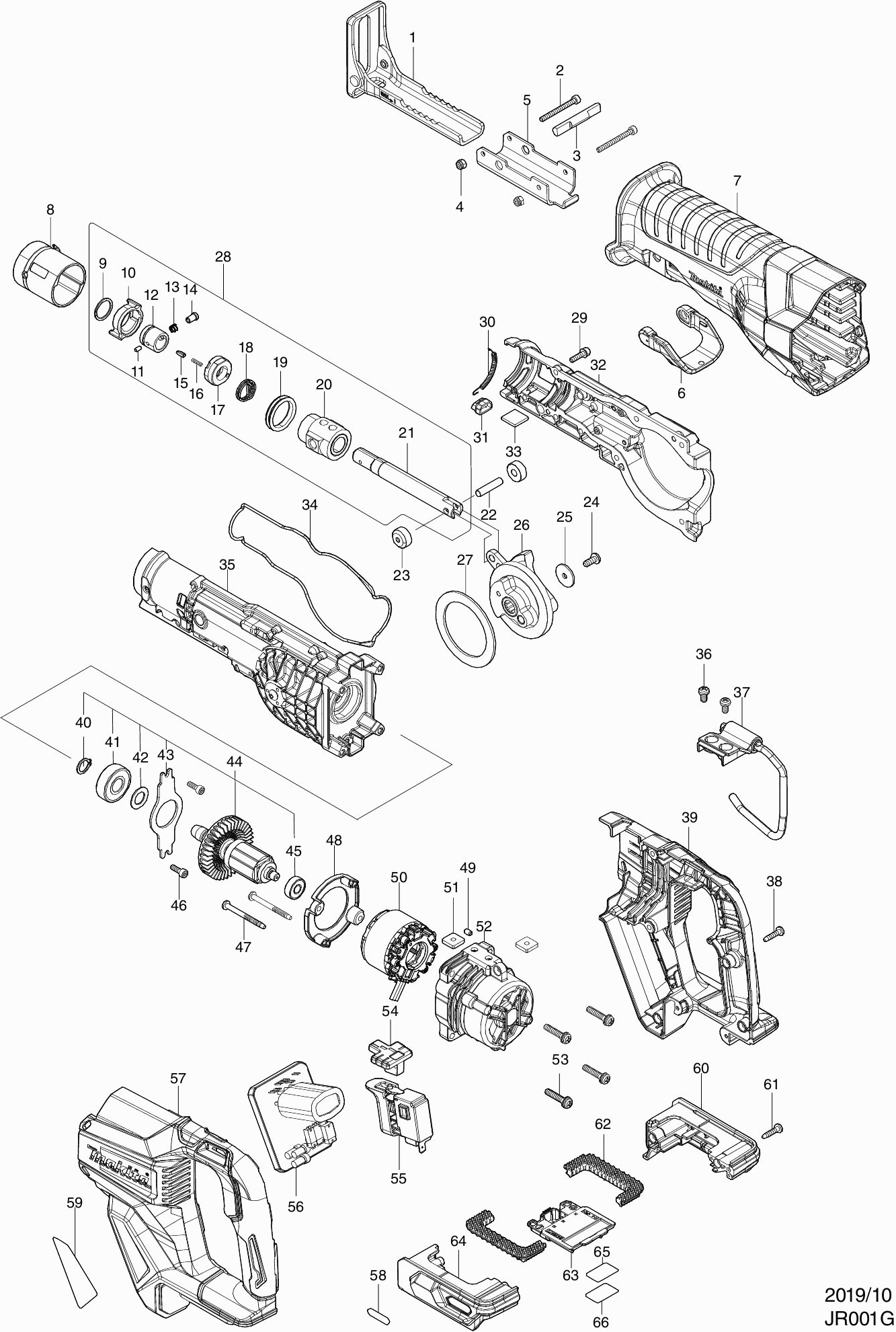

Technical drawing of model Makita JR001G
Spare parts list of model Makita JR001G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Saw Foot JR001G | ||||
| 001 | 162739-4 | 6.00 | 7.26 | |
| Allen Head Bolt M4x40mm JR001G | ||||
| 002 | 265A78-8 | 1.00 | 1.21 | |
| Locking Bolt | ||||
| 003 | 326599-0 | 3.60 | 4.36 | |
| Lock Nut M4x7mm | ||||
| 004 | 252126-6 | 1.00 | 1.21 | |
| Saw foot guide JR001G | ||||
| 005 | 347637-5 | 2.40 | 2.90 | |
| Locking pin JR001G | ||||
| 006 | 459924-1 | 2.40 | 2.90 | |
| Protective sleeve JR001G | ||||
| 007 | 422542-8 | 13.20 | 15.97 | |
| Unlock button JR001G | ||||
| 008 | 459923-3 | 0.98 | 1.19 | |
| Unlock button JR001G | ||||
| 008-1 | 459923-3 | 0.98 | 1.19 | |
| RELEASE BUTTON JR001G A | ||||
| 008-2 | 413P68-7 | 1.20 | 1.45 | |
| Lock Ring 18A | ||||
| 009 | 257430-8 | 1.00 | 1.21 | |
| Guide bush JR3051 | ||||
| 010 | 310848-5 | 8.40 | 10.16 | |
| Pin 3 | ||||
| 011 | 268094-3 | 2.40 | 2.90 | |
| Guide bush Bjr181 A | ||||
| 012 | 327043-0 | 1.20 | 1.45 | |
| Compression Spring 6 | ||||
| 013 | 233345-3 | 1.00 | 1.21 | |
| Compression Spring 6 | ||||
| 013A | 233345-3 | 1.00 | 1.21 | |
| Compression Spring 6 | ||||
| 013B | 233345-3 | 1.00 | 1.21 | |
| Collar Pin 5 | ||||
| 014 | 256569-4 | 1.20 | 1.45 | |
| Push Pin JR001G | ||||
| 015 | 310912-2 | 2.40 | 2.90 | |
| Compression spring 2mm JR001G | ||||
| 016 | 232472-3 | 1.00 | 1.21 | |
| Connection socket JR001G | ||||
| 017 | 458968-8 | 1.00 | 1.21 | |
| Torsion Spring 17 JR3051 | ||||
| 018 | 233594-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 019 | 422309-4 | |||
| Guide complete JR001G | ||||
| 020 | 140P52-6 | 11.00 | 13.31 | |
| X-ring 14 | ||||
| 020C10 | 213174-0 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 021 | 327154-1 | |||
| Locking pin 6mm JR001G | ||||
| 022 | 256945-2 | 1.00 | 1.21 | |
| Saw guide JR001G | ||||
| 023 | 310991-0 | 1.00 | 1.21 | |
| Hexagon socket screw M5x12mm JR001G | ||||
| 024 | 265374-8 | 1.00 | 1.21 | |
| 5mm locking ring JR001G | ||||
| 025 | 253462-3 | 1.00 | 1.21 | |
| Gear JR001G | ||||
| 026 | 140P53-4 | 22.00 | 26.62 | |
| 51mm locking ring JR001G | ||||
| 027 | 253463-1 | 1.00 | 1.21 | |
| Saw guide cpl JR001G | ||||
| 028 | 136224-3 | 30.80 | 37.27 | |
| Hex bolt 4x16 | ||||
| 029 | 922128-3 | 1.00 | 1.21 | |
| Compression Spring 3mm JR001G | ||||
| 030 | 232583-4 | 1.00 | 1.21 | |
| Light circuit JR001G | ||||
| 031 | 620C32-5 | 6.00 | 7.26 | |
| Gear housing R JR001G | ||||
| 032 | 140P51-8 | 12.22 | 14.79 | |
| Gear housing R JR001G | ||||
| 032-1 | 140P51-8 | 12.22 | 14.79 | |
| No information available, not orderable | ||||
| 032-2 | 141N96-7 | |||
| Damping felt | ||||
| 033 | 424858-7 | 1.00 | 1.21 | |
| Gear housing gasket JR001G | ||||
| 034 | 422541-0 | 1.20 | 1.45 | |
| Gear housing L JR001G | ||||
| 035 | 140P50-0 | 22.00 | 26.62 | |
| Gear housing L JR001G | ||||
| 035-1 | 140P50-0 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 035-2 | 141N95-9 | |||
| Screw 5x10 | ||||
| 036 | 911209-8 | 1.00 | 1.21 | |
| DRAAGHAAK RECIPROZAAG | ||||
| 037 | 127468-6 | 4.00 | 4.84 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 038 | 265B67-9 | 1.00 | 1.21 | |
| Handle Set JR001G | ||||
| 039 | 183N57-1 | 14.30 | 17.30 | |
| Lock washer S-12 | ||||
| 040 | 961052-5 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 041 | 211129-9 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 042 | 253744-3 | 1.00 | 1.21 | |
| Bearing Lock JR001G | ||||
| 043 | 285038-8 | 1.20 | 1.45 | |
| Armature 40V JR001G | ||||
| 044 | 510447-5 | 30.80 | 37.27 | |
| Ball bearing 607Zz A | ||||
| 045 | 211382-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 046 | 922117-8 | |||
| Tapping screw 4x45mm | ||||
| 047 | 266425-0 | 0.83 | 1.00 | |
| Intermediate plate Djr187 | ||||
| 048 | 456178-1 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 049 | 263002-9 | 1.00 | 1.21 | |
| Field 40V JR001G | ||||
| 050 | 629470-0 | 30.80 | 37.27 | |
| Field 40V JR001G | ||||
| 050A | 629470-0 | 30.80 | 37.27 | |
| FIELD DSP600 A | ||||
| 050B | 629B69-3 | 12.10 | 14.64 | |
| CONTROLLER B JR001/2G | ||||
| 050BC10 | 620N49-4 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 050BC20 | 638A34-5 | |||
| MACHINE SCREW M2X6MM | ||||
| 050BC30 | 652119-7 | 1.00 | 1.21 | |
| Square nut M5 | ||||
| 051 | 264002-2 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 052 | 412476-3 | 4.80 | 5.81 | |
| Screw 5x25 | ||||
| 053 | 911243-8 | 1.00 | 1.21 | |
| Reverse button Djr187 | ||||
| 054 | 456177-3 | 2.40 | 2.90 | |
| Switch JR001G | ||||
| 055 | 651439-6 | 17.60 | 21.30 | |
| Circuit JR001G | ||||
| 056 | 620C31-7 | 139.70 | 169.04 | |
| Handle Set JR001G | ||||
| 057 | 183N57-1 | 14.30 | 17.30 | |
| Label XGT logo | ||||
| 058 | 8005T5-8 | 2.40 | 2.90 | |
| Name plate JR001G | ||||
| 059 | 856P39-5 | 3.60 | 4.36 | |
| Battery Housing JR001G | ||||
| 060 | 183N58-9 | 6.00 | 7.26 | |
| Rubber pen 6 | ||||
| 060C10 | 263005-3 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 061 | 265B67-9 | 1.00 | 1.21 | |
| Damping buffer JR001G | ||||
| 062 | 422543-6 | 1.00 | 1.21 | |
| Connection unit TD001G | ||||
| 063 | 632P75-3 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 063-1 | 632W77-1 | |||
| Battery Housing JR001G | ||||
| 064 | 183N58-9 | 6.00 | 7.26 | |
| Rubber pen 6 | ||||
| 064C10 | 263005-3 | 1.00 | 1.21 | |
| Serial number label JR001G | ||||
| 065 | 856P46-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 066 | 8008P3-2 | |||
| Spring 39 JR002G | ||||
| 067 | 232746-2 | 1.00 | 1.21 | |
