Here you will find all available parts and drawings of the 'Makita JN1600'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

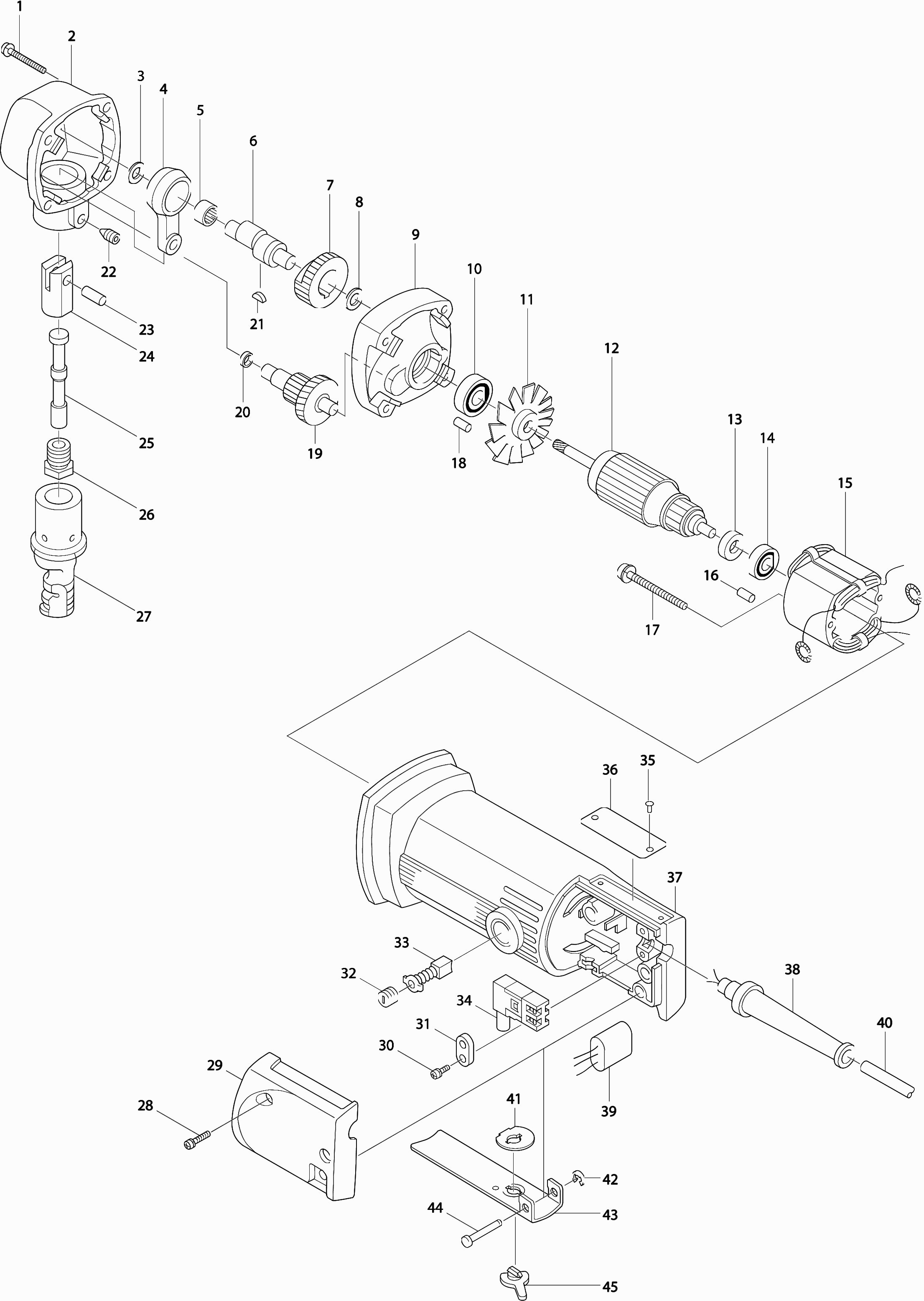

Technical drawing of model Makita JN1600
Spare parts list of model Makita JN1600
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 4x35 | ||||
| 001 | 911163-6 | 1.00 | 1.21 | |
| Gearbox Jn1600 * | ||||
| 002 | 156729-7 | 39.60 | 47.92 | |
| Washer 8x0.5mm | ||||
| 003 | 253139-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 004 | 331153-7 | |||
| Needle Bearing 1412 | ||||
| 005 | 212151-9 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 006 | 321317-1 | |||
| No information available, not orderable | ||||
| 007 | 221873-0 | |||
| Washer 8 x 14 x 0.5mm | ||||
| 008 | 253215-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 009 | 156728-9 | |||
| No information available, not orderable | ||||
| 010 | 211033-2 | |||
| No information available, not orderable | ||||
| 012 | 518822-9 | |||
| Insulation ring | ||||
| 013 | 681614-0 | 1.00 | 1.21 | |
| Ball bearing 627llb | ||||
| 014 | 210025-8 | 3.60 | 4.36 | |
| Field Js1600 * | ||||
| 015 | 527061-0 | 30.80 | 37.27 | |
| Rubber Pin 4 | ||||
| 016 | 263002-9 | 1.00 | 1.21 | |
| Screw 4X55 | ||||
| 017 | 911586-8 | 1.20 | 1.45 | |
| Rubber Pin 4 | ||||
| 018 | 263002-9 | 1.00 | 1.21 | |
| Gear 23-37 Jn1600 * | ||||
| 019 | 226054-1 | 28.60 | 34.61 | |
| Thin Lock Washer 6 | ||||
| 020 | 253308-3 | 1.00 | 1.21 | |
| Inlegspie 3 | ||||
| 021 | 254002-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 022 | 913312-1 | |||
| Pin | ||||
| 023 | 256111-1 | 2.40 | 2.90 | |
| Punch holder Jn1600 * | ||||
| 024 | 321318-9 | 28.60 | 34.61 | |
| Screw Jn1600 * | ||||
| 026 | 321319-7 | 7.20 | 8.71 | |
| Screw 4x30 | ||||
| 028 | 911156-3 | 1.00 | 1.21 | |
| Switch cover plate Da3000 * | ||||
| 029 | 411981-7 | 7.20 | 8.71 | |
| Screw 4X18 | ||||
| 030 | 911131-9 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 031 | 687001-1 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 032 | 643550-8 | 1.20 | 1.45 | |
| KOOLBORSTEL SET CB-65 A | ||||
| 033 | 194969-9 | 4.80 | 5.81 | |
| Switch Sw-31 | ||||
| 034 | 651821-9 | 13.20 | 15.97 | |
| Motor Case Jn1600 * | ||||
| 037 | 157720-8 | 36.30 | 43.92 | |
| Cable grommet 8,5-72 | ||||
| 038 | 682500-8 | 2.40 | 2.90 | |
| Power cord 2x1.00 2.2mtr | ||||
| 040 | 665383-1 | 10.80 | 13.07 | |
| Leaf Spring * | ||||
| 041 | 232062-2 | 2.40 | 2.90 | |
| Stopring E-3 | ||||
| 042 | 961017-7 | 1.00 | 1.21 | |
| Switch handle Jn1600 * | ||||
| 043A | 341858-1 | 8.40 | 10.16 | |
| Pressure Spring 3 Jn1600 * | ||||
| 043A1 | 231322-9 | 1.00 | 1.21 | |
| Safety Catch Jn1600 * | ||||
| 043A2 | 341930-9 | 6.00 | 7.26 | |
| Switch lever complete | ||||
| 043B | 133433-5 | 10.80 | 13.07 | |
| Switch lever complete | ||||
| 043B1 | 133433-5 | 10.80 | 13.07 | |
| Locking Pin 4 | ||||
| 044 | 256626-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 045 | 411784-9 | |||
| Clamping bushing for statorv. 2mm | ||||
| 046 | 654502-4 | 1.00 | 1.21 | |
| Stator spring Cb 9 | ||||
| 047 | 654018-9 | 1.20 | 1.45 | |
