Here you will find all available parts and drawings of the 'Makita HW140'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

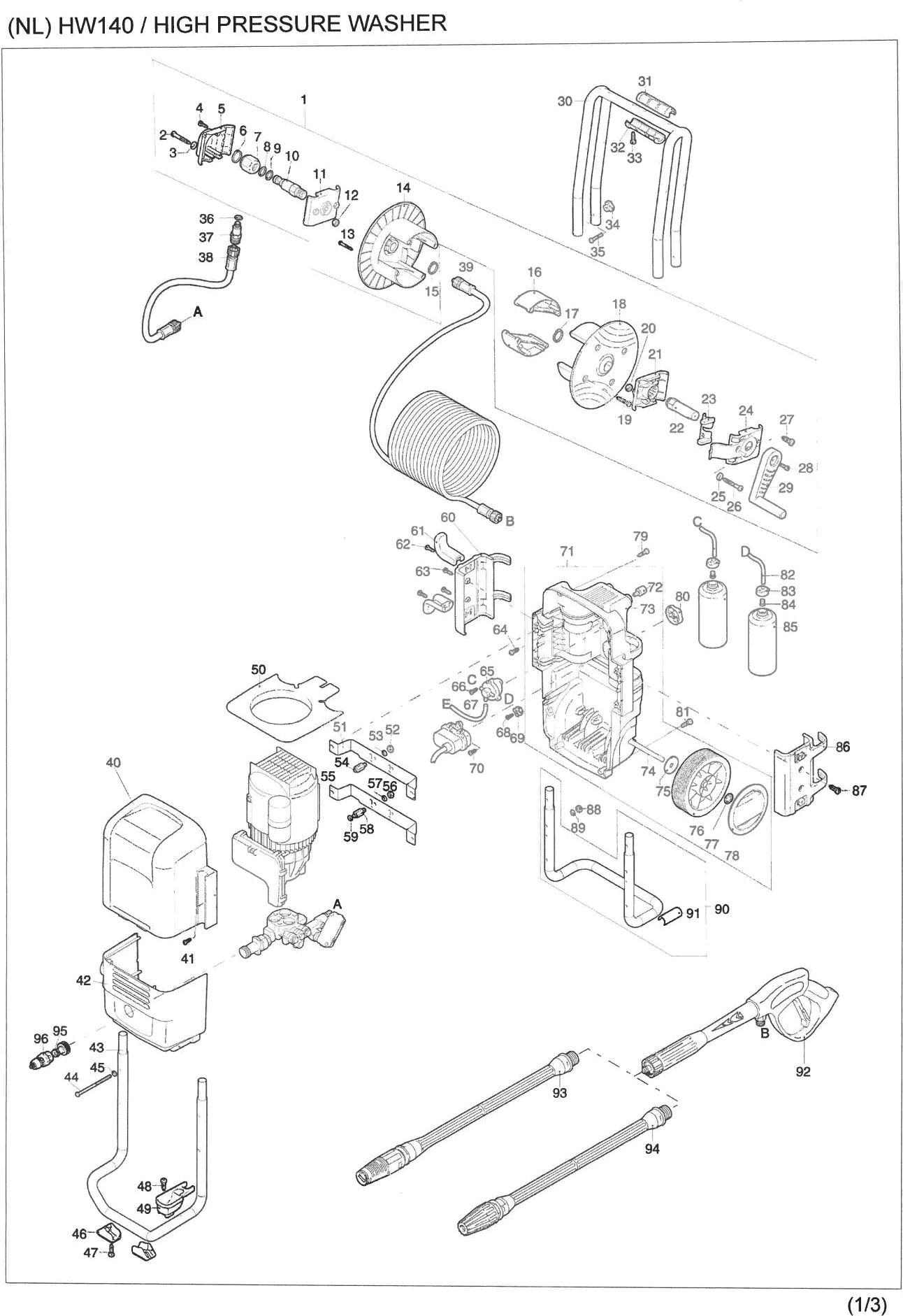

Technical drawing of model Makita HW140
Spare parts list of model Makita HW140
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hose reel cpl | ||||
| 001 | 42581 | 88.00 | 106.48 | |
| Screw | ||||
| 002 | 3580330 | 1.20 | 1.45 | |
| Rivet | ||||
| 003 | 480650 | 1.00 | 1.21 | |
| Screw | ||||
| 004 | 2100300 | 1.00 | 1.21 | |
| Support | ||||
| 005 | 3580150 | 4.80 | 5.81 | |
| Plate | ||||
| 006 | 480890 | 1.00 | 1.21 | |
| Fitting | ||||
| 007 | 3600220 | 23.10 | 27.95 | |
| O-ring | ||||
| 008 | 390080 | 1.00 | 1.21 | |
| O-ring | ||||
| 009 | 390080 | 1.00 | 1.21 | |
| BOSS | ||||
| 010 | 3580340 | 38.50 | 46.58 | |
| Holding Plate | ||||
| 011 | 3580160 | 3.60 | 4.36 | |
| Bolt | ||||
| 012 | 480640 | 1.00 | 1.21 | |
| Screw | ||||
| 013 | 2021780 | 1.00 | 1.21 | |
| Hose Reel | ||||
| 014 | 2360230 | 6.00 | 7.26 | |
| Spring retaining ring | ||||
| 015 | 380420 | 1.20 | 1.45 | |
| Spacer | ||||
| 016 | 3580120 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 017 | 380420 | 1.20 | 1.45 | |
| Hose Reel | ||||
| 018 | 2360230 | 6.00 | 7.26 | |
| Screw | ||||
| 019 | 2021780 | 1.00 | 1.21 | |
| Bolt | ||||
| 020 | 480640 | 1.00 | 1.21 | |
| Holding Plate | ||||
| 021 | 3580160 | 3.60 | 4.36 | |
| BOSS | ||||
| 022 | 3580350 | 36.30 | 43.92 | |
| Hook | ||||
| 023 | 3580130 | 2.40 | 2.90 | |
| Holding Plate | ||||
| 024 | 3580140 | 3.60 | 4.36 | |
| Rivet | ||||
| 025 | 480650 | 1.00 | 1.21 | |
| Screw | ||||
| 026 | 3580330 | 1.20 | 1.45 | |
| Screw | ||||
| 027 | 2100300 | 1.00 | 1.21 | |
| Screw | ||||
| 028 | 2360360 | 1.00 | 1.21 | |
| Hose Reel Handle | ||||
| 029 | 2360150 | 2.40 | 2.90 | |
| Handle | ||||
| 030 | 3580080 | 78.10 | 94.50 | |
| Knob | ||||
| 031 | 3580180 | 2.40 | 2.90 | |
| Undergrip | ||||
| 032 | 3580090 | 1.20 | 1.45 | |
| Screw | ||||
| 033 | 2100300 | 1.00 | 1.21 | |
| Knob | ||||
| 034 | 50019 | 2.40 | 2.90 | |
| Screw | ||||
| 035 | 50037 | 1.00 | 1.21 | |
| O-Ring Set | ||||
| 036 | 42438 | 8.40 | 10.16 | |
| Fitting | ||||
| 037 | 3600260 | 10.80 | 13.07 | |
| Pipe | ||||
| 038 | 3580360 | 38.50 | 46.58 | |
| Hose | ||||
| 039 | 3083550 | 111.10 | 134.43 | |
| Housing Cap 'for A' | ||||
| 040 | 3580020 | 20.90 | 25.29 | |
| Screw | ||||
| 041 | 2100300 | 1.00 | 1.21 | |
| Housing Cover 'for' | ||||
| 042 | 3580030 | 14.30 | 17.30 | |
| Foot Bracket | ||||
| 043 | 3580070 | 45.10 | 54.57 | |
| Screw | ||||
| 044 | 2320570 | 1.20 | 1.45 | |
| Rivet | ||||
| 045 | 480650 | 1.00 | 1.21 | |
| Rubber Foot | ||||
| 046 | 3580270 | 2.40 | 2.90 | |
| Screw | ||||
| 047 | 2060200 | 1.00 | 1.21 | |
| Screw | ||||
| 048 | 2060200 | 1.00 | 1.21 | |
| Storage Compartment | ||||
| 049 | 3580250 | 3.60 | 4.36 | |
| Motor mount | ||||
| 050 | 3580040 | 6.00 | 7.26 | |
| Motor mount | ||||
| 051 | 3580260 | 11.00 | 13.31 | |
| Bolt | ||||
| 052 | 480640 | 1.00 | 1.21 | |
| Rivet | ||||
| 053 | 480650 | 1.00 | 1.21 | |
| Spacer bolt | ||||
| 054 | 1462400 | 6.00 | 7.26 | |
| Motor mount | ||||
| 055 | 3580260 | 11.00 | 13.31 | |
| Bolt | ||||
| 056 | 480640 | 1.00 | 1.21 | |
| Rivet | ||||
| 057 | 480650 | 1.00 | 1.21 | |
| Spacer bolt | ||||
| 058 | 1462400 | 6.00 | 7.26 | |
| Spacer | ||||
| 059 | 2900530 | 2.40 | 2.90 | |
| Accessory Holder | ||||
| 060 | 3580050 | 6.00 | 7.26 | |
| Storage Compartment | ||||
| 061 | 2360090 | 3.60 | 4.36 | |
| Screw | ||||
| 062 | 2100300 | 1.00 | 1.21 | |
| Screw | ||||
| 063 | 2100300 | 1.00 | 1.21 | |
| Screw | ||||
| 064 | 2060200 | 1.00 | 1.21 | |
| Suction Pump | ||||
| 065 | 3440190 | 2.40 | 2.90 | |
| Screw | ||||
| 066 | 2000110 | 1.00 | 1.21 | |
| Suction Hose | ||||
| 067 | 3580290 | 10.80 | 13.07 | |
| Screw | ||||
| 068 | 2100300 | 1.00 | 1.21 | |
| Strain reliever | ||||
| 069 | 2600100 | 2.40 | 2.90 | |
| Screw | ||||
| 070 | 2100300 | 1.00 | 1.21 | |
| Rear Housing Cap | ||||
| 071 | 3589000 | 55.00 | 66.55 | |
| Rubber Bushing | ||||
| 072 | 2180330 | 1.20 | 1.45 | |
| Rear Housing Cap | ||||
| 073 | 3589000 | 55.00 | 66.55 | |
| Shaft 310x12mm | ||||
| 074 | 2180080 | 6.00 | 7.26 | |
| Body ring | ||||
| 075 | 1680890 | 1.20 | 1.45 | |
| Wheel | ||||
| 076 | 3580280 | 8.40 | 10.16 | |
| Washer Spring | ||||
| 077 | 1680880 | 1.00 | 1.21 | |
| Wheel cover plate | ||||
| 078 | 3580170 | 3.60 | 4.36 | |
| Screw | ||||
| 079 | 2100300 | 1.00 | 1.21 | |
| Rotary Knob | ||||
| 080 | 2900220 | 3.60 | 4.36 | |
| Screw | ||||
| 081 | 2100300 | 1.00 | 1.21 | |
| Suction Hose | ||||
| 082 | 3580300 | 11.00 | 13.31 | |
| Cap | ||||
| 083 | 3580190 | 1.20 | 1.45 | |
| Suction Filter | ||||
| 084 | 2000230 | 1.00 | 1.21 | |
| Fluid Tank | ||||
| 085 | 2180130 | 2.40 | 2.90 | |
| Accessory Holder | ||||
| 086 | 3580050 | 6.00 | 7.26 | |
| Screw | ||||
| 087 | 2100300 | 1.00 | 1.21 | |
| Bolt | ||||
| 088 | 480640 | 1.00 | 1.21 | |
| Rivet | ||||
| 089 | 480650 | 1.00 | 1.21 | |
| Rear Bracket | ||||
| 090 | 3580060 | 36.30 | 43.92 | |
| Guide Piece | ||||
| 091 | 3580370 | 6.00 | 7.26 | |
| SPUITLANS | ||||
| 092 | 40029 | 22.00 | 26.62 | |
| O-ring 9.5x2.5mm | ||||
| 092A | 1465120 | 2.40 | 2.90 | |
| POWERSPEEDLANS | ||||
| 093 | 609041173 | 46.00 | 55.66 | |
| No information available, not orderable | ||||
| 094 | 41154 | |||
| No information available, not orderable | ||||
| 095 | 197881-2 | |||
| WATERKOPPELING+NIPPEL G 3/4" | ||||
| 096 | P-64870 | 10.00 | 12.10 | |
| O-ring 12 | ||||
| 096C10 | 213107-5 | 1.00 | 1.21 | |
| Motor cpl | ||||
| 097 | 44111 | 368.50 | 445.88 | |
| No information available, not orderable | ||||
| 098 | 2900980 | |||
| Screw | ||||
| 099 | 1460460 | 1.00 | 1.21 | |
| Washer Spring | ||||
| 100 | 1680960 | 1.00 | 1.21 | |
| Screw | ||||
| 101 | 2100300 | 1.00 | 1.21 | |
| Rivet | ||||
| 102 | 480650 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 103 | 2900970 | |||
| Conveyor | ||||
| 104 | 1460340 | 16.50 | 19.96 | |
| Fan | ||||
| 105 | 1460370 | 6.00 | 7.26 | |
| O-ring | ||||
| 106 | 394280 | 1.00 | 1.21 | |
| Oil seal | ||||
| 107 | 1461200 | 1.20 | 1.45 | |
| Guard | ||||
| 108 | 1460040 | 30.80 | 37.27 | |
| Bearing | ||||
| 109 | 1460590 | 9.60 | 11.62 | |
| Pump Housing | ||||
| 110 | 2900010 | 22.00 | 26.62 | |
| Screw | ||||
| 111 | 2320830 | 2.40 | 2.90 | |
| Oil seal | ||||
| 112 | 1460530 | 3.60 | 4.36 | |
| Bearing | ||||
| 113 | 1780490 | 13.20 | 15.97 | |
| Tuimelplaat | ||||
| 114 | 2900040 | 11.00 | 13.31 | |
| Bearing | ||||
| 115 | 2900170 | 7.20 | 8.71 | |
| Cable | ||||
| 116 | 1760450 | 19.80 | 23.96 | |
| Protective cap | ||||
| 117 | 2900760 | 3.60 | 4.36 | |
| Screw | ||||
| 118 | 2020570 | 1.00 | 1.21 | |
| Rivet | ||||
| 119 | 1262400 | 1.00 | 1.21 | |
| Box | ||||
| 120 | 2900750 | 3.60 | 4.36 | |
| O-ring | ||||
| 121 | 660170 | 1.00 | 1.21 | |
| Screw | ||||
| 122 | 2020570 | 1.00 | 1.21 | |
| Switch Housing | ||||
| 123 | 2909209 | 24.20 | 29.28 | |
| Fork Tooth | ||||
| 124 | 2022201 | 1.20 | 1.45 | |
| Switch Housing | ||||
| 125 | 2029753 | 12.10 | 14.64 | |
| Piston set | ||||
| 126 | 2313 | 10.80 | 13.07 | |
| Plate | ||||
| 127 | 2840050 | 1.00 | 1.21 | |
| Piston set | ||||
| 128 | 2313 | 10.80 | 13.07 | |
| Spring | ||||
| 129 | 2901170 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 130 | 3040270 | |||
| Piston guide | ||||
| 131 | 2900020 | 11.00 | 13.31 | |
| Screw | ||||
| 132 | 2900500 | 2.40 | 2.90 | |
| Lip Seal Set | ||||
| 133 | 42124 | 6.00 | 7.26 | |
| Lip Seal Set | ||||
| 134 | 42124 | 6.00 | 7.26 | |
| Socket | ||||
| 135 | 2840540 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 136 | 2200141 | |||
| Socket | ||||
| 137 | 2840550 | 4.80 | 5.81 | |
| O-Ring Set | ||||
| 138 | 42438 | 8.40 | 10.16 | |
| Pump Drive | ||||
| 139 | 2909134 | 155.10 | 187.67 | |
| O-Ring Set | ||||
| 140 | 42438 | 8.40 | 10.16 | |
| Valve Set | ||||
| 141 | 2233 | 11.00 | 13.31 | |
| Valve Set | ||||
| 142 | 2233 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 143 | 2849051 | |||
| Covering hood | ||||
| 144 | 2840130 | 3.60 | 4.36 | |
| O-Ring Set | ||||
| 145 | 42438 | 8.40 | 10.16 | |
| O-ring | ||||
| 146 | 480560 | 1.00 | 1.21 | |
| Screw | ||||
| 147 | 2840470 | 4.80 | 5.81 | |
| Fitting | ||||
| 148 | 2900130 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 149 | 740290 | |||
| O-Ring Set | ||||
| 150 | 42438 | 8.40 | 10.16 | |
| Spring | ||||
| 151 | 2909005 | 33.00 | 39.93 | |
| Hose connector | ||||
| 152 | 1982520 | 6.00 | 7.26 | |
| O-Ring Set | ||||
| 153 | 42438 | 8.40 | 10.16 | |
| Ball | ||||
| 154 | 1250280 | 1.00 | 1.21 | |
| Spring | ||||
| 155 | 1560520 | 1.00 | 1.21 | |
| Fitting | ||||
| 156 | 2900120 | 7.20 | 8.71 | |
| O-Ring Set | ||||
| 157 | 42438 | 8.40 | 10.16 | |
| Water inlet | ||||
| 158 | 2901060 | 14.30 | 17.30 | |
| O-Ring Set | ||||
| 159 | 42438 | 8.40 | 10.16 | |
| O-Ring Set | ||||
| 160 | 42438 | 8.40 | 10.16 | |
| Compression Spring | ||||
| 161 | 1080091 | 1.20 | 1.45 | |
| Intake valve | ||||
| 162 | 2901070 | 3.60 | 4.36 | |
| O-Ring Set | ||||
| 163 | 42438 | 8.40 | 10.16 | |
| Covering hood | ||||
| 164 | 1980740 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 165 | 740290 | |||
| Pump Drive | ||||
| 166 | 2909134 | 155.10 | 187.67 | |
| Screw | ||||
| 167 | 800220 | 1.00 | 1.21 | |
| O-Ring Set | ||||
| 168 | 42438 | 8.40 | 10.16 | |
| Fitting | ||||
| 169 | 3580320 | 28.60 | 34.61 | |
| O-Ring HW140 | ||||
| 170 | 2440230 | 1.00 | 1.21 | |
| FITTING HW140 A | ||||
| 171 | 42574 | 2.40 | 2.90 | |
