Here you will find all available parts and drawings of the 'Makita HW120'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

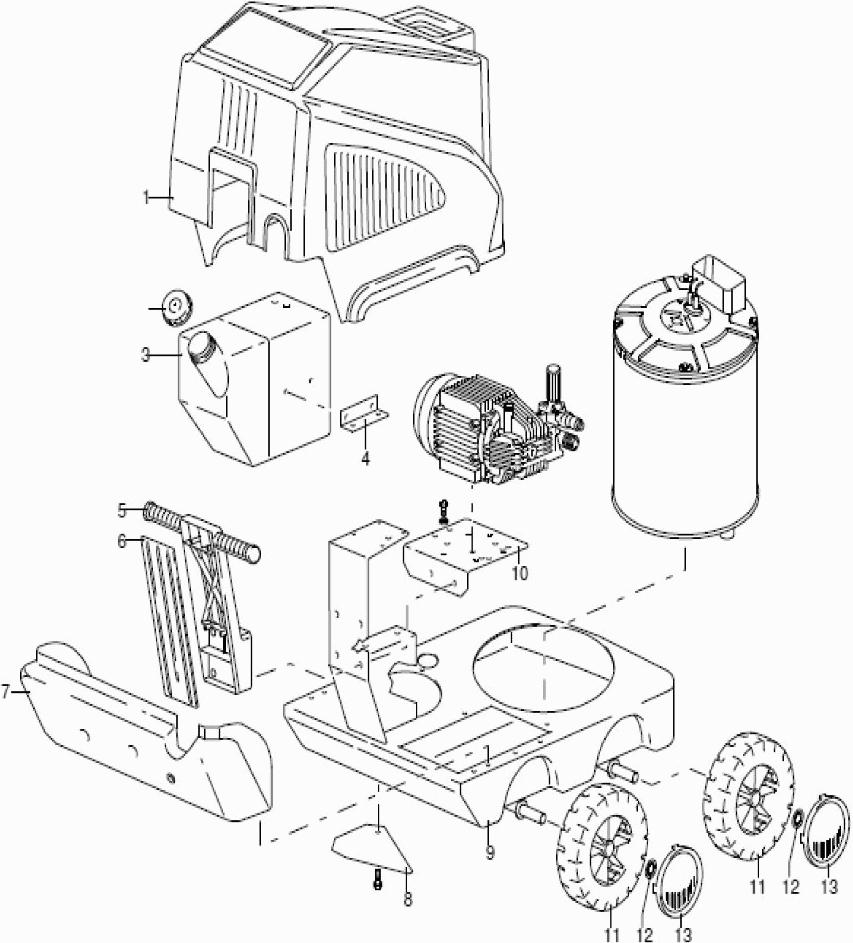

Technical drawing of model Makita HW120
Spare parts list of model Makita HW120
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pipe | ||||
| 001 | 3163190 | 56.10 | 67.88 | |
| Pressure gauge | ||||
| 001 | 3163130 | 28.60 | 34.61 | |
| Cover cap STM 1800 | ||||
| 001 | 3162370 | 19.80 | 23.96 | |
| KNOB | ||||
| 001 | 3161960 | 17.60 | 21.30 | |
| Interference Suppressor | ||||
| 001 | 1263520 | 10.80 | 13.07 | |
| Screw | ||||
| 001 | 1260780 | 1.00 | 1.21 | |
| GASKET | ||||
| 002 | 3161820 | 42.90 | 51.91 | |
| Fitting | ||||
| 002 | 3161250 | 26.40 | 31.94 | |
| Fitting | ||||
| 002 | 3161100 | 23.10 | 27.95 | |
| PLASTIC CAP | ||||
| 002 | 50933 | 23.10 | 27.95 | |
| Ball Bearing | ||||
| 002 | 1340340 | 10.80 | 13.07 | |
| ANGLE PLATE | ||||
| 002 | 3161990 | 8.40 | 10.16 | |
| Crankcase Cover | ||||
| 002 | 1344060 | 6.00 | 7.26 | |
| TANK | ||||
| 003 | 3163030 | 155.10 | 187.67 | |
| Board | ||||
| 003 | 3163120 | 46.20 | 55.90 | |
| Pipe | ||||
| 003 | 3163090 | 26.40 | 31.94 | |
| Fan Housing | ||||
| 003 | 1340320 | 26.40 | 31.94 | |
| Washer | ||||
| 003 | 3162030 | 14.30 | 17.30 | |
| SCREW | ||||
| 003 | 3163540 | 2.40 | 2.90 | |
| Ring | ||||
| 003 | 1040710 | 1.00 | 1.21 | |
| Switch | ||||
| 004 | 50721 | 56.10 | 67.88 | |
| Compression ring | ||||
| 004 | 3161050 | 19.80 | 23.96 | |
| Glass | ||||
| 004 | 3161860 | 17.60 | 21.30 | |
| Board | ||||
| 004 | 3163110 | 17.60 | 21.30 | |
| Fitting | ||||
| 004 | 3164390 | 14.30 | 17.30 | |
| Socket | ||||
| 004 | 1260050 | 4.80 | 5.81 | |
| Screw | ||||
| 004 | 1260760 | 1.00 | 1.21 | |
| MOTOR | ||||
| 005 | 3163490 | 154.00 | 186.34 | |
| Pipe | ||||
| 005 | 3161320 | 82.50 | 99.82 | |
| ANGLE PLATE | ||||
| 005 | 3163010 | 78.10 | 94.50 | |
| Pump Housing | ||||
| 005 | 1344050 | 48.40 | 58.56 | |
| Handle TSC 55 | ||||
| 005 | 3163140 | 46.20 | 55.90 | |
| Fitting | ||||
| 005 | 3161230 | 16.50 | 19.96 | |
| Oil seal | ||||
| 005 | 1340350 | 1.20 | 1.45 | |
| Thermostat | ||||
| 006 | 50720 | 127.60 | 154.40 | |
| TERMINAL | ||||
| 006 | 3160320 | 52.80 | 63.89 | |
| Board | ||||
| 006 | 3161840 | 46.20 | 55.90 | |
| Cover cap STM 1800 | ||||
| 006 | 3163150 | 22.00 | 26.62 | |
| Gasket | ||||
| 006 | 3161030 | 4.80 | 5.81 | |
| Fan | ||||
| 006 | 1260300 | 2.40 | 2.90 | |
| Pump assembly | ||||
| 007 | 1349234 | 247.50 | 299.48 | |
| Cover cap STM 1800 | ||||
| 007 | 3163160 | 83.60 | 101.16 | |
| Fitting | ||||
| 007 | 3161120 | 23.10 | 27.95 | |
| CABLE WITH PLUG | ||||
| 007 | 3161440 | 22.00 | 26.62 | |
| Cable | ||||
| 007 | 1760450 | 19.80 | 23.96 | |
| Nut | ||||
| 007 | 3163960 | 4.80 | 5.81 | |
| Fan house cover | ||||
| 007 | 1342040 | 3.60 | 4.36 | |
| Pump | ||||
| 008 | 3163040 | 155.10 | 187.67 | |
| Cover cap STM 1800 | ||||
| 008 | 3163000 | 36.30 | 43.92 | |
| Nut | ||||
| 008 | 3160490 | 22.00 | 26.62 | |
| Board | ||||
| 008 | 3161910 | 17.60 | 21.30 | |
| Earth Clamp | ||||
| 008 | 1269100 | 8.40 | 10.16 | |
| WASHER | ||||
| 008 | 3163940 | 4.80 | 5.81 | |
| Water Seal | ||||
| 008 | 1260440 | 3.60 | 4.36 | |
| Frame KS 120 | ||||
| 009 | 3162980 | 521.40 | 630.89 | |
| Cover cap STM 1800 | ||||
| 009 | 3161790 | 82.50 | 99.82 | |
| Pipe | ||||
| 009 | 3161280 | 48.40 | 58.56 | |
| COUPLING | ||||
| 009 | 3160300 | 22.00 | 26.62 | |
| Gasket | ||||
| 009 | 1340780 | 1.20 | 1.45 | |
| Ring | ||||
| 009 | 770260 | 1.00 | 1.21 | |
| Board - ALB 012 A | ||||
| 010 | 3160900 | 452.10 | 547.04 | |
| Fitting | ||||
| 010 | 3161160 | 117.70 | 142.42 | |
| Cover cap STM 1800 | ||||
| 010 | 3161780 | 112.20 | 135.76 | |
| ANGLE PLATE | ||||
| 010 | 3163080 | 83.60 | 101.16 | |
| Fitting | ||||
| 010 | 3160330 | 13.20 | 15.97 | |
| Cover cap STM 1800 | ||||
| 010 | 1341830 | 8.40 | 10.16 | |
| Zuigergeleider HW131 | ||||
| 010 | 1342730 | 8.40 | 10.16 | |
| POLE PIECE | ||||
| 011 | 3160770 | 88.00 | 106.48 | |
| Spray Holder | ||||
| 011 | 3161870 | 26.40 | 31.94 | |
| Fitting | ||||
| 011 | 3161240 | 13.20 | 15.97 | |
| Pakking HW131 | ||||
| 011 | 1342760 | 8.40 | 10.16 | |
| Hose connector | ||||
| 011 | 3160340 | 7.20 | 8.71 | |
| Screw | ||||
| 011 | 1261560 | 1.00 | 1.21 | |
| MONDSTUK HW120 | ||||
| 012 | 3161710 | 68.20 | 82.52 | |
| Washer | ||||
| 012 | 3162010 | 22.00 | 26.62 | |
| Pipe | ||||
| 012 | 3161590 | 19.80 | 23.96 | |
| Fitting | ||||
| 012 | 3161150 | 17.60 | 21.30 | |
| Ring HW131 | ||||
| 012 | 1342720 | 1.20 | 1.45 | |
| Compression ring | ||||
| 012 | 1340660 | 1.00 | 1.21 | |
| ANGLE PLATE | ||||
| 013 | 3161560 | 105.60 | 127.78 | |
| KLEP HW120 * | ||||
| 013 | 3160540 | 69.30 | 83.85 | |
| Pipe | ||||
| 013 | 3163780 | 17.60 | 21.30 | |
| Cover cap STM 1800 | ||||
| 013 | 3161950 | 10.80 | 13.07 | |
| Plate HW131 | ||||
| 013 | 1342750 | 2.40 | 2.90 | |
| Compression ring | ||||
| 013 | 1340650 | 1.00 | 1.21 | |
| Electrode | ||||
| 014 | 3161890 | 42.90 | 51.91 | |
| Fitting | ||||
| 014 | 3160480 | 26.40 | 31.94 | |
| Pipe | ||||
| 014 | 3161660 | 11.00 | 13.31 | |
| Klep HW131 | ||||
| 014 | 1349053 | 3.60 | 4.36 | |
| Wartel | ||||
| 014 | 1340640 | 2.40 | 2.90 | |
| Cover cap STM 1800 | ||||
| 015 | 3161770 | 82.50 | 99.82 | |
| Pipe | ||||
| 015 | 3161580 | 26.40 | 31.94 | |
| Filter | ||||
| 015 | 50713 | 23.10 | 27.95 | |
| Screw HW131 | ||||
| 015 | 1260810 | 1.00 | 1.21 | |
| Board | ||||
| 016 | 3161830 | 39.60 | 47.92 | |
| CORD CLAMP | ||||
| 016 | 3162060 | 4.80 | 5.81 | |
| Clamp capacitor HW151 | ||||
| 016 | 1982550 | 2.40 | 2.90 | |
| Adjustment Ring HW131 | ||||
| 016 | 1461470 | 1.20 | 1.45 | |
| O-ring HW131 | ||||
| 016 | 390341 | 1.00 | 1.21 | |
| MOTOR | ||||
| 017 | 4929 | 235.40 | 284.83 | |
| Washer | ||||
| 017 | 3161430 | 30.80 | 37.27 | |
| Fitting | ||||
| 017 | 3160510 | 23.10 | 27.95 | |
| Filter | ||||
| 017 | 3163050 | 22.00 | 26.62 | |
| O-ring HW131 | ||||
| 017 | 1343110 | 1.00 | 1.21 | |
| Pressure Switch | ||||
| 018 | 3161080 | 36.30 | 43.92 | |
| Pipe | ||||
| 018 | 3161600 | 8.40 | 10.16 | |
| Nozzle HW131 | ||||
| 018 | 1342710 | 7.20 | 8.71 | |
| WASHER | ||||
| 018 | 3162040 | 6.00 | 7.26 | |
| Coil | ||||
| 019 | 3161750 | 375.10 | 453.87 | |
| Filter | ||||
| 019 | 3161500 | 22.00 | 26.62 | |
| Boiler | ||||
| 020 | 3161450 | 355.30 | 429.91 | |
| Pipe | ||||
| 020 | 3163170 | 23.10 | 27.95 | |
| Piston HW131 | ||||
| 020 | 1460260 | 4.80 | 5.81 | |
| Guide Support | ||||
| 021 | 3163180 | 553.30 | 669.49 | |
| Detergent Regulator | ||||
| 021 | 3163280 | 83.60 | 101.16 | |
| Lock washer HW131 | ||||
| 021 | 1540140 | 1.00 | 1.21 | |
| Detergent hose | ||||
| 022 | 1270960 | 3.60 | 4.36 | |
| O-ring HW131 | ||||
| 022 | 880270 | 1.00 | 1.21 | |
| CABLE WITH PLUG | ||||
| 023 | 3163210 | 23.10 | 27.95 | |
| Fitting | ||||
| 023 | 1342690 | 16.50 | 19.96 | |
| CORD CLAMP | ||||
| 023 | 1140690 | 3.60 | 4.36 | |
| PLASTIC CAP | ||||
| 024 | 1349000 | 10.80 | 13.07 | |
| Screw HW131 | ||||
| 025 | 881470 | 1.00 | 1.21 | |
| Screw HW131 | ||||
| 026 | 680700 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 027 | 480480 | |||
| Afdekkap HW131 | ||||
| 028 | 1340190 | 3.60 | 4.36 | |
| O-ring HW131 | ||||
| 029 | 780050 | 1.00 | 1.21 | |
| Fitting | ||||
| 030 | 3161220 | 16.50 | 19.96 | |
| Afdekkap HW131 | ||||
| 031 | 1342670 | 46.20 | 55.90 | |
| Screw HW131 | ||||
| 032 | 851100 | 1.00 | 1.21 | |
| Spring HW131 | ||||
| 033 | 1250270 | 1.00 | 1.21 | |
| Ball | ||||
| 034 | 1250280 | 1.00 | 1.21 | |
| Plate HW131 | ||||
| 035 | 1342700 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 036 | 1460430 | |||
| Piston HW131 | ||||
| 037 | 1460150 | 4.80 | 5.81 | |
| Afdekkap HW131 | ||||
| 038 | 1343810 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 039 | 740290 | |||
| Adjustment Ring HW131 | ||||
| 040 | 1260670 | 2.40 | 2.90 | |
| Afdekkap HW131 | ||||
| 041 | 1342680 | 23.10 | 27.95 | |
| Lock washer HW131 | ||||
| 042 | 1381550 | 1.00 | 1.21 | |
| Screw HW131 | ||||
| 043 | 1343510 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 044 | 1080190 | |||
| Piston | ||||
| 045 | 2021900 | 14.30 | 17.30 | |
| Hose set | ||||
| 046 | 1269115 | 13.20 | 15.97 | |
| Ring | ||||
| 047 | 1080401 | 1.20 | 1.45 | |
| Tuimelplaat | ||||
| 048 | 1343450 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 049 | 1460190 | 2.40 | 2.90 | |
| Drukplaat HW131 | ||||
| 050 | 1343000 | 3.60 | 4.36 | |
| Fitting Piece | ||||
| 051 | 1980640 | 16.50 | 19.96 | |
| Nut | ||||
| 052 | 1060120 | 1.00 | 1.21 | |
| SCREW | ||||
| 053 | 392840 | 1.20 | 1.45 | |
| Screw | ||||
| 054 | 1260780 | 1.00 | 1.21 | |
| Pump regulator assy | ||||
| 055 | 2693 | 117.70 | 142.42 | |
| Pressure Switch | ||||
| 056 | 3162890 | 36.30 | 43.92 | |
| Rivet | ||||
| 057 | 1341020 | 1.00 | 1.21 | |
| Screw | ||||
| 058 | 850670 | 1.00 | 1.21 | |
| Crank Shaft | ||||
| 059 | 1340170 | 26.40 | 31.94 | |
| Wedge TSF 55 | ||||
| 060 | 880111 | 1.00 | 1.21 | |
| Ball Bearing | ||||
| 061 | 1341070 | 4.80 | 5.81 | |
| Plate | ||||
| 062 | 480890 | 1.00 | 1.21 | |
| Ring | ||||
| 063 | 111120 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 064 | 1341080 | |||
| Connecting Rod | ||||
| 065 | 1340060 | 4.80 | 5.81 | |
| Borgpin | ||||
| 066 | 1340080 | 2.40 | 2.90 | |
| Connecting Rod | ||||
| 067 | 1340070 | 7.20 | 8.71 | |
| Oil seal | ||||
| 068 | 1260460 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 069 | 600180 | |||
| Rivet | ||||
| 070 | 1341010 | 1.00 | 1.21 | |
| Piston | ||||
| 071 | 1342740 | 24.20 | 29.28 | |
| KNOB | ||||
| 072 | 1981780 | 2.40 | 2.90 | |
| PLASTIC CAP | ||||
| 073 | 1981770 | 2.40 | 2.90 | |
