Here you will find all available parts and drawings of the 'Makita HTR4901'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

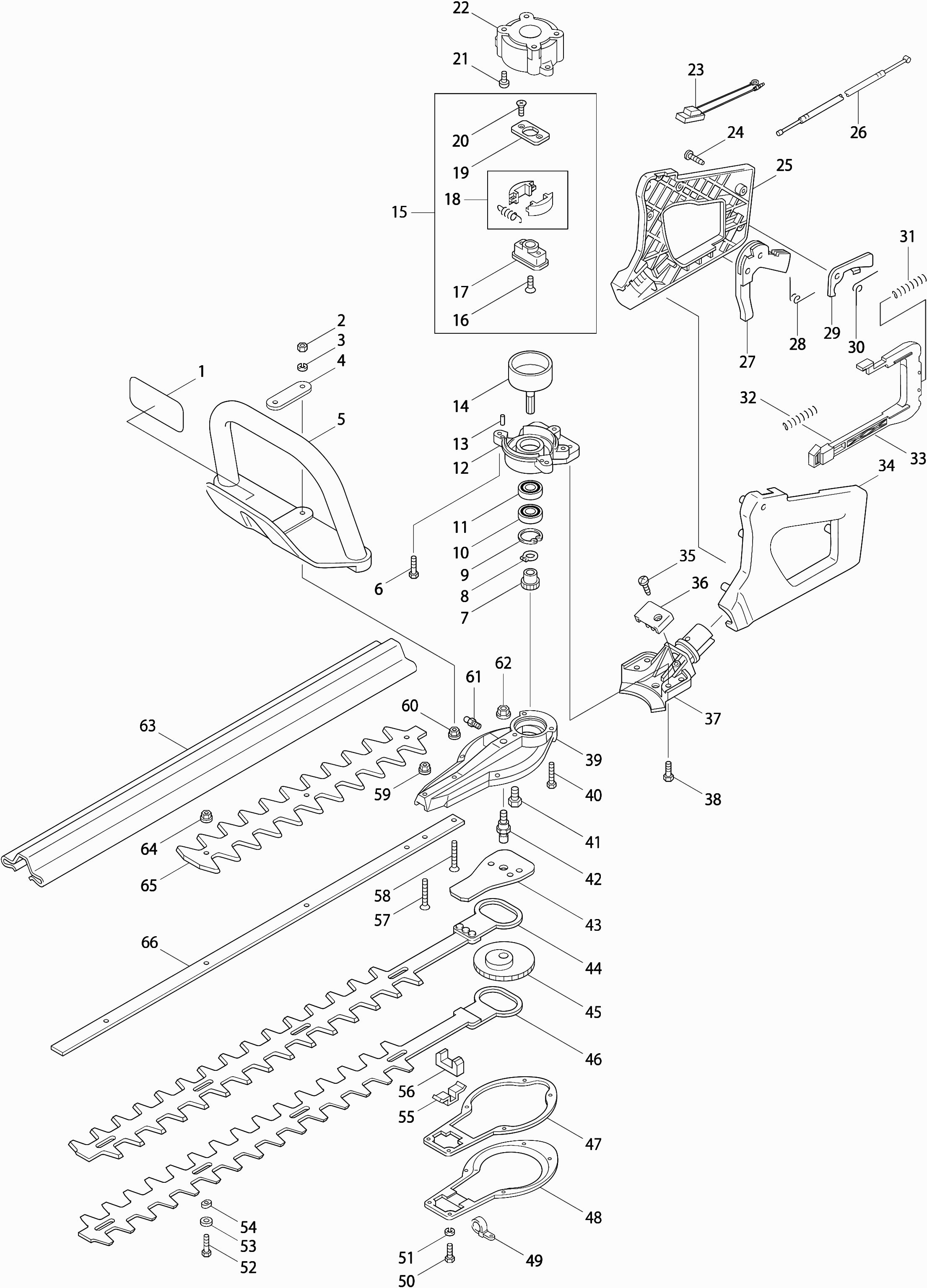

Technical drawing of model Makita HTR4901
Spare parts list of model Makita HTR4901
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Warning Label Eh760 | ||||
| 001 | 0736359980 | 9.60 | 11.62 | |
| Nylon Nut M5 | ||||
| 002 | 030051600N | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 003 | 032050000N | |||
| No information available, not orderable | ||||
| 004 | 303331100N | |||
| Handle | ||||
| 005 | 30333011PK | 13.20 | 15.97 | |
| Screw, Torx M5X20 A | ||||
| 006 | XNR0000098 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 007 | 303355300N | |||
| No information available, not orderable | ||||
| 008 | 045001202N | |||
| Lock washer R-28 | ||||
| 009 | 045002800N | 1.20 | 1.45 | |
| Ball Bearing 6001ll | ||||
| 010 | 035600103N | 13.20 | 15.97 | |
| Ball Bearing 6001ll | ||||
| 011 | 035600103N | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 012 | 370355100N | |||
| PIN | ||||
| 013 | 048041200N | 1.20 | 1.45 | |
| Coupling drum Eh490V A | ||||
| 014 | 303555200N | 42.90 | 51.91 | |
| Koppelingset Eh490V A | ||||
| 015 | 370540000N | 70.40 | 85.18 | |
| Screw 6x18 | ||||
| 016 | 005061800N | 1.00 | 1.21 | |
| Koppelinggeleider | ||||
| 017 | 370540100N | 20.90 | 25.29 | |
| Clutch Shoe Set | ||||
| 018 | 305077000N | 16.50 | 19.96 | |
| Clutch Plate | ||||
| 019 | 305040411N | 4.80 | 5.81 | |
| Screw 4x12 | ||||
| 020 | 005041200N | 1.00 | 1.21 | |
| Screw 5x12 | ||||
| 021 | 002051200N | 1.00 | 1.21 | |
| Base Plate Eh490V * | ||||
| 022 | 303350100N | 44.00 | 53.24 | |
| No information available, not orderable | ||||
| 023 | 099832620N | |||
| No information available, not orderable | ||||
| 024 | 3033413000 | |||
| Rear Handle (b) | ||||
| 025 | 37094021PK | 22.00 | 26.62 | |
| Throttle Wire Comp. | ||||
| 026 | 099861000N | 7.20 | 8.71 | |
| No longer available, no replacement | ||||
| 027 | 30334033PB | |||
| Spring, gas handle- | ||||
| 028 | 303340510N | 3.60 | 4.36 | |
| Lock Lever | ||||
| 029 | 37094060PB | 4.80 | 5.81 | |
| Locking Lever Spring Htr4900 * | ||||
| 030 | 3033407000 | 1.20 | 1.45 | |
| Leaf Spring | ||||
| 031 | 370941300N | 4.80 | 5.81 | |
| Leaf Spring | ||||
| 032 | 370941300N | 4.80 | 5.81 | |
| Lever | ||||
| 033 | 37094081PB | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 034 | 37094010PK | |||
| No information available, not orderable | ||||
| 035 | 3033413000 | |||
| Throttle Cable Holder | ||||
| 036 | 37094120PK | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 037 | 37114100PK | |||
| No information available, not orderable | ||||
| 038 | 0650618000 | |||
| Housing | ||||
| 039 | 303510100N | 36.30 | 43.92 | |
| Torx screw 5x25 | ||||
| 040 | 065052500N | 1.20 | 1.45 | |
| Met.screw Ck M5x16mm | ||||
| 041 | 266605-8 | 1.20 | 1.45 | |
| Crankshaft Eh490V A | ||||
| 042 | 303510700N | 16.50 | 19.96 | |
| Crankshaft Plate Eh490V A | ||||
| 043 | 303511100N | 17.60 | 21.30 | |
| Scissor blade | ||||
| 044 | 303522000N | 63.80 | 77.20 | |
| Gear | ||||
| 045 | 303510800N | 41.80 | 50.58 | |
| Scissor blade | ||||
| 046 | 303522000N | 63.80 | 77.20 | |
| Gasket | ||||
| 047 | 303513000N | 12.10 | 14.64 | |
| No longer available, no replacement | ||||
| 048 | 303510200N | |||
| Klem Eh490V * | ||||
| 049 | 099861500N | 2.40 | 2.90 | |
| Torx Screw 4x12 | ||||
| 050 | 065041200N | 3.60 | 4.36 | |
| Washer 4 | ||||
| 051 | 032040000N | 1.00 | 1.21 | |
| Screw, Torx M5X20 A | ||||
| 052 | XNR0000098 | 1.20 | 1.45 | |
| Washer for Blade Eh490V A | ||||
| 053 | 306020400N | 2.40 | 2.90 | |
| Guide block Eh490V A | ||||
| 054 | 303520900N | 3.60 | 4.36 | |
| Plate | ||||
| 055 | 303511200N | 6.00 | 7.26 | |
| Gasket | ||||
| 056 | 303510400N | 3.60 | 4.36 | |
| Bolt M5x35 | ||||
| 057 | 068053500N | 2.40 | 2.90 | |
| Bolt M5x35 | ||||
| 058 | 068053500N | 2.40 | 2.90 | |
| Flange nut M5 | ||||
| 059 | 030051400N | 1.00 | 1.21 | |
| Flange nut M5 | ||||
| 060 | 030051400N | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 061 | 029060400N | |||
| No information available, not orderable | ||||
| 062 | 030081400N | |||
| Transport protection | ||||
| 063 | 028200039A | 5.00 | 6.05 | |
| Locknut M5 | ||||
| 064 | 030051100N | 1.20 | 1.45 | |
| Safety sheet | ||||
| 065 | 303329000N | 18.70 | 22.63 | |
| No longer available, no replacement | ||||
| 066 | 303520100N | |||
| Screw 5X14 * | ||||
| 067 | 0140059550 | 1.20 | 1.45 | |
| Exhaust cap | ||||
| 068 | 5193500201 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 069 | 0119059600 | |||
| Muffler | ||||
| 070 | 5193020000 | 16.50 | 19.96 | |
| Exhaust Plate Eh490v P | ||||
| 071 | 5193500302 | 2.40 | 2.90 | |
| Ignition | ||||
| 072 | 5197003021 | 86.90 | 105.15 | |
| Hexagon socket screw M4x20 Ck | ||||
| 073 | 922138-0 | 1.00 | 1.21 | |
| Connection Cable Ebh253U P | ||||
| 074 | 638665-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 075 | 5191500301 | |||
| Piston Ring | ||||
| 076 | 257320-5 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 077 | 5192501701 | |||
| Piston Pin | ||||
| 078 | 268277-5 | 4.80 | 5.81 | |
| Lock ring for piston pin | ||||
| 079 | 233976-8 | 1.00 | 1.21 | |
| Crank Shaft | ||||
| 080 | 5192003004 | 176.00 | 212.96 | |
| Lock ring for piston pin | ||||
| 081 | 233976-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 082 | 0140059400 | |||
| Manifold | ||||
| 083 | 5213001000 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 084 | 5233503902 | |||
| Spark Plug Htr4900 | ||||
| 085 | 0650149640 | 18.70 | 22.63 | |
| Cylinder | ||||
| 086 | 318785-7 | 39.60 | 47.92 | |
| No information available, not orderable | ||||
| 087 | 0119059630 | |||
| Spacer | ||||
| 088 | 5503503001 | 2.40 | 2.90 | |
| Feedthrough Eh561 15X7X2Mm * | ||||
| 089 | 5257500300 | 2.40 | 2.90 | |
| Bougieveer Ebh253U A | ||||
| 090 | 324891-8 | 1.20 | 1.45 | |
| Spark Plug Cap Ptr2500 A | ||||
| 091 | 0655009870 | 4.80 | 5.81 | |
| Cover | ||||
| 092 | 5197500002 | 3.60 | 4.36 | |
| Metal screw Ph M5x14mm Ck | ||||
| 093 | 266809-2 | 1.00 | 1.21 | |
| Cylinder cover cap | ||||
| 094 | 5195500701 | 10.80 | 13.07 | |
| Label, Merk- | ||||
| 095 | 6019519500 | 2.40 | 2.90 | |
| Starting device complete | ||||
| 096 | 5195003003 | 15.40 | 18.63 | |
| Start pulley | ||||
| 097 | 168483-1 | 2.40 | 2.90 | |
| Screw set | ||||
| 098 | 5195002060 | 2.40 | 2.90 | |
| Swing arm | ||||
| 099 | 325923-4 | 2.40 | 2.90 | |
| Inner Bush | ||||
| 100 | 451938-6 | 2.40 | 2.90 | |
| Cord reel Eh490V A | ||||
| 101 | 452972-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 102 | 5255016020 | |||
| No information available, not orderable | ||||
| 103 | 5195002050 | |||
| Damper | ||||
| 104 | 5255001040 | 3.60 | 4.36 | |
| Starter Handle | ||||
| 105 | 424319-7 | 3.60 | 4.36 | |
| Model label | ||||
| 106 | 6019519300 | 2.40 | 2.90 | |
| Screw Assy Htr5600 * | ||||
| 107 | 0140049760 | 1.00 | 1.21 | |
| Screw M5X20 Zwt P | ||||
| 108 | 0150059780 | 1.20 | 1.45 | |
| Fan Housing | ||||
| 109 | 5195500800 | 10.80 | 13.07 | |
| Lock nut Eh490V | ||||
| 110 | 0173089990 | 1.20 | 1.45 | |
| Washer G3501-5501R | ||||
| 111 | 0031008000 | 1.00 | 1.21 | |
| Magneto Rotor Comp. | ||||
| 112 | 5197003014 | 61.60 | 74.54 | |
| Crank Case | ||||
| 113 | 5191006000 | 107.80 | 130.44 | |
| Keerring | ||||
| 114 | 213638-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 115 | 266700-4 | |||
| Ball bearing 6000 | ||||
| 116 | 211064-1 | 5.71 | 6.91 | |
| Ball bearing 6000 | ||||
| 117 | 211064-1 | 5.71 | 6.91 | |
| Crankcase Gasket Eh490V A | ||||
| 118 | 442174-5 | 1.20 | 1.45 | |
| Keerring | ||||
| 119 | 213638-4 | 2.40 | 2.90 | |
| Damper | ||||
| 120 | 424104-8 | 2.40 | 2.90 | |
| Fuel tank mounting plate | ||||
| 121 | 5196500201 | 6.00 | 7.26 | |
| Screw Assy Eh490V A | ||||
| 122 | 0043605100 | 1.00 | 1.21 | |
| Induction pipe Eh490V | ||||
| 123 | 0851149950 | 14.30 | 17.30 | |
| Hose clamp IAS 3 | ||||
| 124 | 345920-4 | 1.00 | 1.21 | |
| Fuel filter | ||||
| 125 | 163447-0 | 11.00 | 13.31 | |
| Gasoline tank cpl. | ||||
| 126 | 5196011000 | 11.00 | 13.31 | |
| Petrol/Oil cap cpl | ||||
| 127 | 168668-9 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 128 | 5256067000 | |||
| No information available, not orderable | ||||
| 129 | 5256058000 | |||
| Screw Pt 5X16Mm A | ||||
| 130 | 266714-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 131 | 5103502801 | |||
| New Cable Support | ||||
| 132 | 5256501900 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 133 | 5103502801 | |||
| Carburetor | ||||
| 134 | 5196038000 | 159.50 | 193.00 | |
| Seegering E-3 A | ||||
| 135 | 257964-1 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 136 | 5236018040 | |||
| No information available, not orderable | ||||
| 137 | 5206008030 | |||
| O-ring 2 | ||||
| 138 | 213538-8 | 4.80 | 5.81 | |
| Sprayer | ||||
| 139 | 5256024020 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 140 | 5246001030 | |||
| Pump diaphragm | ||||
| 141 | WJ00009599 | 3.96 | 4.79 | |
| No information available, not orderable | ||||
| 142 | 5236046130 | |||
| No information available, not orderable | ||||
| 143 | 352010-6 | |||
| Diaphragm Gasket | ||||
| 144 | 442154-1 | 7.20 | 8.71 | |
| Diaphragm | ||||
| 145 | 168620-7 | 38.50 | 46.58 | |
| No information available, not orderable | ||||
| 146 | 5236046060 | |||
| Booster pump | ||||
| 147 | 424314-7 | 11.00 | 13.31 | |
| Pump cover Ebh253U A | ||||
| 148 | 346270-0 | 7.20 | 8.71 | |
| Parker 3X24Mm Ck A | ||||
| 149 | 266582-4 | 3.60 | 4.36 | |
| O Ring Rbc201 A | ||||
| 150 | 213632-6 | 1.20 | 1.45 | |
| New air filter housing | ||||
| 151 | 5253003020 | 24.20 | 29.28 | |
| No longer available, no replacement | ||||
| 152 | 5203004010 | |||
| Air filter cap | ||||
| 153 | 5253055010 | 11.00 | 13.31 | |
| Screw 5X60 * | ||||
| 154 | 911681-4 | 1.20 | 1.45 | |
