Here you will find all available parts and drawings of the 'Makita HT5510'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

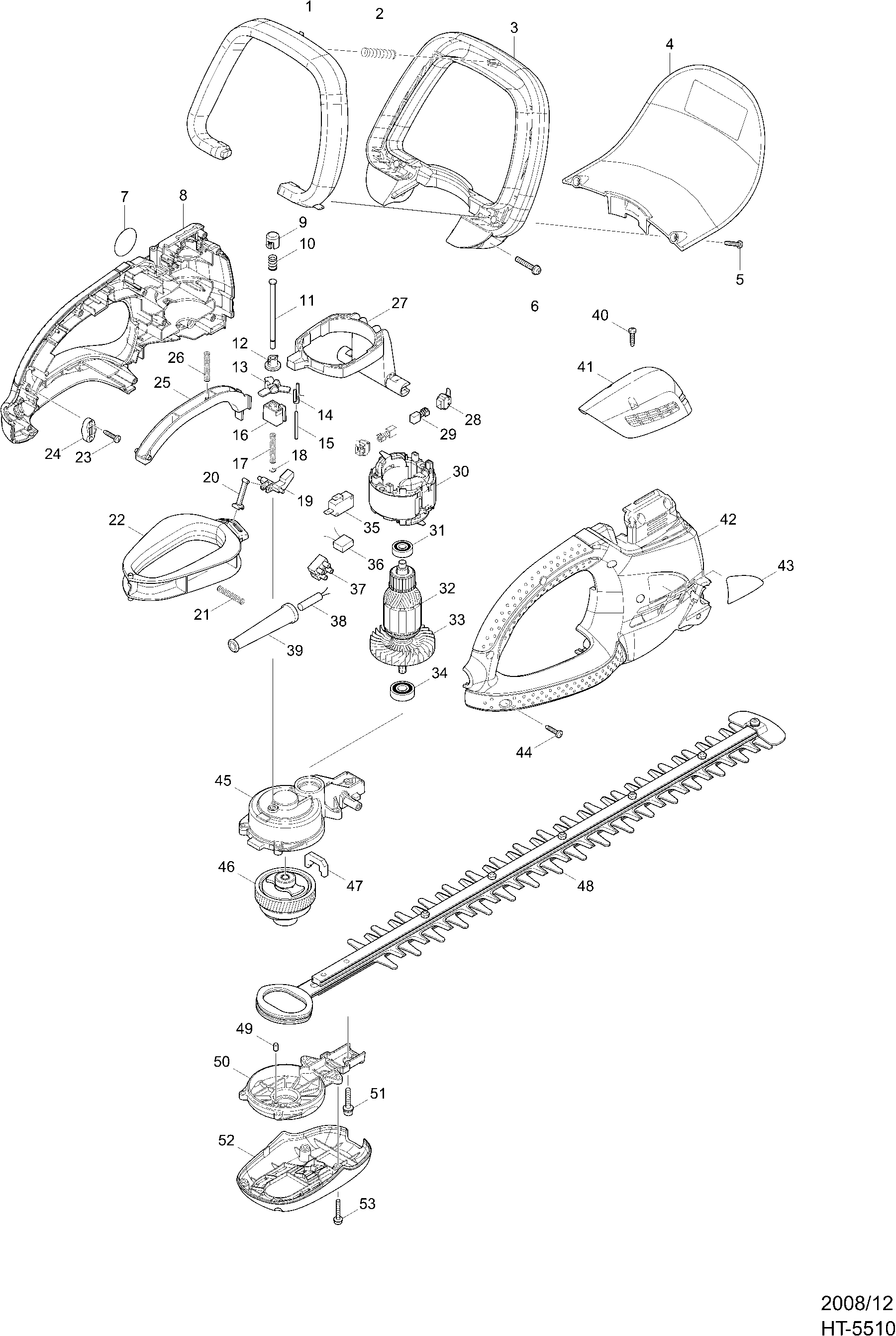

Technical drawing of model Makita HT5510
Spare parts list of model Makita HT5510
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch Button | ||||
| 001 | 450493-5 | 7.20 | 8.71 | |
| Switch Button | ||||
| 1 | 450493-5 | 7.20 | 8.71 | |
| Compression Spring 9 | ||||
| 002 | 233157-4 | 1.00 | 1.21 | |
| Compression Spring 9 | ||||
| 2 | 233157-4 | 1.00 | 1.21 | |
| Front handle | ||||
| 003 | 450442-2 | 11.00 | 13.31 | |
| Front handle | ||||
| 3 | 450442-2 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 004 | 158629-7 | |||
| No information available, not orderable | ||||
| 4 | 158629-7 | |||
| Tap screw 4x18 | ||||
| 005 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 5 | 265A48-7 | 1.00 | 1.21 | |
| Screw 5x30 | ||||
| 006 | 911253-5 | 1.00 | 1.21 | |
| Screw 5x30 | ||||
| 6 | 911253-5 | 1.00 | 1.21 | |
| Nameplate "ht5510" | ||||
| 007 | 865794-2 | 3.60 | 4.36 | |
| Nameplate "ht5510" | ||||
| 7 | 865794-2 | 3.60 | 4.36 | |
| Housing | ||||
| 008 | 188570-0 | 39.60 | 47.92 | |
| Housing | ||||
| 8 | 188570-0 | 39.60 | 47.92 | |
| Guard | ||||
| 009 | 417740-7 | 1.00 | 1.21 | |
| Screw 5x30 | ||||
| 009 | 911253-5 | 1.00 | 1.21 | |
| Screw 5x30 | ||||
| 9 | 911253-5 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 010 | 233288-9 | 1.20 | 1.45 | |
| Compression Spring 8 | ||||
| 10 | 233288-9 | 1.20 | 1.45 | |
| Switch rod Uh45/55/65 A | ||||
| 011 | 268077-3 | 6.00 | 7.26 | |
| Switch rod Uh45/55/65 A | ||||
| 11 | 268077-3 | 6.00 | 7.26 | |
| Nut | ||||
| 012 | 417727-9 | 1.00 | 1.21 | |
| Nut | ||||
| 12 | 417727-9 | 1.00 | 1.21 | |
| Lever | ||||
| 013 | 417736-8 | 1.00 | 1.21 | |
| Lever | ||||
| 13 | 417736-8 | 1.00 | 1.21 | |
| Pressure plate cover | ||||
| 014 | 417735-0 | 1.00 | 1.21 | |
| Pressure plate cover | ||||
| 14 | 417735-0 | 1.00 | 1.21 | |
| Pin 3 | ||||
| 015 | 268078-1 | 1.00 | 1.21 | |
| Pin 3 | ||||
| 15 | 268078-1 | 1.00 | 1.21 | |
| Pin Holder | ||||
| 016 | 417781-3 | 1.20 | 1.45 | |
| Pin Holder | ||||
| 16 | 417781-3 | 1.20 | 1.45 | |
| Compression Spring 5 | ||||
| 017 | 233156-6 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 17 | 233156-6 | 1.00 | 1.21 | |
| Locking ring 4mm A | ||||
| 018 | 927304000 | 1.20 | 1.45 | |
| Locking ring 4mm A | ||||
| 18 | 927304000 | 1.20 | 1.45 | |
| Lever | ||||
| 019 | 417737-6 | 1.20 | 1.45 | |
| Lever | ||||
| 19 | 417737-6 | 1.20 | 1.45 | |
| Rod | ||||
| 020 | 417739-2 | 1.00 | 1.21 | |
| Rod | ||||
| 20 | 417739-2 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 021 | 233156-6 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 21 | 233156-6 | 1.00 | 1.21 | |
| Switch rod c | ||||
| 022 | 417731-8 | 3.60 | 4.36 | |
| Switch rod c | ||||
| 22 | 417731-8 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 023 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 23 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 024 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 24 | 687053-2 | 1.00 | 1.21 | |
| Switch button a | ||||
| 025 | 450443-0 | 2.40 | 2.90 | |
| Switch button a | ||||
| 25 | 450443-0 | 2.40 | 2.90 | |
| Compression Spring 5 | ||||
| 026 | 233156-6 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 26 | 233156-6 | 1.00 | 1.21 | |
| Lever | ||||
| 027 | 417738-4 | 3.60 | 4.36 | |
| Lever | ||||
| 27 | 417738-4 | 3.60 | 4.36 | |
| KOOLBORSTELHOUDR HP1500/2040 A | ||||
| 028 | 643936-6 | 2.40 | 2.90 | |
| KOOLBORSTELHOUDR HP1500/2040 A | ||||
| 28 | 643936-6 | 2.40 | 2.90 | |
| Brush Set CB-419 | ||||
| 029 | 195015-1 | 4.80 | 5.81 | |
| Brush Set CB-419 | ||||
| 29 | 195015-1 | 4.80 | 5.81 | |
| SA FIELD 220-240V | ||||
| 030 | 594578-8 | 20.90 | 25.29 | |
| Motor connection | ||||
| 030 | 654069-2 | 1.00 | 1.21 | |
| Motor connection | ||||
| 30 | 654069-2 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 031 | 210046-0 | 1.20 | 1.45 | |
| Ball Bearing 608Zz A | ||||
| 31 | 210046-0 | 1.20 | 1.45 | |
| Armature 220-240v | ||||
| 032 | 516499-4 | 36.30 | 43.92 | |
| Armature 220-240v | ||||
| 32 | 516499-4 | 36.30 | 43.92 | |
| Fan 70 | ||||
| 033 | 241858-0 | 3.60 | 4.36 | |
| Fan 70 | ||||
| 33 | 241858-0 | 3.60 | 4.36 | |
| Ball bearing 6000rd | ||||
| 034 | 211062-5 | 4.80 | 5.81 | |
| Ball bearing 6000rd | ||||
| 34 | 211062-5 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 035 | 650522-6 | |||
| No information available, not orderable | ||||
| 35 | 650522-6 | |||
| Capacitor 0,1uf | ||||
| 036 | 645105-5 | 3.60 | 4.36 | |
| Capacitor 0,1uf | ||||
| 36 | 645105-5 | 3.60 | 4.36 | |
| Terminal block | ||||
| 037 | 654531-7 | 2.10 | 2.54 | |
| Terminal block | ||||
| 37 | 654531-7 | 2.10 | 2.54 | |
| Power cord 2x0.3 1.5mtr | ||||
| 038 | 666246-4 | 3.60 | 4.36 | |
| Power cord 2x0.3 1.5mtr | ||||
| 38 | 666246-4 | 3.60 | 4.36 | |
| Cable grommet 8-90 | ||||
| 039 | 682503-2 | 2.40 | 2.90 | |
| Cable grommet 8-90 | ||||
| 39 | 682503-2 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 040 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 40 | 265A48-7 | 1.00 | 1.21 | |
| Top cover | ||||
| 041 | 450445-6 | 4.80 | 5.81 | |
| Top cover | ||||
| 41 | 450445-6 | 4.80 | 5.81 | |
| Housing | ||||
| 042 | 188570-0 | 39.60 | 47.92 | |
| Housing | ||||
| 42 | 188570-0 | 39.60 | 47.92 | |
| Nameplate "ht5510" | ||||
| 043 | 865794-2 | 3.60 | 4.36 | |
| Nameplate "ht5510" | ||||
| 43 | 865794-2 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 044 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 44 | 265A48-7 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 045 | 318257-2 | 17.60 | 21.30 | |
| Gear Cover | ||||
| 45 | 318257-2 | 17.60 | 21.30 | |
| Drive eccentric | ||||
| 046 | 135217-7 | 139.70 | 169.04 | |
| Drive eccentric | ||||
| 46 | 135217-7 | 139.70 | 169.04 | |
| Dust Guide | ||||
| 047 | 443142-1 | 1.00 | 1.21 | |
| Dust Guide | ||||
| 47 | 443142-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 048 | 194672-2 | |||
| No information available, not orderable | ||||
| 048A | 252184-2 | |||
| Bus 5 | ||||
| 048B | 257717-8 | 2.40 | 2.90 | |
| Crosshead screw 5x20mm | ||||
| 048C | 265181-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 048D | 345205-8 | |||
| Screw 5x10 | ||||
| 048E | 911208-0 | 1.00 | 1.21 | |
| Oil guide set | ||||
| 048F | 188605-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 48 | 194672-2 | |||
| Rubber Pin 4 | ||||
| 049 | 263002-9 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 49 | 263002-9 | 1.00 | 1.21 | |
| Inner Cover | ||||
| 050 | 318265-3 | 14.30 | 17.30 | |
| Inner Cover | ||||
| 50 | 318265-3 | 14.30 | 17.30 | |
| Sheet metal screw 5x25 | ||||
| 051 | 265B66-1 | 0.95 | 1.15 | |
| Sheet metal screw 5x25 | ||||
| 51 | 265B66-1 | 0.95 | 1.15 | |
| Lower Cover | ||||
| 052 | 450440-6 | 6.00 | 7.26 | |
| Lower Cover | ||||
| 52 | 450440-6 | 6.00 | 7.26 | |
| Screw 4x25 | ||||
| 053 | 911148-2 | 1.00 | 1.21 | |
| Screw 4x25 | ||||
| 53 | 911148-2 | 1.00 | 1.21 | |
