Here you will find all available parts and drawings of the 'Makita HT43'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

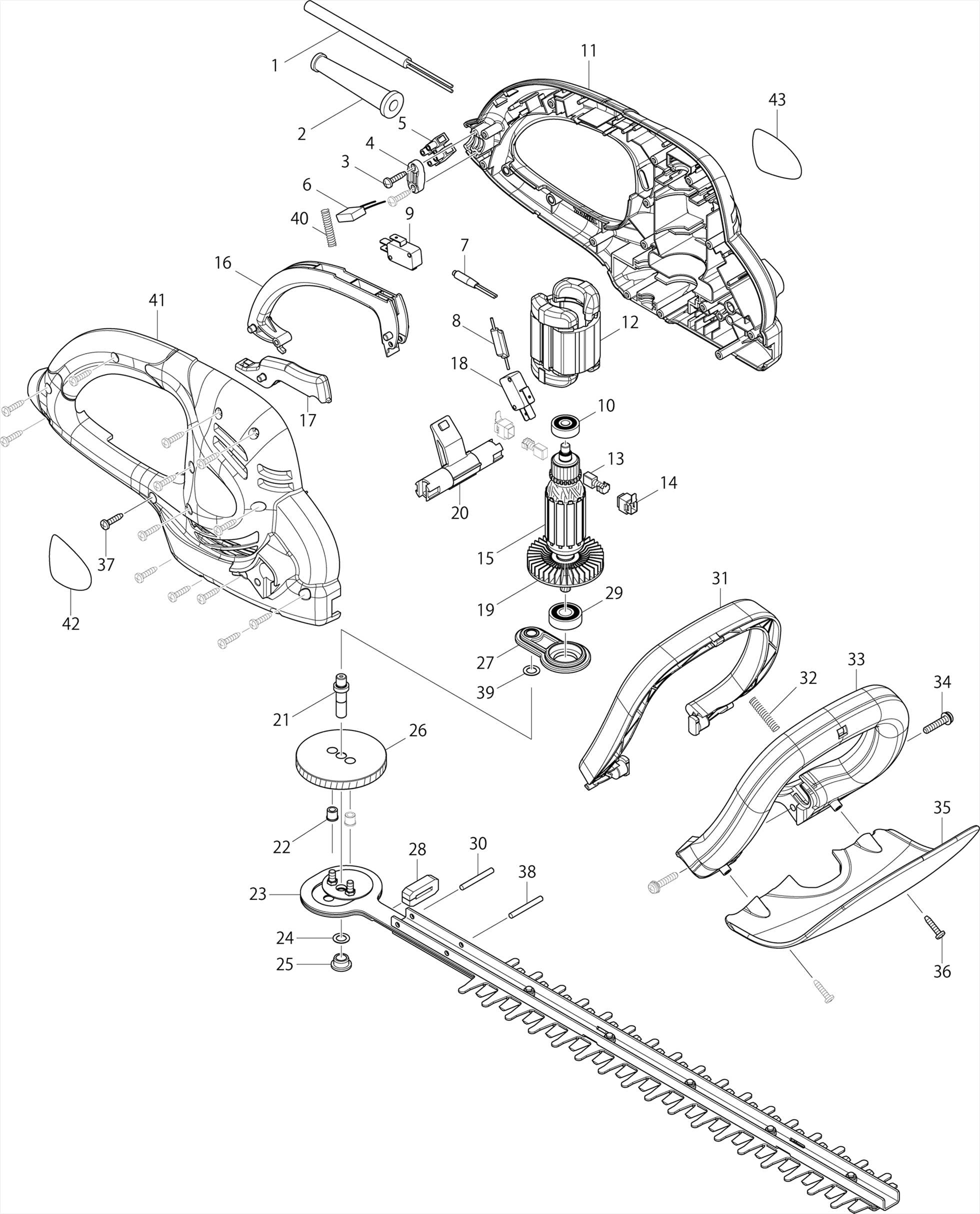

Technical drawing of model Makita HT43
Spare parts list of model Makita HT43
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| A01 | 194678-0 | |||
| No information available, not orderable | ||||
| A01-1 | 194678-0 | |||
| No information available, not orderable | ||||
| A02 | 158024-1 | |||
| No information available, not orderable | ||||
| A03 | 452683-6 | |||
| LABEL WAARSCH. UH5570 | ||||
| C10 | 8074L2-3 | 2.40 | 2.90 | |
| Hex Nut M5 | ||||
| C10 | 931202-6 | 1.00 | 1.21 | |
| Line filter | ||||
| E03 | 688131-1 | 1.00 | 1.21 | |
| Line filter | ||||
| E03-1 | 688131-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| F01 | 194678-0 | |||
| No information available, not orderable | ||||
| F02 | 194680-3 | |||
| No information available, not orderable | ||||
| F03 | 195051-7 | |||
| Power cord 2x1.00 0.3mtr | ||||
| 001 | 665877-6 | 2.71 | 3.28 | |
| Power cord 2x1.00 0.3mtr | ||||
| 001-1 | 665877-6 | 2.71 | 3.28 | |
| Cable grommet 9.3-85 | ||||
| 002 | 682516-3 | 1.20 | 1.45 | |
| Cable grommet 10-85 | ||||
| 002-1 | 682504-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 003 | 266326-2 | |||
| Clamp Bracket | ||||
| 004 | 687124-5 | 1.00 | 1.21 | |
| Terminal block | ||||
| 005 | 654531-7 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 006 | 645200-1 | |||
| Noise suppression capacitor | ||||
| 006-1 | 645089-7 | 1.00 | 1.21 | |
| RESISTOR | ||||
| 007 | 646056-5 | 3.60 | 4.36 | |
| CAPACITOR | ||||
| 007-1 | 646153-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 008 | 646090-5 | |||
| Switch | ||||
| 009 | 650642-6 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 010 | 210030-5 | |||
| No information available, not orderable | ||||
| 011 | 187053-7 | |||
| No information available, not orderable | ||||
| 011-1 | 183S10-7 | |||
| SA FIELD 220-240V | ||||
| 012 | 621753-4 | 25.30 | 30.61 | |
| Brush Set CB-419 | ||||
| 013 | 195015-1 | 4.80 | 5.81 | |
| Brush Set CB-419 | ||||
| 013-1 | 195015-1 | 4.80 | 5.81 | |
| Brush Holder | ||||
| 014 | 643923-5 | 1.18 | 1.43 | |
| Armature 240v | ||||
| 015 | 515824-6 | 24.20 | 29.28 | |
| Switch Handle | ||||
| 016 | 452677-1 | 2.40 | 2.90 | |
| Rotary knob ABB OHYS2AJ | ||||
| 017 | 452680-2 | 1.20 | 1.45 | |
| Switch | ||||
| 018 | 650642-6 | 3.60 | 4.36 | |
| Fan 60 | ||||
| 019 | 241850-6 | 8.40 | 10.16 | |
| Switching Arm | ||||
| 020 | 452681-0 | 1.20 | 1.45 | |
| As Uh42/48/5261 A | ||||
| 021 | 326034-8 | 2.40 | 2.90 | |
| Sliding bearing 5mm | ||||
| 022 | 262570-9 | 1.00 | 1.21 | |
| SCHAARMESSENSET 42 CM | ||||
| 023 | 140826-9 | 31.00 | 37.51 | |
| Washer 8 | ||||
| 024 | 253777-8 | 1.00 | 1.21 | |
| Slide Bearing 8mm | ||||
| 025 | 214064-0 | 1.20 | 1.45 | |
| Gear 67mm | ||||
| 026 | 227745-7 | 8.40 | 10.16 | |
| Gear 67mm | ||||
| 026-1 | 227745-7 | 8.40 | 10.16 | |
| Bearing Housing | ||||
| 027 | 140828-5 | 6.00 | 7.26 | |
| Dust Guide | ||||
| 028 | 423417-4 | 1.20 | 1.45 | |
| Ball bearing 6000rd | ||||
| 029 | 211062-5 | 4.80 | 5.81 | |
| Pen 4 | ||||
| 030 | 268136-3 | 1.20 | 1.45 | |
| Switch handle "b" | ||||
| 031 | 452679-7 | 3.60 | 4.36 | |
| Compression Spring 5 | ||||
| 032 | 233156-6 | 1.00 | 1.21 | |
| Handle | ||||
| 033 | 452682-8 | 6.00 | 7.26 | |
| Screw 5x25 | ||||
| 034 | 911243-8 | 1.00 | 1.21 | |
| Guard | ||||
| 035 | 140829-3 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 035-1 | 1410D4-2 | |||
| No information available, not orderable | ||||
| 036 | 266326-2 | |||
| No information available, not orderable | ||||
| 037 | 266326-2 | |||
| Pen 4 | ||||
| 038 | 268136-3 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 039 | 253777-8 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 040 | 233156-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 041 | 187053-7 | |||
| No information available, not orderable | ||||
| 041-1 | 183S10-7 | |||
| No information available, not orderable | ||||
| 042 | 869245-7 | |||
| No information available, not orderable | ||||
| 043 | 892655-3 | |||
| CAPACITOR | ||||
| 044 | 645277-6 | 1.20 | 1.45 | |
