Here you will find all available parts and drawings of the 'Makita HT2556D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

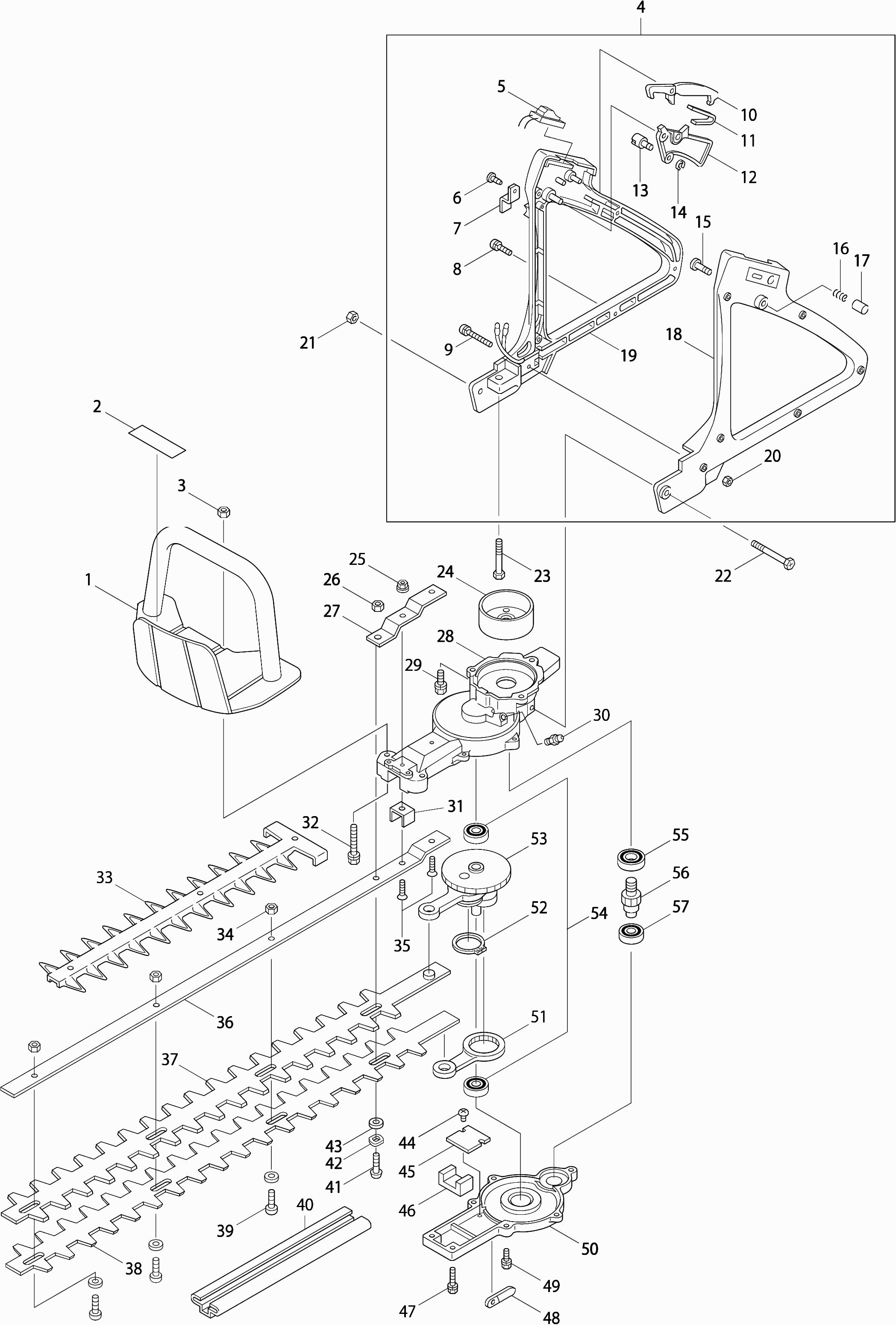

Technical drawing of model Makita HT2556D
Spare parts list of model Makita HT2556D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Lever | ||||
| 001 | 1181150000 | 4.80 | 5.81 | |
| Warning Label Eh760 | ||||
| 002 | 0736359980 | 9.60 | 11.62 | |
| Nut M6 Htr5600 P * | ||||
| 003 | 0151060000 | 1.20 | 1.45 | |
| Handle Set | ||||
| 004 | 1180030000 | 81.40 | 98.49 | |
| Schakelaar Htr5600 A | ||||
| 005 | 0005044004 | 11.00 | 13.31 | |
| Brush Holder | ||||
| 005 | 638921-2 | 4.80 | 5.81 | |
| M4X10 Screw Htr5600 | ||||
| 006 | 0112040100 | 1.20 | 1.45 | |
| Cable Cleat | ||||
| 007 | 1181210000 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 008 | 0017040160 | |||
| Screw M4X30 Htr5600 A | ||||
| 009 | 0017040300 | 1.20 | 1.45 | |
| Lock Lever | ||||
| 010 | 1181510000 | 4.80 | 5.81 | |
| Leaf Spring New | ||||
| 011 | 1181620000 | 6.00 | 7.26 | |
| Lever | ||||
| 012 | 1181150000 | 4.80 | 5.81 | |
| Nipple | ||||
| 013 | 1181110000 | 10.80 | 13.07 | |
| Lock Ring Htr5600 | ||||
| 014 | 0280002500 | 1.20 | 1.45 | |
| Pin | ||||
| 015 | 1181120000 | 6.00 | 7.26 | |
| Spring | ||||
| 016 | 1181140000 | 2.40 | 2.90 | |
| Cap of Pen | ||||
| 017 | 1181130000 | 3.60 | 4.36 | |
| Rear Handle L | ||||
| 018 | 1181500000 | 13.20 | 15.97 | |
| Rear Handle R | ||||
| 019 | 1181490000 | 11.00 | 13.31 | |
| Moer M4 Htr5600 | ||||
| 020 | 0015004000 | 1.20 | 1.45 | |
| Nut M6 Htr5600 P * | ||||
| 021 | 0151060000 | 1.20 | 1.45 | |
| Bolt M6X50 Htr5600 A | ||||
| 022 | 0055060500 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 023 | 0055060400 | |||
| DRUM | ||||
| 024 | 1361410000 | 16.50 | 19.96 | |
| Flange nut M5 | ||||
| 025 | 162050000K | 1.00 | 1.21 | |
| Flange nut M5 | ||||
| 026 | 162050000K | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 027 | 0325102004 | |||
| Koppelingshuis Htr5600 | ||||
| 028 | 0325100002 | 58.30 | 70.54 | |
| Hex bolt 6x15 Uh561 A | ||||
| 029 | 054060150K | 1.20 | 1.45 | |
| Grease nipple M6 Htr5600 | ||||
| 030 | 0055000100 | 4.80 | 5.81 | |
| Guide plate | ||||
| 031 | 3251030040 | 8.40 | 10.16 | |
| Bolt M6X35 Htr5600 | ||||
| 032 | 0054060350 | 2.40 | 2.90 | |
| Stationary blade Htr5600 A | ||||
| 033 | XOC0000030 | 17.60 | 21.30 | |
| Hexagonal Bolt M6 | ||||
| 034 | 164060000K | 1.20 | 1.45 | |
| Screw M5X20 Htr5600 | ||||
| 035 | 0011050205 | 2.40 | 2.90 | |
| Blade Knife Support | ||||
| 036 | 1181260000 | 36.30 | 43.92 | |
| Upper Shear Blade | ||||
| 037 | 6018505400 | 56.10 | 67.88 | |
| Lower shear blade | ||||
| 038 | 6018505500 | 56.10 | 67.88 | |
| Schroef voor blad (l=19) | ||||
| 039 | 040002009A | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 040 | 0028002039 | |||
| Screw M6X22 Htr5600 P | ||||
| 041 | 0040003009 | 3.60 | 4.36 | |
| Washer Spring | ||||
| 042 | 229060000K | 1.20 | 1.45 | |
| Washer for Cutting Blade Eh561 | ||||
| 043 | 0082500000 | 1.20 | 1.45 | |
| Screw M3X5 Htr5600 | ||||
| 044 | 0010030050 | 1.20 | 1.45 | |
| Connecting Rod Plate Eh561 | ||||
| 045 | 0301100000 | 7.20 | 8.71 | |
| Damping felt | ||||
| 046 | 3251040040 | 8.40 | 10.16 | |
| Bolt M6X16 Htr5600 A | ||||
| 047 | 0054050160 | 1.20 | 1.45 | |
| Clamp Rbc415 * | ||||
| 048 | 0566079970 | 1.20 | 1.45 | |
| Bolt M6X16 Htr5600 A | ||||
| 049 | 0054050160 | 1.20 | 1.45 | |
| Scale A | ||||
| 050 | 3251010020 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 051 | 1A044000TE | |||
| Lock Ring Stw-26 Eh561 * | ||||
| 052 | 283026000K | 2.40 | 2.90 | |
| Gear | ||||
| 053 | 1360030000 | 104.50 | 126.44 | |
| Ball Bearing 608Zz A | ||||
| 054 | 210046-0 | 1.20 | 1.45 | |
| Ball Bearing Uu 6001 Htr5600 | ||||
| 055 | 0354060010 | 17.60 | 21.30 | |
| Gear Shaft | ||||
| 056 | 1361420000 | 38.50 | 46.58 | |
| Ball Bearing 608Zz A | ||||
| 057 | 210046-0 | 1.20 | 1.45 | |
| Screw Assy Htr5600 * | ||||
| 058 | 0140059290 | 1.00 | 1.21 | |
| Exhaust Cap | ||||
| 059 | 5253500500 | 9.60 | 11.62 | |
| Bolt | ||||
| 060 | 266754-1 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 061 | 5253071000 | |||
| Exhaust Gasket | ||||
| 062 | 5253500102 | 2.40 | 2.90 | |
| Metal screw Ph M5x14mm Ck | ||||
| 063 | 266809-2 | 1.00 | 1.21 | |
| Washer Eh561 * | ||||
| 064 | 0200070010 | 1.20 | 1.45 | |
| Cylinder cover | ||||
| 065 | 5255504100 | 6.00 | 7.26 | |
| Spark plug cap | ||||
| 066 | 5237503301 | 6.00 | 7.26 | |
| Protective sleeve Eh561 | ||||
| 067 | 0851049950 | 2.40 | 2.90 | |
| Bougieveer Ebh253U A | ||||
| 068 | 324891-8 | 1.20 | 1.45 | |
| Feedthrough Eh561 15X7X2Mm * | ||||
| 069 | 5257500300 | 2.40 | 2.90 | |
| Spacer | ||||
| 070 | 5503503001 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 071 | 0119059630 | |||
| Cylinder | ||||
| 072 | 318762-9 | 92.40 | 111.80 | |
| No information available, not orderable | ||||
| 073 | 0650149721 | |||
| Gasket | ||||
| 074 | 5253500200 | 1.20 | 1.45 | |
| Insulator | ||||
| 075 | 141056-5 | 9.60 | 11.62 | |
| Screw 5X25 P | ||||
| 076 | 0140059500 | 1.20 | 1.45 | |
| Ignition | ||||
| 077 | 5257001021 | 24.20 | 29.28 | |
| Screw 4x20 | ||||
| 078 | 911138-5 | 1.00 | 1.21 | |
| Wire 2 Eh561 * | ||||
| 079 | 5607005000 | 3.60 | 4.36 | |
| Cylinder gasket | ||||
| 080 | 442171-1 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 081 | 5242500701 | |||
| Piston | ||||
| 082 | 5232501902 | 13.20 | 15.97 | |
| Piston Pin | ||||
| 083 | 257781-9 | 3.60 | 4.36 | |
| Lock ring for piston pin | ||||
| 084 | 233976-8 | 1.00 | 1.21 | |
| Crank Shaft | ||||
| 085 | 5252002002 | 124.30 | 150.40 | |
| Startinrichting | ||||
| 086 | 5255052000 | 16.50 | 19.96 | |
| Pulley (1) | ||||
| 087 | 5255505900 | 3.60 | 4.36 | |
| Screw set | ||||
| 088 | 5195002060 | 2.40 | 2.90 | |
| Swing arm | ||||
| 089 | 325923-4 | 2.40 | 2.90 | |
| Inner Bush | ||||
| 090 | 451938-6 | 2.40 | 2.90 | |
| Cord reel Eh490V A | ||||
| 091 | 452972-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 092 | 5255016020 | |||
| No information available, not orderable | ||||
| 093 | 5195002050 | |||
| Starter Handle | ||||
| 094 | 424319-7 | 3.60 | 4.36 | |
| Damper | ||||
| 095 | 5255001040 | 3.60 | 4.36 | |
| Model label | ||||
| 096 | 6019509200 | 2.40 | 2.90 | |
| Screw Assy Htr5600 * | ||||
| 097 | 0140049760 | 1.00 | 1.21 | |
| Clamp | ||||
| 098 | 345963-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 099 | 0140059350 | |||
| Fan Housing | ||||
| 100 | 5255506000 | 7.20 | 8.71 | |
| Bolt | ||||
| 101 | 5257501400 | 3.60 | 4.36 | |
| Spring washer Rbc310-G2400- * | ||||
| 102 | 0032006000 | 1.00 | 1.21 | |
| Rivet RBC230-G24-350 P | ||||
| 103 | 0031206000 | 1.00 | 1.21 | |
| Magneto Rotor Comp. | ||||
| 104 | 5257041010 | 59.40 | 71.87 | |
| No information available, not orderable | ||||
| 105 | 266700-4 | |||
| Crank Case | ||||
| 106 | 5251003000 | 59.40 | 71.87 | |
| Oil seal | ||||
| 106A | 213628-7 | 2.40 | 2.90 | |
| Ball Bearing 6001C3 Rpt250 A | ||||
| 106B | 210113-1 | 6.00 | 7.26 | |
| Crankcase Gasket | ||||
| 107 | 424447-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 108 | 5256002000 | |||
| No information available, not orderable | ||||
| 109 | 1181240000 | |||
| No information available, not orderable | ||||
| 110 | 0140059350 | |||
| Threaded bolt M6x14mm | ||||
| 111 | 266703-8 | 1.20 | 1.45 | |
| Holder | ||||
| 112 | 6202500000 | 3.60 | 4.36 | |
| Ring | ||||
| 113 | 267429-5 | 1.20 | 1.45 | |
| Clutch Spring | ||||
| 114 | 5238500500 | 2.40 | 2.90 | |
| Clutch shoe | ||||
| 115 | 6252500801 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 116 | 0200089911 | |||
| Allen screw M6x25mm | ||||
| 117 | 266864-4 | 2.40 | 2.90 | |
| Pipe | ||||
| 118 | 5256012001 | 6.00 | 7.26 | |
| Screw Assy Htr5600 * | ||||
| 119 | 0140059290 | 1.00 | 1.21 | |
| Hose clamp IAS 3 | ||||
| 120 | 345920-4 | 1.00 | 1.21 | |
| Fuel filter | ||||
| 121 | 163447-0 | 11.00 | 13.31 | |
| FUEL TANK | ||||
| 122 | 5256025000 | 13.20 | 15.97 | |
| No longer available, no replacement | ||||
| 123 | 0150059800 | |||
| Petrol/Oil cap cpl | ||||
| 124 | 168668-9 | 24.20 | 29.28 | |
| Petrol/Oil cap cpl | ||||
| 125 | 168668-9 | 24.20 | 29.28 | |
| Petrol/Oil cap cpl | ||||
| 126 | 168668-9 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 127 | 5103502801 | |||
| Cable adjustment screw | ||||
| 128 | 5316020020 | 6.00 | 7.26 | |
| Nut M6 Htr5600 A | ||||
| 129 | 0022706000 | 1.00 | 1.21 | |
| New Cable Support | ||||
| 130 | 5256501900 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 131 | 5103502801 | |||
| Control Cable Eh561 New A | ||||
| 132 | 0630029830 | 6.00 | 7.26 | |
| No longer available, no replacement | ||||
| 133 | 5256085000 | |||
| Seegering E-3 A | ||||
| 134 | 257964-1 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 135 | 5236018040 | |||
| No information available, not orderable | ||||
| 136 | 5206008030 | |||
| Throttle valve compl | ||||
| 137 | 5196002010 | 27.50 | 33.28 | |
| O-ring 2 | ||||
| 138 | 213538-8 | 4.80 | 5.81 | |
| Sprayer | ||||
| 139 | 326085-1 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 140 | 5246001030 | |||
| Pump diaphragm | ||||
| 141 | WJ00009599 | 3.96 | 4.79 | |
| No information available, not orderable | ||||
| 142 | 352010-6 | |||
| No information available, not orderable | ||||
| 143 | 5236046130 | |||
| Diaphragm Gasket | ||||
| 144 | 442154-1 | 7.20 | 8.71 | |
| Diaphragm | ||||
| 145 | 168620-7 | 38.50 | 46.58 | |
| No information available, not orderable | ||||
| 146 | 5236046060 | |||
| Booster pump | ||||
| 147 | 424314-7 | 11.00 | 13.31 | |
| Pump cover Ebh253U A | ||||
| 148 | 346270-0 | 7.20 | 8.71 | |
| Parker 3X24Mm Ck A | ||||
| 149 | 266582-4 | 3.60 | 4.36 | |
| O Ring Rbc201 A | ||||
| 150 | 213632-6 | 1.20 | 1.45 | |
| New air filter housing | ||||
| 151 | 5253003020 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 152 | 0043305650 | |||
| No longer available, no replacement | ||||
| 153 | 5203004010 | |||
| Air filter cover | ||||
| 154 | 5253020010 | 10.80 | 13.07 | |
