Here you will find all available parts and drawings of the 'Makita HT-355'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

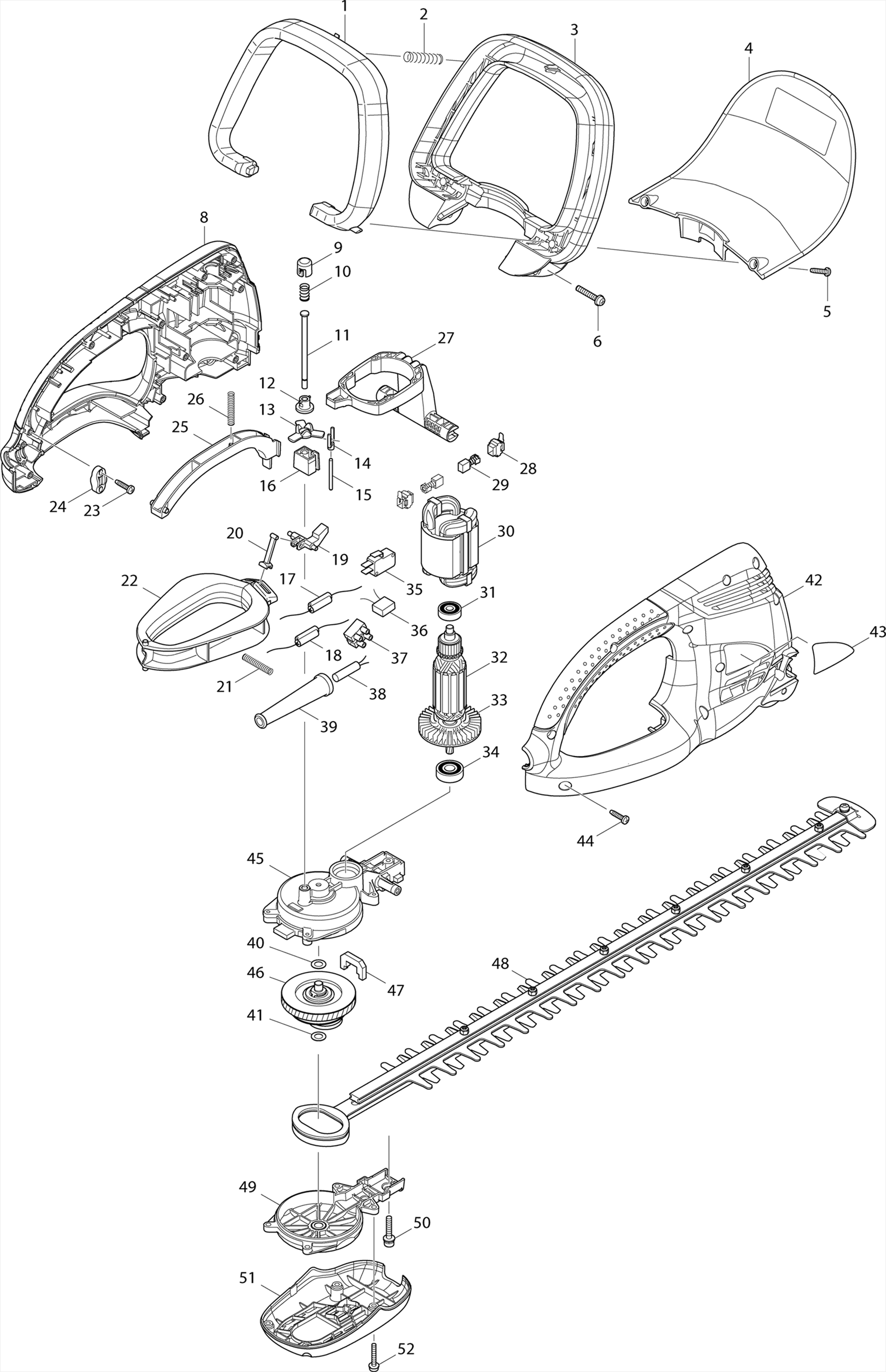

Technical drawing of model Makita HT-355
Spare parts list of model Makita HT-355
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| A01 | 194678-0 | |||
| No information available, not orderable | ||||
| A02 | 158024-1 | |||
| No information available, not orderable | ||||
| A03 | 450491-9 | |||
| No information available, not orderable | ||||
| A03-1 | 450492-7 | |||
| No information available, not orderable | ||||
| C10 | 264013-7 | |||
| No information available, not orderable | ||||
| C20 | 345205-8 | |||
| Screw 5x10 | ||||
| C30 | 911208-0 | 1.00 | 1.21 | |
| Bus 5 | ||||
| C40 | 257766-5 | 1.00 | 1.21 | |
| Crosshead screw 5x20mm | ||||
| C50 | 265181-9 | 1.00 | 1.21 | |
| Oil guide set | ||||
| C60 | 188605-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| E01 | 158932-6 | |||
| Switch Button | ||||
| 001 | 450493-5 | 7.20 | 8.71 | |
| Compression Spring 9 | ||||
| 002 | 233157-4 | 1.00 | 1.21 | |
| Front handle | ||||
| 003 | 450442-2 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 004 | 158912-2 | |||
| No information available, not orderable | ||||
| 004-1 | 141J43-4 | |||
| Tap screw 4x18 | ||||
| 005 | 265A48-7 | 1.00 | 1.21 | |
| Screw 5x30 | ||||
| 006 | 911253-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 008 | 188568-7 | |||
| Guard | ||||
| 009 | 417740-7 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 010 | 233288-9 | 1.20 | 1.45 | |
| Switch rod Uh45/55/65 A | ||||
| 011 | 268077-3 | 6.00 | 7.26 | |
| Nut | ||||
| 012 | 417727-9 | 1.00 | 1.21 | |
| Lever | ||||
| 013 | 417736-8 | 1.00 | 1.21 | |
| Pressure plate cover | ||||
| 014 | 417735-0 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 015 | 268237-7 | 2.40 | 2.90 | |
| Pin Holder | ||||
| 016 | 417781-3 | 1.20 | 1.45 | |
| Lever | ||||
| 019 | 417737-6 | 1.20 | 1.45 | |
| Rod | ||||
| 020 | 417739-2 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 021 | 233156-6 | 1.00 | 1.21 | |
| Switch rod c | ||||
| 022 | 417731-8 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 023 | 265A48-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 024 | 687063-9 | |||
| Switch button a | ||||
| 025 | 450443-0 | 2.40 | 2.90 | |
| Compression Spring 5 | ||||
| 026 | 233156-6 | 1.00 | 1.21 | |
| Lever | ||||
| 027 | 450488-8 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 028 | 643935-8 | |||
| No information available, not orderable | ||||
| 029 | 195007-0 | |||
| No information available, not orderable | ||||
| 030 | 621731-4 | |||
| No information available, not orderable | ||||
| 031 | 211027-7 | |||
| No information available, not orderable | ||||
| 032 | 515736-3 | |||
| Fan 60 | ||||
| 033 | 241850-6 | 8.40 | 10.16 | |
| Ball bearing 6000rd | ||||
| 034 | 211062-5 | 4.80 | 5.81 | |
| Switch Uh45/55/6570 A | ||||
| 035-1 | 650628-0 | 6.00 | 7.26 | |
| Terminal block | ||||
| 037 | 654531-7 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 038 | 660293-7 | |||
| Cable grommet 8-90 | ||||
| 039 | 682503-2 | 2.40 | 2.90 | |
| Washer 8 x 14 x 0.5mm | ||||
| 040 | 253215-0 | 1.00 | 1.21 | |
| Washer 8 x 14 x 0.5mm | ||||
| 041 | 253215-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 042 | 188568-7 | |||
| No information available, not orderable | ||||
| 043 | 865775-6 | |||
| Tap screw 4x18 | ||||
| 044 | 265A48-7 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 045 | 158625-5 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 046 | 158624-7 | |||
| Drive eccentric | ||||
| 046-1 | 158623-9 | 34.10 | 41.26 | |
| Dust Guide | ||||
| 047 | 443142-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 048 | 195254-3 | |||
| No information available, not orderable | ||||
| 048-1 | 194664-1 | |||
| Inner Cover | ||||
| 049 | 158626-3 | 12.10 | 14.64 | |
| Sheet metal screw 5x25 | ||||
| 050 | 265B66-1 | 0.95 | 1.15 | |
| No information available, not orderable | ||||
| 051 | 450441-4 | |||
| Screw 4x25 | ||||
| 052 | 911148-2 | 1.00 | 1.21 | |
