Here you will find all available parts and drawings of the 'Makita HT-2475'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

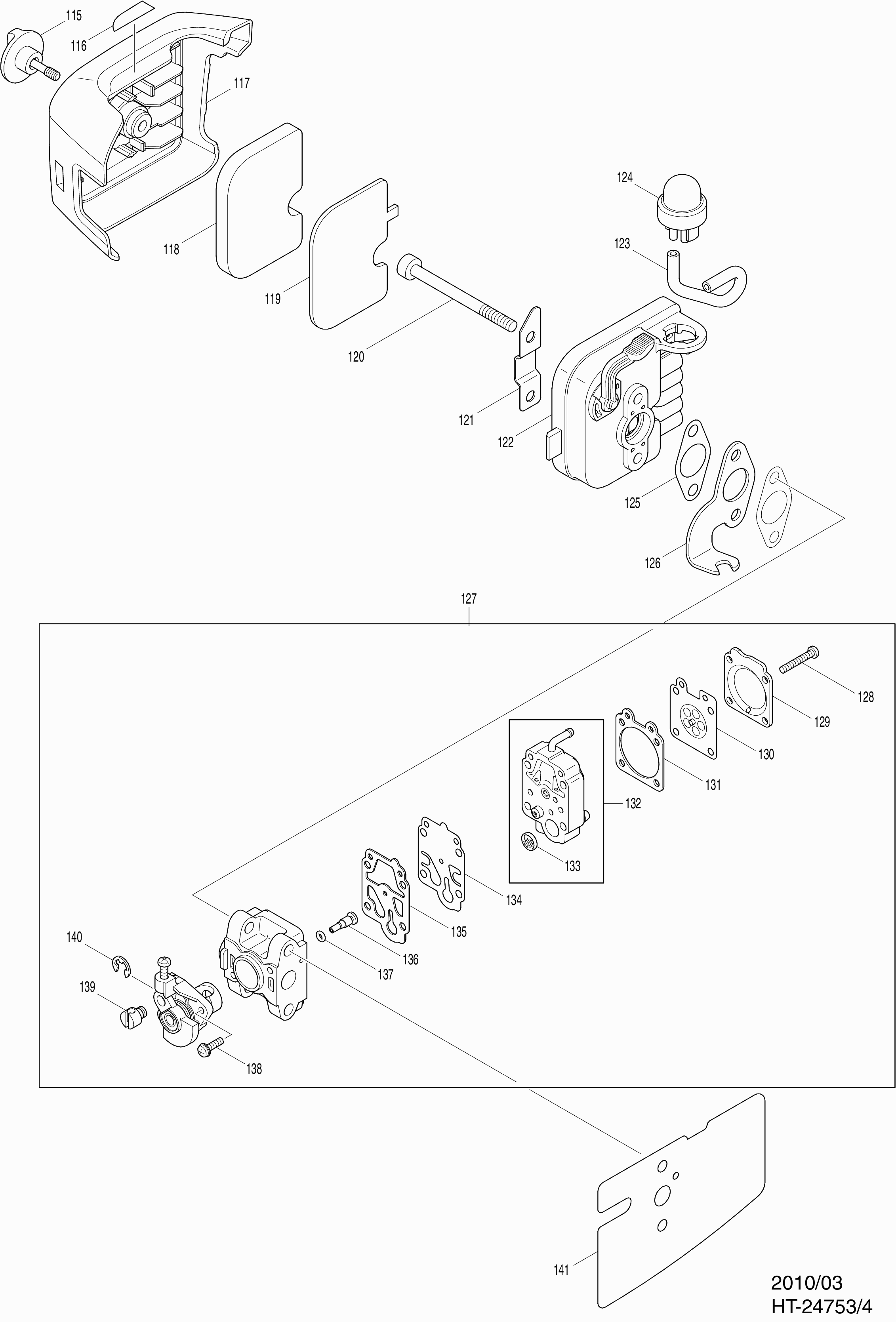

Technical drawing of model Makita HT-2475

Spare parts list of model Makita HT-2475

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Label "Safety"
001 819811-0 3.54 4.28
Label "Safety"
1 819811-0 3.54 4.28
Handle
002 140504-1 25.36 30.69
Handle
2 140504-1 25.36 30.69
Gas/Control Handle
003 125772-7 30.70 37.15
Gas/Control Handle
3 125772-7 30.70 37.15
Clutch
004 168567-5 11.82 14.30
Clutch
4 168567-5 11.82 14.30
Lock washer R-28
005 962106-1 0.83 1.00
Lock washer R-28
5 962106-1 0.83 1.00
Ball bearing Eh7500S
006 0600129780 6.38 7.72
Ball bearing Eh7500S
6 0600129780 6.38 7.72
Gear 9 Eh7500S A
007 221600-5 5.09 6.16
Gear 9 Eh7500S A
7 221600-5 5.09 6.16
Hex socket screw M5X12mm P
008 0119059400 0.83 1.00
Hex socket screw M5X12mm P
8 0119059400 0.83 1.00
Intermediate Plate
009 451865-7 2.71 3.28
Intermediate Plate
9 451865-7 2.71 3.28
Grease nipple
010 243107-1 1.24 1.50
Grease nipple
10 243107-1 1.24 1.50
No information available, not orderable
011 140509-1
No information available, not orderable
11 140509-1
Clamping Plate
012 346253-0 1.46 1.77
Clamping Plate
12 346253-0 1.46 1.77
No information available, not orderable
013 0119059780
No information available, not orderable
13 0119059780
Compression Spring 15mm
014 234182-8 10.52 12.73
Compression Spring 15mm
14 234182-8 10.52 12.73
Hex socket screw M5x16mm EH7500S P
015 0119059360 1.02 1.23
Hex socket screw M5x16mm EH7500S P
15 0119059360 1.02 1.23
Compression Spring 15mm
016 234202-8 5.71 6.91
Compression Spring 15mm
16 234202-8 5.71 6.91
Hex socket screw M5x16mm EH7500S P
017 0119059360 1.02 1.23
Hex socket screw M5x16mm EH7500S P
17 0119059360 1.02 1.23
No information available, not orderable
018 0119059870
No information available, not orderable
18 0119059870
Clamping Plate
019 346252-2 1.24 1.50
Clamping Plate
19 346252-2 1.24 1.50
No information available, not orderable
020 0119059780
No information available, not orderable
20 0119059780
Hose
021 331896-1 4.45 5.38
Hose
21 331896-1 4.45 5.38
Clutch Plate
022 346255-6 2.71 3.28
Clutch Plate
22 346255-6 2.71 3.28
Connecting Rod
023 346251-4 7.22 8.74
Connecting Rod
23 346251-4 7.22 8.74
Gear 43
024 227248-1 17.38 21.03
Gear 43
24 227248-1 17.38 21.03
Hex bolt 4x16
025 922128-3 0.83 1.00
Hex bolt 4x16
25 922128-3 0.83 1.00
Inner Cover
026 318610-2 17.40 21.05
Inner Cover
26 318610-2 17.40 21.05
Hex Socket Screw Ck M5x22mm
027 922237-8 0.83 1.00
Hex Socket Screw Ck M5x22mm
27 922237-8 0.83 1.00
Seal Packing
028 413137-8 3.12 3.78
Seal Packing
28 413137-8 3.12 3.78
Seal
029 443159-4 4.45 5.38
Seal
29 443159-4 4.45 5.38
Holder
030 346256-4 2.48 3.00
Holder
30 346256-4 2.48 3.00
Hex Socket Screw Ck M5x22mm
031 922237-8 0.83 1.00
Metric screw Ck Inb M5x33mm
031 266573-5 0.83 1.00
Metric screw Ck Inb M5x33mm
31 266573-5 0.83 1.00
No information available, not orderable
032 0031105003
Slide bushing
033 313195-3 2.02 2.44
Slide bushing
33 313195-3 2.02 2.44
Blade guide
034 346731-0 20.15 24.38
Blade guide
34 346731-0 20.15 24.38
Metric screw Ck
035 266572-7 0.83 1.00
Screw Assy M5X6Mm Eh7500S
035 0140059150 0.83 1.00
Metric screw Ck
35 266572-7 0.83 1.00
No information available, not orderable
036A 125773-5
Scissor blades Ht-2475 A
036B 126285-1 92.17 111.53
Bus 5
036BD10 313211-1 2.36 2.86
No information available, not orderable
36 125773-5
Lock Nut M6x10
037A 264036-5 1.39 1.68
Lock Nut M6x10
037B 264036-5 1.39 1.68
Lock Nut M6x10
37 264036-5 1.39 1.68
End cap
038A 346288-1 5.06 6.12
End cap Eh7500S
038B 346668-1 11.82 14.30
End cap
38 346288-1 5.06 6.12
Guide Strip Eh7500S
039A 332060-7 11.10 13.43
Guide Strip Eh7500S
039B 332060-7 11.10 13.43
Guide Strip Eh7500S
39 332060-7 11.10 13.43
Plate
040A 346667-3 11.82 14.30
Plate
040B 346667-3 11.82 14.30
Plate
40 346667-3 11.82 14.30
No information available, not orderable
041A 725163-8
No information available, not orderable
041B 725185-8
No information available, not orderable
41 725163-8
No information available, not orderable
042A 725164-6
No information available, not orderable
042B 725186-6
No information available, not orderable
42 725164-6
Plate
043A 346667-3 11.82 14.30
Plate
043B 346667-3 11.82 14.30
Plate
43 346667-3 11.82 14.30
Bolt for shear blade tbc
044A 266578-5 1.18 1.43
Bolt for shear blade tbc
044B 266578-5 1.18 1.43
Bolt for shear blade tbc
44 266578-5 1.18 1.43
Transportbescherming 75 cm
045 451868-1 5.00 6.05
Transportbescherming 75 cm
45 451868-1 5.00 6.05
Label "ht2475"
050 819808-9 2.71 3.28
Label "ht2475"
50 819808-9 2.71 3.28
Screw M4X14
051 0150049860 0.83 1.00
Screw M4X14
51 0150049860 0.83 1.00
Startinrichting
052 125753-1 24.16 29.23
Startinrichting
52 125753-1 24.16 29.23
Starter Handle
053 424319-7 2.71 3.28
Damper
054 5255001040 3.54 4.28
Damper
54 5255001040 3.54 4.28
Starter Spring
055 232258-5 5.71 6.91
Starter Spring
55 232258-5 5.71 6.91
Starter cord
056 444028-2 2.36 2.86
Starter cord
56 444028-2 2.36 2.86
Cord reel
057 452402-0 8.21 9.93
Cord reel
57 452402-0 8.21 9.93
Compression Spring
058 233991-2 6.38 7.72
Compression Spring
58 233991-2 6.38 7.72
Cam plate
059 452403-8 7.57 9.16
Cam plate
59 452403-8 7.57 9.16
Screw set
060 5195002060 2.38 2.88
Screw set
60 5195002060 2.38 2.88
No information available, not orderable
061 451863-1
No information available, not orderable
61 451863-1
Hex socket screw M5X45
062 0119059450 1.20 1.45
Hex socket screw M5X45
62 0119059450 1.20 1.45
Manifold
063 451911-6 5.30 6.41
Manifold
63 451911-6 5.30 6.41
Gasket "manifold"
064 346268-7 4.67 5.65
Gasket "manifold"
64 346268-7 4.67 5.65
No information available, not orderable
065 0119059870
No information available, not orderable
65 0119059870
Spacing bush Eh7500S A
066 452556-3 1.07 1.29
Spacing bush Eh7500S A
66 452556-3 1.07 1.29
No information available, not orderable
067 965603030
No information available, not orderable
67 965603030
No information available, not orderable
068 0654009931
No information available, not orderable
68 0654009931
No information available, not orderable
069 424491-5
No information available, not orderable
69 424491-5
Hexagon socket screw M4x20 Ck
070 922138-0 0.83 1.00
Hexagon socket screw M4x20 Ck
70 922138-0 0.83 1.00
Ignition
071 168684-1 26.25 31.76
Ignition
71 168684-1 26.25 31.76
No information available, not orderable
072 412102-4
No information available, not orderable
72 412102-4
Spark plug cap
073 424302-4 2.84 3.44
Bolt M5X18mm Eh7500S
074 0119059620 1.39 1.68
Bolt M5X18mm Eh7500S
74 0119059620 1.39 1.68
Cylinder cover
075 451860-7 6.38 7.72
Cylinder cover
75 451860-7 6.38 7.72
Spacer
076 5503503001 1.67 2.02
Spacer
76 5503503001 1.67 2.02
No information available, not orderable
077 264083-6
No information available, not orderable
77 264083-6
Cylinder
078 140508-3 80.30 97.16
Cylinder
78 140508-3 80.30 97.16
Piston Ring
079 257334-4 3.12 3.78
Piston Ring
79 257334-4 3.12 3.78
Piston
080 318858-6 11.82 14.30
No information available, not orderable
80 S115313750
Needle-roller Bearing
081 212702-8 3.54 4.28
Needle-roller Bearing
81 212702-8 3.54 4.28
No information available, not orderable
082 S115323130
No information available, not orderable
82 S115323130
No information available, not orderable
083 S198343210
No information available, not orderable
83 S198343210
Crank Shaft
084 140429-9 24.16 29.23
Crank Shaft
84 140429-9 24.16 29.23
No information available, not orderable
085 S034309031
No information available, not orderable
85 S034309031
Gasket "cylinder"
086 346267-9 2.71 3.28
Gasket "cylinder"
86 346267-9 2.71 3.28
No information available, not orderable
087 0119059870
No information available, not orderable
87 0119059870
Outlet "gasket"
088 346260-3 2.84 3.44
Outlet "gasket"
88 346260-3 2.84 3.44
Muffler
089 161555-1 77.67 93.98
Muffler
89 161555-1 77.67 93.98
Exhaust Cap
090 346343-9 6.70 8.11
Exhaust Cap
90 346343-9 6.70 8.11
Screw 5x8
091 911601-8 0.83 1.00
Screw 5x8
91 911601-8 0.83 1.00
Bolt
092 266754-1 1.54 1.86
Bolt
92 266754-1 1.54 1.86
Exhaust Cap
093 451861-5 6.70 8.11
Exhaust Cap
93 451861-5 6.70 8.11
Bolt M5X18mm Eh7500S
094 0119059620 1.39 1.68
Bolt M5X18mm Eh7500S
94 0119059620 1.39 1.68
No information available, not orderable
095 0119059870
No information available, not orderable
95 0119059870
Clutch
096 141150-3 21.08 25.51
Clutch
96 141150-3 21.08 25.51
Crank Case
097 5231016000 58.07 70.26
Crank Case
97 5231016000 58.07 70.26
No longer available, no replacement
098 213148-1
No longer available, no replacement
98 213148-1
Ball bearing 6000
099 211064-1 5.71 6.91
Ball bearing 6000
99 211064-1 5.71 6.91
Crankcase Gasket
100 413139-4 1.75 2.12
No longer available, no replacement
101 213148-1
No information available, not orderable
102 0119059870
Flywheel Assy Eh7500S A
103 126046-9 11.82 14.30
No information available, not orderable
104 S020109118
No information available, not orderable
105 125770-1
No information available, not orderable
106 125770-1
No information available, not orderable
107 125770-1
Damping rubber
108 424080-6 0.83 1.00
Fuel tank EH7500S A
109 458743-2 10.50 12.70
Gas hose
110 168568-3 5.06 6.12
Hose clamp IAS 3
111 345920-4 0.83 1.00
Fuel filter
112 163518-3 3.12 3.78
Bolt M5X20mm Eh7500S
113 0119059350 1.24 1.50
Spacer
114 452197-5 1.24 1.50
Wing bolt M4
115 265791-2 0.83 1.00
No information available, not orderable
116 8006P3-0
Air filter cover
117 451859-2 3.54 4.28
Air Filter A
118 443157-8 1.39 1.68
Air filter B
119 443158-6 1.67 2.02
Bolt 5X60 Rbc310
120 0119059710 1.18 1.43
Mounting plate Ebh253U A
121 346647-9 1.67 2.02
Plate for Air Filter
122 126029-9 5.98 7.24
Feeding tube
123 412097-1 1.24 1.50
Fuel Pump DCS230T A
124 168398-2 4.45 5.38
Gasket, carburetor
124 413158-0 0.83 1.00
CABLE SUPPORT
125 346334-0 2.71 3.28
Carburetor
126 168569-1 51.83 62.71
Screw
127 WJ00096325 1.67 2.02
Cover Ea3201S A
128 WJ00021158 2.10 2.54
Diaphragm
129 168620-7 13.82 16.72
Gasket Ht2350/60D A
130 442183-4 2.02 2.44
Pump Housing
131 140661-5 18.04 21.83
No information available, not orderable
132 352010-6
Pump diaphragm
133 WJ00009599 3.96 4.79
No information available, not orderable
134 5926002040
Pointer
135 326005-5 9.24 11.18
O-ring 2
136 213538-8 2.02 2.44
No information available, not orderable
137 5206008030
No information available, not orderable
138 5236018040
No information available, not orderable
139 5236018040
Seegering E-3 A
140 257964-1 2.02 2.44
Inlet Manifold Gasket
141 413147-5 2.84 3.44
Gas & control cable
142 6014021000 30.91 37.40
Throttle Wire Comp.
143 168626-5 13.82 16.72
No information available, not orderable
144 264049-6
Lock Lever
145 451934-4 6.38 7.72
Spring
146 6195006050 1.39 1.68
Throttle handle knob
147 6215022030 8.27 10.01
Screw 4x20
148 6195006060 1.20 1.45
No information available, not orderable
149 0119059980
Reinforcement plate
152 346662-3 1.24 1.50
Flange nut M5
153 0023705000 0.83 1.00
Metric screw Ck
154 266572-7 0.83 1.00

There are 0 items in your shopping basket.
