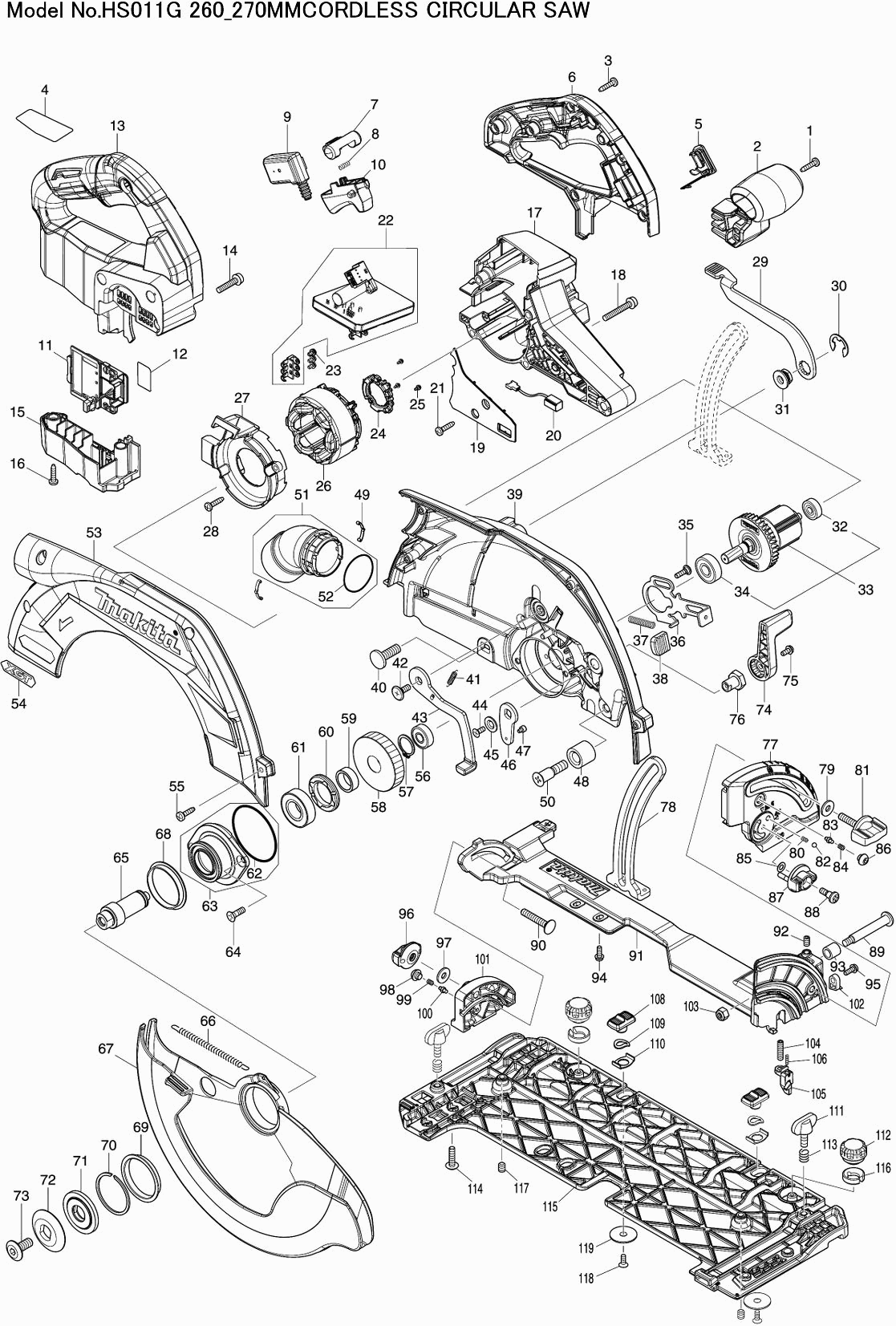

Technical drawing of model Makita HS011G
Spare parts list of model Makita HS011G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| TAPSCHR 4X18MM DGA520 A | ||||
| 001 | 265B67-9 | 1.00 | 1.21 | |
| Front handle HS009/10 | ||||
| 002 | 413C21-5 | 7.20 | 8.71 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 003 | 265B67-9 | 1.00 | 1.21 | |
| Nameplate HS011G | ||||
| 004 | 8115P7-1 | 1.00 | 1.21 | |
| Cover Cap DGA701 | ||||
| 005 | 140F99-0 | 2.40 | 2.90 | |
| O-ring 16 SP001G | ||||
| 005C10 | 213A05-9 | 1.00 | 1.21 | |
| Handle set HS009/010G | ||||
| 006 | 183U47-6 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 006C10 | 263005-3 | 1.00 | 1.21 | |
| Lock button Kp0810/C | ||||
| 007 | 419704-7 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 008 | 231433-0 | 1.00 | 1.21 | |
| Switch HS009/010G | ||||
| 009 | 650008-0 | 22.00 | 26.62 | |
| Switch lever HS009/010G | ||||
| 010 | 413C24-9 | 1.20 | 1.45 | |
| Control unit GA-40V series | ||||
| 011 | 632P65-6 | 8.40 | 10.16 | |
| Serial number label HS011G | ||||
| 012 | 8115R6-7 | 2.40 | 2.90 | |
| Handle set HS009/010G | ||||
| 013 | 183U47-6 | 17.60 | 21.30 | |
| Screw 5x25 | ||||
| 014 | 911243-8 | 1.00 | 1.21 | |
| Connection Unit Housing HS009/010G | ||||
| 015 | 141G16-9 | 3.60 | 4.36 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 016 | 265B67-9 | 1.00 | 1.21 | |
| Motor housing HS011G | ||||
| 017 | 413C33-8 | 17.60 | 21.30 | |
| Screw 5x36 | ||||
| 018 | 911258-5 | 1.00 | 1.21 | |
| Light cover HS011G | ||||
| 019 | 413C34-6 | 2.40 | 2.90 | |
| LED circuit DHR680 | ||||
| 020 | 620936-3 | 8.40 | 10.16 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 021 | 265B67-9 | 1.00 | 1.21 | |
| Controller HS011G | ||||
| 022 | 620J00-0 | 107.80 | 130.44 | |
| Phillips Head Screw M3X6 | ||||
| 023 | 652069-6 | 1.00 | 1.21 | |
| Sensor set RS002G | ||||
| 024 | 632R96-7 | 22.00 | 26.62 | |
| Met. screw M2x5mm RS002G | ||||
| 025 | 652093-9 | 1.00 | 1.21 | |
| Armature RS002G | ||||
| 026 | 629A40-1 | 19.80 | 23.96 | |
| Intermediate plate HS009/010G | ||||
| 027 | 413C22-3 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 028 | 265B67-9 | 1.00 | 1.21 | |
| 132mm Lever DHS900 | ||||
| 029 | 271453-2 | 2.40 | 2.90 | |
| Lock Ring E-12 | ||||
| 030 | 257953-6 | 1.00 | 1.21 | |
| Locknut DHS782 | ||||
| 031 | 252262-8 | 9.60 | 11.62 | |
| Ball bearing 626zz | ||||
| 032 | 210143-2 | 3.60 | 4.36 | |
| Armature assembly HS011G | ||||
| 033 | 519730-7 | 29.70 | 35.94 | |
| Ball bearing 6000ddw | ||||
| 034 | 211289-7 | 13.20 | 15.97 | |
| Metal Screw M4x14mm DHS782 | ||||
| 035 | 251529-1 | 1.00 | 1.21 | |
| Axis Lock HS003/4G | ||||
| 036 | 347676-5 | 2.40 | 2.90 | |
| Compression Spring 6 5903R | ||||
| 037 | 233084-5 | 1.00 | 1.21 | |
| Baffle | ||||
| 038 | 286039-9 | 1.00 | 1.21 | |
| Complete saw cap HS011G | ||||
| 039 | 141G26-6 | 53.90 | 65.22 | |
| O-ring 26 | ||||
| 039C10 | 213434-0 | 1.00 | 1.21 | |
| Scale distribution label HS011G | ||||
| 039C30 | 8046A4-5 | 2.40 | 2.90 | |
| Carriage bolt 8x25 | ||||
| 040 | 266396-1 | 1.00 | 1.21 | |
| Tension Spring 4mm DHS900 | ||||
| 041 | 232563-0 | 1.00 | 1.21 | |
| Met.screw M5x14mm | ||||
| 042 | 265A60-7 | 1.00 | 1.21 | |
| Lever DHS900 | ||||
| 043 | 162686-9 | 3.60 | 4.36 | |
| Countersunk screw 4x10 | ||||
| 044 | 265135-6 | 1.00 | 1.21 | |
| Washer 6mm DHS900 | ||||
| 045 | 347577-7 | 1.00 | 1.21 | |
| Mounting plate DHS900 | ||||
| 046 | 347576-9 | 1.20 | 1.45 | |
| Allen Head Bolt M3x4mm DHS900 | ||||
| 047 | 265A82-7 | 1.00 | 1.21 | |
| Rubber bushing 10 RS002G | ||||
| 048 | 262200-2 | 2.40 | 2.90 | |
| Leaf spring HS010G | ||||
| 049 | 232674-1 | 1.00 | 1.21 | |
| Metric screw M8x35mm RS002G | ||||
| 050 | 265B77-6 | 1.20 | 1.45 | |
| STOFAFZUIGADAPTER CIRKELZAAG | ||||
| 051 | 136173-4 | 1.00 | 1.21 | |
| O-Ring 30 4100Kb | ||||
| 052 | 213444-7 | 1.00 | 1.21 | |
| Saw Cover HS011G | ||||
| 053 | 312C21-1 | 33.00 | 39.93 | |
| Label XGT UB001G | ||||
| 054 | 8030S0-0 | 2.40 | 2.90 | |
| Tapping Screw Ct4x16 | ||||
| 055 | 266034-5 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 056 | 210046-0 | 1.20 | 1.45 | |
| Lock ring S-17 | ||||
| 057 | 961057-5 | 1.00 | 1.21 | |
| Gear Wheel 49 HS011G | ||||
| 058 | 227918-2 | 4.80 | 5.81 | |
| Ring 17 DHS782 | ||||
| 059 | 257451-0 | 1.20 | 1.45 | |
| Bearing Lock 23-36 Ga7010 | ||||
| 060 | 285809-3 | 2.40 | 2.90 | |
| Ball Bearing 6003ddw | ||||
| 061 | 210301-0 | 6.00 | 7.26 | |
| O-ring 53 | ||||
| 062 | 213676-6 | 1.00 | 1.21 | |
| Bearing Housing HS011G | ||||
| 063 | 136649-1 | 4.80 | 5.81 | |
| Countersunk screw 5x13 | ||||
| 064 | 265034-2 | 1.00 | 1.21 | |
| Axis HS011G | ||||
| 065 | 327923-0 | 3.60 | 4.36 | |
| Tension Spring 7 HS011G | ||||
| 066 | 232726-8 | 2.40 | 2.90 | |
| Safety Cover HS011G | ||||
| 067 | 312C22-9 | 26.40 | 31.94 | |
| Spacer bush HS011G | ||||
| 068 | 413C35-4 | 1.20 | 1.45 | |
| Spacer bush HS011G | ||||
| 069 | 413C35-4 | 1.20 | 1.45 | |
| Borgring WR-40 DHS782 | ||||
| 070 | 257452-8 | 1.20 | 1.45 | |
| Inner flange 42 HS011G | ||||
| 071 | 224621-6 | 4.80 | 5.81 | |
| Outer flange 42 HS011G | ||||
| 072 | 224619-3 | 4.80 | 5.81 | |
| Hex Socket Screw M8 DHS900 | ||||
| 073 | 265A59-2 | 1.00 | 1.21 | |
| 55mm Lever DHS900 | ||||
| 074 | 271451-6 | 2.40 | 2.90 | |
| Screw 4X10 | ||||
| 075 | 911113-1 | 1.00 | 1.21 | |
| Nut 4k M4x16mm DHS900 | ||||
| 076 | 252275-9 | 1.20 | 1.45 | |
| Adjustable Plate HS009G | ||||
| 077 | 312C17-2 | 16.50 | 19.96 | |
| HS011G Depth Stop | ||||
| 078 | 347913-7 | 4.80 | 5.81 | |
| Washer 6 | ||||
| 079 | 253111-2 | 1.00 | 1.21 | |
| Compression Spring 4 | ||||
| 080 | 233314-4 | 1.00 | 1.21 | |
| Screw M6x26 | ||||
| 081 | 265776-8 | 1.20 | 1.45 | |
| Steel ball 4 | ||||
| 082 | 216008-6 | 1.00 | 1.21 | |
| Kraagpen 3-5 DHS782/83 | ||||
| 083 | 263041-9 | 1.00 | 1.21 | |
| Compression Spring 3,5 Hr2400 | ||||
| 084 | 231234-6 | 2.40 | 2.90 | |
| Lock washer 5 | ||||
| 085 | 253811-4 | 1.00 | 1.21 | |
| Hex bolt M6x4 | ||||
| 086 | 266559-9 | 2.40 | 2.90 | |
| Adjustment knob 27mm DHS900 | ||||
| 087 | 450704-8 | 1.20 | 1.45 | |
| Screw M5 | ||||
| 088 | 251370-2 | 1.20 | 1.45 | |
| Metal screw M6 | ||||
| 089 | 251528-3 | 1.00 | 1.21 | |
| Carriage bolt M6x35mm DHS900 | ||||
| 090 | 266332-7 | 1.00 | 1.21 | |
| Complete frame HS011G | ||||
| 091 | 141G25-8 | 33.00 | 39.93 | |
| Hexagon Bolt 5x8 | ||||
| 092 | 266229-0 | 1.00 | 1.21 | |
| Washer 8 DHS900 | ||||
| 093 | 257580-9 | 1.20 | 1.45 | |
| Metal Screw M4x12mm DHS900 | ||||
| 094 | 265A84-3 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 095 | 911116-5 | 1.00 | 1.21 | |
| Star knob M6 | ||||
| 096 | 252270-9 | 2.40 | 2.90 | |
| Washer 6 | ||||
| 097 | 253111-2 | 1.00 | 1.21 | |
| Hex bolt M6x4 | ||||
| 098 | 266559-9 | 2.40 | 2.90 | |
| Compression Spring 3,5 Hr2400 | ||||
| 099 | 231234-6 | 2.40 | 2.90 | |
| Kraagpen 3-5 DHS782/83 | ||||
| 100 | 263041-9 | 1.00 | 1.21 | |
| Adjustable Plate HS009G | ||||
| 101 | 312C18-0 | 12.10 | 14.64 | |
| Identification plate Sp6000 | ||||
| 102 | 419632-6 | 1.20 | 1.45 | |
| Locknut 6-10 | ||||
| 103 | 252014-7 | 1.00 | 1.21 | |
| Adjustment Screw M5x20mm DHS900 | ||||
| 104 | 265A83-5 | 1.00 | 1.21 | |
| Guide DHS900 | ||||
| 105 | 412210-1 | 2.40 | 2.90 | |
| Pressure Spring 2 | ||||
| 106 | 233025-1 | 1.00 | 1.21 | |
| Slide plate Dsp600 | ||||
| 108 | 458092-7 | 2.40 | 2.90 | |
| Spring Washer 10 | ||||
| 109 | 253932-2 | 1.00 | 1.21 | |
| Closing Plate | ||||
| 110 | 345977-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 111 | 265701-9 | |||
| Screw M4x3 | ||||
| 112 | 265775-0 | 2.40 | 2.90 | |
| Compression Spring 8 | ||||
| 113 | 233376-2 | 1.00 | 1.21 | |
| Crosshead screw 5x20mm | ||||
| 114 | 265181-9 | 1.00 | 1.21 | |
| Base HS011G | ||||
| 115 | 312C23-7 | 44.00 | 53.24 | |
| Holder | ||||
| 116 | 419627-9 | 1.20 | 1.45 | |
| Hexagonal Bolt M6 | ||||
| 117 | 266225-8 | 1.00 | 1.21 | |
| Countersunk screw 4x10 | ||||
| 118 | 912112-6 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 119 | 345748-0 | 1.20 | 1.45 | |
