Here you will find all available parts and drawings of the 'Makita HS010GT201'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

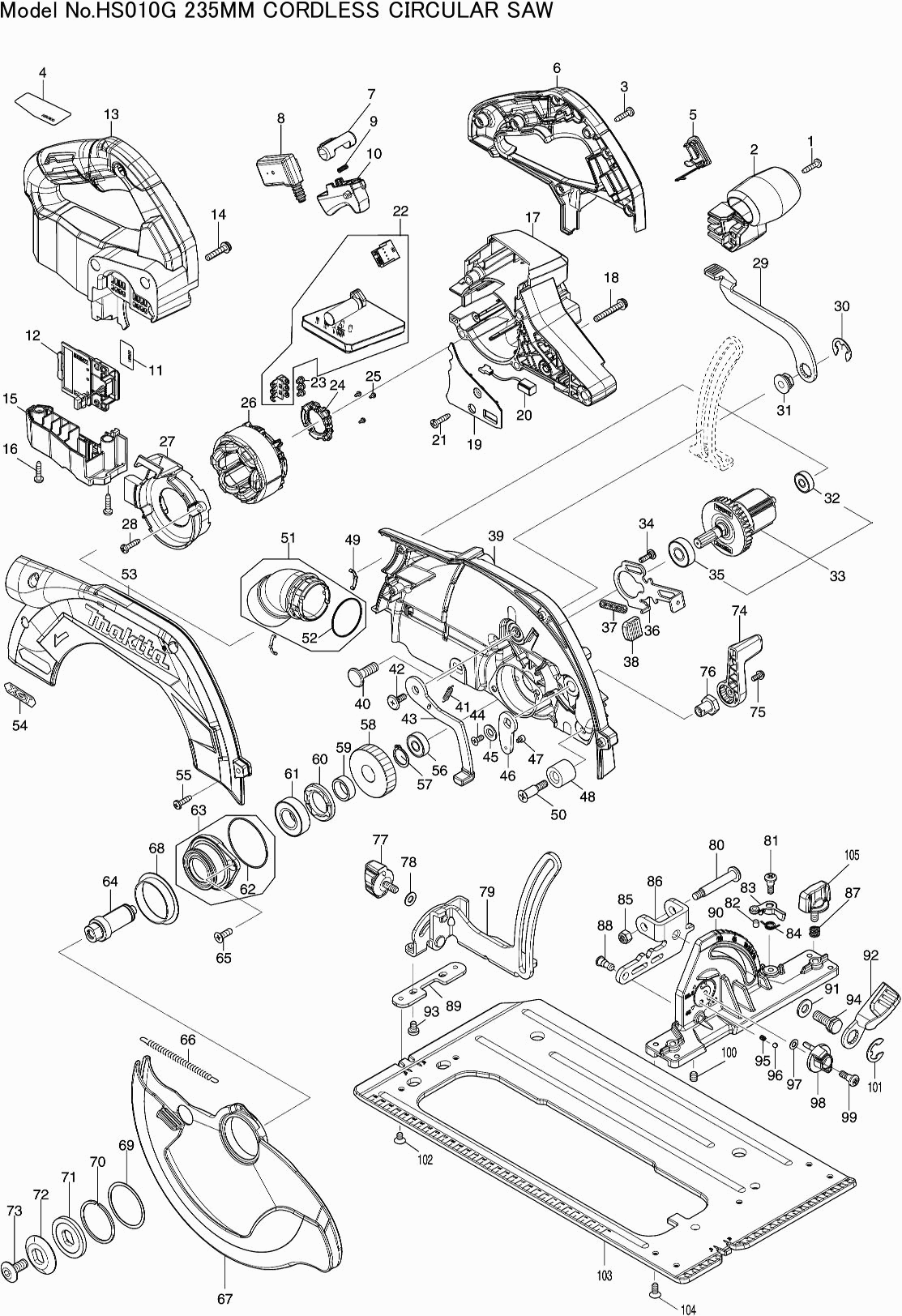

Technical drawing of model Makita HS010GT201

Spare parts list of model Makita HS010GT201

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
001 266326-2
Front handle HS009/10
002 413C21-5 6.55 7.93
No information available, not orderable
003 266326-2
Nameplate HS010G
004 8114R3-7 0.83 1.00
Cover Cap DGA701
005 140F99-0 2.36 2.86
O-ring 16 SP001G
005C10 213A05-9 0.83 1.00
Handle set HS009/010G
006 183U47-6 17.45 21.11
Rubber pen 6
006C10 263005-3 0.83 1.00
Lock button Kp0810/C
007 419704-7 1.46 1.77
Switch HS009/010G
008 650008-0 20.91 25.30
Compression Spring 4
009 231433-0 0.83 1.00
Switch lever HS009/010G
010 413C24-9 0.83 1.00
No information available, not orderable
011 8114R5-3
Control unit GA-40V series
012 632P65-6 8.21 9.93
Handle set HS009/010G
013 183U47-6 17.45 21.11
Rubber pen 6
013C10 263005-3 0.83 1.00
Screw 5x25
014 911243-8 0.83 1.00
Connection Unit Housing HS009/010G
015 141G16-9 3.22 3.90
Rubber pen 6
015C10 263005-3 0.83 1.00
No information available, not orderable
016 266326-2
Motor casing HS009/010G
017 413C17-6 11.09 13.42
Screw 5x36
018 911258-5 0.83 1.00
Light cover HS009/010G
019 413C23-1 0.89 1.08
LED circuit DHR680
020 620936-3 8.21 9.93
No information available, not orderable
021 266326-2
Controller HS009/010G
022 620H80-4 101.64 122.98
Phillips Head Screw M3X6
023 652069-6 0.83 1.00
Sensor set RS002G
024 632R96-7 21.08 25.51
Met. screw M2x5mm RS002G
025 652093-9 0.83 1.00
Armature RS002G
026 629A40-1 19.12 23.14
Intermediate plate HS009/010G
027 413C22-3 1.51 1.83
No information available, not orderable
028 266326-2
132mm Lever DHS900
029 271453-2 1.39 1.68
Lock Ring E-12
030 257953-6 0.83 1.00
Locknut DHS782
031 252262-8 9.24 11.18
Ball bearing 626zz
032 210143-2 2.71 3.28
Armature assembly HS009/010G
033 519721-8 27.84 33.69
Metal Screw M4x14mm DHS782
034 251529-1 0.83 1.00
Ball bearing 6000ddw
035 211289-7 12.22 14.79
Axis Lock HS003/4G
036 347676-5 1.67 2.02
Compression Spring 6 5903R
037 233084-5 0.83 1.00
Baffle
038 286039-9 0.83 1.00
Complete saw cap HS009/010G
039 141G17-7 37.88 45.83
O-ring 26
039C10 213434-0 0.83 1.00
Rubber pen 6
039C20 263005-3 0.83 1.00
Label scale DHS900
039C30 8004T1-0 0.83 1.00
Carriage bolt 8x25
040 266396-1 0.83 1.00
Tension Spring 4mm DHS900
041 232563-0 0.83 1.00
Met.screw M5x14mm
042 265A60-7 0.83 1.00
Lever DHS900
043 162686-9 3.12 3.78
Countersunk screw 4x10
044 265135-6 0.83 1.00
Washer 6mm DHS900
045 347577-7 0.83 1.00
Mounting plate DHS900
046 347576-9 0.98 1.19
Allen Head Bolt M3x4mm DHS900
047 265A82-7 0.83 1.00
Rubber bus 8 DHS782
048 262185-2 2.02 2.44
Leaf spring HS010G
049 232674-1 0.83 1.00
Metal screw M6x30mm DHS782
050 251572-0 0.83 1.00
Stofafzuigadapter cirkelzaag
051 136173-4 1.00 1.21
O-Ring 30 4100Kb
052 213444-7 0.83 1.00
Sawing Hood Cap HS009/010G
053 312C12-2 22.99 27.82
No information available, not orderable
054 8032A7-2
Tapping Screw Ct4x16
055 266034-5 0.83 1.00
Ball Bearing 608Zz A
056 210046-0 0.83 1.00
Lock ring S-17
057 961057-5 0.83 1.00
Gear 46mm DHS900
058 226934-1 4.45 5.38
Ring 17 DHS782
059 257451-0 0.98 1.19
Bearing Lock 23-36 Ga7010
060 285809-3 2.10 2.54
Ball Bearing 6003ddw
061 210301-0 5.80 7.02
O-ring 46
062 213623-7 0.83 1.00
Bearing Housing DHS900
063 136192-0 4.45 5.38
Cutting Axis DHS782
064 327192-3 3.12 3.78
Countersunk screw 5x13
065 265034-2 0.83 1.00
Tension Spring 6mm DHS900
066 232562-2 1.18 1.43
Safety Cover HS009/010G
067 312C14-8 20.91 25.30
Distance Bush DHS900
068 459830-0 0.98 1.19
Washer 40
069 267337-0 0.83 1.00
Borgring WR-40 DHS782
070 257452-8 0.98 1.19
Inner Flange 40
071 224360-8 9.67 11.70
Outer flange 38mm DHS900
072 224600-4 1.66 2.01
Hex Socket Screw M8 DHS900
073 265A59-2 0.83 1.00
55mm Lever DHS900
074 271451-6 1.39 1.68
Screw 4X10
075 911113-1 0.83 1.00
Nut 4k M4x16mm DHS900
076 252275-9 1.18 1.43
Wing bolt 6x14mm
077 265798-8 0.98 1.19
Washer 6x12mm
078 941151-9 0.83 1.00
Depth stop HS010G
079 162813-8 9.80 11.86
Met.screw. M6 HS010G
080 251220-1 0.83 1.00
Screw M5
081 251370-2 0.83 1.00
Hexagon bolt 5x6
082 266264-8 0.83 1.00
No information available, not orderable
083 319239-7
Compression Spring 7
084 231665-9 0.83 1.00
Locknut 6-10
085 252014-7 0.83 1.00
Verstekaanslag HS010G
086 347689-6 4.03 4.88
Compression Spring 8
087 233376-2 0.93 1.13
Collar pin 6-7
088 256351-1 0.83 1.00
Plate
089 347124-4 0.83 1.00
Angular Plate HS010G
090 312C19-8 17.45 21.11
Washer 8
091 941202-8 0.83 1.00
Lever 56 HS010G
092 271461-3 1.82 2.20
Met.schr. M5x8mm HS010G
093 265B04-3 0.83 1.00
Inbusbout M8x20mm HS010G
094 265B05-1 0.83 1.00
Compression Spring 4
095 233314-4 0.83 1.00
Steel ball 4
096 216008-6 0.83 1.00
Lock washer 5
097 253811-4 0.83 1.00
Rotary knob 27mm HS010G
098 412510-9 0.83 1.00
Screw M5
099 251370-2 0.83 1.00
No information available, not orderable
100 266208-8
Lock Ring E-12
101 257953-6 0.83 1.00
Countersunk screw 5x8
102 912202-5 0.83 1.00
Base Plate HS010G
103 347688-8 30.87 37.35
Countersunk screw 5x12
104 912212-2 0.83 1.00
Wing bolt 6x14mm
105 265798-8 0.98 1.19
